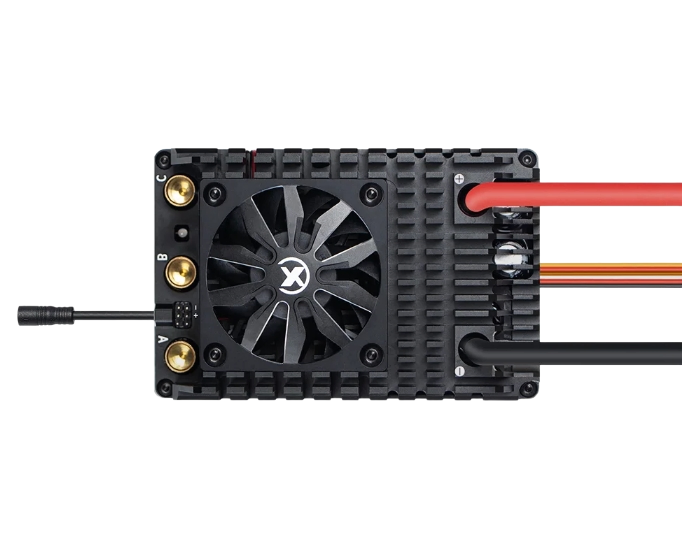

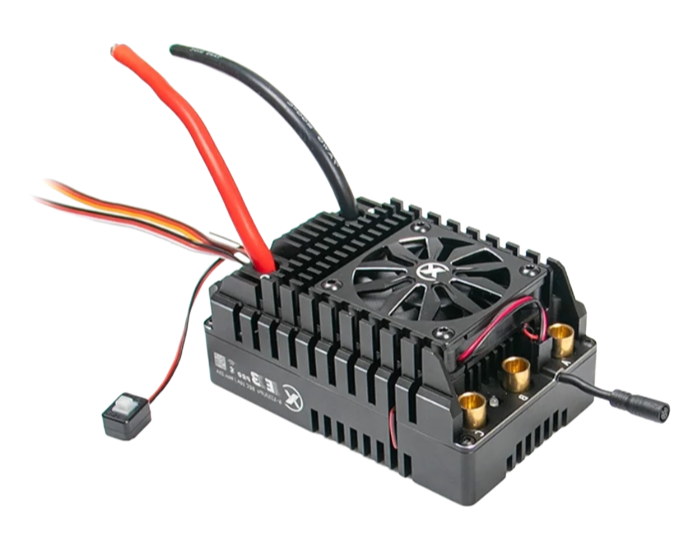

If you're pushing a 1/5 scale rig that weighs 15 pounds or more, the 400A continuous rating on this ESC is what keeps it from cooking mid-run — most lower-end units hit thermal limits around 300A and start stuttering. You've got adjustable turbo timing from 0 to 26 degrees, which basically lets you dial in punch for hill climbs or smooth out acceleration for bashing on loose dirt. But it's not for smaller scale stuff; 1/10 scale cars won't even fit this thing physically at 127mm long and 782 grams with wires attached.
It handles 6S to 12S LiPo packs, so you can run it hard on a single 12S without needing a secondary BEC for your servos — the built-in BEC pushes 10A continuous and peaks at 25A, adjustable form 6.0V to 8.4V. The aluminun heatsink with the 60mm fan kicks in automatically at 55°C, and what it does is keep temps below 70°C even after 20 minutes of full-throttle runs in summer heat. And the waterproff rating is IP67, so a mud puddle splash or light rain won't kill it — just rinse it off after.
We've been shipping these for about 18 months now, and the Bluetooth module is built right into the board — no external dongle needed, which is nice because those always get lost. The mobile app lets you tweak throttle curve, brake force, and timing on the fly, and it logs max RPM and tempearture data so you can spot issues before they smoke a motor. Honestly, most buyers go with the 7.4V BEC setting for high-voltge servos, but confirm your servo's it first.
Every unit goes through a bench test before it leaves here — mostly a 30-second full-throttle run on 12S with a 2028 motor to verify current draw stays within spec. We've got CE certs on file, and the MOQ is 10 pieces if you're buying wholesale, but we usually have stock for single orders too (check lead time, usually 2-4 weeks). One thing you wouldn't think to ask: the wire gauge is 10 AWG for the battery side and 12 AWG for motor side, which matters if you're running high-amp setups that need thick conductors.
It works with both sensored and sensorless BLDC motors, so you can use whatever motor you've already got in your 1/5 scale rig.
For 50 units, we can ship within 10-15 working days after order confirmation and payment.
Yes, we include a copy of the CE certificate in every shipment, and we can send a PDF ahead of time if your compliance team needs it.
Absolutely — you can switch the BEC between 6.0V, 7.4V, and 8.4V using the mobile app, so 8.4V is ready to go for high-voltage servos without any extra parts.
The whole unit is IP67-rated, including the casing and connectors, so it's fully protected against dust and can handle being submerged in up to 1 meter of water for 30 minutes.
