Handles up to 1000V and 400A continuous, so it's for serious power distribution work—not light residential stuff, basically.

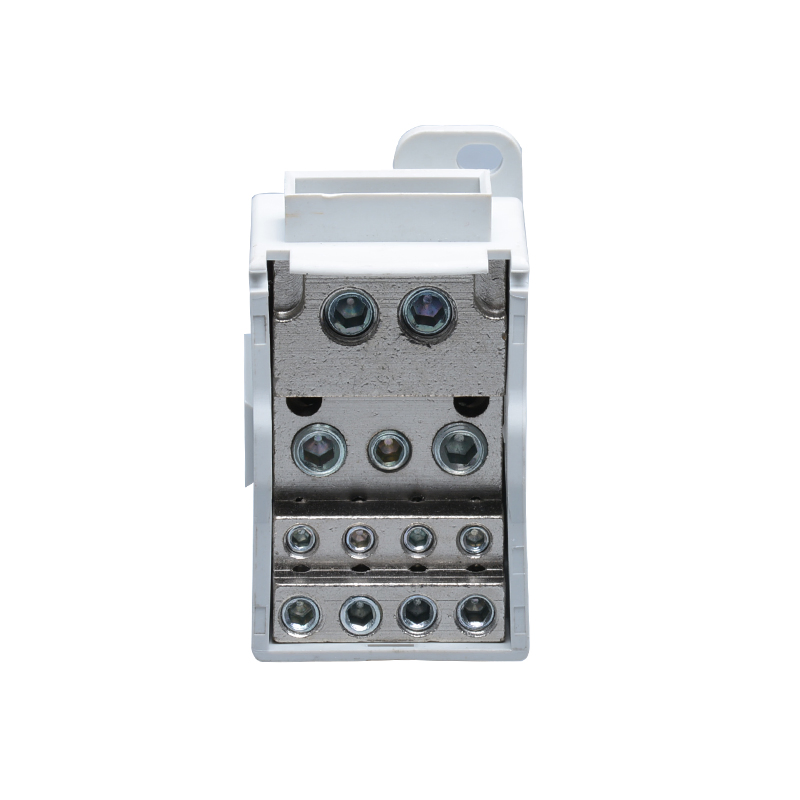

Brass terminals with copper galvanized body keep contact resisance at or below 0.5mΩ, which matters when you're pushing 120mm² wire through it.
We've got UL, VDE, and CE certs on file (usually 2-4 weeks for full paperwork), so inspection won't hold you up.

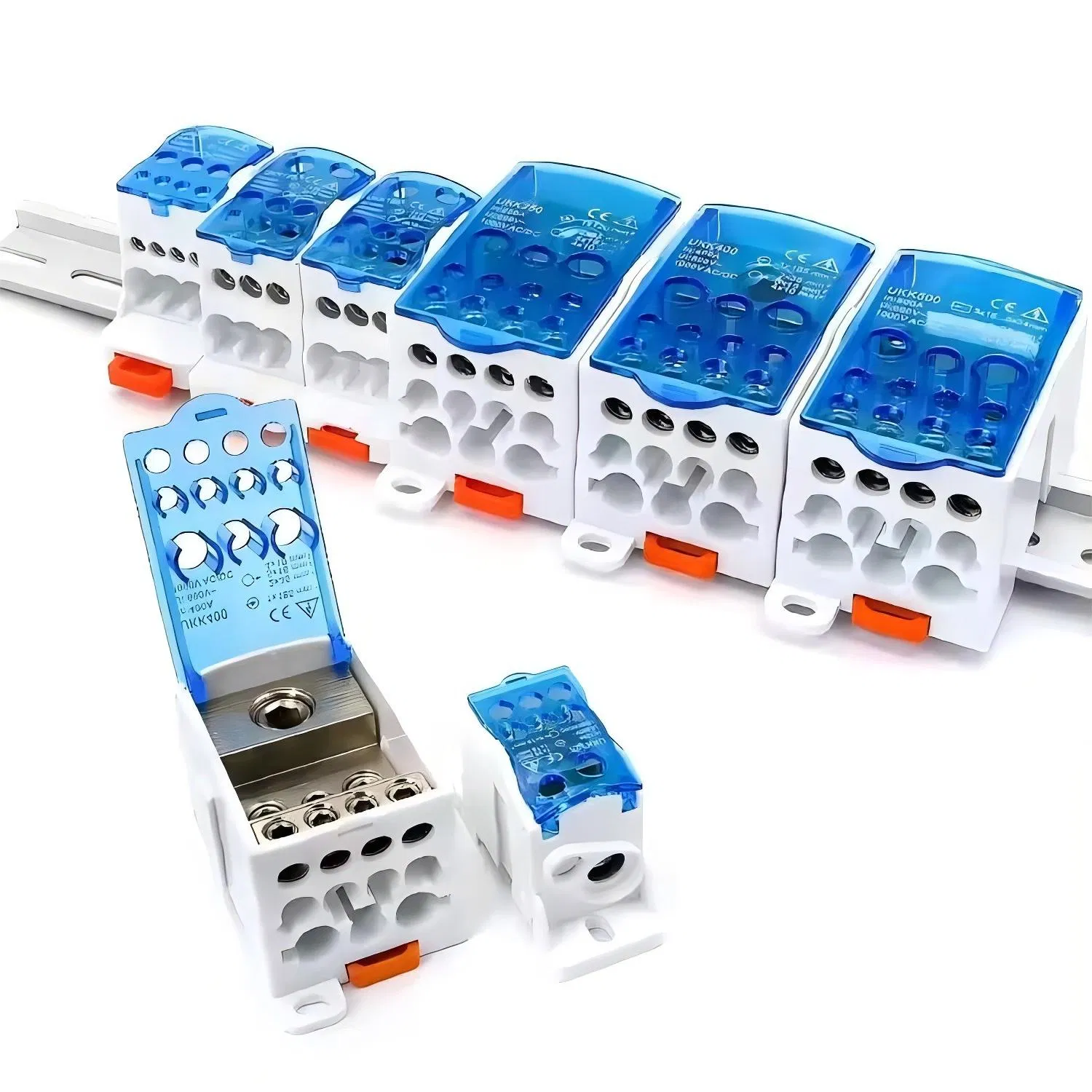

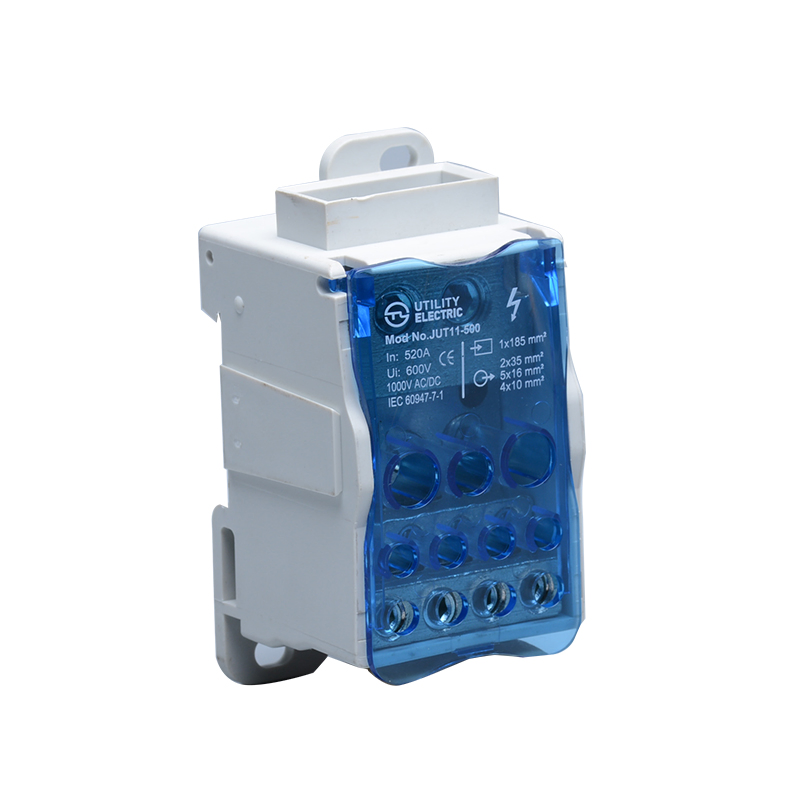

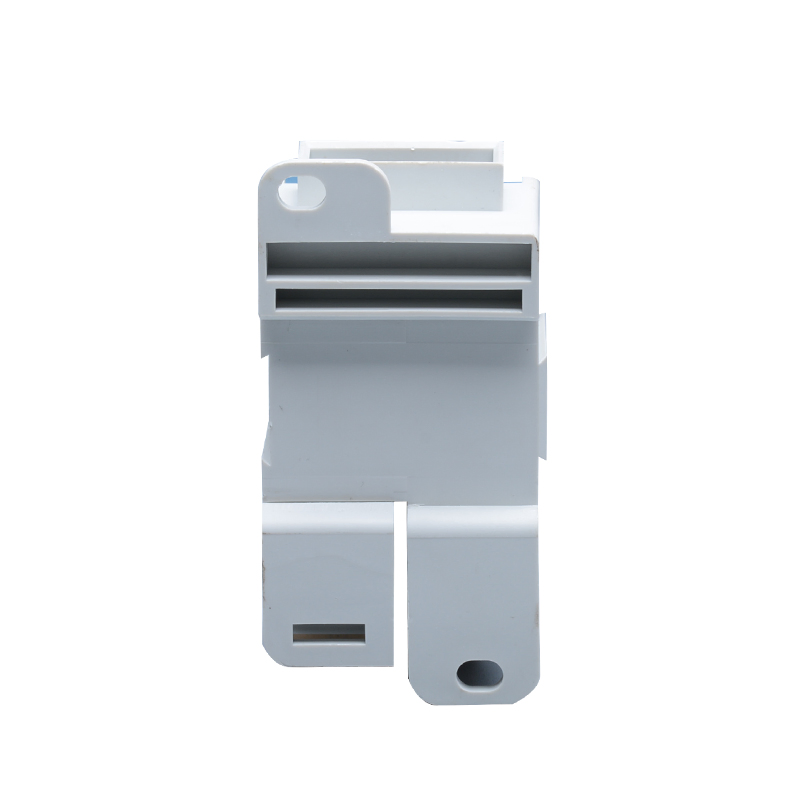

Transparent PC cover lets you see connections without opening it, and it mounts on standdard DIN rail.
One thing though—it's not meant for fine signal wiring or low-votage control panels; teh screw terminals are sized for heavy conductors only.
Stock typically runs 50 units or so, but confirm lead time if you need more than that.
Our standard MOQ is 50 pieces, but we can adjust for sample orders or larger bulk deals—just ask.
It's UL, VDE, and CE certified. We can share the cert copies with your order confirmation.
Yes, it's rated for 400A and 1000V, but make sure your wire is properly torqued in the brass terminal to keep contact resistance under 0.5mΩ.
It accepts wires from 10mm² up to 120mm². Use the right screw torque for your gauge to avoid overheating.
Keep them in a dry place at room temperature, away from direct sunlight. The transparent PC cover is durable but avoid stacking heavy items on the boxes.
Just received my order and the shipping was remarkably fast. The package arrived securely and ahead of schedule, which was a pleasant surprise. Judging by the sturdy packaging, great care was taken to prevent any damage during transit. The quality of the terminal block itself appears excellent upon initial inspection; the brass components feel solid and well-made, and the certifications listed give me confidence in its reliability for my project. The service from the seller was also commendable; communication was clear and helpful throughout the process. Overall, a very satisfactory experience from start to finish.
