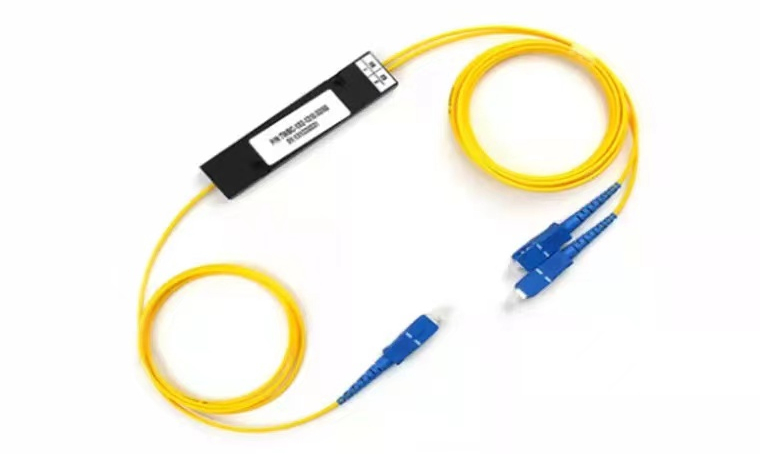

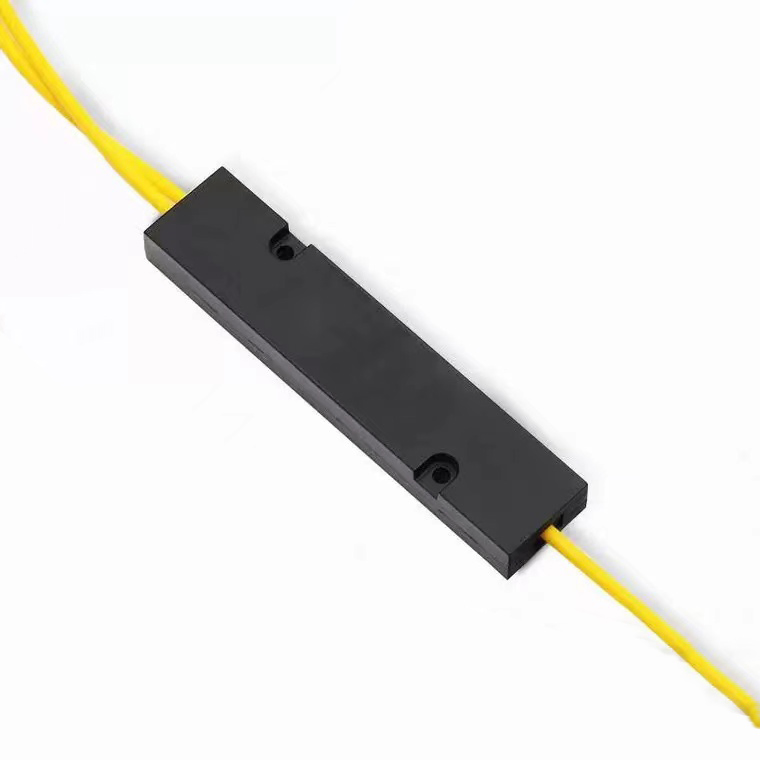

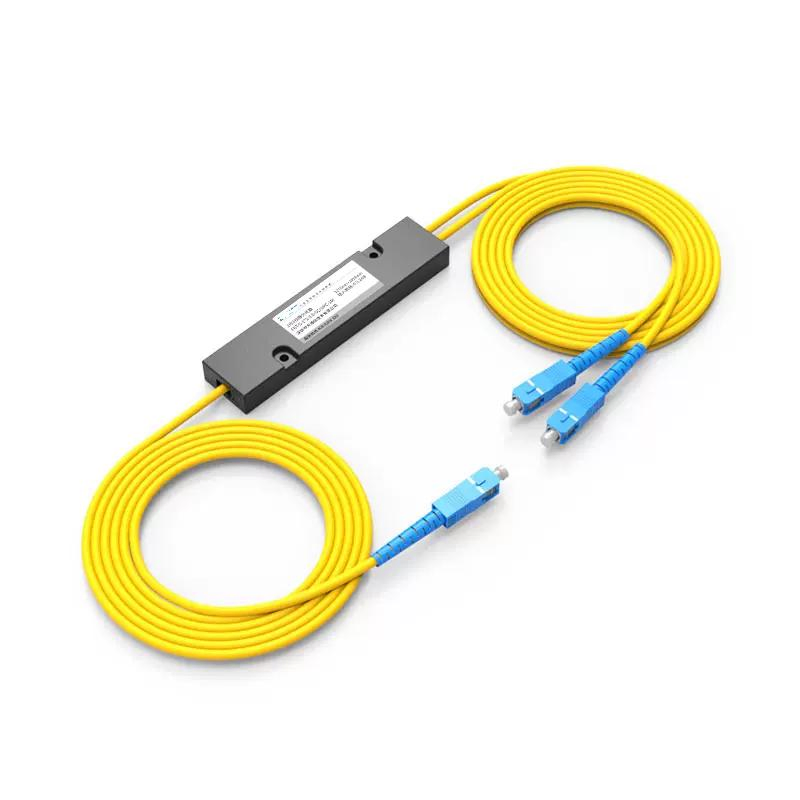

The planar waveguide PLC splitter is an integrated optical power distribution device based on quartz substrate technology. This passive optical component delivers exceptional performance for modern fiber optic networks with its compact size, broad wavelength compatibility, and outstanding reliability.
Our inserted/plug-in type cassette box PLC splitters feature modular construction for easy system expansion. The innovative design integrates optical splitters with adapters, significantly improving installation efficiency while protecting pigtails from construction damage. The green adapter marking ensures quick identification of incoming fibers.
Available in standard configurations from 1x4 to 1x64 (occupying 1-8 slots) and 2x4 to 2x64, these splitters support various connector types including FC, SC, ST, and LC. The slot-based installation design offers exceptional flexibility for network deployment.
Key technical specifications include insertion loss ≤0.3dB, return loss ≥50dB, and stable performance across -40°C to +75°C operating temperatures. The devices maintain excellent spectral uniformity across 1310nm and 1550nm wavelengths.
These PLC splitters are widely used in:
- FTTH/PON network deployments
- Local area network infrastructure
- Optical CATV systems
- Fiber optic test equipment
- Industrial sensing applications
All products meet CE, ISO, and RoHS compliance standards. Custom configurations including special connector combinations and split ratios are available for bulk orders.
