We’ve got a guy in teh shop who builds 3-inch freestyle quads, and he kept burning through the cheap all-in-one camera/VTX combos — they’d overheat or the video would glitch out mid-flight, so I picked this 5MP module as a dedicated drop-in replacement.

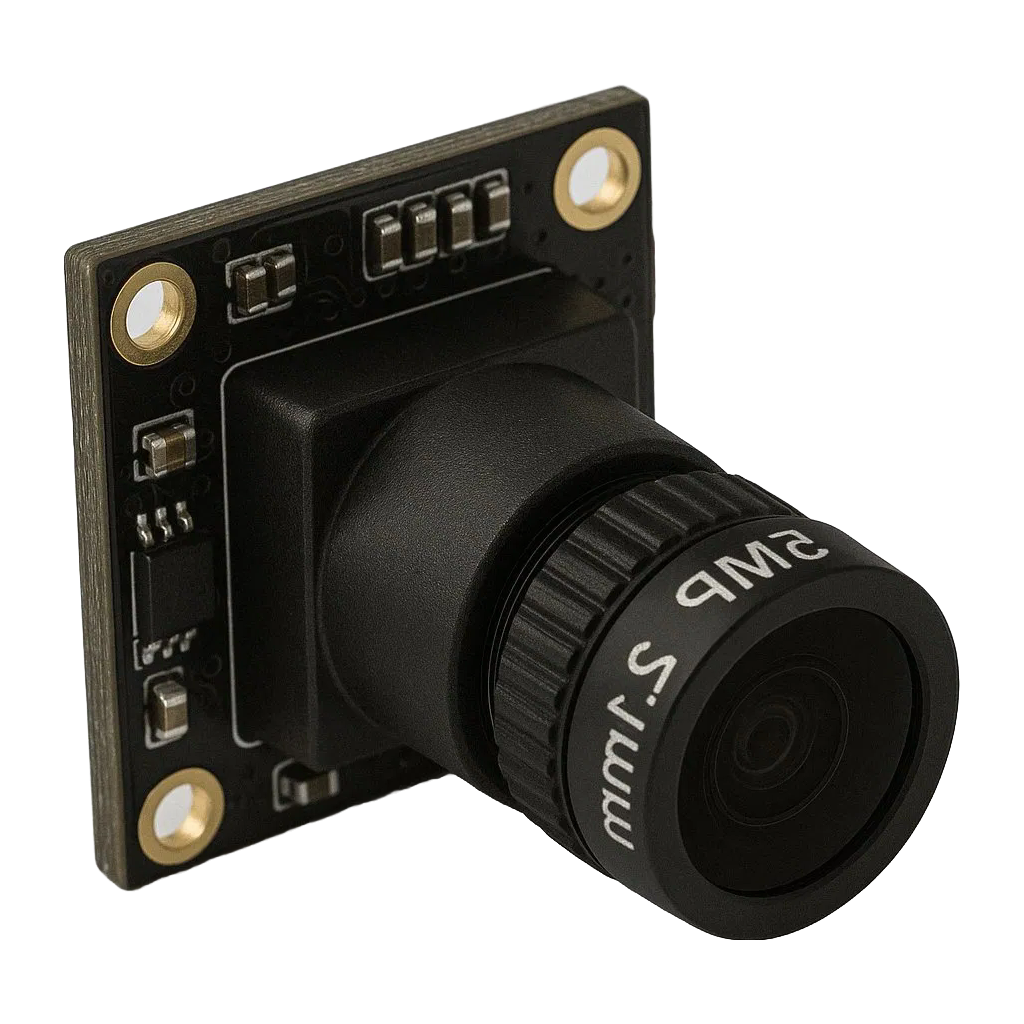

It runs on 5V DC, pulls 30fps at 1080P through a 2.1mm wide-angle lens with a 120° field of view, and the whole PCB is 32×32×16mm — weighs 20g or so, which is tight for a 20x20 stack but we’ve got standoffs to fit it.
RTSP streaming means you can pipe video to a ground station or a phone over WiFi if you’re not flying FPV, though I’ll be honest — Betaflight OSD support is partial, so not every config screen maps cleanly; it’s better for racing than for cinematic work where you’d want a lower latency analog feed.
MOQ is 5 units, lead time runs roughly 10 days, and the connector is standerd FPV cable — no custom pinout to sort out.
We can do a MOQ of 10 units for stock orders, but if you need a sample for testing, we can arrange a single unit at a slightly higher price.
Standard lead time is 7-10 working days after order confirmation and payment. For urgent orders, we can expedite to 4-5 days with a small rush fee.
Yes, each batch comes with a factory test report covering video output, RTSP stream stability, and OSD integration. We can also provide CE and RoHS certifications upon request.
The lens is fixed onto the PCB, so you can't swap it out. But the 120° field of view is designed to give you a solid wide shot for FPV flying right out of the box.
Store them in a cool, dry place away from direct sunlight, ideally between -10°C and 40°C. Keep them in anti-static bags to avoid ESD damage during storage.
