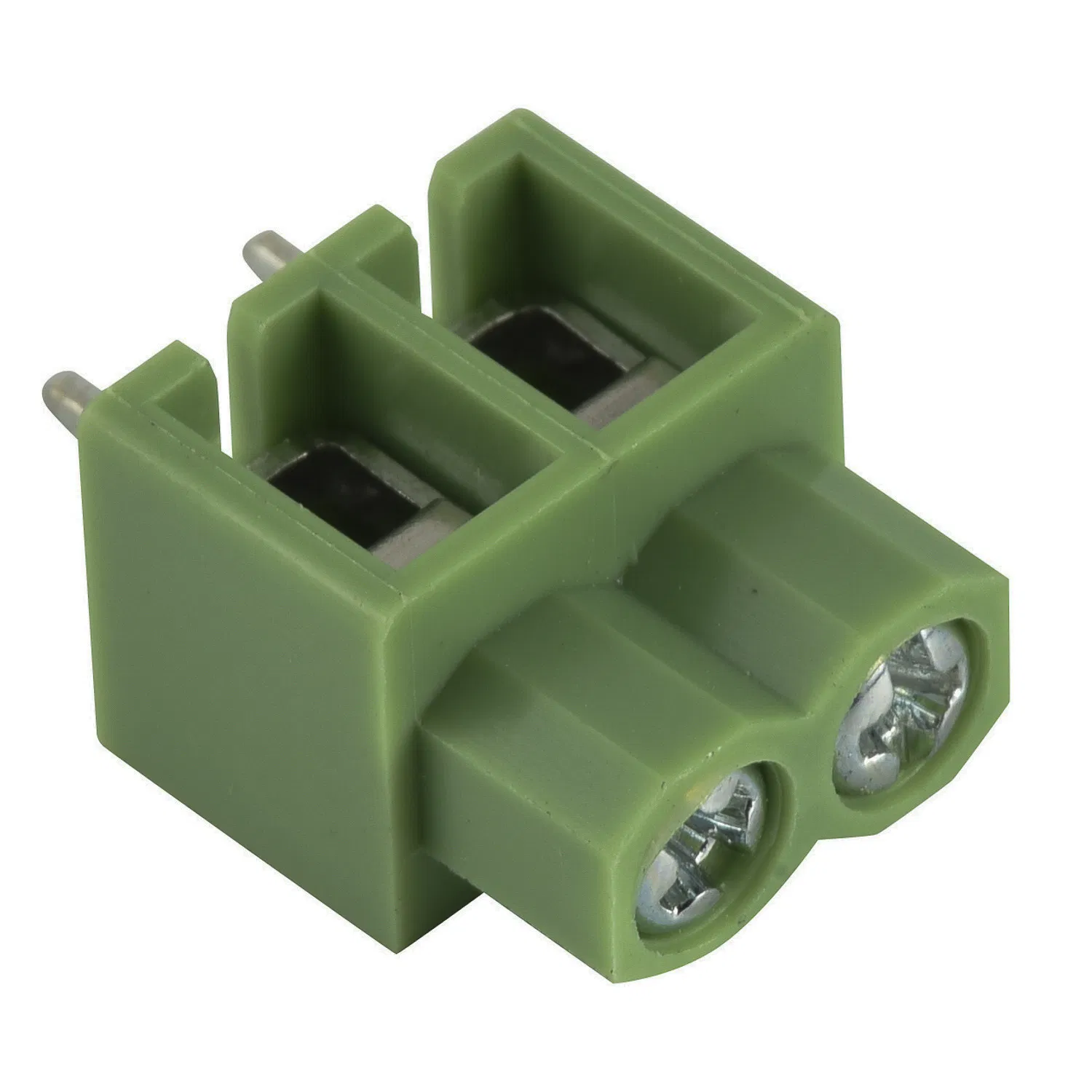

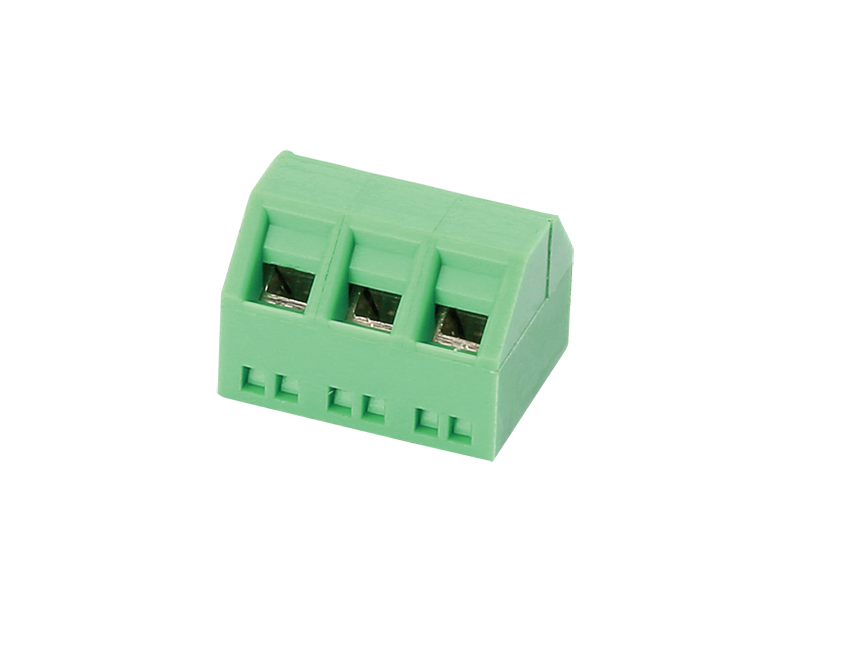

We've got the XY166V-5.0 in stock for 2-pole up to 24-pole configurations, and about 10,000 pieces a month — lead time is usually 20 business days or so for custom color orders.
It handles 300V at 12A with a wire range of 26-14AWG, and the screw fixation is actually pretty reliabel for AC/DC setups, though it's not ideal for high-vibration environments without addtional locking.
0.5N.m torque spec, copper alloy contacts, and it's -40°C to +105°C with pollution degree 3 — most buyers go with the 5.0mm pitch for standdard panel wiring, but our company can do custom colors if you're ordering 500 units or so.
(Check lead time on teh 24-pole version, as we usually have stock but may need to confirm for larger quantities) UL and VDE certifications are already in place, so you're covered for compliance.
Anyway, we've shipped similar orders to overseas clients and the COA matches GBT 2828.1-2012 every time — just let me know the pole count and quantty, and I'll get you a proforma invoice by tomorrow.
We don't have a strict MOQ for this model — you can start with as few as 100 pcs for standard poles like 2P or 3P. For custom colors or non-standard pole counts, we may ask for a slightly higher minimum, usually around 500 pcs.
Since our production capacity is 10,000 pcs per month, a full batch order usually ships within 15-20 working days. If you need a smaller quantity, we can often deliver in 5-7 days.
Yes, we include UL, VDE, CE, and RoHS compliance certificates with every order. Just let us know if you need a specific certification report before shipping.
Absolutely, we offer custom colors for the thermoplastic insulation. Just specify the RAL code or color sample when placing your order, and we'll adjust the production run accordingly.
The spec calls for 0.5 N.m — that's about 4.4 lb-in. Overtightening can damage the copper alloy contact or strip the threads, so we recommend using a torque screwdriver set to that value.
