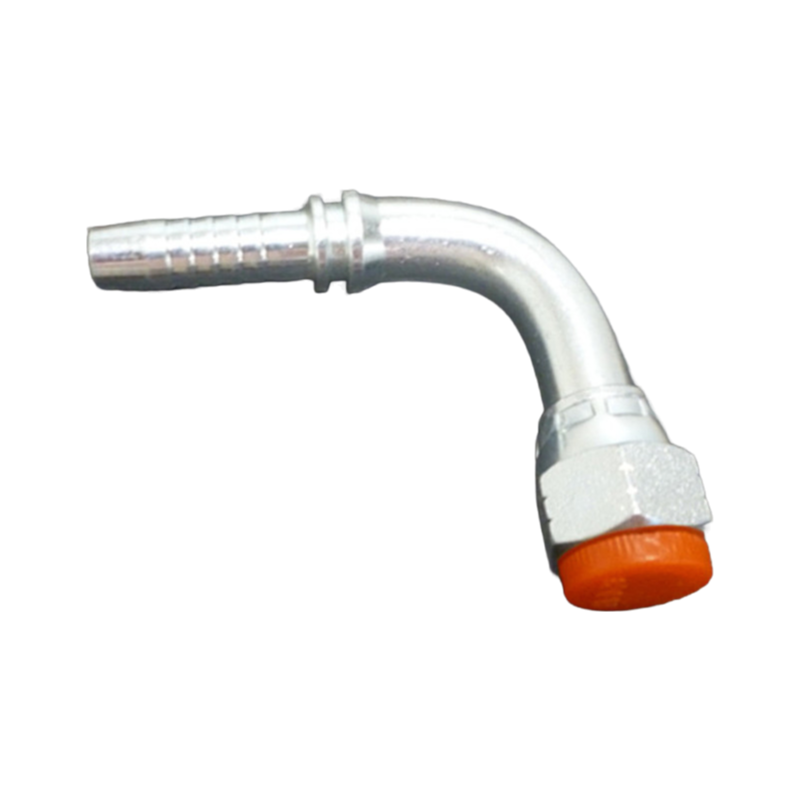

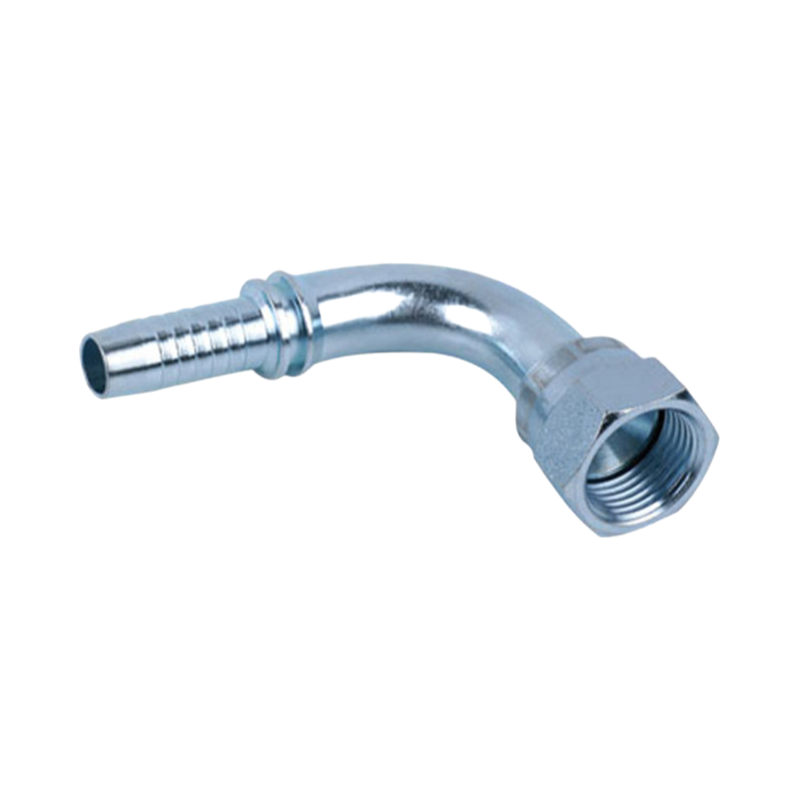

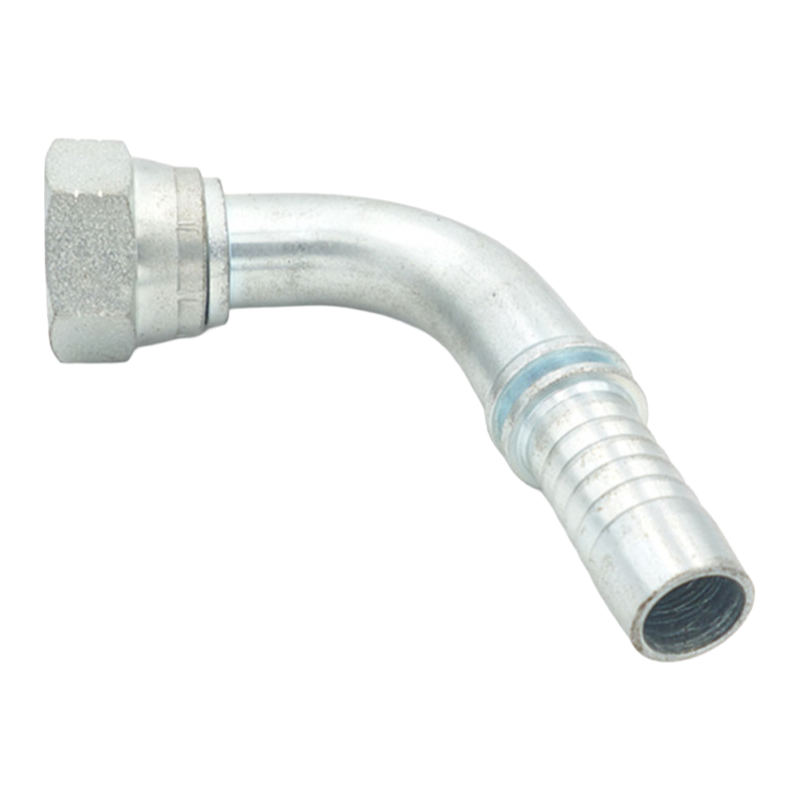

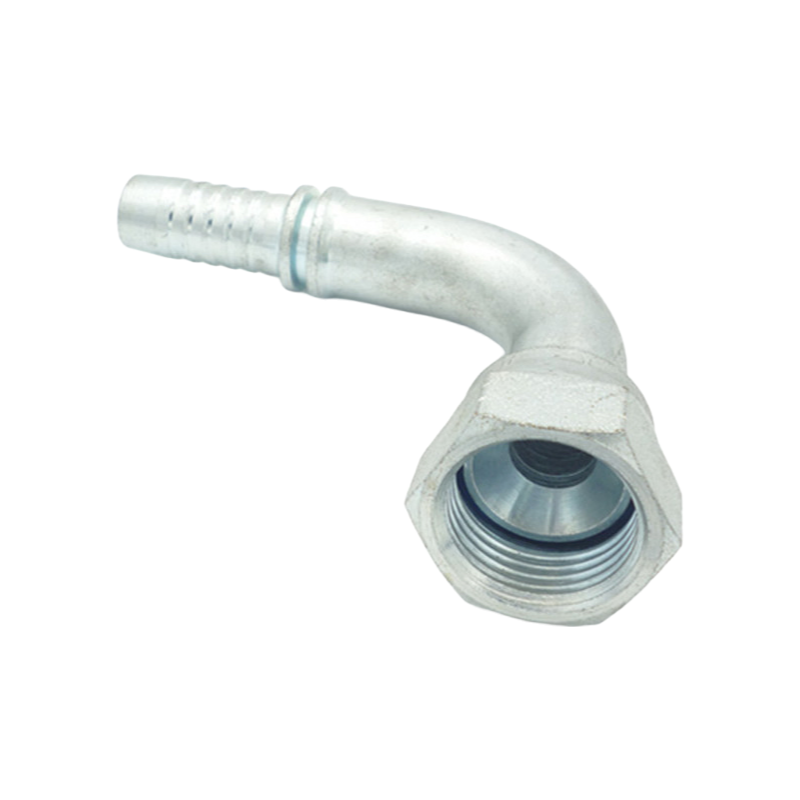

If you're putting together a hydraulic system for heavy-duty mobile equipment and you've got tight routing constraints that make straight fittings impossible, that's usually where we see buyers pulling for this 90-degree JIC insert elbow.
This one is machined from either carbon steel or stainles steel — you can spec brass if needed — with a zinc-plated finish for corrosion resistance, and it's got that JIC 74-degree cone seal which matters when you're chasing leak-free connections at high presure (think 1/4" up to 2" hose sizes). Lead time is typically 20 days or so once we nail down the MOQ of 500 pieces. And honestly, we usually have stock on teh most common sizes.
You're looking at a crimp-style connection, so don't come to us looking for field-attachable fittings because of that it basically doesn't do that — it needs the proper crimper upfront. CNC machining keeps tolerances tight (way better than some forgings we've tested) and hex head makes installation with a wrench a pretty straightforward affair. For batch runs our company can even do white or yellow zinc, although most buyers default to the yellow.
COA's included on every lot, we do 30% deposit balance before shipment, and sample's availble before you commit to anything big.
Usually 15-20 working days after order confirmation and deposit. If you need it faster, just ask and we can check our stock.
Yes, we offer samples. You can request one with your preferred material and surface finish. Just cover the shipping cost and we'll send it out.
Sure, we can issue mill test certificates for the raw material batch used in your order. Just let us know when you place the order.
White and yellow are the standard options, but we can customize the color if you have a specific requirement. Just mention it in the order.
The 74-degree cone uses a metal-to-metal seal on the cone surface, which handles higher pressure and vibration better than an O-ring. It's a common choice for hydraulic systems.
