What we usually see with something like this is buyers looking for a trip curve—the B/C/D options let you match it to startup load fairly well, and the 10kA breaking capacty handles most residential boards comfortably even if commercail setups sometimes push it harder, we've actually sent a few batches to builders who fitted them alongside inverters and noted the arc extinguishing chamber handled nuisance trips better than expected.
Basically anyone wiring up a distribution panel on a rail—DIN mounts are pretty much standard now—and the 35mm² terminals mean you're not fighting undersized clamps on thicker cabling, but if you're working with alumnum conductors you'll want to check compatibility since silver alloy contacts really prefer copper terminations for consistent torque readings, plus the terminal screws themselves are a common M5 pattern so you can swap drivers without hunting for odd bits.
Lead time on these runs about 20 days or so from confirmed order, though we usually hold a small stock of popular ratings like 16A and 32A in Type C (most buyers go with the 10A or 20A for general lighting and socket circuits) and you'll get a COA with each lot covering the IEC60898-1 compliance, but the storage temperature window is -25°C to +70°C which some dealers don't think to ask about until their warehouse hits a freeze.
MOQ sits at 100 units when mixing poles or trip types, but if you're ordering a full 1P or 2P run of a single amperage our company can drop that to 50 pieces or so—one thing to flag is the visual trip indicator on the switch handle: it's a small red flag on the toggles that flips outward just enough to catch a panel flush, so if you're doing high-density installs you might want to check the spacing depth, it's not great for cramped cabinets where the door closes tight.

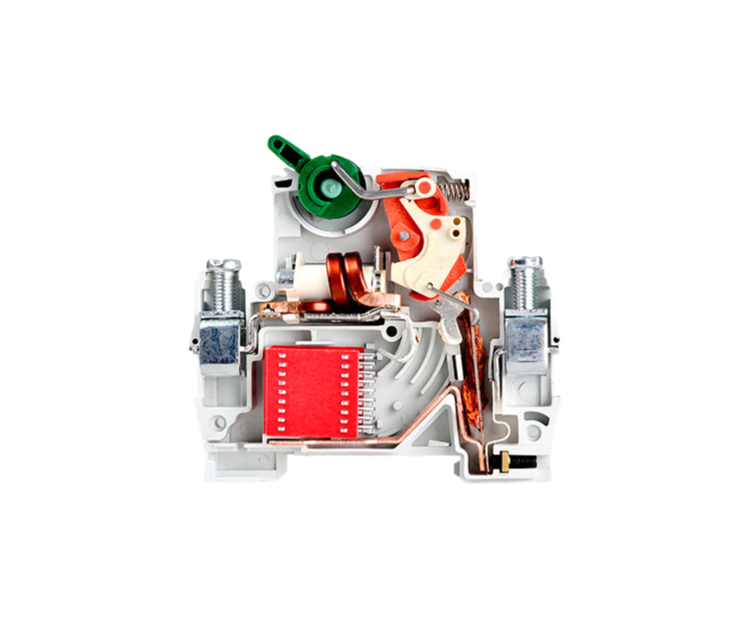

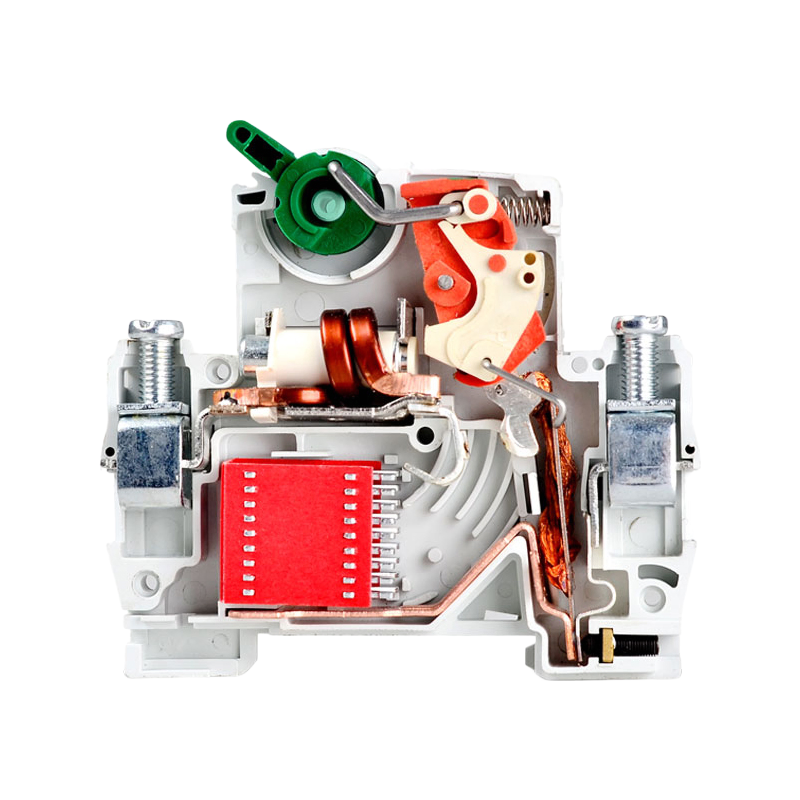

It isn't really suited for DC circuits at all despite that PA66 housing being flame-retardant (and honestly the housing itself feels tougher than some cheaper blends we've handled), and while the electrical life is listed at 4,000 operations you'll realistically see more if the tripping stays infrequent because thermal-magnetic units degrade faster under repeated short-circuit pops than mechanicla wear alone suggests, but anyway that's a detail most buyers only care about after year two.
We usually require an MOQ of 100 pieces per pole configuration, but if you're testing a project, we can start with 50 pieces for a mixed order.
Standard production takes about 10-15 working days after order confirmation. For urgent orders, we can expedite to 5-7 days if we have the raw materials in stock.
Yes, we can supply a copy of the CB certificate and IEC 60898-1 test report along with the packing list. Just let your sales rep know before shipping.
Absolutely, we offer C-curve in all poles from 1A to 63A. Custom labeling is available with a minimum of 500 pieces per design, and there's no extra charge for simple logo changes.
Store in a dry, ventilated area between -25°C and +70°C, away from direct sunlight and corrosive gases. Keep them in the original packaging to prevent dust buildup on the terminals.
