Rated up to 10KA breaking capacty, so it handles the sort of fault current you’d expect in a standerd distribution board without popping — we’ve seen it trip clean under short circuit conditions.
You can grab it in 1P, 2P, 3P, or 4P, with the B, C, or D curve depending on what you’re protecting — lighting circuits usually want C-curve, motors sometimes need D. 1 amp to 63 amps is the range, and the terminals take up to 25mm² cable, which is bigger than most residential stuff needs.
The housing is flame-retardant PA66, so it won’t feed a fire if something goes wrong inside. It’s rated IP20, which basically means it’s fine inside a panel but don’t mount it outdoors exposed. Mechanicla life is quoted at 10,000 operations — that’s pretty standard for this class, not but not weak.
It complies with IEC60898-1 and GB10963.1, and we hold CE, CB, CCC, and ISO9001 certs on it — usually our company have stock on the common ratings like 16A and 32A C-curve, but check lead time for 1A or 63A variants, as those sometimes need 20 days or so. 7. Each unit ships with a visual trip indicator, so you can see at a glance which breaker has popped without poking around with a meter.

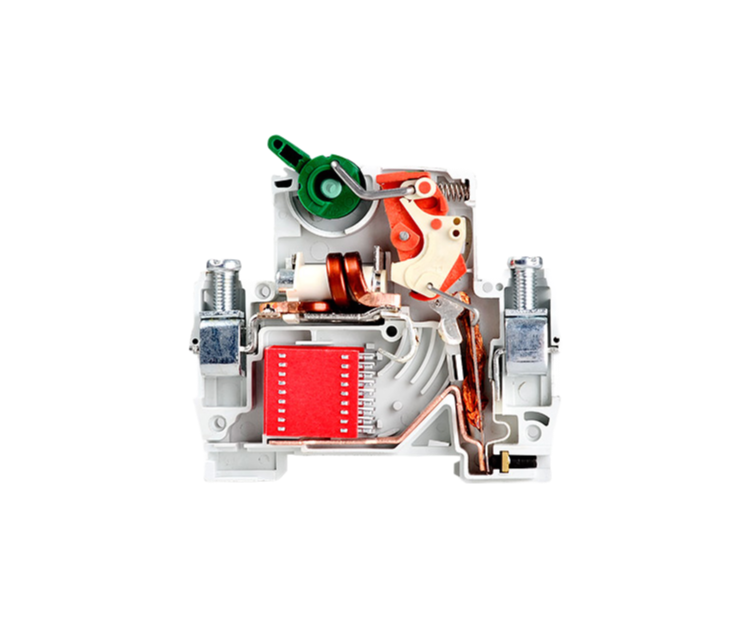

One thing — the ambient temperature range is -5°C to +55°C, which is fine for most indoor panels, but if your enviornment hits near the upper limit often, you’ll want to derate the current a bit. Also, the arc extinguishing is plain air, not gas-filled, so it’s not suited for high-energy DC fault interruption — stick to AC applicaions with this one.

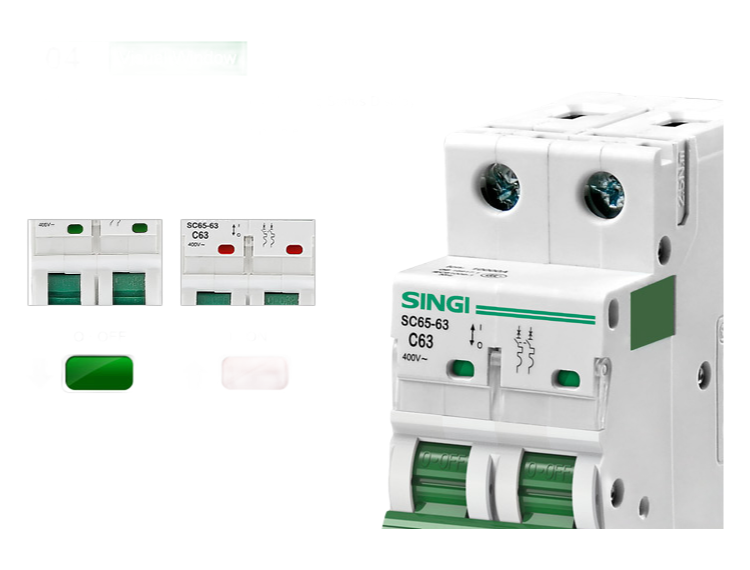

The SC65-63 comes in B, C, and D curves. B is for resistive loads like lighting, C is standard for general circuits, and D handles high inrush currents like motors. Pick based on your load type.
MOQ is typically 100 pieces per pole configuration, but we can flex on that for first-time orders. Lead time is usually 15-20 working days after order confirmation.
Yes, it holds CE, CB, CCC, and ISO9001 certifications, meeting IEC60898-1 and GB10963.1 standards. That covers most markets, but double-check local requirements just in case.
Absolutely. We can mark specific current ratings from 1A to 63A and lock in your preferred curve. Just let us know the specs and quantity when you place the order.

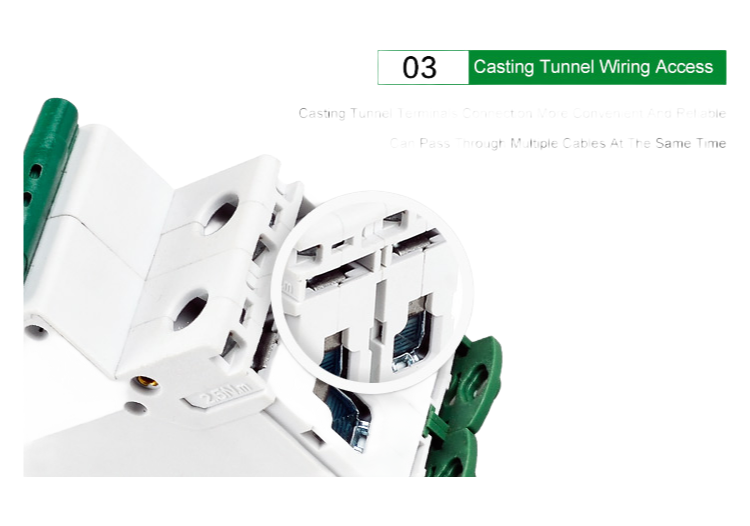

It accepts cables up to 25mm², which covers most standard wiring. If you need bigger, you might need a reducer or check the lug compatibility.
