High Quality DC Miniature Circuit Breaker with 10kA Breaking Capacity for Solar Power Systems

High Quality DC Miniature Circuit Breaker with 10kA Breaking Capacity for Solar Power Systems

US$ 8.89 ~ 2.09

Min.Order: 20

Product origin: Shanghai, China

Category: Electrical Equipment & Supplies

Product Name: Electrical Equipment & Supplies

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

High Quality DC Miniature Circuit Breaker with 10kA Breaking Capacity for Solar Power Systems

US$ 8.89 ~ 2.09

12KV VS1 Vacuum Circuit Breaker with Permanent Magnet Actuator for Reclosing Operation

US$ 600.00 ~ 650.00

Custom OEM ODM WSB1L MCB Circuit Breaker with CE CB CCC Certification for Power Distribution

US$ 5.29 ~ 4.59

WCM6 Series Molded Case Circuit Breaker - High Breaking Capacity 22KA-50KA for Industrial Use

US$ 143.00 ~ 140.00

Wholesale AC DC Manual Reset Circuit Breaker with Overcurrent Protection Function

US$ 1 ~ 5.3

Product Series : EDB1-63
Pole Options : 1P, 2P, 3P, 4P
Rated Working Voltage (Ue) : 250V-1000V DC
Frame Current : 63A
Rated Current (In) : 10A-63A (multiple options)
Rated Insulation Voltage (Ui) : 1200V
Impulse Withstand Voltage (Uimp) : 6kV
Tripping Characteristics : B/C
Tripping Type : Thermal Magnetic
Breaking Capacity (Icu) : 6/10kA

Electrical Life : 2000 cycles
Mechanical Life : 20000 cycles
Overvoltage Category : III
Pollution Degree : 3
Ingress Protection : IP40 (IP20 wiring port)
Terminal Capacity : 2.5-25mm²
Fastening Torque : 2.5 N.m
Operating Temperature : -30°C to 70°C
Storage Temperature : -40°C to 85°C
Installation Method : DIN rail
Dimensions (per pole) : 18mm(W)×68mm(H)×81mm(D)
Certifications : AS 60947.3:2018, IEC 60947.2:2015
Application : PV systems, energy storage, DC circuits

The EDB1-63 DC Mini Circuit Breaker is designed for reliable protection in photovoltaic systems and energy storage applications. With its thermal magnetic tripping mechanism, this breaker provides effective overload and short circuit protection for DC circuits up to 750V.

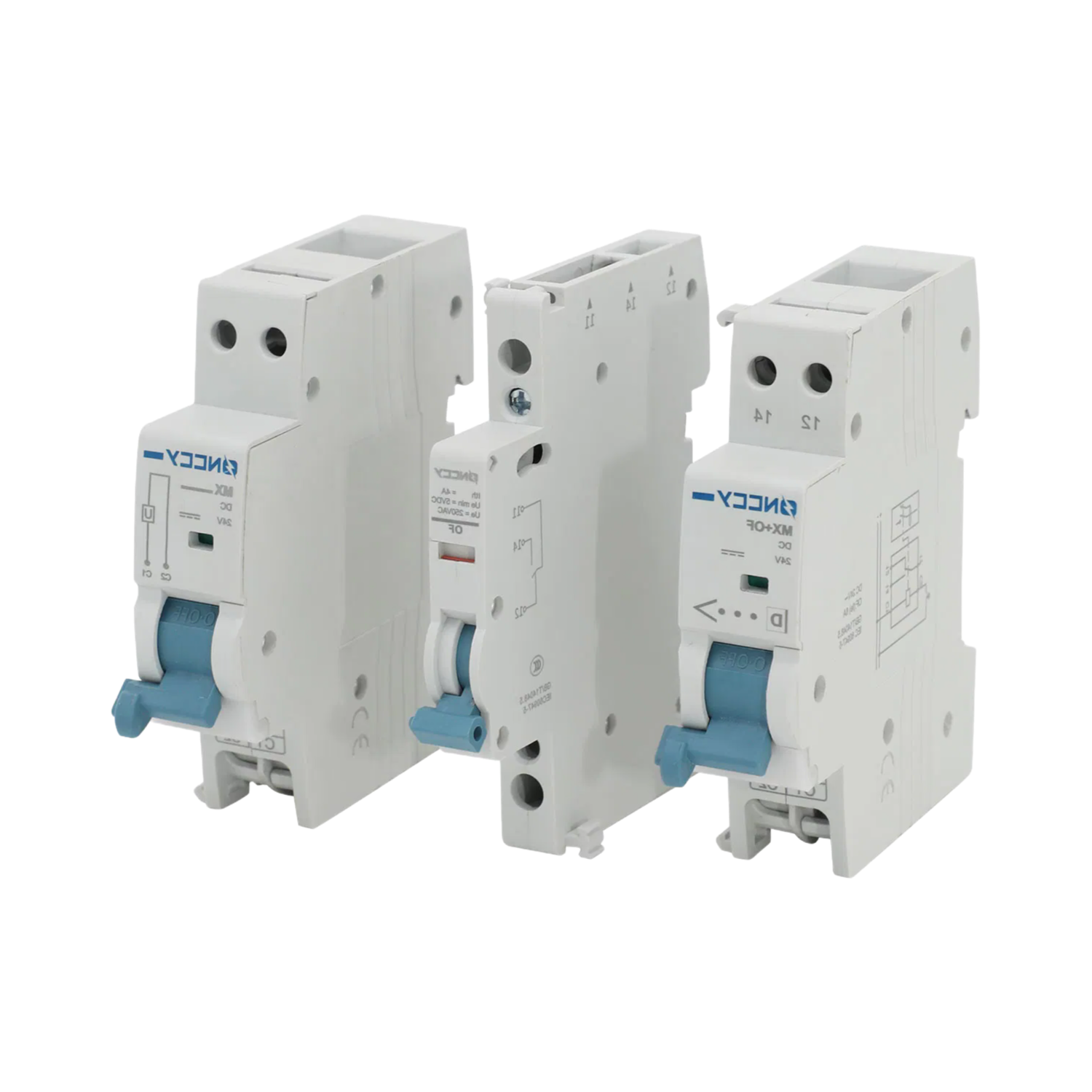

EDB1-63 DC Mini Circuit Breaker

This series features clear blue and grey ON-OFF indicators and a transparent cover for easy line marking identification. The compact design allows for space-efficient installation in residential power distribution systems with current ratings up to 63A.

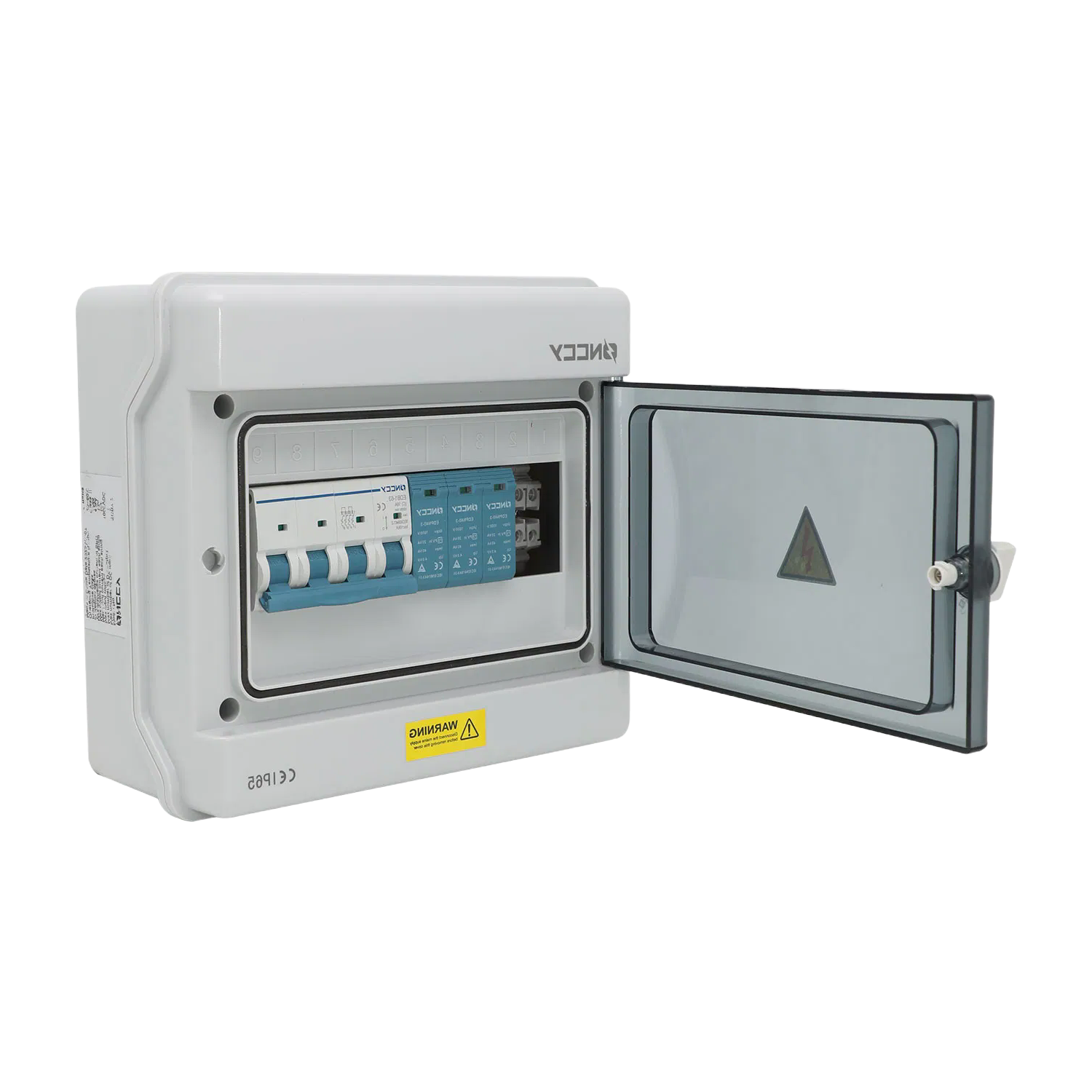

EDB1-63 Circuit Breaker Installation

Key advantages include non-polarity operation (polarity version also available), high breaking capacity up to 10kA, and compliance with AS 60947.3:2018 and IEC 60947.2:2015 standards. The product is suitable for various DC applications including solar power systems and electric vehicle charging stations.

EDB1-63 Technical Specifications

With an electrical life of 2000 cycles and mechanical life of 20000 cycles, the EDB1-63 offers reliable long-term performance. The product operates in a wide temperature range from -30°C to 70°C, making it suitable for various environmental conditions.

EDB1-63 Circuit Breaker Dimensions
