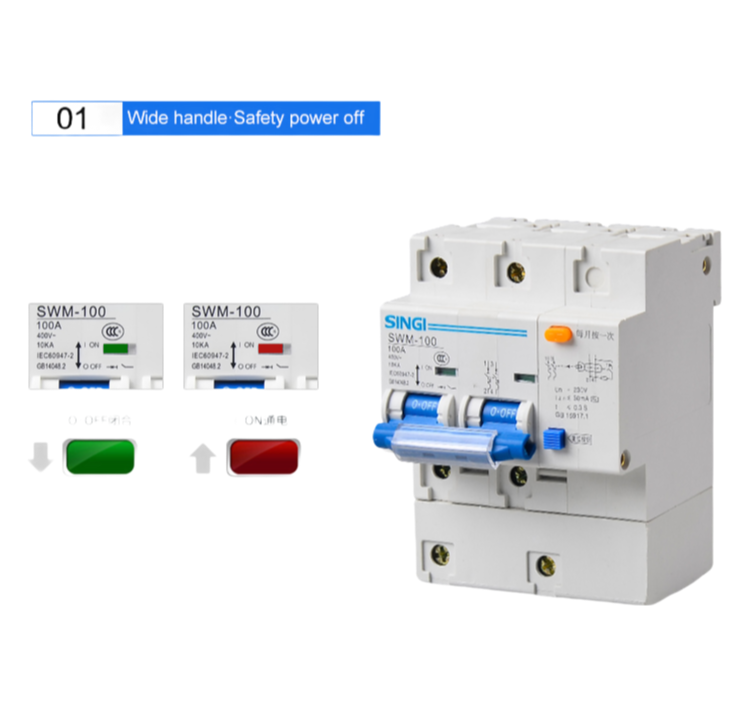

The SWMLE-100 residual current circuit breaker (RCBO) is engineered for reliable electrical protection in various applications. This advanced device combines multiple protection functions in a compact design, ensuring safety and efficiency in power distribution systems.
This RCBO is specifically designed for AC power systems with 50Hz frequency, supporting both single-phase 230V and three-phase 400V configurations. The device features a robust construction with a rated current capacity of 100A, making it suitable for demanding electrical installations.
The SWMLE-100 integrates a high-breaking mini circuit breaker with a current leakage release mechanism. Its electronic design includes essential components such as a zero-sequence current transformer and an electronic control panel, providing precise detection and response to electrical faults.
Key protection features include:
- Current leakage protection
- Overload protection
- Short circuit protection
- Optional overvoltage protection (upon request)
The device offers multiple trip current settings (30mA to 300mA) to accommodate different application requirements. Its durable construction uses high-quality PA66 material, ensuring long-term reliability in various environmental conditions.

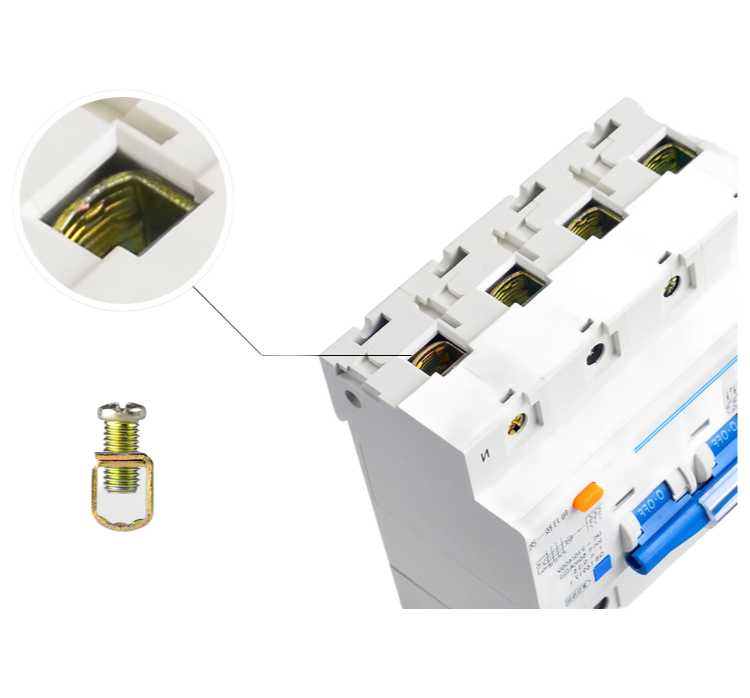

With a mechanical life of 10,000 operations and compliance with international standards including IEC60947-2, the SWMLE-100 RCBO delivers consistent performance for building lighting systems and power distribution networks. The device is available in white color and features fixed installation with terminal clamp connections suitable for cables up to 50mm².
