If you’ve been dealing with breakers that trip too early or fail in cold weather, this one handles -40°C to +50°C without fuss, and we usually have stock on the 6A-63A range—give or take a few amps depending on your order.

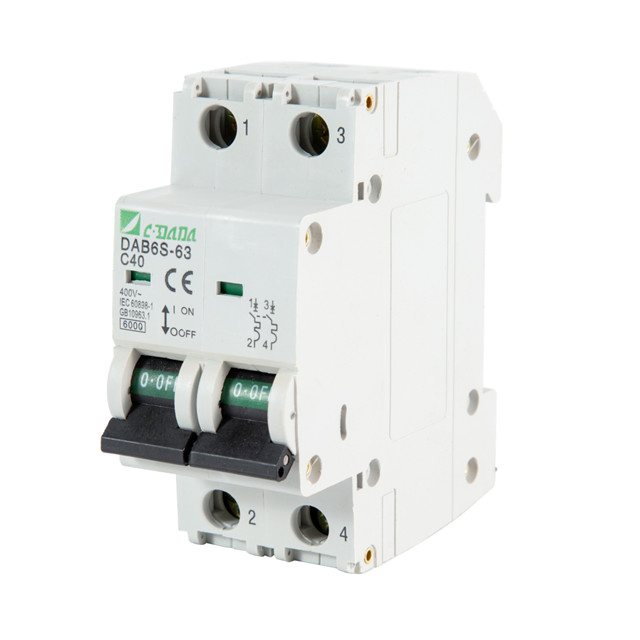

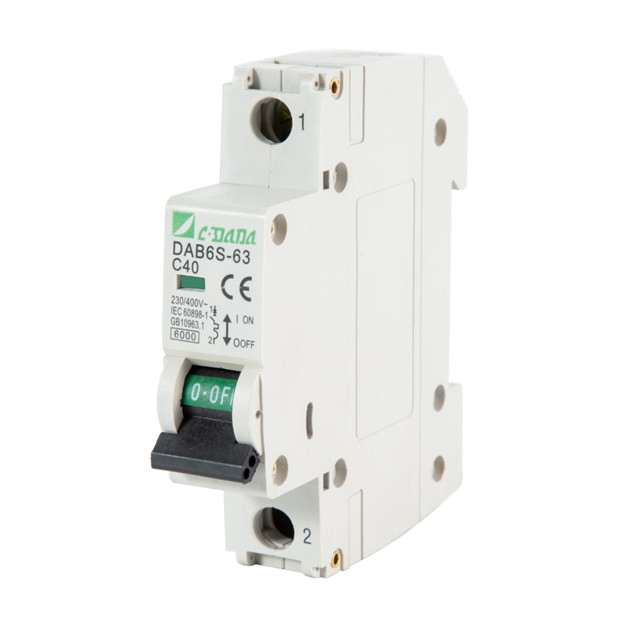

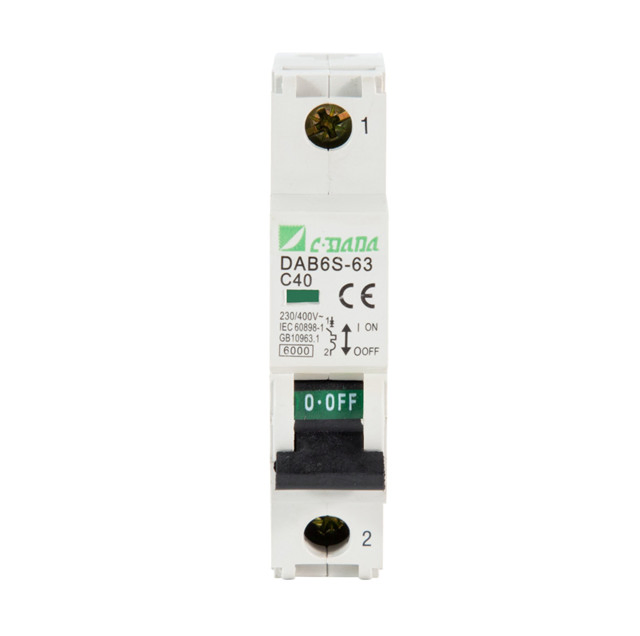

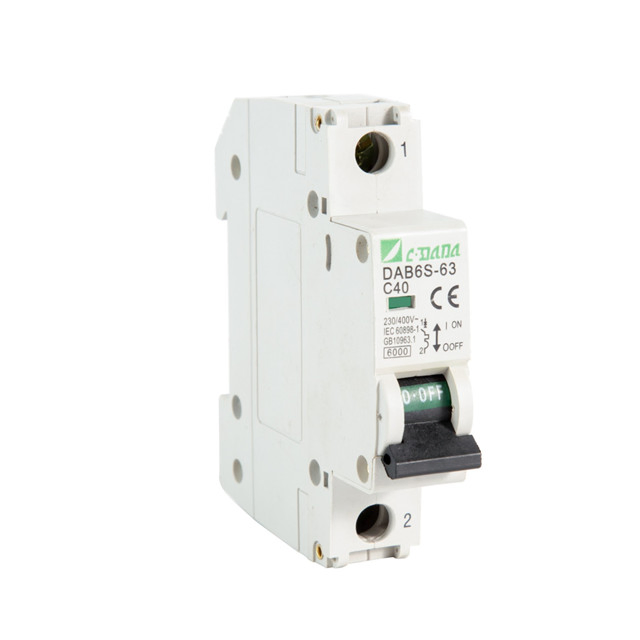

it come in 1P, 2P, 3P, or 4P configurations, with B, C, or D curves for different loads, and the breaking capacity sits between 4.5kA and 6kA—better than some generic units for commercial panels but not for high-fault industiral setups.
Mechancial life is 20,000 operations, electricla life 8,000, and terminal capacty goes up to 35mm², which is pretty generous for a DIN rail mount; what it does is keep connections stable even in tight boxes.
our company can customize the labeling and packaging for OEM runs, and teh MOQ is typically 100 units or so—check lead time, as we’ve had delays on 4P models lately.
The IP20 rating means it’s fine for indoor panels but not for wet environments, and the CE, CB, CCC, and RoHS certs cover most markets—basically, you’ll get COA with each batch.
MOQ is 100 pieces for standard pole options and current ratings. Custom orders or special packaging may require a higher minimum — just let us know your quantity and we'll confirm.
For stock items, lead time is 7-10 working days. For a mixed batch with different pole counts, add 2-3 days for sorting. Custom current ratings like 63A on 1P might take 15-20 days.
Yes, we can include CE, CB, CCC, and RoHS certificates with your order. Just request them in your PO — we'll supply digital copies free, and physical copies at cost if needed.
Absolutely. The DAB6-63 supports B, C, and D curves across all poles. Just specify 'C-curve, 40A, 2P' in your order — we'll configure it exactly.
Yes, it's rated for -40°C to +50°C, so -30°C is fine. But note the IP20 protection means it's not waterproof — use a weatherproof enclosure if it's exposed to moisture.
