Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz
Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz
Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz
Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz
Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz
Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz

Customized CJAF1 AFDD RCBO Circuit Breaker with 6kA Short-Circuit Capacity 50/60Hz

US$ 1 ~ 10
Min.Order: 0
Product origin: Wenzhou, Zhejiang, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 87 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : CJAF1
  • Type : AFDD/RCBO Circuit Breaker
  • Standards : IEC/BS/EN62606, IEC/AS/NZS 61009.1
  • Rated Current : 6,10,13,16,20,25,32,40A
  • Rated Voltage : 230/240V AC
  • Rated Frequency : 50/60Hz
  • Tripping Curve : B, C
  • Rated Short-Circuit Capacity : 6kA
  • Residual Operating Current : 10,30,100,300mA
  • Operating Temperature : -25°C to 40°C
  • Arc-extinguishing Medium : Vacuum
  • Installation Type : Fixed
  • Certification : CE, ISO9001
  • Overvoltage Protection : 270V-300V (10s trip)
  • Self-test Interval : 1 Hour
  • Earth Fault Trip Time : <300ms at 1x Idn
  • Dimensions : Standard 1-module width

The CJAF1 single module AFDD/RCBO with switched N pole provides comprehensive protection for electrical installations. This innovative device integrates multiple protective functions including residual current detection, overcurrent protection and advanced arc fault detection for both parallel and series arcs.

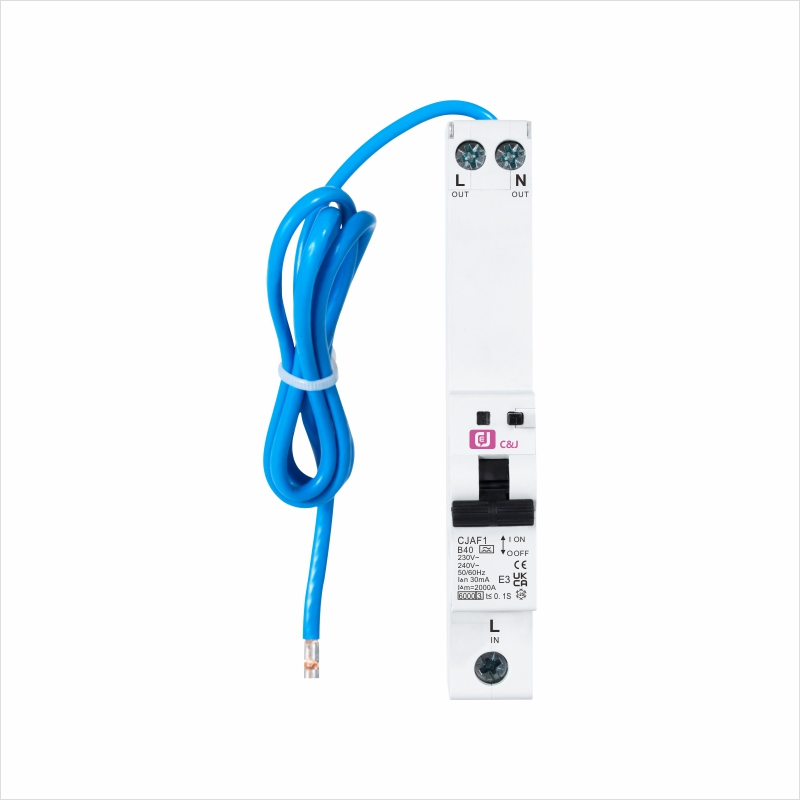

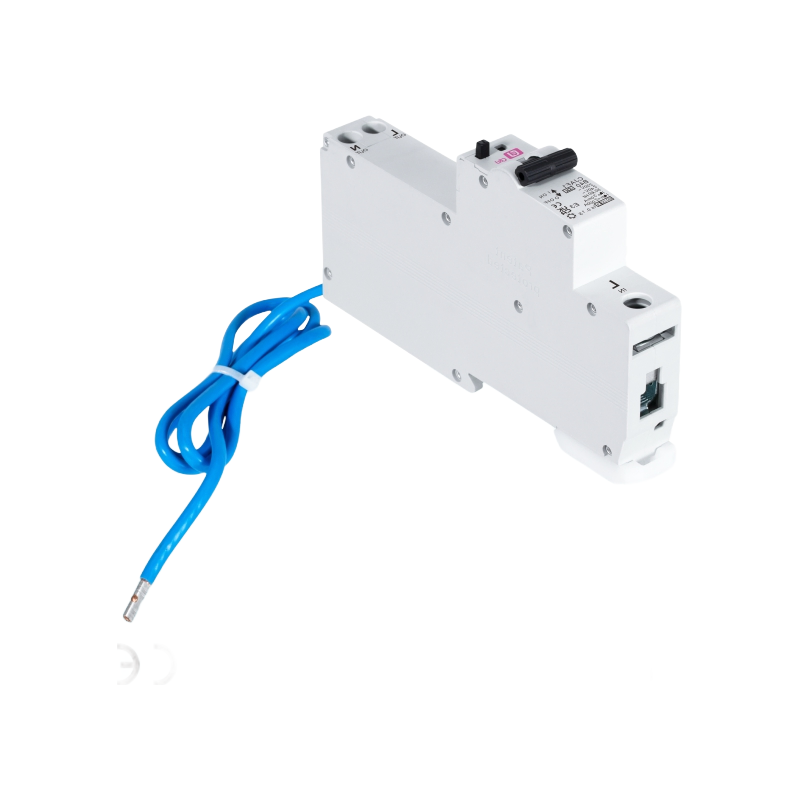

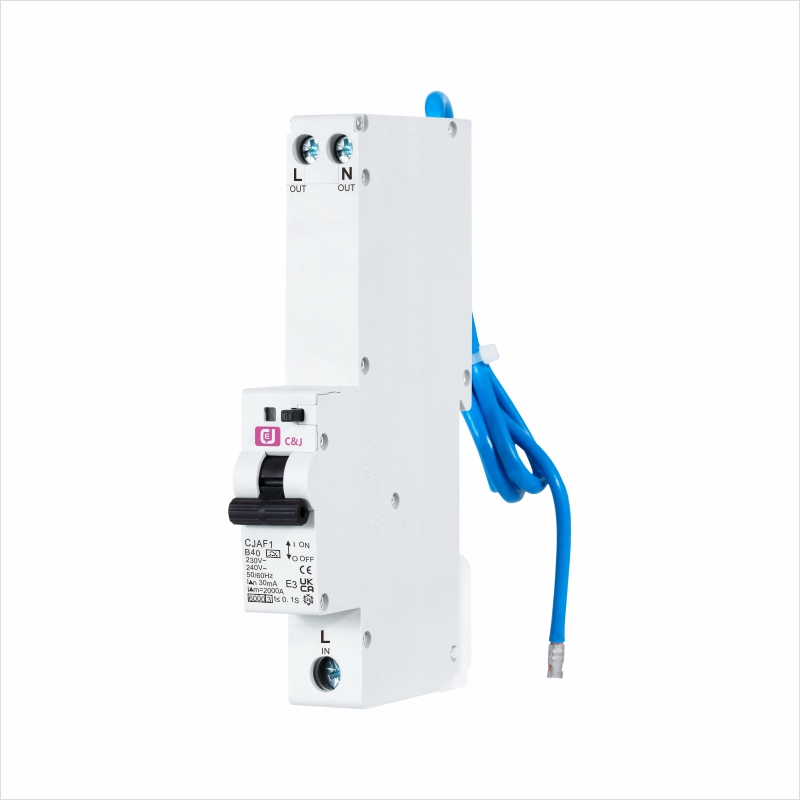

CJAF1 AFDD RCBO Front View

Designed to minimize fire risks from electrical sources, the compact single-module width allows easy retrofitting into existing installations without requiring larger consumer units. The device features automatic test functionality per IEC 62606 standards and provides clear LED indication for operational status.

CJAF1 Technical Specifications

Key protection features include overvoltage trip functionality (270V-300V for 10 seconds) with visual indication after reset. The device performs automatic self-tests every hour to ensure continuous reliable operation.

The CJAF1 series offers flexible current ratings from 6A to 40A with B or C tripping characteristics, making it suitable for various residential and commercial applications. The integrated arc fault detection meets the highest safety standards for modern electrical installations.

CJAF1 Installation Diagram
