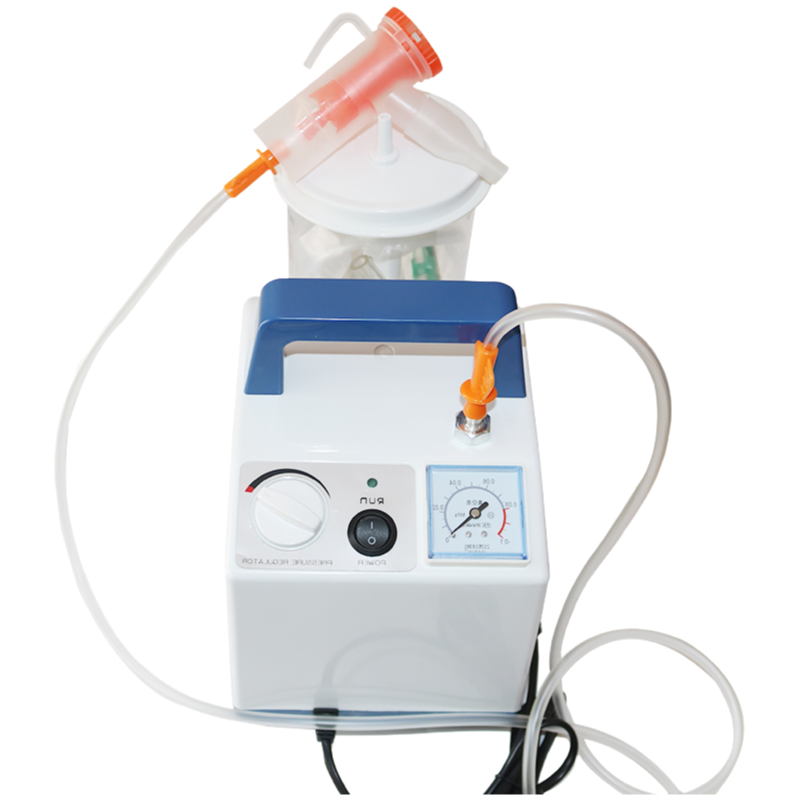

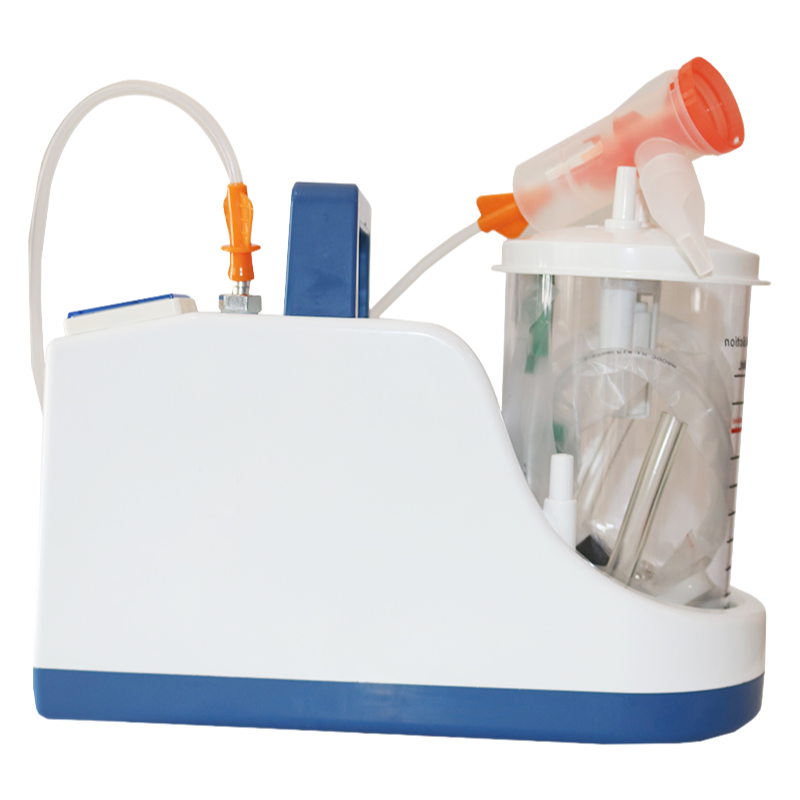

Portable Electric Suction Machine YD-Is1 High Negative Pressure Low Flow for Hospital and Home Use

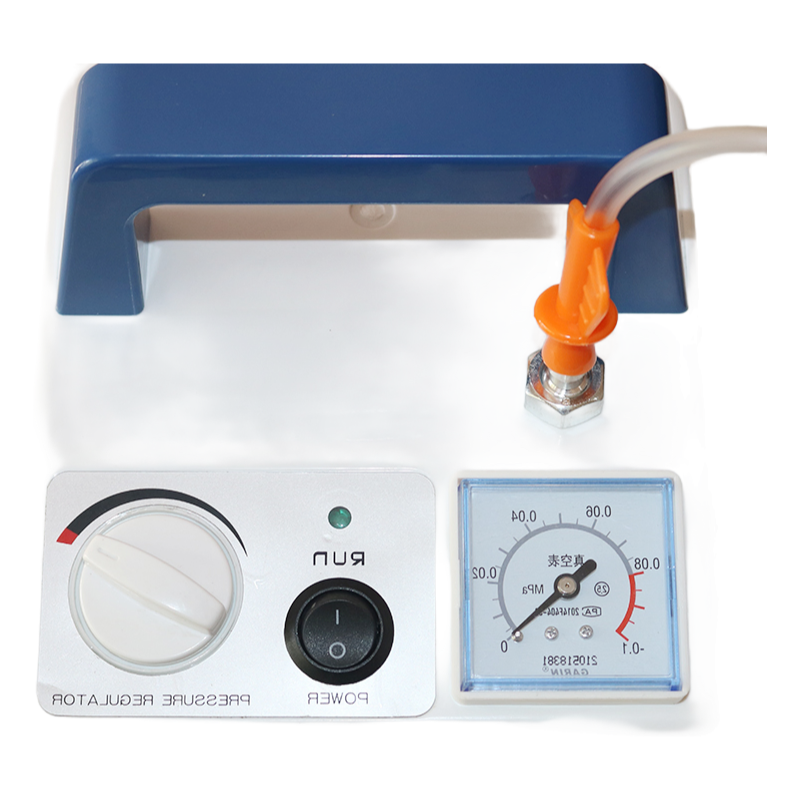

The YD-Is1 portable suction device is engineered for high negative pressure and low flow performance, making it an essential tool for medical professionals and caregivers. It operates on a rated voltage of 220V and frequency of 50Hz, with an input power of ≤90VA, ensuring energy efficiency and reliability. The negative pressure is adjustable from 0.03MPa up to a limit of 0.08MPa±0.01MPa, providing precise control for various suction needs.

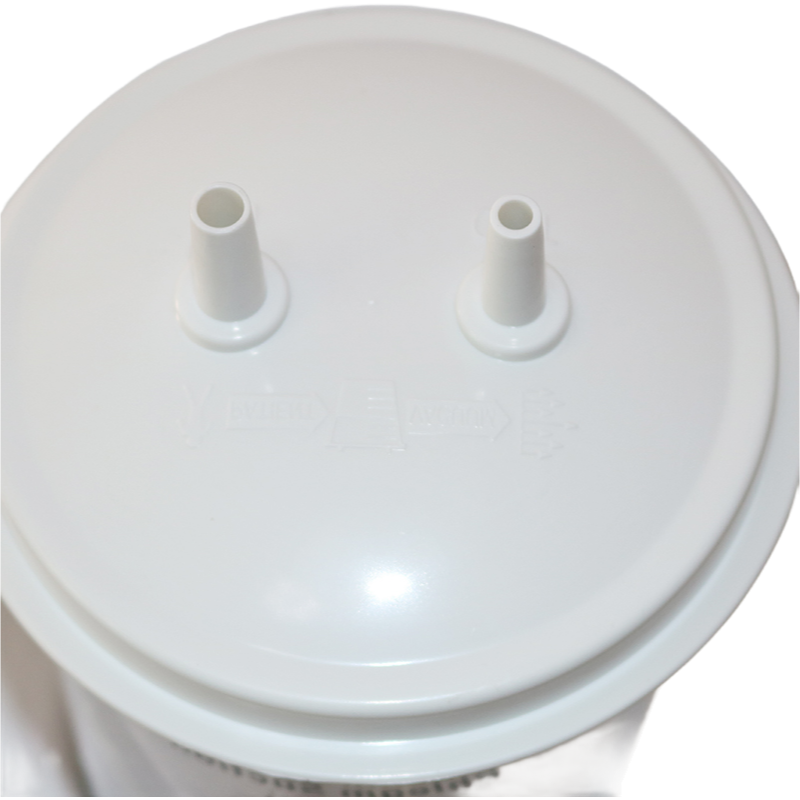

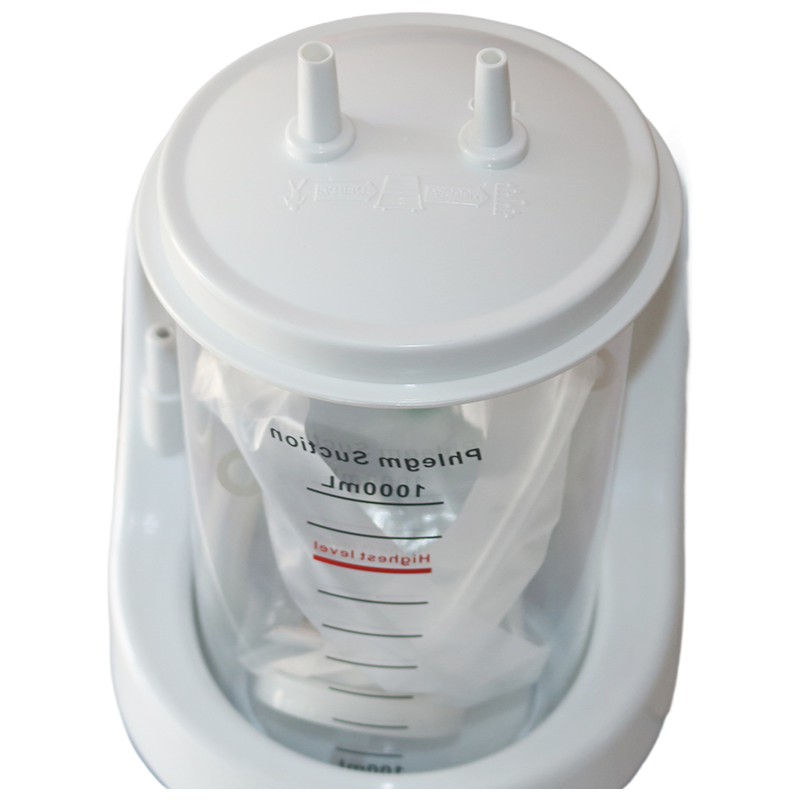

This device boasts an instantaneous pumping speed of ≥15L/min, facilitating quick and effective aspiration. With a noise level kept at ≤65dB(A), it operates quietly, minimizing disruption in sensitive environments. The included 1000mL reservoir bottle allows for extended use without frequent emptying, and the anti-overflow device prevents liquid or solid matter from entering the pump, enhancing durability and safety.

Key features include an oil-free vacuum pump for maintenance-free operation, vacuum adjustability for customized suction strength, one-button operation for ease of use, large capacity for reduced downtime, portability for mobility, high vacuum performance, low noise output, and standard parts for easy replacement and compatibility. The device is designed with a blown fuse rated at F1.5AL 250V φ5×20mm for added protection.

In terms of physical specifications, the YD-Is1 measures 280mm×196mm×285mm and weighs 3.7kg, making it compact and easy to transport. It is intended for general negative pressure suction applications, particularly for aspirating sputum in patients, whether in hospital settings or at home. The operating principle involves generating negative pressure through an electric pump, regulated to create the desired suction in the collection container and pipeline, driven by pressure differences to move fluids or solids into the reservoir.

For customization, the device supports OEM options with various colors and specifications. It is supplied with a minimum order quantity of 50 pieces, packaged in cartons for safe shipping. This product is for research use only and should not be used for personal medical purposes.
