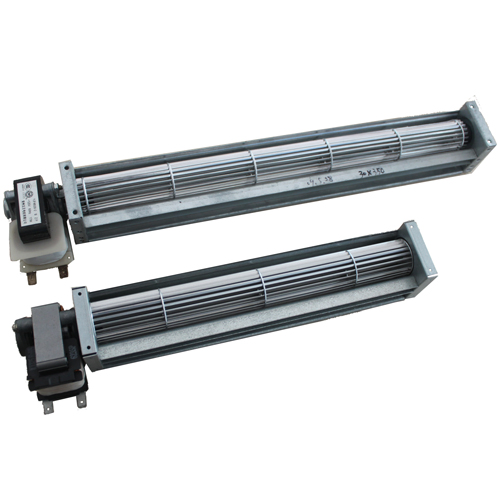

These come in the GL60 series, wound with copper wire on a silicon steel core, and they've got a straightforward C-frame design that's been around forever in the HVAC and appliance world — pretty much anything that needs a compact fan or blower drive.
You're looking at 2600-3400 RPM depending on stator thickness, with torque from 60 to 120 g.cm, and we've seen these handle continuous runs in residential ventilation without issue. Input power sits between 13W and 36W, current ranges 0.18-0.43A depending on the load, and the shaft diameter is 4-6mm with customizable length (usually we stock 60mm or so, but confirm lead time for other sizes).
The motor protection includes a thermal cutout, which is nice if you're driving something where airflow could get blocked, and it's horizontal operation only. 50/60 Hz works across the 110-240V range, so you're covered for global builds, though the torque drops about 10% at 60 Hz compared to 50 Hz.
4, we offer OEM customization on stator stacking, shaft modifications, and insulation class (E, B, F, or H depending on your temperature needs) — most buyers go with Class B for general blowers. One thing: these are direct-on-line start, so don't use them where you need soft start or variable speed control form motor itself; that requires an external controller.
They're not suited for heavy industrial environments with high vibration — the protection type casing is just a basic shell, no sealed bearings or reinforced frames, better for bathroom exhaust fans or desktop blower units than laundry equiment. Also, the fan diameter is fixed at 60mm standard, though we can extend the shaft to 120-360mm for specific ductwork applicaion.
our company have CCC, CE, RoHS, and ISO9001, and our MOQ is typically 500 units for custom stator thickness, but standdard configurations are available off the shelf in lower quantities (usually 50-100). The 13W variant is quieter for residential use, but the 36W version drives more airflow.
MOQ is typically 1000 pieces, but we can discuss smaller trial orders. Lead time is around 25-35 days depending on the quantity and customization level.
Yes, the GL60 series is certified with ISO9001, CCC, CE, and RoHS. We can provide the certificates upon request with your order.
Absolutely, we can adjust the shaft diameter to your specific needs within the OEM customization options. Just let us know the exact size you require.
The GL60 supports insulation classes E, B, F, and H. You can choose based on your operating temperature requirements, and we'll match it during production.
Store it in a dry, clean environment with temperatures between -20°C and 40°C, avoiding moisture and dust. Keep it in its original packaging until installation to prevent damage.
