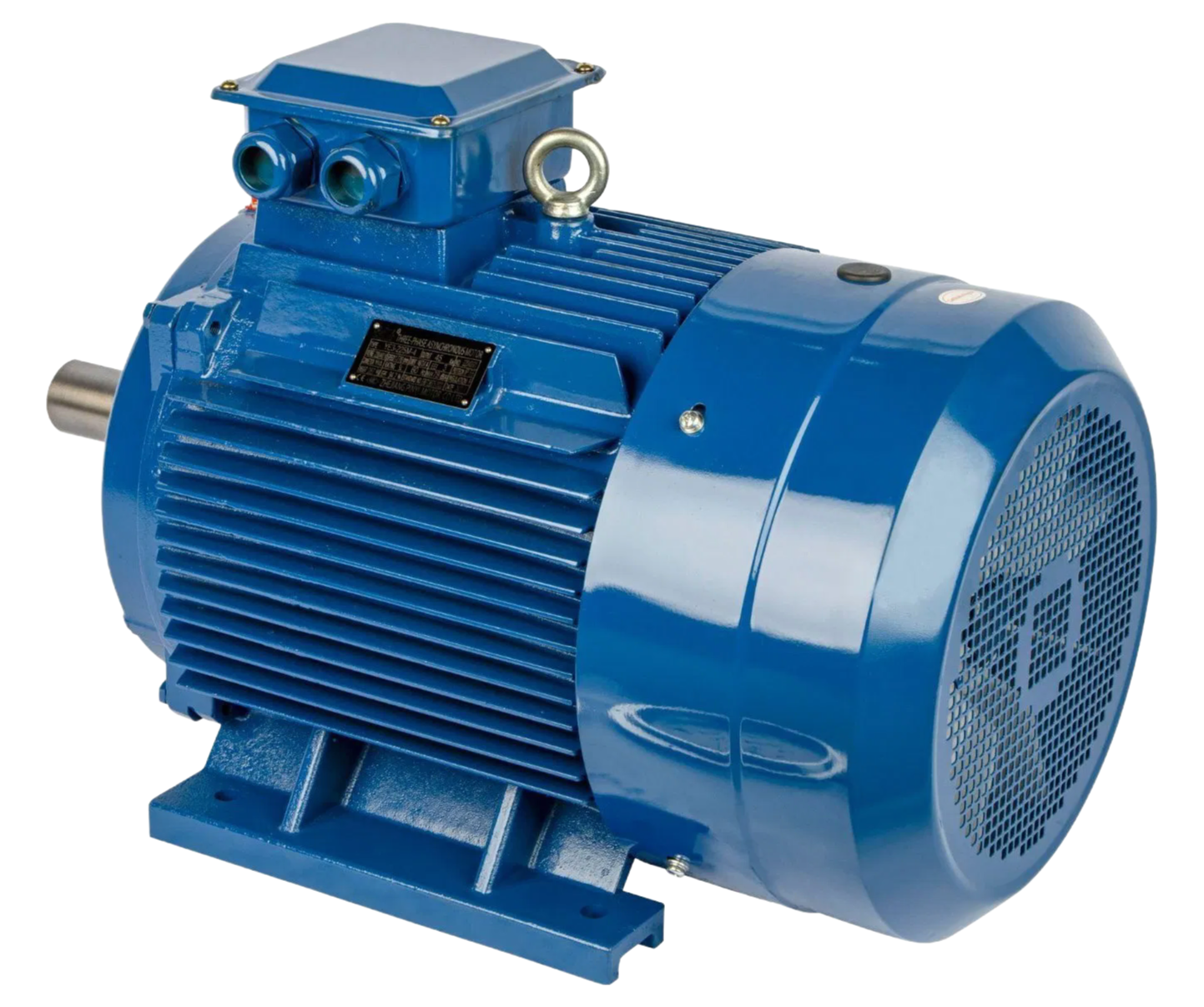

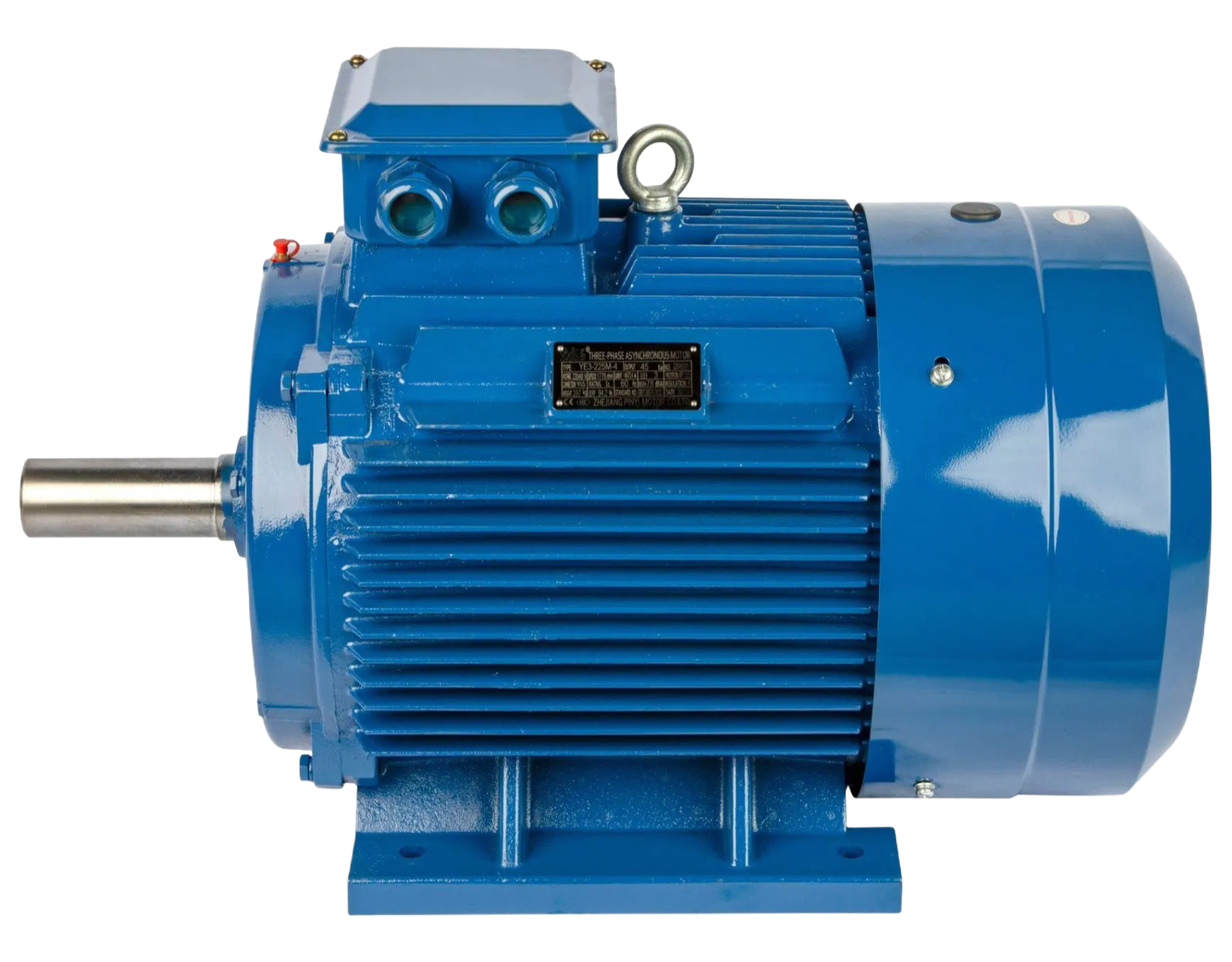

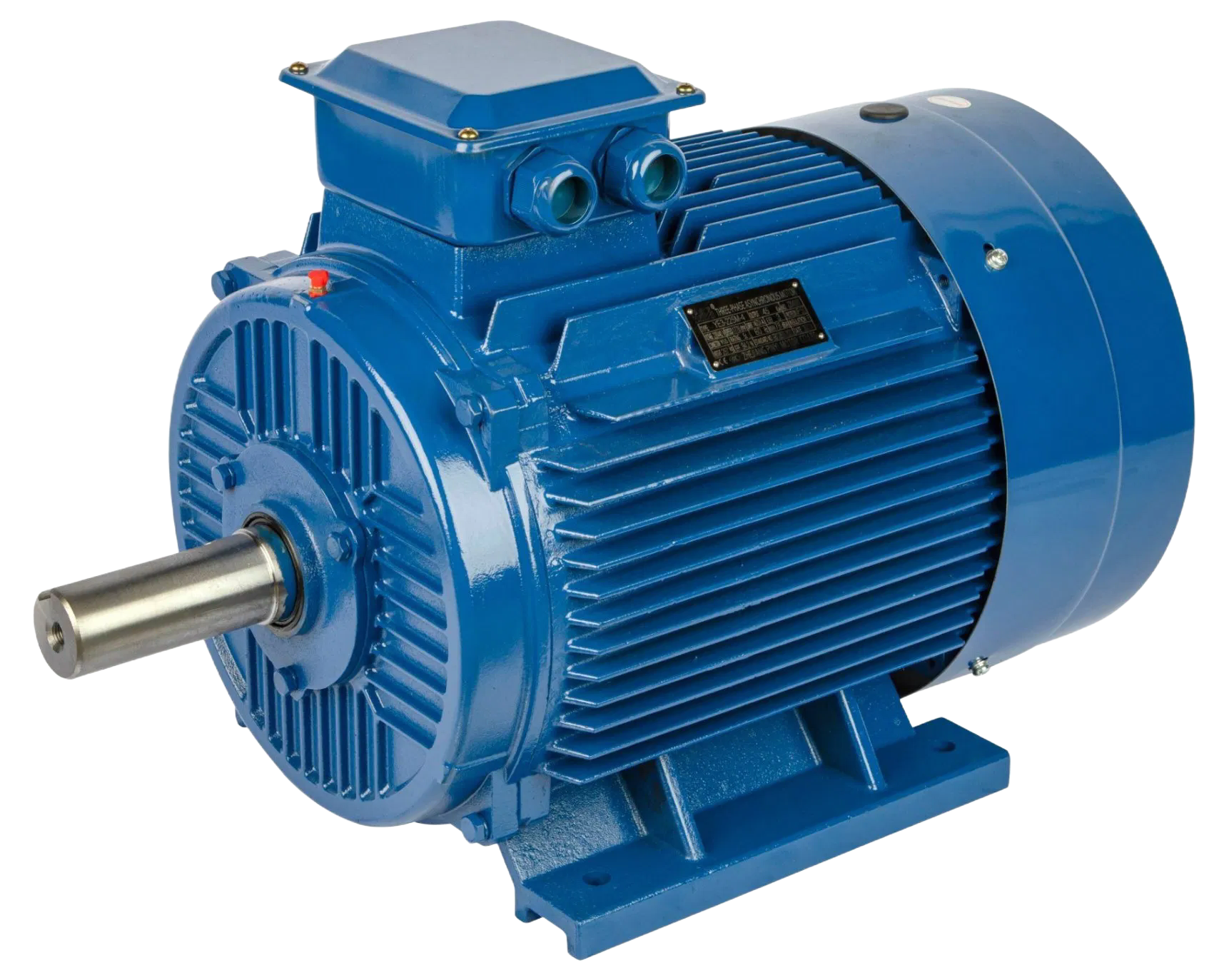

YE3 Premium IP55 Three Phase Induction AC Electric Asynchronous Motor is designed with a new overall structure, using high - quality selected materials and conforming to IEC standards. It has excellent performance, safe and reliable operation, a nice appearance, and is very convenient to maintain. Meanwhile, it features low noise, little vibration, light weight and simple construction, making it suitable for general drive applications.
Key Parameters of YE3 Three - Phase Asynchronous Motor:
- Frame Size: 80 - 355, providing a wide range of options to meet different power and installation requirements.
- Rated Voltage: 220/440V, 220/380V, 380/660V, 415V or can be customized according to specific needs, ensuring compatibility with various power supply systems.
- Rated Frequency: 50HZ, 60HZ, suitable for different regional power grid standards.
- Rated Power: 0.75 ~ 355kW, covering a large power range to adapt to different load requirements in industrial production.
- Insulation Class: F, which has good thermal stability and can ensure the motor's safe operation under relatively high - temperature environments.
- Altitude: ≤1000m, applicable to most plain and low - altitude mountainous areas.
- Relative Humidity: ≤90%, can work stably in relatively humid environments.
- Protection Class: IP55, effectively preventing dust intrusion and low - pressure water spraying, suitable for harsh working environments.
- Cooling Method: IC411, natural cooling combined with self - circulation, which is energy - saving and reliable.
- Ambient Temperature: - 15°C - +40°C, can adapt to different seasonal temperature changes.
- Duty: S1 (continuous duty), can operate continuously for a long time without overheating.
- Mounting: B3, B5, B35, V1, multiple installation methods to meet different equipment installation needs.
- Stator Configuration: Three - Phase, providing stable three - phase power output and strong load - carrying capacity.
- Rotor Structure: Squirrel - Cage, simple structure, reliable operation, and easy maintenance.
- Starting Mode: Direct on - line Starting, simple and convenient starting method, suitable for most general - purpose drive scenarios.
- Certification: ISO9001, CCC, CE, ensuring the product's quality and compliance with international standards.
- Material: Cast Iron, with good mechanical strength and heat dissipation performance, ensuring the motor's long - term stable operation.
- Origin: China, with mature manufacturing technology and reliable quality.
Application Scenarios: The motor is widely used in industrial production, power tools and other fields, providing high - speed and stable power output for various general - purpose drive equipment. Whether it is driving fans, pumps, conveyors or other mechanical equipment, it can perform well.
Supply and Customization Services: We are a professional factory, providing wholesale, customization and supply services for YE3 series motors. According to customer needs, we can customize motors with different power, voltage, frequency, installation methods and other parameters to meet the special requirements of different industries and equipment for motors.
