B3/B5 Mounting MY Series Electric Motor with Class B/F Insulation for Power Tools B3/B5 Mounting MY Series Electric Motor with Class B/F Insulation for Power Tools
B3/B5 Mounting MY Series Electric Motor with Class B/F Insulation for Power Tools B3/B5 Mounting MY Series Electric Motor with Class B/F Insulation for Power Tools
B3/B5 Mounting MY Series Electric Motor with Class B/F Insulation for Power Tools B3/B5 Mounting MY Series Electric Motor with Class B/F Insulation for Power Tools

B3/B5 Mounting MY Series Electric Motor with Class B/F Insulation for Power Tools

US$ 50.00 ~ 46.00
Min.Order: 100
Product origin: Ningde, Fujian, China
Category: Electrical Equipment & Supplies
Product Name: Electrical Equipment & Supplies
Availability:In Stock
Product Review : 17 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Series : MY561-2 to MY90L-4
  • Rated Voltage : 220V
  • Frequency : 50Hz/60Hz
  • Power Range : 0.09KW-2.2KW (0.12HP-3HP)
  • Speed Range : 1330-2800 RPM
  • Efficiency : 48%-73%
  • Power Factor : 0.65-0.95
  • Starting Current : 4.5-1.8×Rated Current
  • Starting Torque : 1.7-1.8×Rated Torque
  • Insulation Class : B/F
  • Cooling Method : IC0141
  • Mounting Options : B3/B5/B14/B34/B35
  • Housing Material : Aluminum
  • Winding Material : 100% Copper
  • Operating Temperature : -15°C to +40°C
  • Max Altitude : 1000m
  • Certifications : CE, ISO9001, CCC
  • Duty Cycle : Continuous (S1)
  • Rotor Type : Winding Type

The MY Series single phase induction motors are designed for reliable operation across various industrial and household applications. These motors combine high efficiency with durable construction, making them ideal for pumps, fans, and power tools.

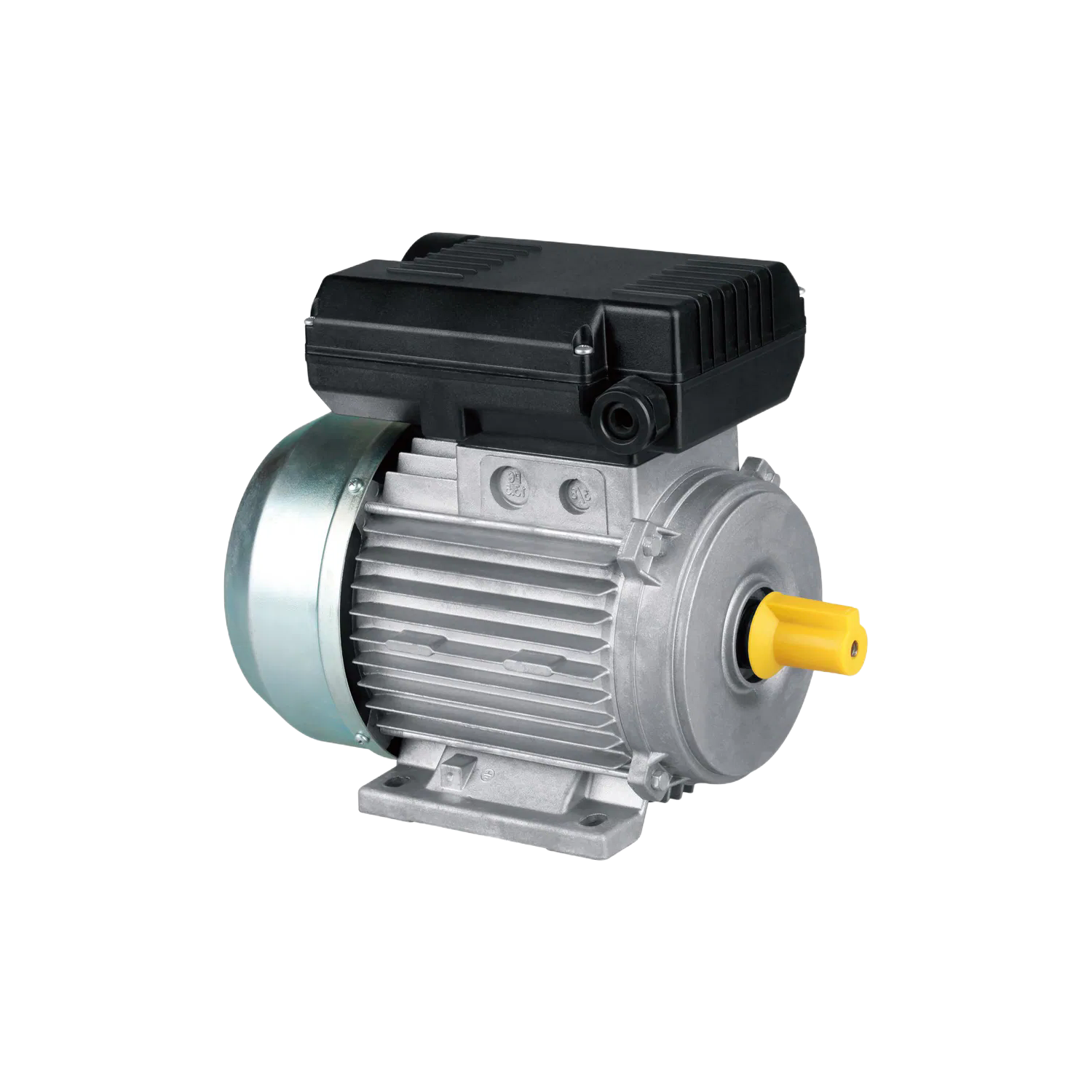

MY Series Electric Motor

Key advantages include safety-certified operation, aesthetically pleasing design, and minimized noise/vibration levels. The lightweight aluminum housing ensures excellent heat dissipation while maintaining structural integrity.

Motor Internal Components

These motors operate within an ambient temperature range of -15°C to 40°C at altitudes up to 1000m. The standard configuration features 220V rating with 50Hz/60Hz frequency compatibility, continuous duty (S1), and Class B/F insulation.

Specialized winding technology using 100% copper wire enhances conductivity and thermal performance. Multiple mounting options (B3/B5/B14/B34/B35) provide installation flexibility for diverse mechanical applications.

Motor Performance Chart

The product range covers power outputs from 0.09KW (0.12HP) to 2.2KW (3HP), with speed variations between 1330-2800 RPM depending on model configuration. All units feature direct on-line starting capability with protection against dust and water ingress.
