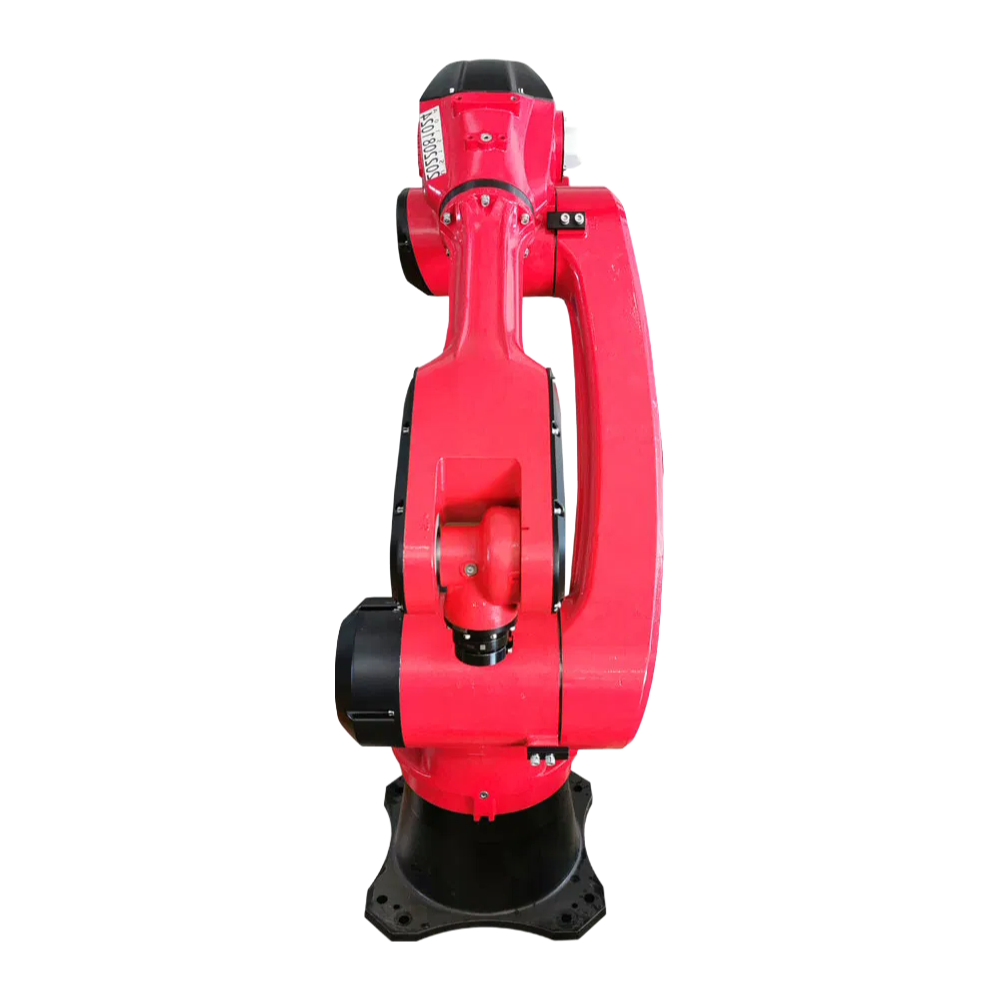

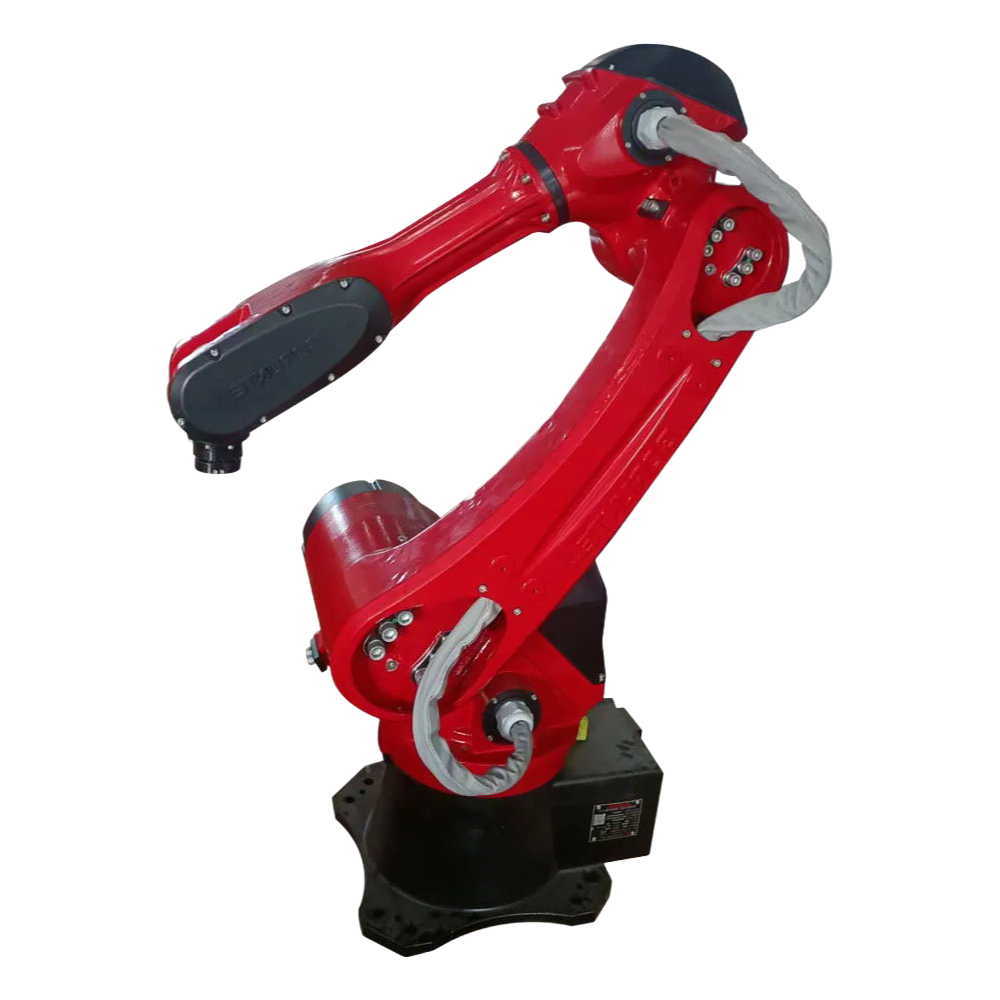

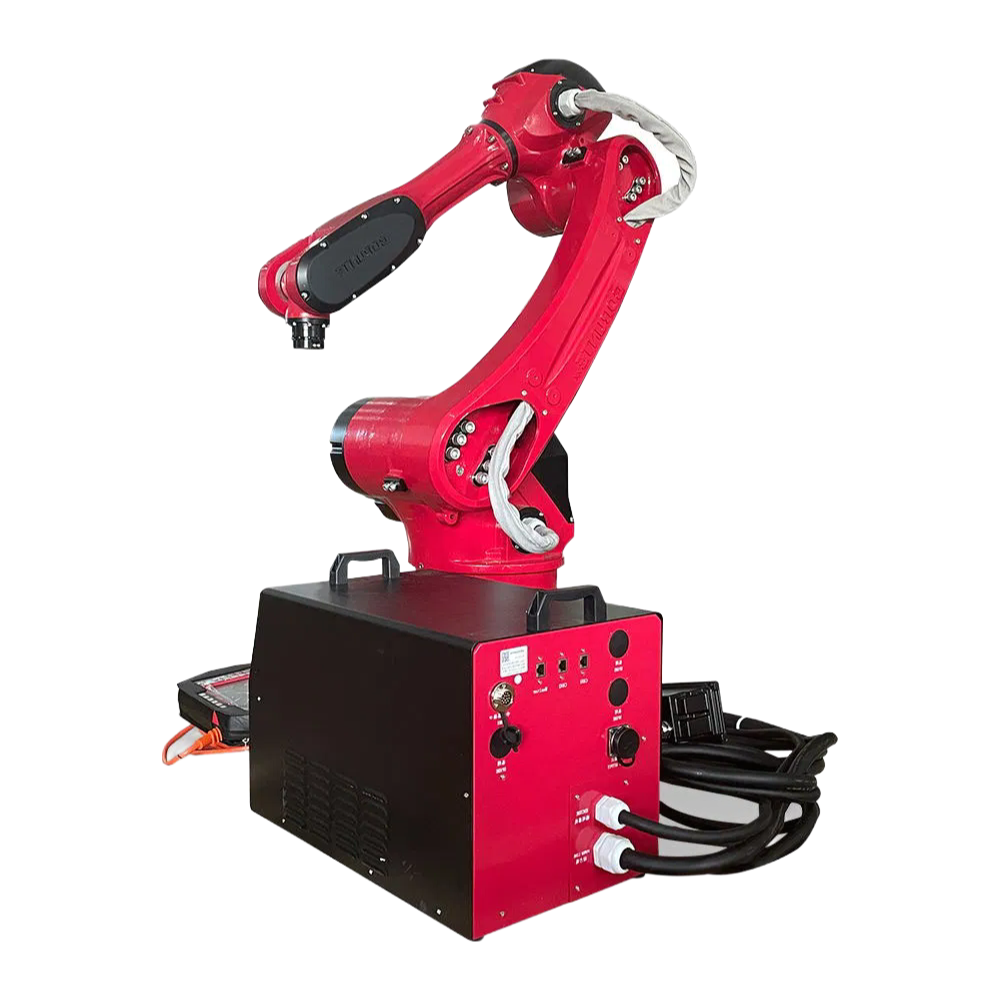

6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct 6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct
6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct 6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct
6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct 6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct
6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct 6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct
6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct 6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct
6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct 6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct

6-DOF Articulated 10kg Payload Automatic Welding Robot Arm, 1440mm Radius 350A/500A, IP56/IP67, ISO CE Certified, Factory Direct

US$ 1 ~ 3270
Min.Order: 1
Product origin: Jining, Shandong, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 90 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : JX10-1440
  • Axis Configuration : 6-DOF Articulated Arm
  • Maximum Payload : 10 kg
  • Working Radius : 1440 mm
  • Repeatability : ±0.05 mm
  • Protection Rating : J1/J2: IP56, J3-J6: IP67
  • Installation Options : Floor/Ceiling Mount
  • Robot Weight : 172 kg
  • Welding Current : 350A/500A
  • Control System : Continuous Path CNC
  • Certifications : ISO, CE
  • Warranty Period : 1 Year

You're burning through labor costs on repetitive weld lines that never come out quite the same, and your good operators are getting harder to keep.

What this arm does is lock in that ±0.05mm repeatability cycle after cycle — continuous path CNC control basically handles the consistency for you, so you're not relying on someone's steady hand after lunch.

Industrial Welding Robot Arm

We've got it in 350A or 500A depending on your materail thickness, and the 6-axis reach is 1440mm with a 10kg payload — most buyers go with the 500A for heavy plate work, but the 350A runs cleaner on thinner gauge stuff.

CNC Welding Robot in Operation

Floor or ceiling mount, it's 172kg all in, and the J1/J2 joints are IP56 while J3 through J6 are IP67 (so dust and coolant splashes aren't a problem in most shops).

Welding Robot Work Envelope

Lead time is about 30 days or so for a single unit, but we usually have stock on the standerd configs — just confirm before you wire payment, and the 1-year servo drives and control board failures.

It's not great for alumnum with teh standard torch setup, but for steel or stainles MIG/MAG/CO2 it handles the duty cycle way better than a hand-held rig.

Frequently Asked Questions

What are the MOQ and typical lead time for the JX10-1440?

MOQ is 1 unit. Lead time is usually 30-45 days depending on customization complexity.

Do you provide ISO or CE certification documents with the robot?

Yes, we include both ISO and CE certification documents with every unit shipped.

What's the difference between the 350A and 500A welding current options?

350A suits lighter materials like 3-8mm steel, while 500A handles thicker plates up to 20mm. Choose based on your typical weld thickness.

Can I get the robot painted with my company logo and custom color?

Absolutely, we offer full customization on paint color and logo placement with no extra lead time.

How should I store the robot arm if I'm not installing it right away?

Store it in a dry, dust-free area at room temperature. Keep it in its original crate and avoid stacking anything on top.
