Portable IV Pump with Drug Library Support and Easy Operation for Clinical Settings Portable IV Pump with Drug Library Support and Easy Operation for Clinical Settings
Portable IV Pump with Drug Library Support and Easy Operation for Clinical Settings Portable IV Pump with Drug Library Support and Easy Operation for Clinical Settings

Portable IV Pump with Drug Library Support and Easy Operation for Clinical Settings

US$ 230.00 ~ 200.00
Min.Order: 1
Product origin: Changsha, Hunan, China
Category: Medical Equipment
Product Name: Medical Equipment
Availability:In Stock
Product Review : 54 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model NO. : VP3
  • Classification : Physiological Functions of Diagnosis and Monitoring Equipment
  • Type : Infusion Pump
  • Certification : CE, MSDS, ISO13485
  • Group : All People
  • Product Name : Infusion Pump
  • Drug Library : Up to 1030 Drugs Are Provided
  • Certificate : CE, ISO13485
  • Cumulative Infusion Volume : 0-9999.9ml
  • KVO Rate : 0.1 ~ 5.0ml/H
  • Power Supply : AC100-220V, 50/60Hz
  • Features : Easy to Carry, Easy to Operate
  • Infusion Set : Any Brand of Infusion Set
  • Infusion Mode : Rate, Time, Dose, Drug Library, Sequential Mode
  • Air Bubble Detection : Ultrasound Sensor Detection
  • Pump Type : Peristaltic Finger Pump
  • Delivery Rate Range : 0.1ml/h ~ 1500ml/h
  • Delivery Time Range : 00h01min ~ 99h59min
  • Volume Limit Range : 0.0-9999ml
  • Purge Rate : 600.0ml/h (Adjustable)
  • Occlusion Pressure : 24 Levels, 30k Pa-160k Pa
  • Alarms : Rate Abnormal, Anti-flow Clamp Not Closed, Door Open, Air-in-Line, Occlusion, Bottle Empty, Battery Empty, No Battery, Key Holding, Infusion Complete, No Action, Battery Low
  • Alarm Volume Levels : LOW, MEDIUM, HIGH
  • Dose Mode Volume : 0.1-999.9ml
  • Dose Mode Drug Mass : 0.1-999.9mg
  • Dose Mode Dose : 0.001-9999ug/kg/min
  • Dose Mode Weight : 0.1-300kg
  • Bolus Rate : 1.0~1500ml/h
  • Bolus Volume : 1.0~100ml
  • Brightness Levels : 1-10 Selectable
  • History Records : 2000 Events Stored
  • Specification : 12X21X100CM, 1.7KG
  • Origin : China
  • HS Code : 9018390000

So we finally pulled the trigger on the VP3 instead of the usual bigger stationary pumps — the main reason was portability for some of our infusion-dependent patients who need to move around the ward, and the 1.7kg weight makes it basically a non-issue for nurses to hang or strap onto a pole or even carry if they're transferring someone. Spec-wise the accuracy at ±2% is what we'd expect for clinical use, not lab-grade but perfectly fine for rate-controlled dilevery in general med-surg and even some step-down units — the delivery rate from 0.1ml/h up to 1500ml/h covers pretty much everything we throw at it.

1030 drugs in the drug library sounds like overkill until you actually start loading our hospital formulary into it, we've got a lot of subspecialty stuff that usually means custom programming on older pumps and that's where errors creep in. The dose mode with weight-based calculation (0.001-9999ug/kg/min, right up to 300kg body weight) is actually feature that sold me — our chemo protocols and some neonatal drips require that precision and the built-in library cuts the setup time in half.

Volumetric Infusion Pump Front View

The occlusion pressure has 24 levels from 30 to 160 kpa and honestly most of us will never touch more than 3 or 4 settings, but it's good to have granularity for different line setups and patient populations — neonatal occlusions at low pressure versus adult central lines at higher limits. Air-in-line detection uses an ultrasound sensor rather than optical, so we don't get false triggers from cloudy solutions or air bubbles in lipid emulsions (which was a recurring headache with our previous suppliers).

We ordered these with the standard CE and ISO13485 certifcation packages, customs clearance with HS 9018390000 was smooth because teh supplier already had the paperwork organized — another buyer told me they had to chase COAs for three weeks from a different vendor. that the drug library itself is editable via serial connection but the default list covers most common agents with typical concentrations already loaded, so you're not starting from scratch.

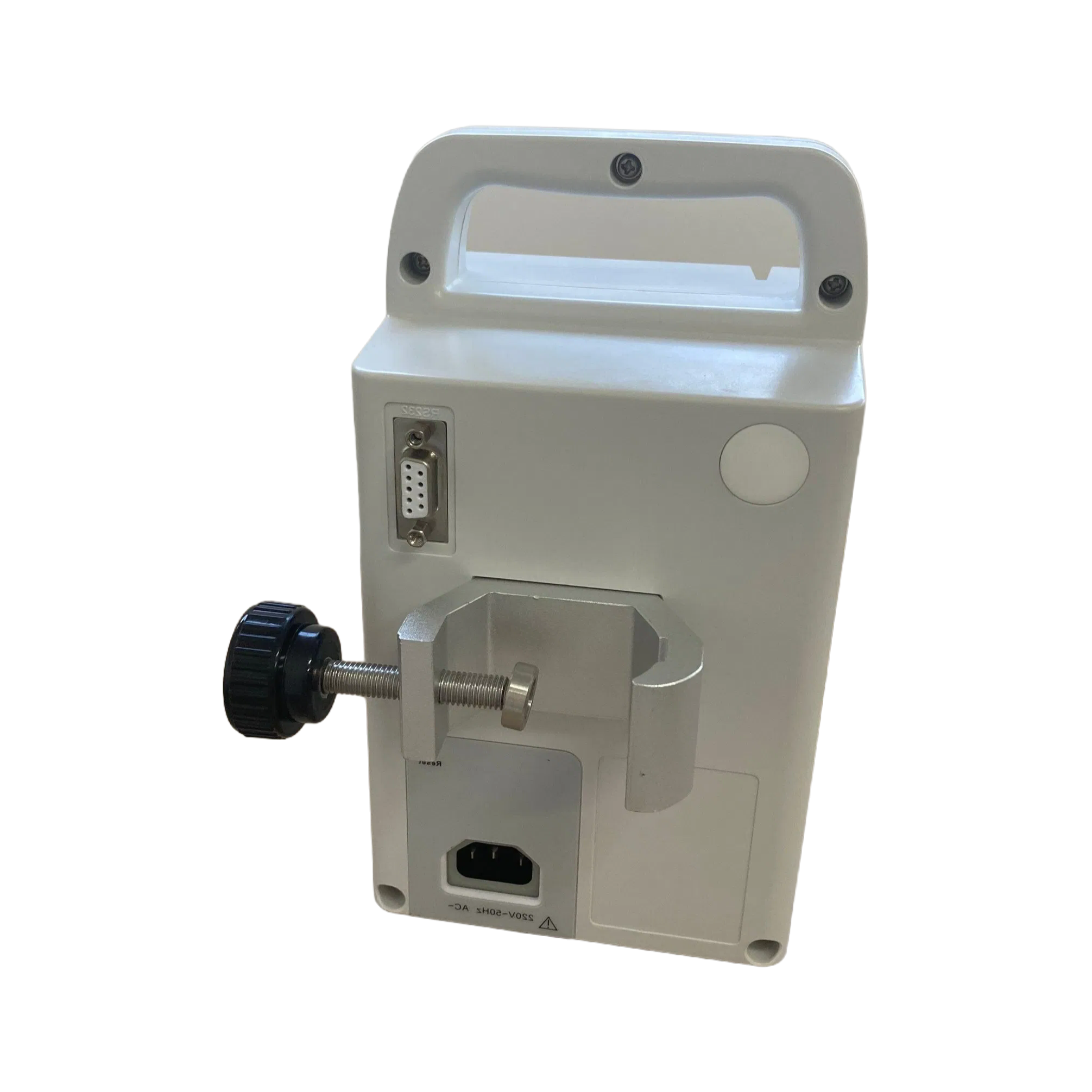

Volumetric Infusion Pump Side View

History records store 2000 events which is decent but we usually pull data more frequently anyway for audit trails, the alarm volume has low-medium-high settings and the 'anti-flow clamp not closed' alarm alone probably prevented a couple of accidental free-flow incidents already in the first week — that's the kind of safety detail you don't think about until you don't have it. One limitation nobody mentioned upfront: the default KVO rate is set at 0.1-5.0ml/h but you can't go above 5ml/h in that mode, so for patients requiring minimal flush volumes it's fine, but don't expect to use KVO as a substitute for a maintenance rate.

The perfusate finger pump design means you can use any brand of infusion set which our supply chain people appreciated, no proprietary tubing lock-in like some competitors. Bolus rate goes up to 1500ml/h with volume limits from 1-100ml, typically we run that at around 600ml/h for the purge function anyway. 24 levels of occlusion alarm sensitivity, you'll probably land on level 10-12 for most adult floors and drop to 5-6 for pediatrics — we're still dialing that in.

Frequently Asked Questions

What is the minimum order quantity (MOQ) for the VP3 infusion pump?

We typically require an MOQ of 10 units for the VP3, but we can discuss smaller trial orders if you're just getting started.

Does the VP3 come with CE and ISO13485 certification documents?

Yes, the VP3 is CE and ISO13485 certified, and we can provide the certificates and MSDS along with the shipment.

Can the VP3 work with infusion sets from other brands?

Absolutely, it's designed to work with any brand of infusion set, so you're not locked into proprietary supplies.

What is the lead time for a standard order of the VP3?

Lead time is usually 15-20 working days after order confirmation, depending on your location and shipping method.

How are the occlusion pressure levels adjusted on the VP3?

You can select from 24 occlusion pressure levels ranging from 30 to 160 kPa directly on the device, so you can tailor it to your clinical needs.
