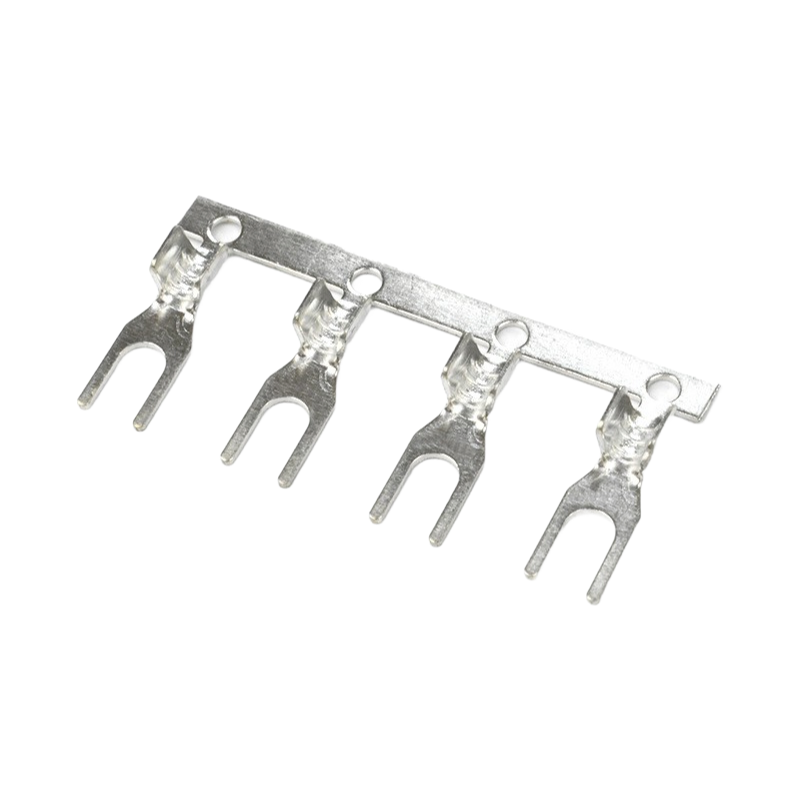

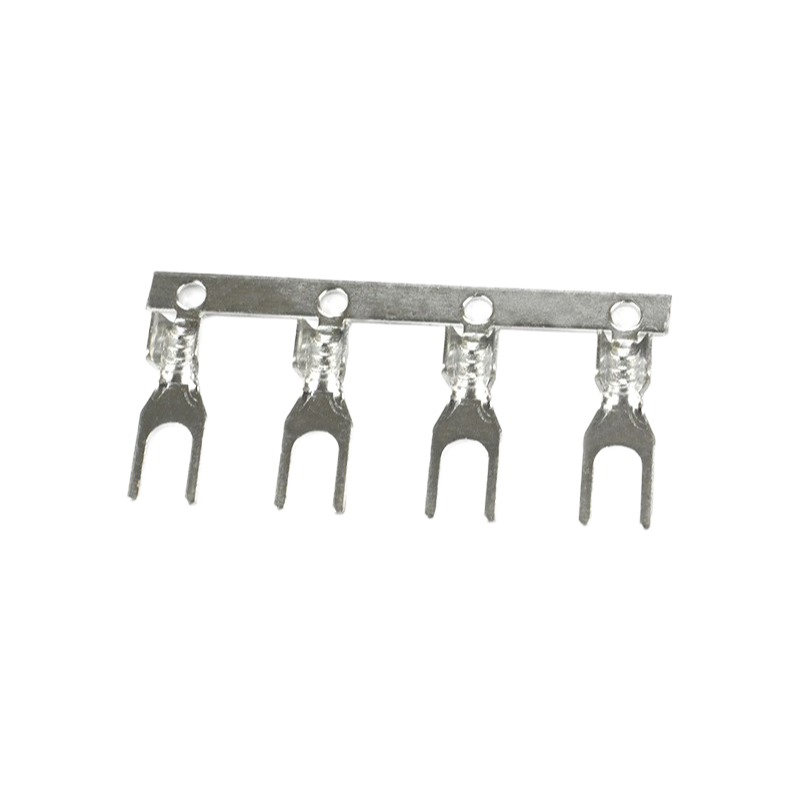

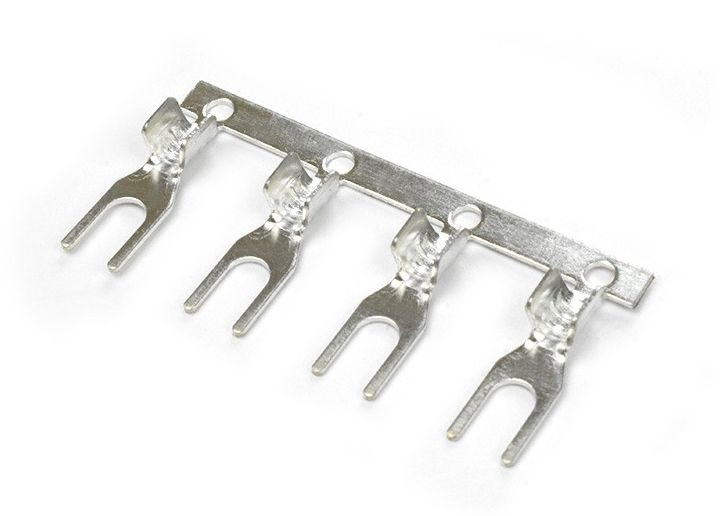

We started with environmental-grade copper, tin-plated for corrosion resistance, and ran it through precision cold pressing to get these spade terminals consistent across the reel—10,000 pieces per reel, so you're not swapping rolls mid-run.
They're good for automotive harnesses or telecom gear where you need a solid crimp at 15A max and 300V AC/DC, but don't push them into high-vibration environments without a secondary lock since spade shape can work loose over time.
Wire range is 16-18 AWG, thickness is 0.4mm with a ±0.02mm tolerance, and contact resistnce stays under 5mΩ—better than some generic brass terminals we've tested, actually.
And the salt spray test on these is pretty standard for tin plating, roughly 48 hours or so depending on the batch, so you'll want to confirm your own environmental requirement before committing.
We usually have stock on the YT5803202-40C, but OEM/ODM runs take 2-4 weeks (check lead time) if you need a custom finish or different packging quantty.
UL and CE are in place, COA comes with every order, and most buyers go with the standerd reel because of that it's easier to handle than loose packs—just a heads-up if you're running automated crimping.
We're flexible—standard MOQ is 10,000 pieces per reel, but we can discuss smaller quantities for sample orders or ongoing projects. Just let us know your needs.
Yes, we include UL, CE, and RoHS compliance docs with every shipment. You'll get the certification copies and test reports we keep on file.
Absolutely, we offer OEM/ODM services. We can adjust wire range, thickness, or plating like bare copper or silver—just share your specs for a quote.
For 50,000 pieces, typical lead time is 10-15 working days after order confirmation and payment. Rush orders are possible if we have stock.
Our tin-plated copper terminals are salt spray tested per standard requirements—they typically pass 48-72 hours without issues. For longer durations, we can adjust the plating thickness.
