Dual Head Ceiling Type LED Shadowless Operating Lamp for Surgical Rooms - YDE Series

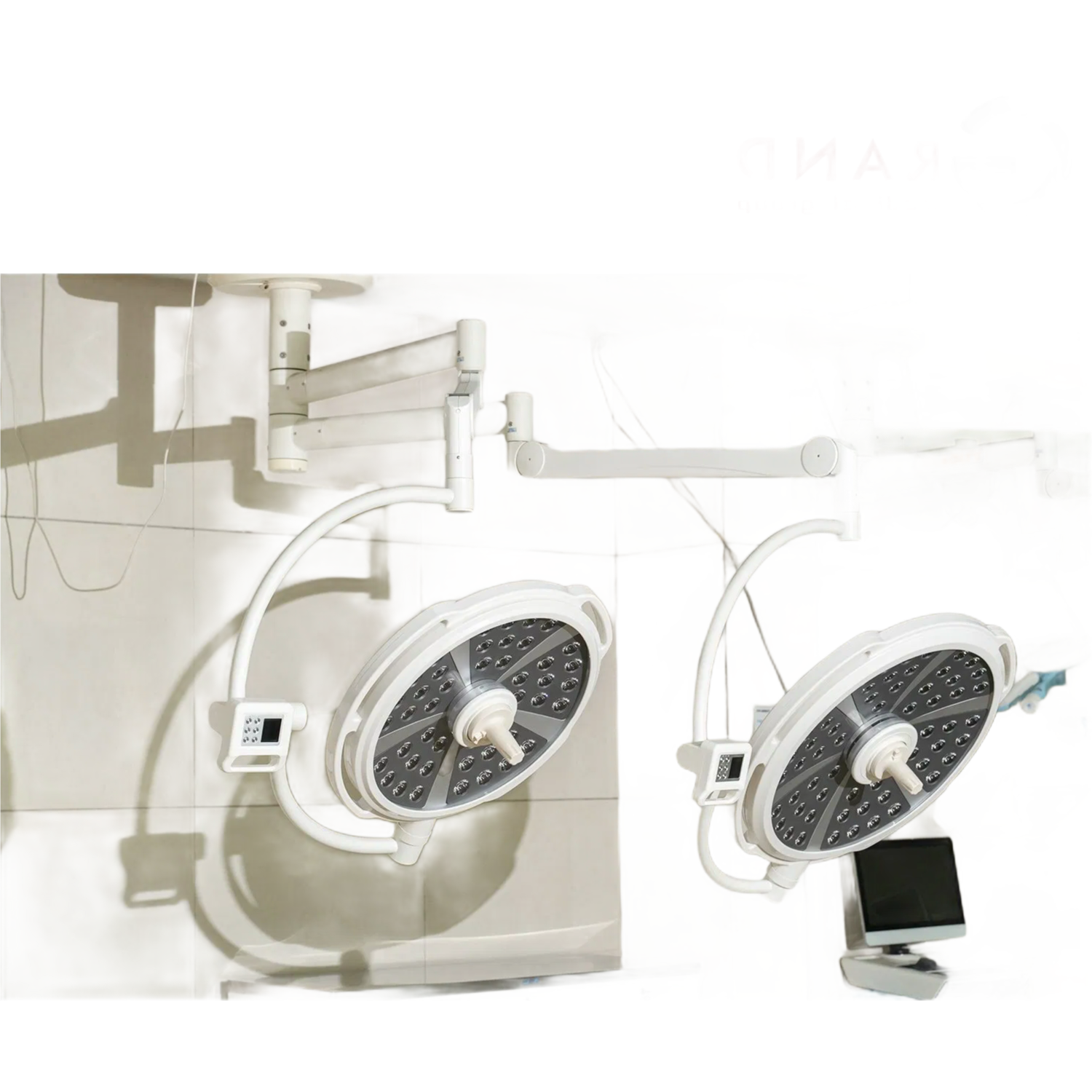

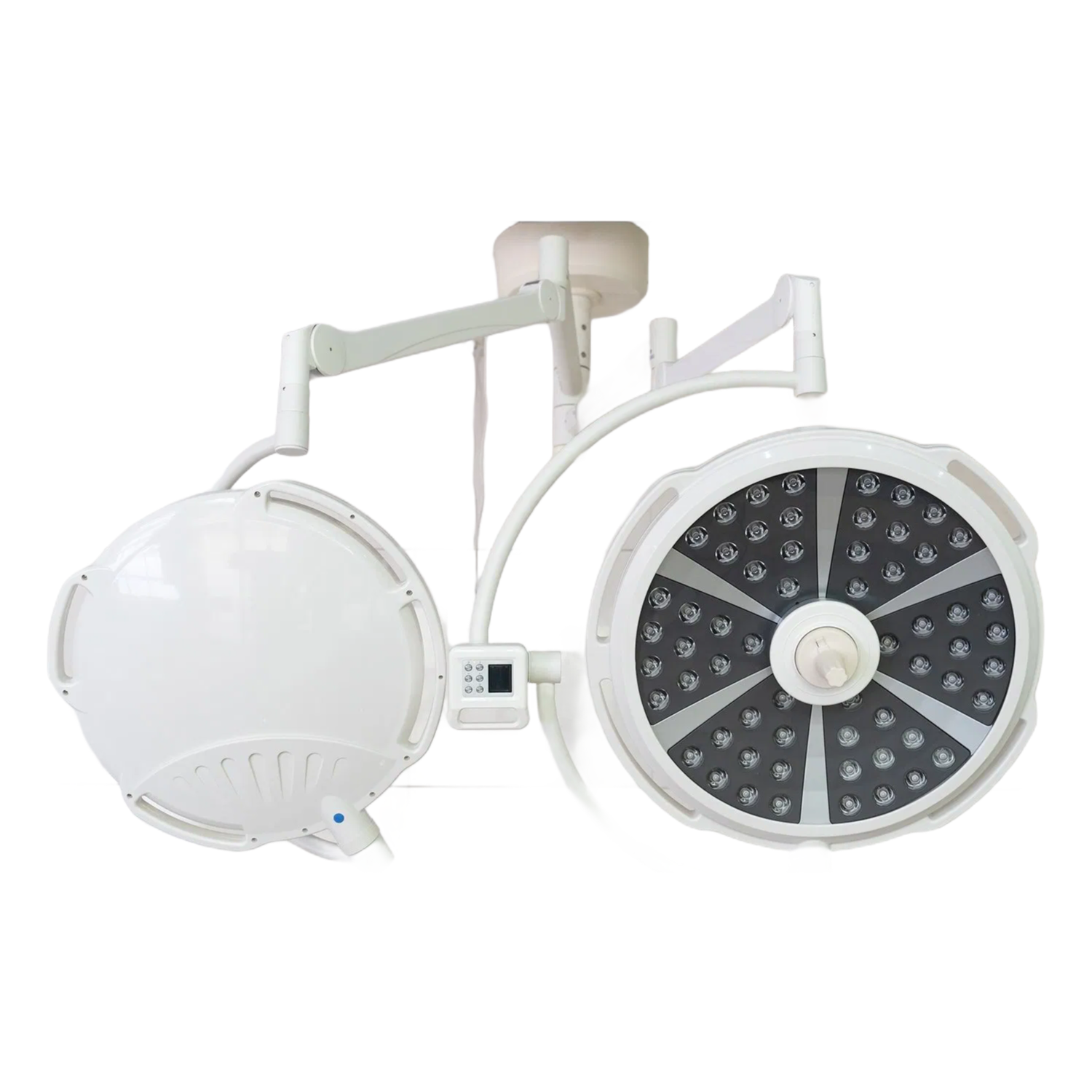

You're on hour three of a deep pelvic procedure and the shadows keep creeping in from the sides—even with the overhead lights cranked, that narrow cavity just swallows illumination. So we've got teh YDE500/700 here, a dual-head ceiling-mounted setup that pushes 180,000 lux right where you need it, with a color tempearture that varies from 3600K to 5500K (±500) so you can dial in the warmth or coolness depending on the tissue. It basically eliminates those annoying hand-shadows that pop up when you're working deep.

The color rendering index sits at 95% Ra, which is better than most older halogen systems for telling subtle shades of red and pink apart during dissection. Lamp beads are 1W each, 60 of them total, and they're 100,000 hours—so you'll probably replace the OR floor before these burn out. The temperature at surgeon's head stays ≤1°C, which matters when you're under those lights for hours.

Light distribution is pretty tight: 50% spot diameter is 150 mm, and the 10% spot runs about 280 mm, so the core is focused while periphery still gives decent ambient coverage. You can adjust illuminance form 25% to 100%, and the depth of illuminance is 140 cm—give or take. One thing we don't always mention upfront is this light isn't ideal for very shallow surfce work like dermatologic excisions, where you'd want a wider, softer field.

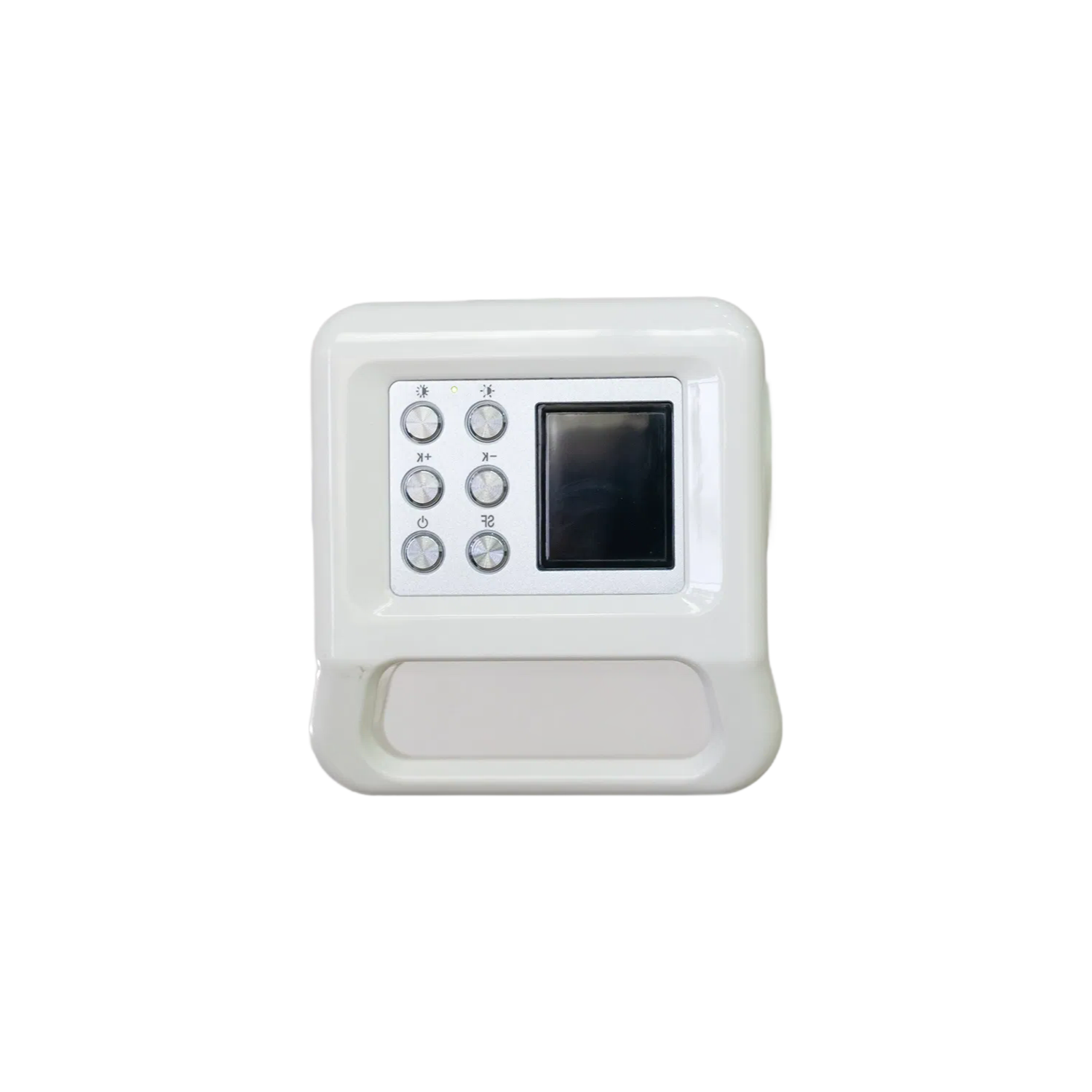

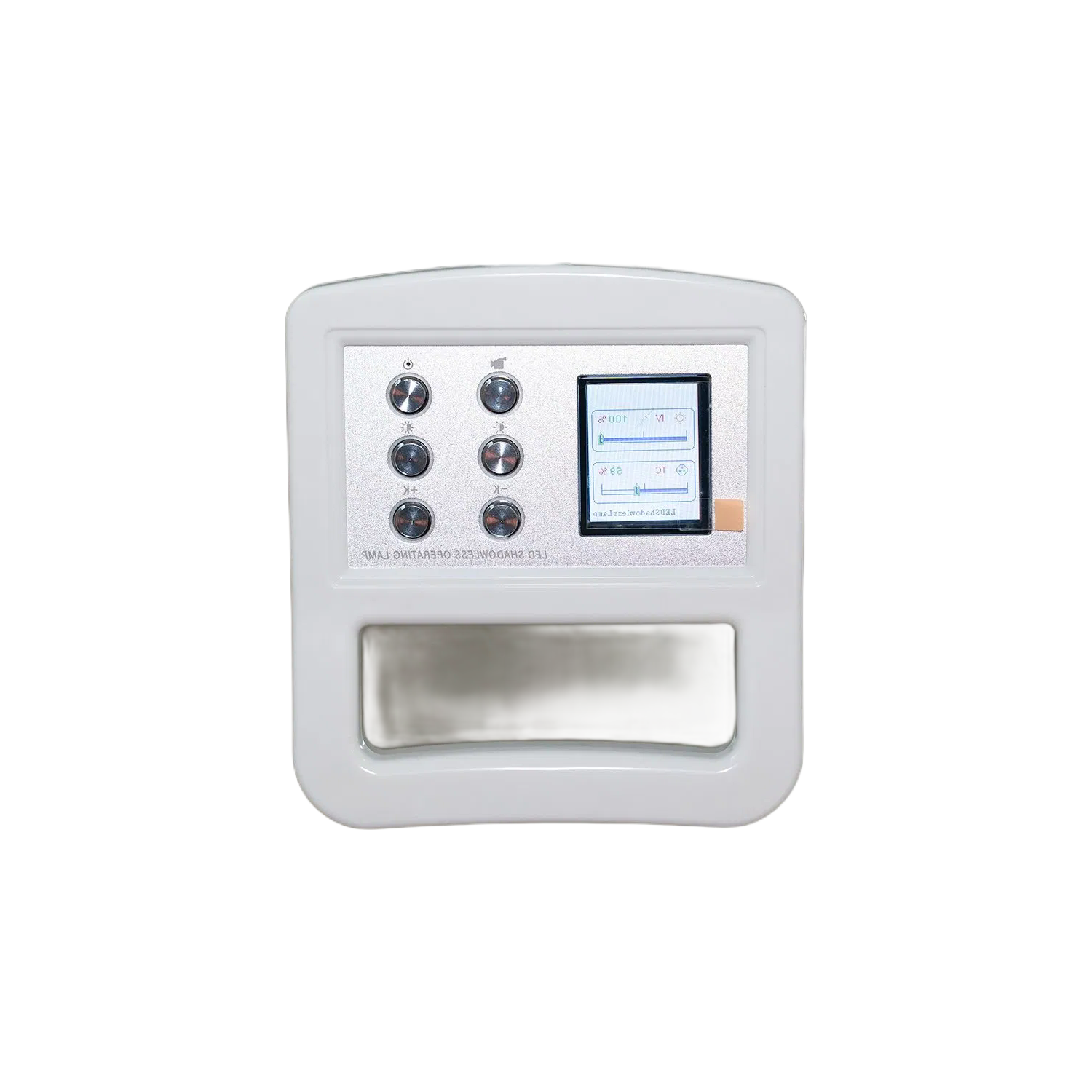

Focus is either manual or electric—your choice, but most buyers go with electric for fine adjustments without reaching up. OEM and ODM are available, so if you want different mounting arms or a custom color housing, our company can do that. The power supply is standdard 220V, 50Hz, and input is 65W, so it won't trip a circuit even with other equipment running. Also, the built-in power supply means there's no external ballast box to mount.

We ship these in professional wooden cases—usually within 20 days or so after order, but confirm lead time if you need it faster. Warranty runs 3 years, and we've got CE, FDA, and ISO13485 certs on file. MOQ is typically 1 unit for stock models, but check on custom configurations.
