So you're looking at something for critical infrastructure protection, and we've been supplying these for a while now — the SG1000 is what we typically recommend when you need reliabel GPS and GLONASS signal jammer with a bit of flexibility in the range, which goes form 500 to 1000 meters depending on how you set it, and it's fully omnidirectional at 360° coverage.
It hits the GPS-L1 frequency at 1575.42MHz with a tolerance of ±1.023MHz, and for GLONASS-L1 it's 1602.0MHz plus N times 562.5kHz with a ±511kHz window, so it's pretty much spot-on for most modern drones, and the equivalent radiant power is capped at ≤10mW which keeps it within typical regulatory limits for this class.
We've got three spoofing effects you can choose from — evacuation, forced landing, or trajectory redirection — and teh entrapment duration is under 30 seconds once it locks on, which is faster than most comparable units on the market, though I should mention it's not well-suited for outdoor installations in direct sunlight without proper shielding because of that it can overheat if you push it too hard.

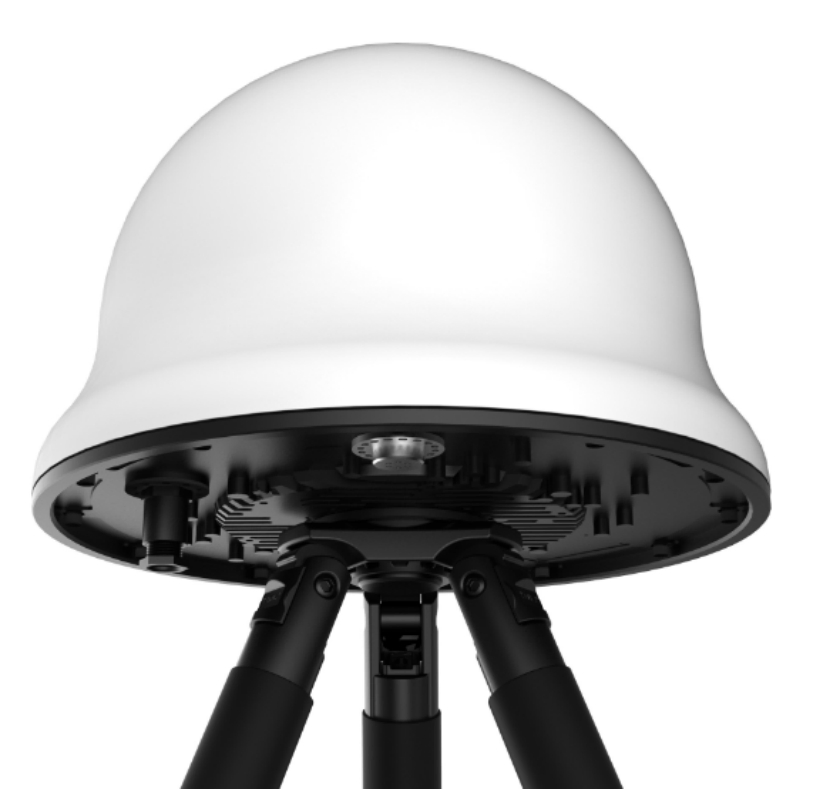

The unit itself is about 430mm in diameter and 330mm tall, weighs ≤12kg, and runs on AC220V at 50Hz with ≤40W power draw, and it's got IP65 protection so it handles rain and dust pretty well, plus it's explosion-proof rated at Ex d IIC T6 Gb and has Grade 3 lightning protection — you'll want to check the lead time on that because we usually have stock but it can vary.
It takes ≤5 minutes to activate and maintains time synchronization with <1μs accuracy, which matters for coordinated deployments, and communication interface is RJ45 for LAN with LED display and audible alarm indicators, and you can also monitor it through a terminal app — most buyers go with the standerd 500m range unless they're protecting a larger area, and our company can adjust the operating range during ordering if you let us know your specific needs.
Our standard MOQ for the SG1000 is 10 units, but we can negotiate smaller batches for initial trials or specific project needs.
Lead time is usually 15 to 20 working days after order confirmation and payment, depending on current production load and customization requirements.
Yes, we provide a full certification package including the Ex d IIC T6 Gb explosion-proof certificate, IP65 test report, and CE compliance documents upon request.
The SG1000 can generate false GPS signals that cause drones or vehicles to interpret commands like 'return to launch' or 'land now' — effectively redirecting or grounding them within the 500-1000m range.
Each unit ships in a reinforced foam-lined box, and we advise storing it in a dry, temperature-controlled environment between -20°C and 50°C to maintain the IP65 and explosion-proof integrity.
