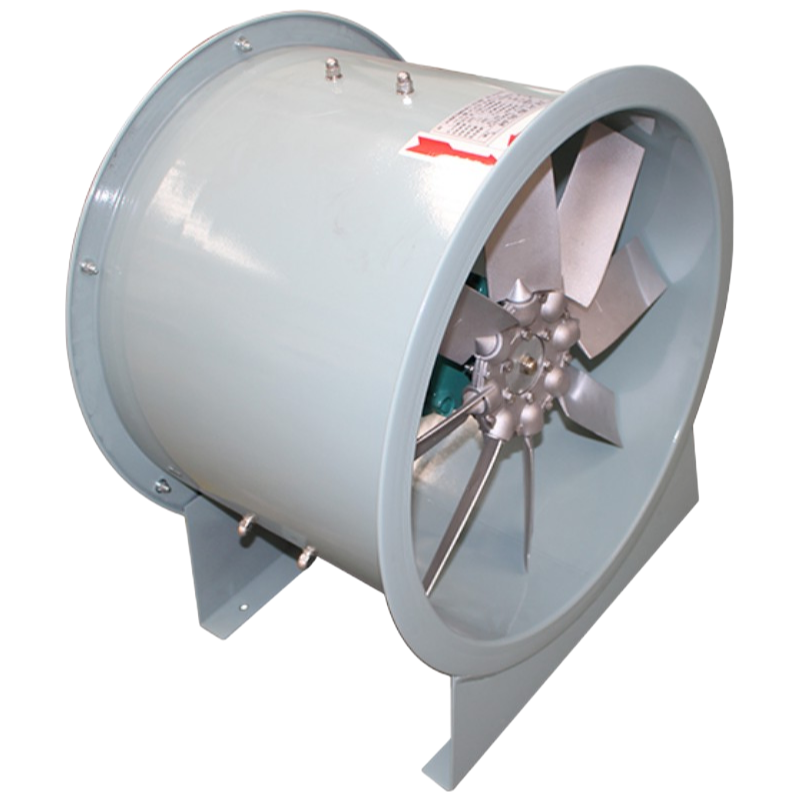

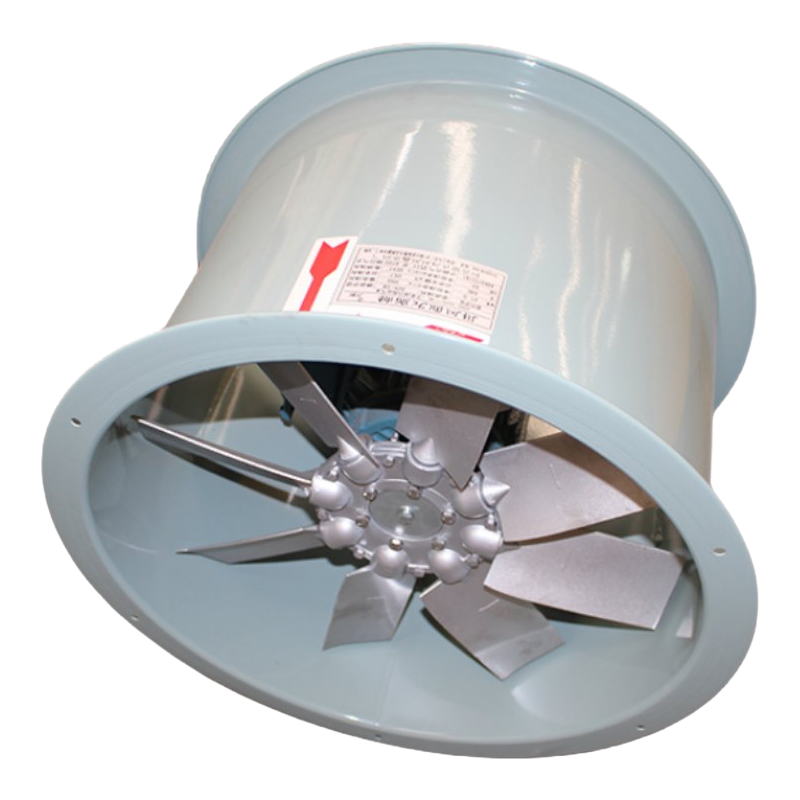

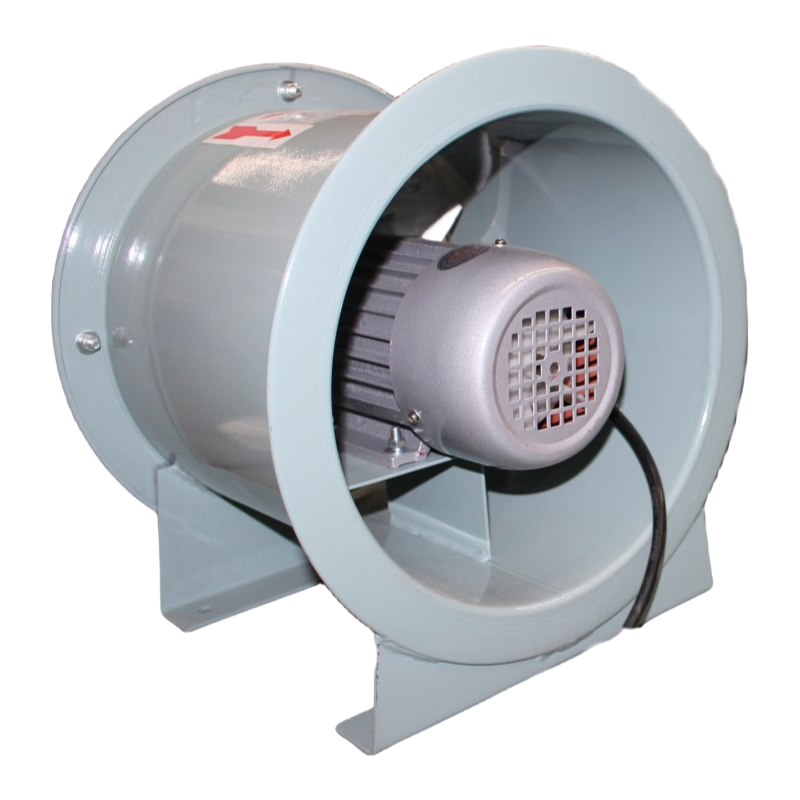

Low Noise BYT Axial Flow Fan with Adjustable Blades for Wood Drying Kiln Applications

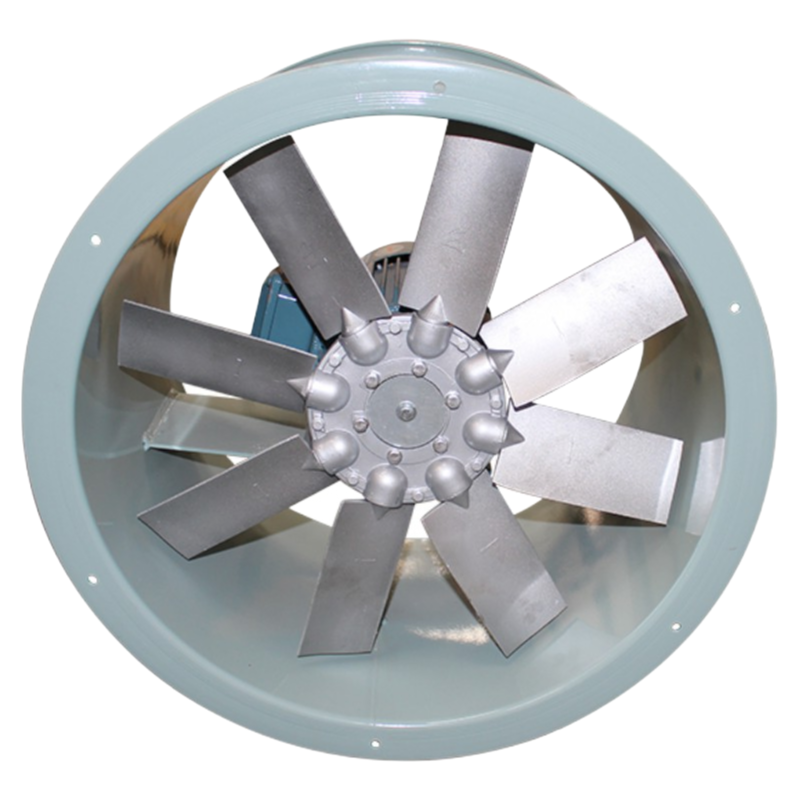

The BYT series axial flow fan represents advanced ventilation technology with optimized aerodynamic design and precision manufacturing. These industrial-grade fans utilize adjustable aluminum alloy impellers with blade angles ranging from 15-35 degrees, allowing customized airflow control for various applications.

Engineered for superior performance, BYT fans demonstrate significant improvements over conventional models, delivering 42% greater air volume (up to 140,000 m³/h) and 30% higher pressure while reducing noise levels by 10-18dB(A). The total pressure efficiency reaches 82.3%, making them exceptionally energy-efficient for continuous operation.

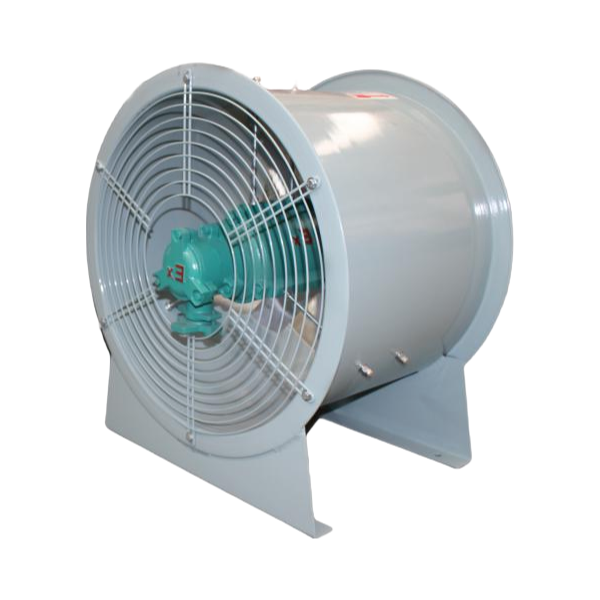

Available in 19 standard sizes based on impeller diameter, each unit features 6-14 blades depending on model specifications. The high-temperature resistant construction includes F-grade insulation and IP54 protection rating, with operational capability in environments up to 120°C. Flameproof versions are available for handling combustible gases when equipped with appropriate motors.

Particularly effective for wood drying kilns, these fans offer bidirectional ventilation capability from a single installation point. The durable aluminum alloy construction with high-temperature baked finish ensures long-term reliability in demanding industrial environments.
