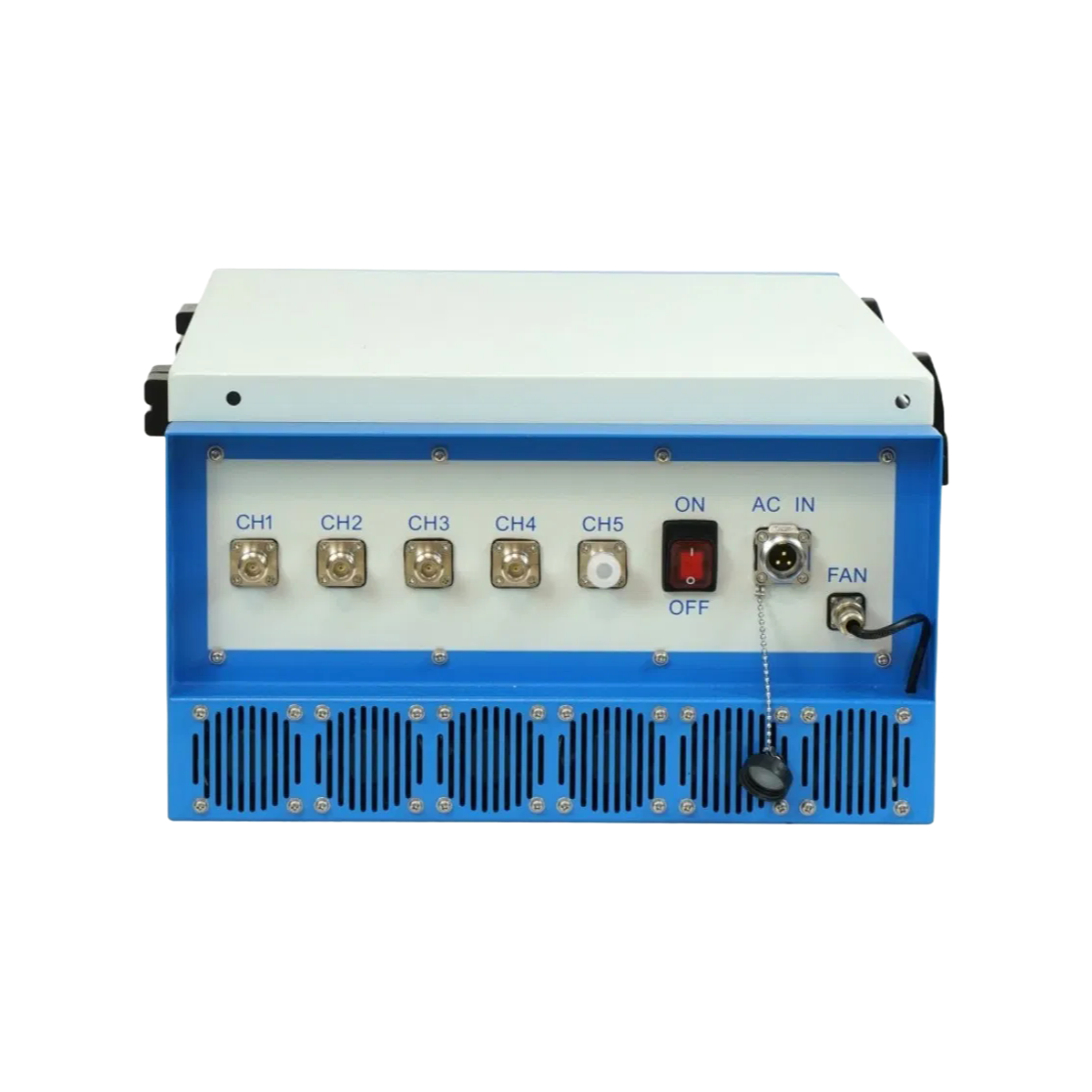

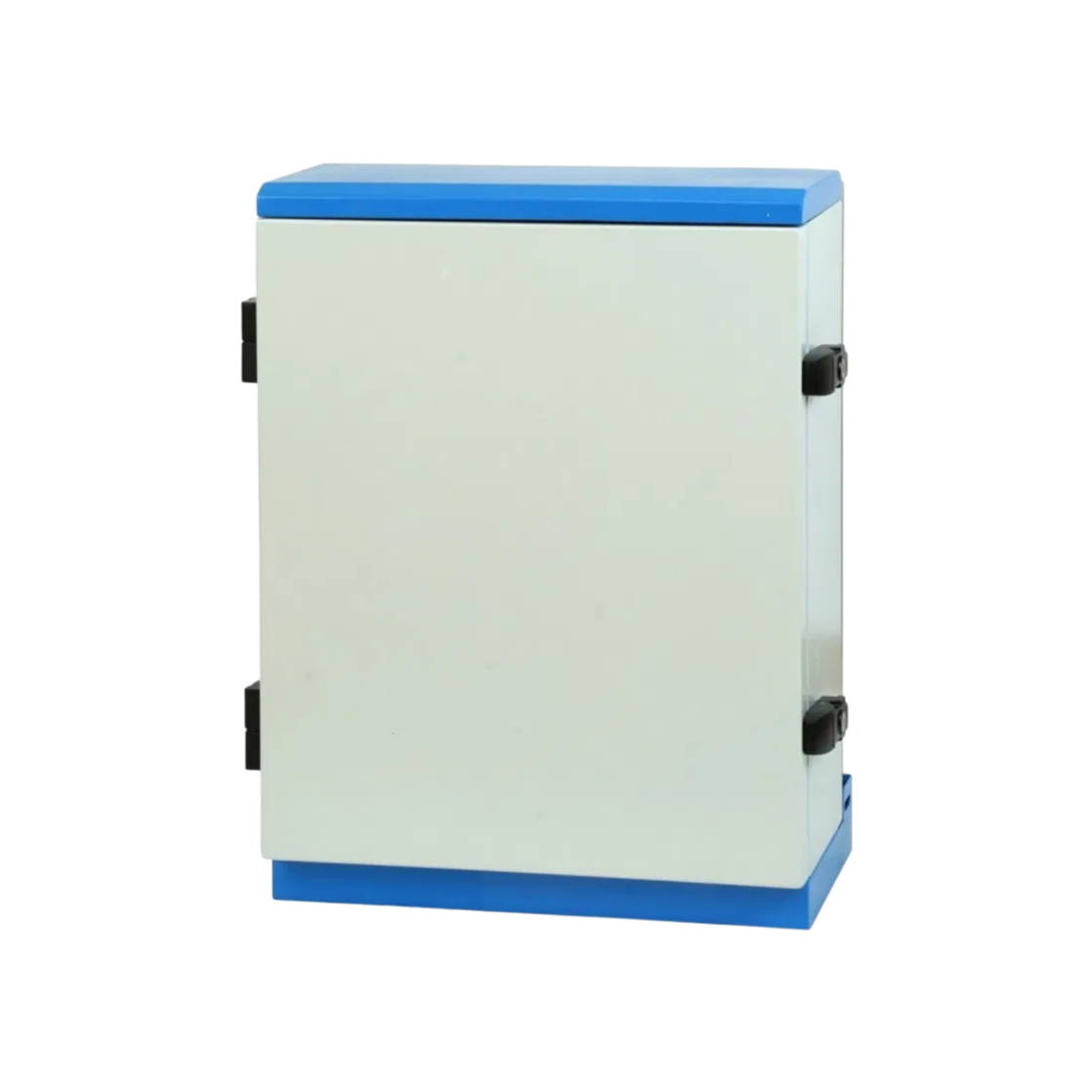

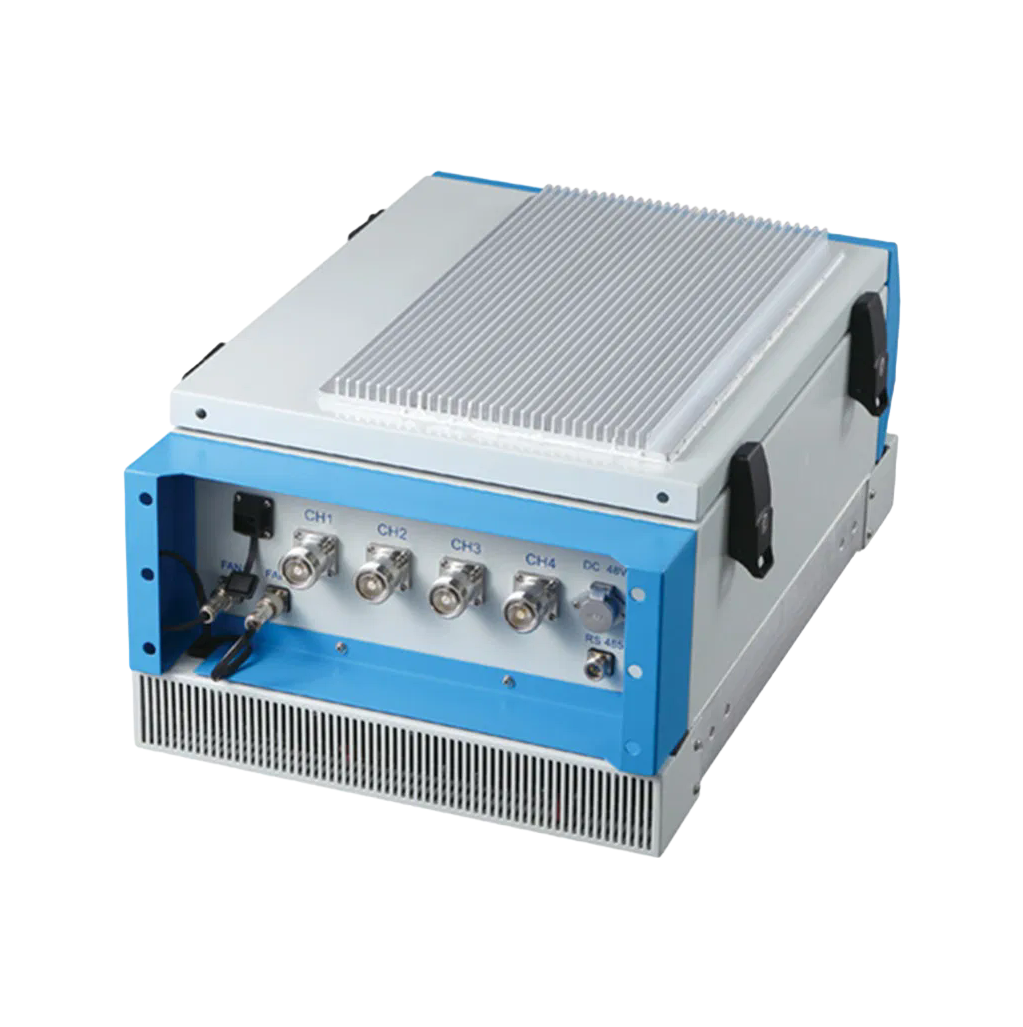

So we've got a 800W unit here—the PTC-WP800W—spread across multiple channels at 40-100W each, which should give us 50 to 300 meters of coverage depending on how dense the walls are, and it's IP65 rated so it can sit outside in teh rain without issues.
It covers pretty much everything we need: 2G through 5G, both WiFi bands at 2.4 and 5.8GHz, plus GPS, and the frequency range is configurable from 20 to 6000MHz so our company can dial in exactly what we're blocking and leave other bands alone.
Control is handled either by IR remote or Ethernet software—the software side lets us adjust power per channel remotely and get real-time alerts if something goes wrong, which is better than having to walk out to unit every time.

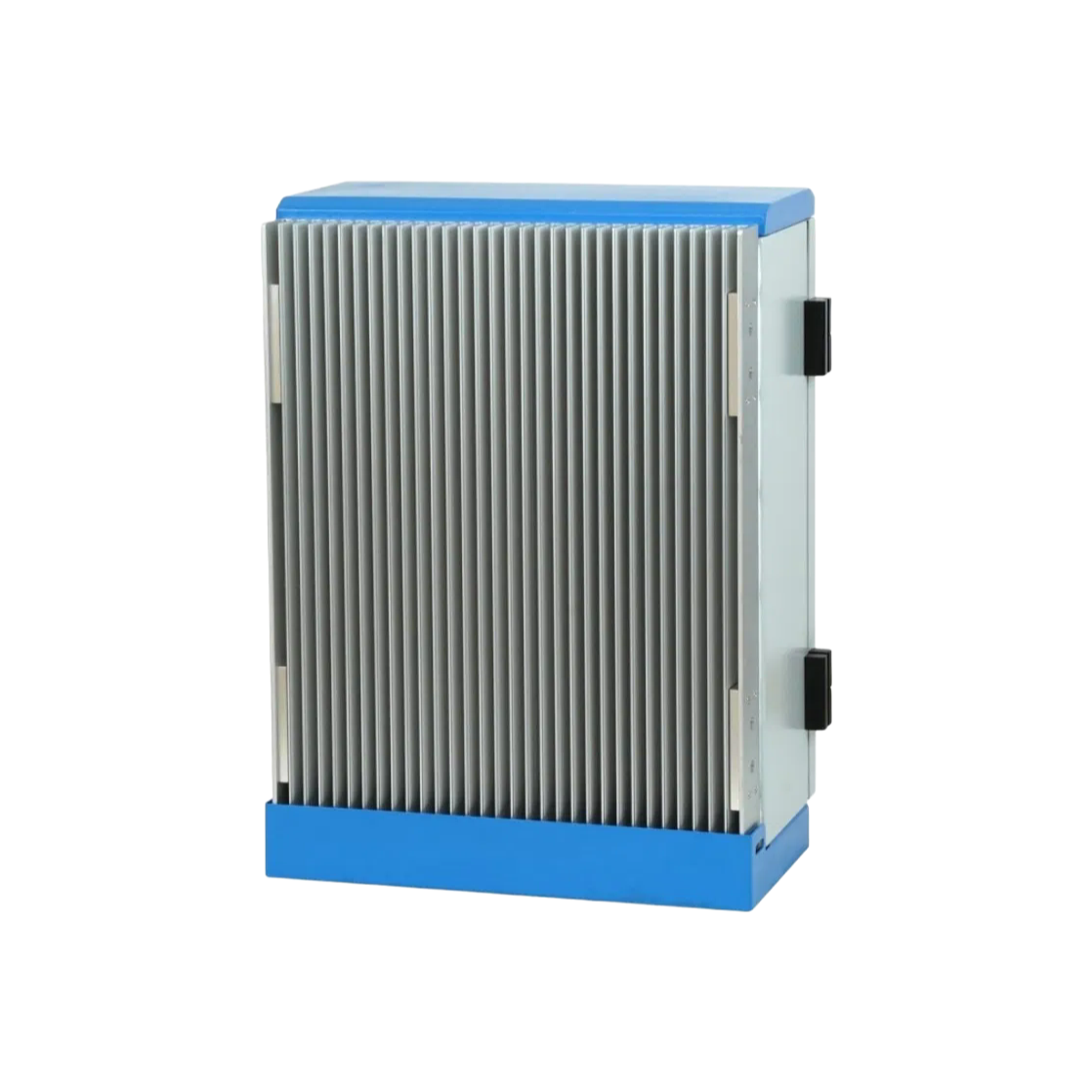

Weight is 50kg and dimensions are 700x550x300mm, so you'll need at least two people to mount it, and the aluminun radiator with fans should keep it cool in temps from -20 to +50°C—we do have to make sure the ventilation isn't blocked though.
It includes VSWR, tempearture, and lightning protection built in, which saves us having to add external surge protectors (usually a separate cost), and warranty runs 2 years.
One thing it's not great for is tight indoor spots with lots of metal shelving—the signal gets chopped up fast, so this is really for open perimeters or courtyard areas where you've got clear line-of-sight.
The 50-300 meter range depends on factors like building materials and signal strength. In a concrete prison block, expect closer to 50-100 meters; in more open areas, you may reach the upper end.
Yes, it covers 2G through 5G, plus WiFi and GPS. The 20-6000MHz range is configurable, so you can set it to target specific bands like 5G as needed.
We typically require a MOQ of 1 unit for evaluation, but larger orders may have better pricing. Contact us for specifics on bulk quantities.
Yes, we provide CE and FCC compliance documentation, plus a 2-year warranty. The unit also includes VSWR, temperature, and lightning protection for safety.
You can control it via the included IR remote or Ethernet software. The Ethernet interface allows integration with your network for remote management and scheduling.
