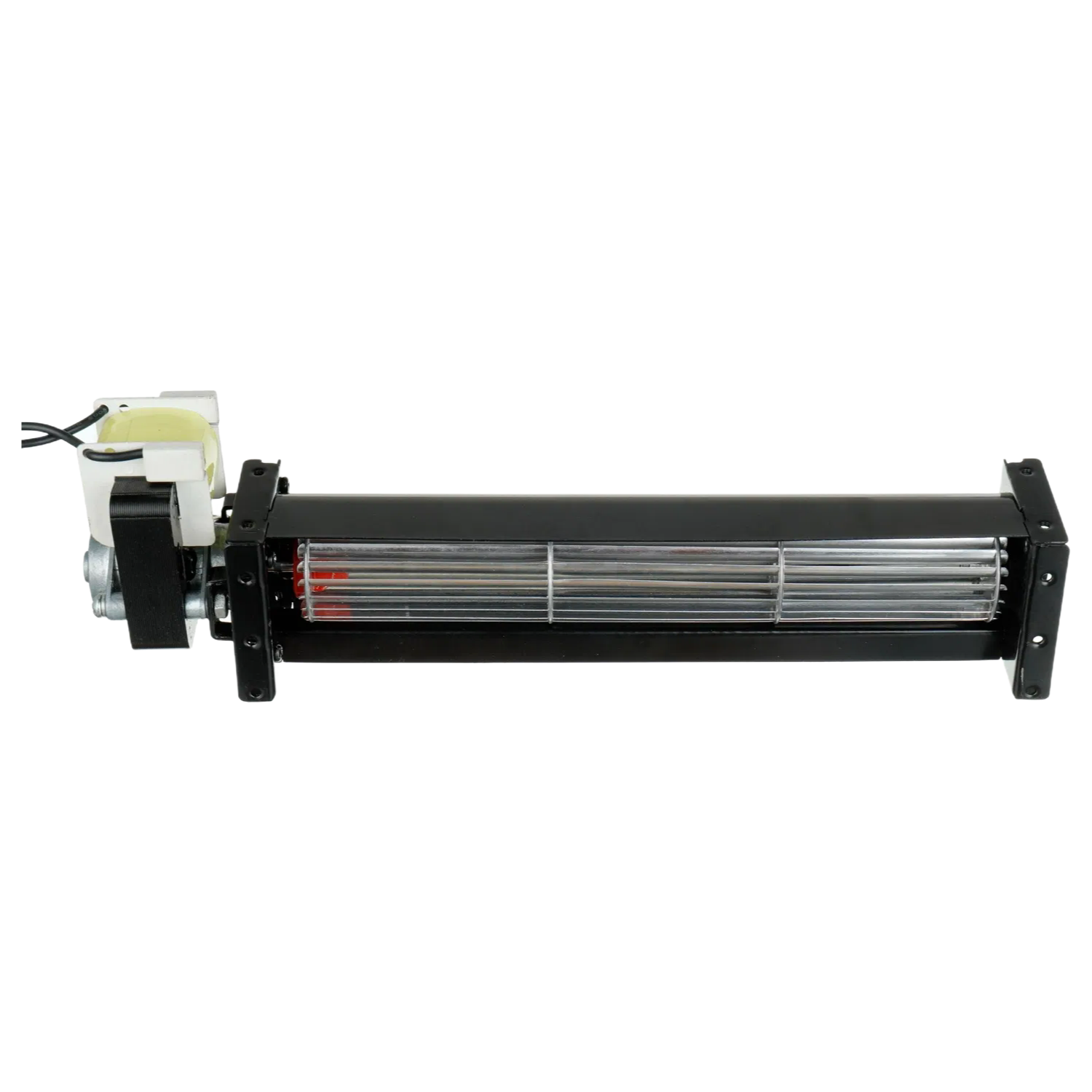

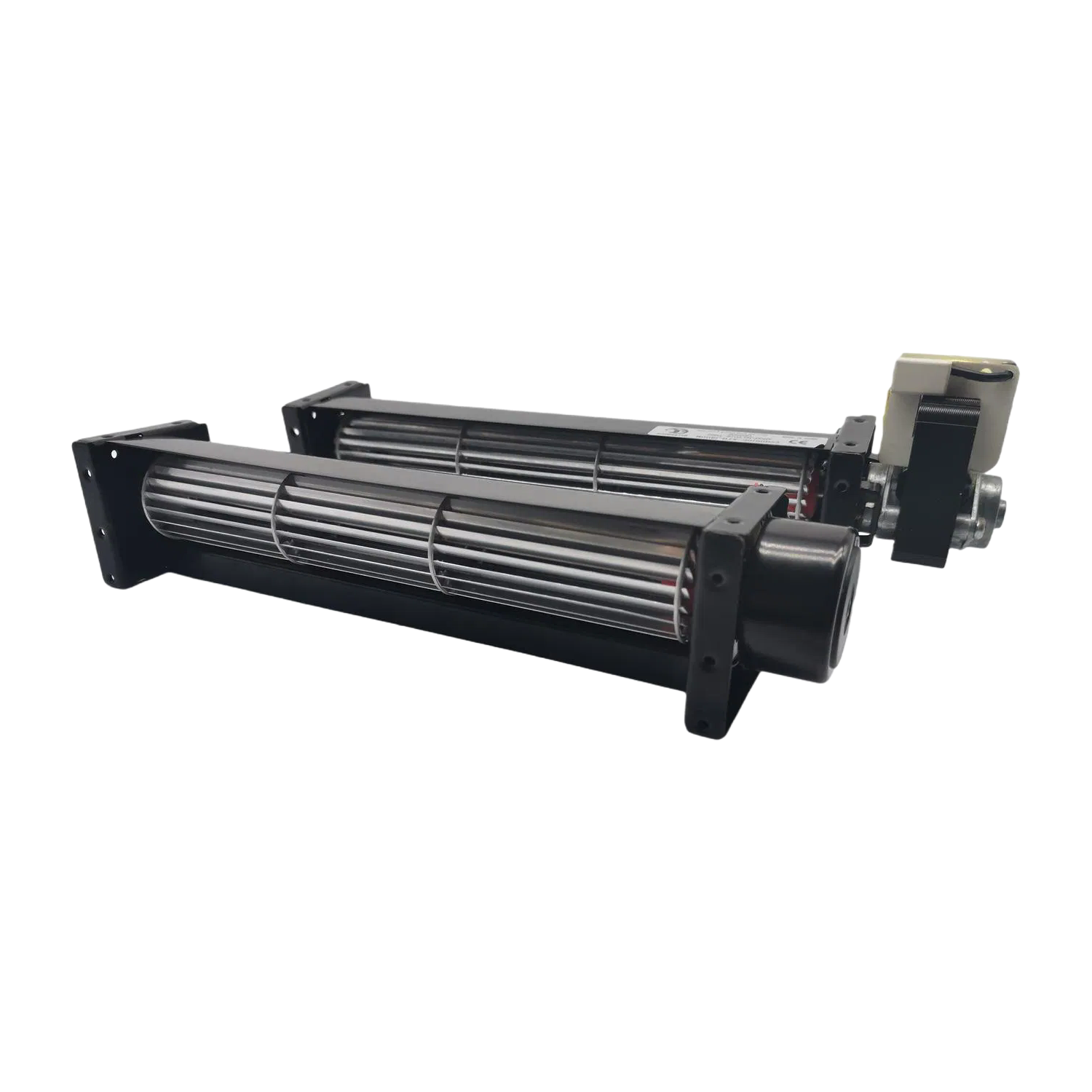

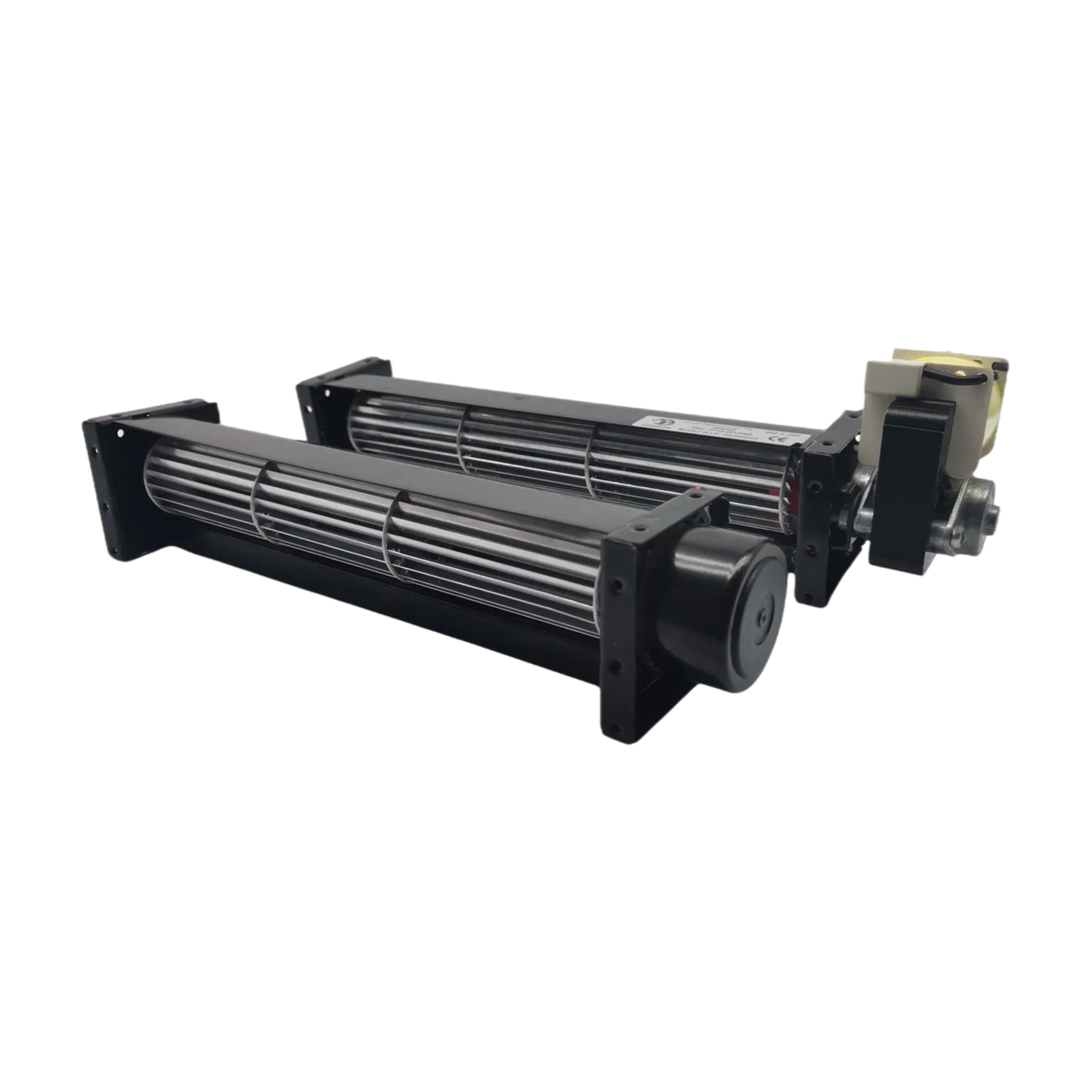

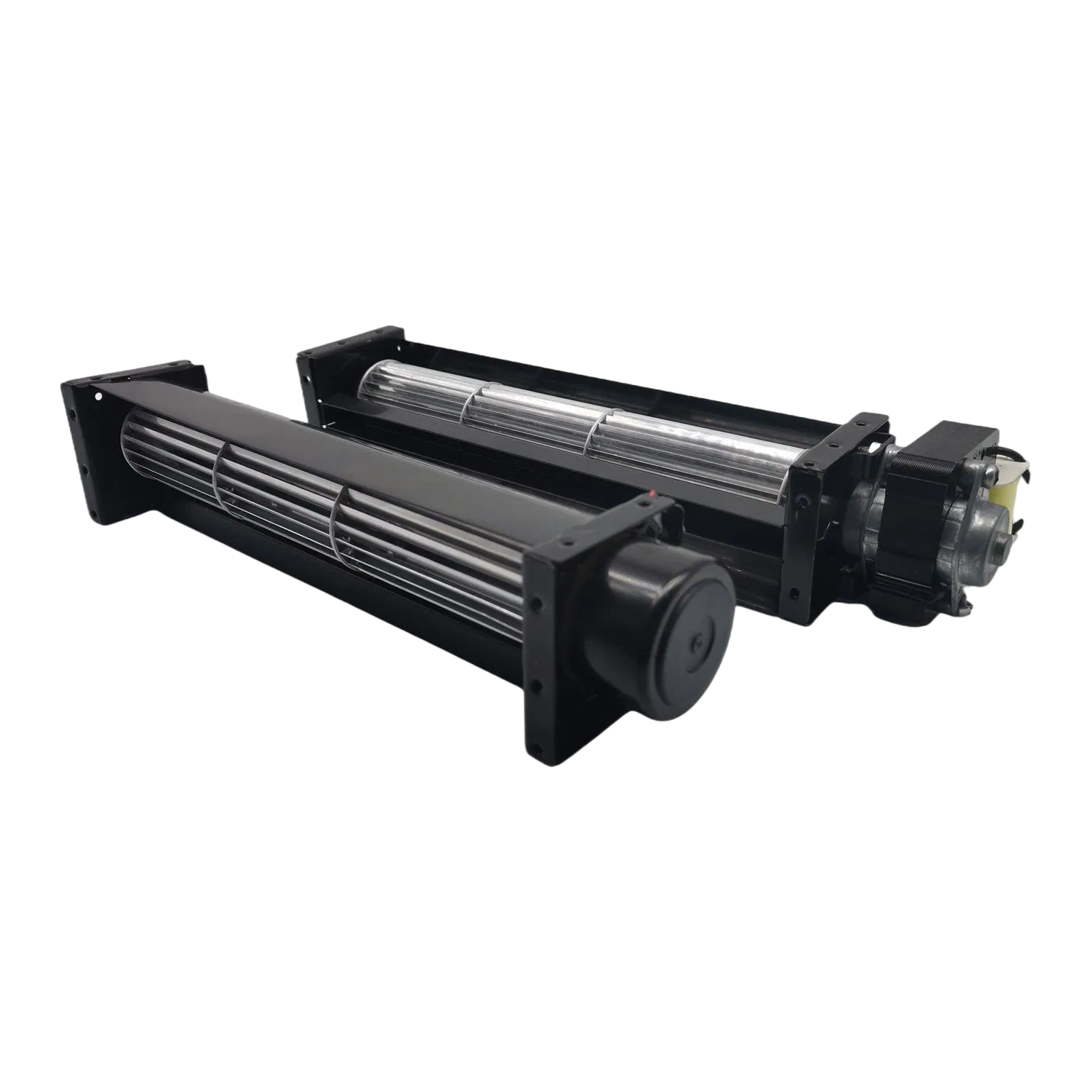

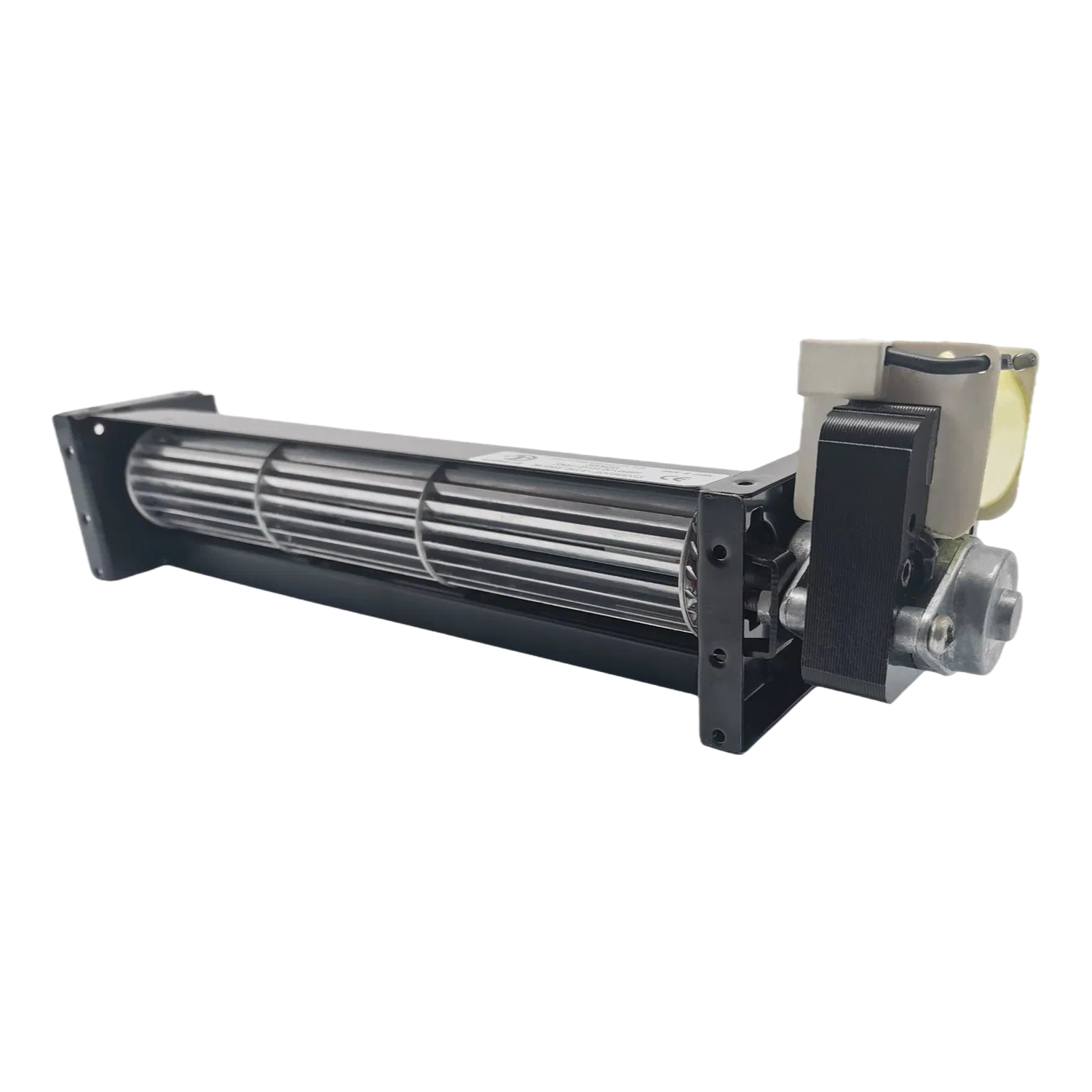

The AC Cross Flow Fan model AC-F30190, measuring 210x190x30mm, is engineered for efficient cooling in various industrial and commercial applications. Constructed with a durable cold rolled steel frame and an aluminum alloy impeller, this fan ensures longevity and reliable performance. It operates within a temperature range of -10°C to 70°C, making it suitable for diverse environments.
This fan offers motor protection through auto restart or polarity protection, ensuring safety and durability. It has an insulation resistance of 20MΩ or higher when tested with a DC500V megger and can withstand a dielectric voltage of AC500V for 1 second. Users can choose between sleeve bearing or ball bearing types based on their specific needs.
Key performance parameters include a standard speed of 2500 RPM, current of 0.1A, airflow of 24.83 CFM, pressure of 0.6 mmAq, and noise level of 39 dBA. However, all these parameters are customizable to meet customer requirements, providing flexibility for different applications. The fan weighs 535g and is available in black.
Applications for this AC cross flow fan include treadmills, advertising displays, air purifiers, and more. It features functions such as FG (tachometer output), PWM control, auto restart, and RD (reverse detection), enhancing its versatility. With certifications including RoHS, ISO, CE, CCC, TUV, Reach, and SGS, it meets international standards for quality and safety.
