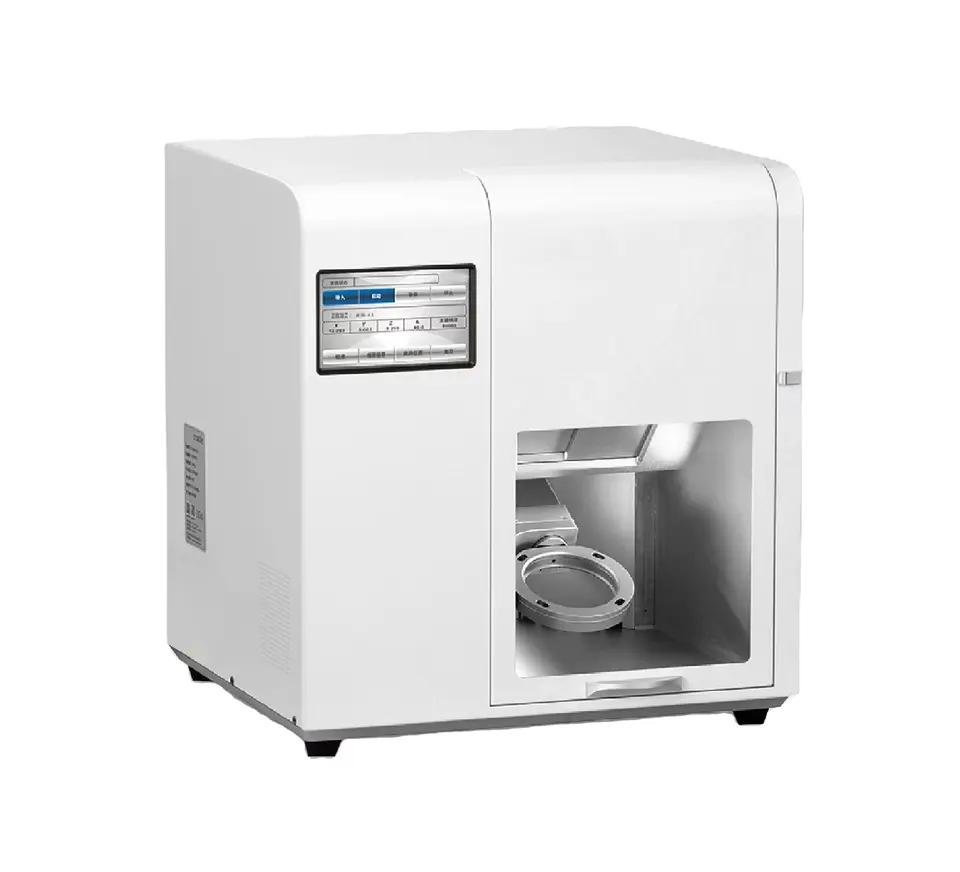

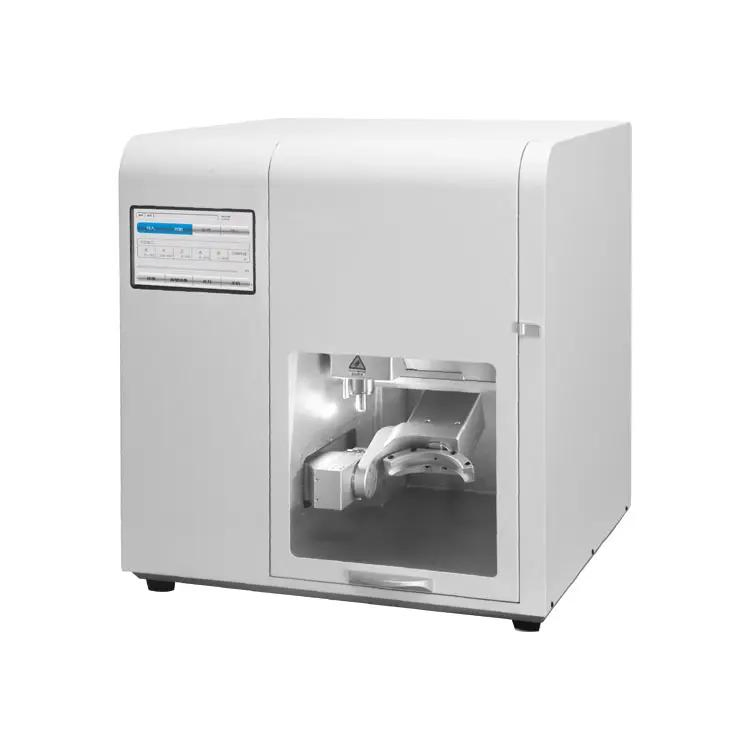

The 5-axis dental milling machine DDM-5A represents the cutting edge in digital dental restoration technology. This precision milling system combines advanced five-axis coordinated motion with both wet and dry milling capabilities, making it ideal for chairside CAD/CAM applications and dental laboratory workflows.
Engineered for exceptional accuracy, the machine achieves 3μm repeatability and features a high-speed spindle capable of 15,000-60,000 rpm. The innovative design allows for large angle cutting while maintaining compact dimensions, making it suitable for both clinical and lab environments.
The system supports processing of various dental materials including zirconia, PMMA, wax, hybrid materials, and feldspar-type ceramics. Its versatile applications range from full crowns and veneers to inlays/onlays and implant restorations.
Key technical specifications include a rotation angle of A:360° and B:25°, air pressure requirement of 4.5-6.0Bar (oil-free & water-free), and power requirements of 220V/50-60Hz. The machine comes equipped with multiple bur sizes (0.5mm, 1.0mm, 2.0mm) for different milling applications.
For dental professionals seeking efficient digital workflows, this 5-axis milling solution offers multiple data transmission options including wired, wireless, and USB connectivity. The system's precision and flexibility make it particularly valuable for creating ultra-thin veneers down to 0.3mm thickness.
