Introducing the MCV0317 Veterinary Endoscope Visual Instrument, a portable vet video endoscopy system tailored for animal pets (especially canine) veterinary medical applications. This all - in - one system integrates multiple functional modules to fulfill various veterinary diagnostic and surgical requirements, and it supports factory direct supply, wholesale, and customization to match specific needs.
1. Video Processor & Light Cold Source (2 - in - 1 Machine)
This core component provides Full HD 1080P imaging quality, powered by a 100W white LED light. Working with a voltage of 100 - 240V (50 - 60Hz), it can reach an illuminance of ≥3,000,000 lux and a color temperature of ≥5700K, guaranteeing clear and true - to - life visuals. Video signal output options include CVBS, HD - SDI, VGA, DVI - D, and HDMI, allowing flexible connection with monitors or recording devices. Brightness adjustment (0 - 100 grade) and one - click white balance make operation easier, and a 5 - inch color LCD high - sensitivity touch screen control board improves the user experience. The system also supports one - click freeze for single - image capture, which is helpful for accurate diagnosis.

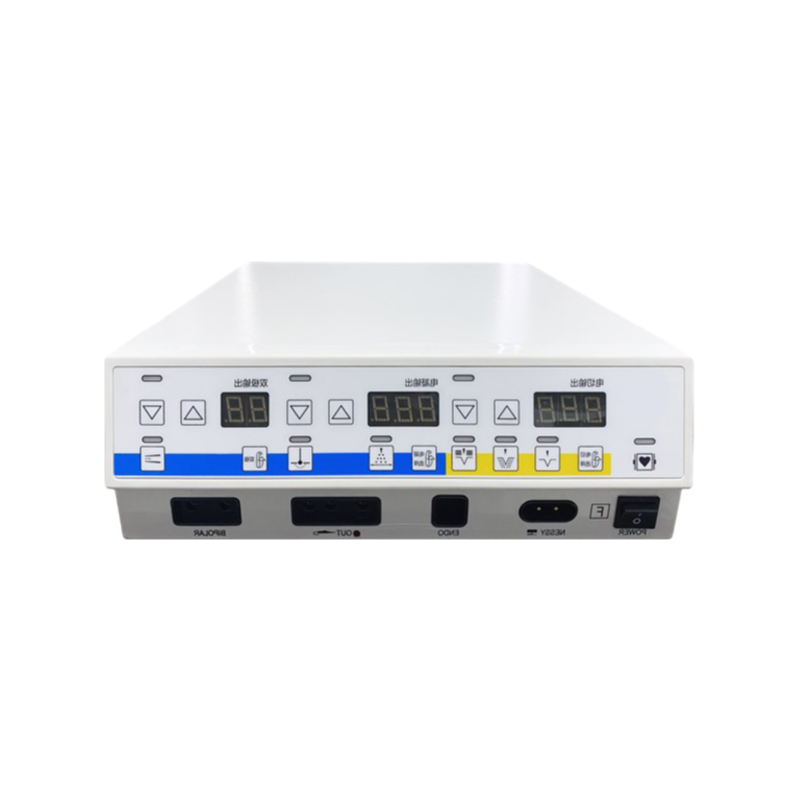

2. Electrosurgical Unit
Designed for safe and efficient surgical procedures, this unit operates at 110/220V (50/60Hz) with a power capacity of 1100VA (Class I, Type BF). It supports intermittent loading with a continuous working mode and is equipped with a fuse (BGXP5×20 5A, 3pcs) for protection. With a highest frequency of 400W (500Ω), it can meet various electrosurgical needs. The power supply tolerance is ±10%, and the machine power dissipation is ≤1000VA (CUT 400W, BIOPOLAR 70W output). It can operate within a barometric pressure range of 500hPa~1060hPa, a temperature range of 5°C~40°C, a relative humidity of ≤80%, and a working frequency of 360~512kHz, ensuring reliability in different environments.
3. CO₂ Pneumoperitoneum Insufflator Machine
This unit offers stable gas management for abdominal procedures. It is powered by AC220V (50Hz) with an input power of 40VA and is equipped with a fuse (flal250v 1A). It provides precise control: the gas injection pressure ranges from 0.67kPa to 3.30kPa (1mmHg) with an accuracy of ±0.13kPa (1mmHg), and the gas flow rate ranges from 1L/min to 30L/min (with a ±20% deviation). This ensures optimal pneumoperitoneum conditions for minimally invasive surgeries.

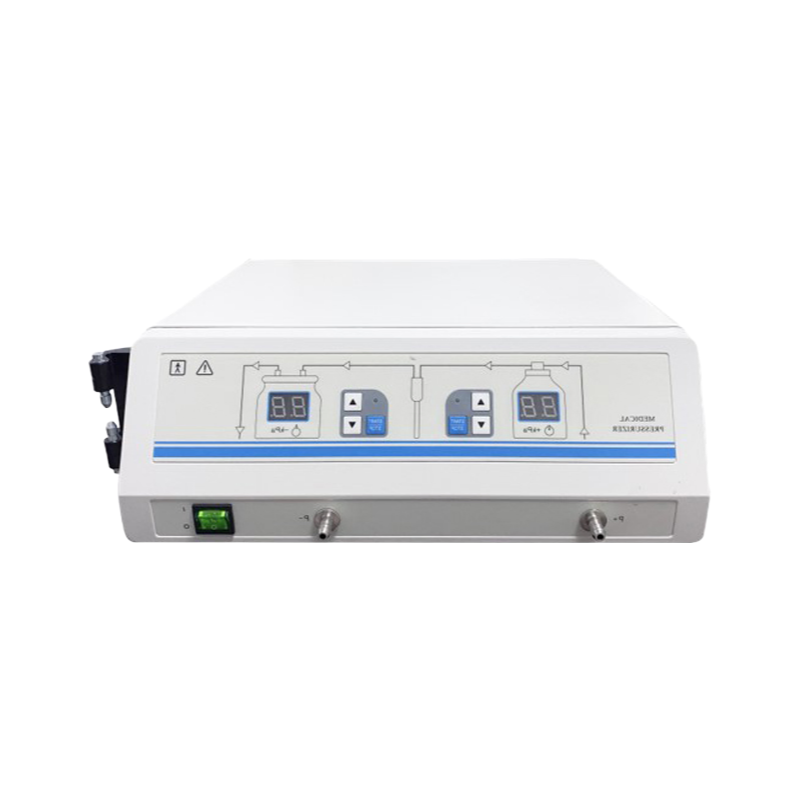

4. Suction Pump
Essential for fluid management, the suction pump runs on AC220V (50Hz) with a rated power of 50VA. It can deliver a positive pressure of 10~50kPa and a negative pressure of - 50~- 10kPa. Classified as Type I, Model B, it supports intermittent/continuous duty mode. The noise level is ≤50dB, ensuring a quiet working environment.
5. Irrigation Pump
Designed for fluid irrigation, this pump operates at 240V (50/60Hz) with a rated power of 100VA. The pressure range is 15~400mmHg (2~53.3kPa) and the flow rate is 0.1~1.0 L/min. It has the same safety classification (Type I, Model B) and duty mode as the suction pump, and the noise level is ≤50dB. The host size is 360×315×160mm (9KGS), balancing portability and functionality.
6. LCD Monitor
The 24 - inch LCD monitor (with an external 24V power supply) has a resolution of 1920×1200 (16:10 aspect ratio) and a color depth of 1.07B. The camoration brightness is 180±10 cd/m² (with a maximum brightness of 400 cd/m²), ensuring clear visualization of endoscopic images. The package size is 65×36.5×60cm (G.W.: 16.0kgs), suitable for transport and storage.
This veterinary endoscope system (Model MCV0317) is CE certified and manufactured in China. It is available in standard size with standard packaging. It supports factory direct supply, wholesale, and customization, making it an ideal choice for veterinary clinics, hospitals, and research institutions that are looking for high - performance and reliable endoscopic solutions for animal care.
