MCL0737 Real-Time PCR System 4 Channels with High-Performance Peltier Technology for Laboratory Use MCL0737 Real-Time PCR System 4 Channels with High-Performance Peltier Technology for Laboratory Use
MCL0737 Real-Time PCR System 4 Channels with High-Performance Peltier Technology for Laboratory Use MCL0737 Real-Time PCR System 4 Channels with High-Performance Peltier Technology for Laboratory Use

MCL0737 Real-Time PCR System 4 Channels with High-Performance Peltier Technology for Laboratory Use

US$ 21563.00 ~ 26954.00
Min.Order: 1
Product origin: Guangzhou, Guangdong, China
Category: Medical Equipment
Product Name: Medical Equipment
Availability:In Stock
Product Review : 47 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model NO. : MCL0737
  • Classification : Biological Diagnostics
  • Type : PCR Machine
  • Certification : CE
  • Sample Block Capacity : 96 wells * 0.1ml
  • Reaction Volume : 10-50ul
  • Tubes Option : White or clear PCR tubes or strips or 96-well PCR plate with optical flat cap
  • Heating & Cooling Technology : Peltier technology
  • Thermal Cycles : 1,000,000 cycles
  • Max Heating Rate : 6°C/sec
  • Temperature Uniformity : ≤±0.2°C at 90°C
  • Temperature Accuracy : ≤±0.2°C at 90°C
  • Block Temperature Range : 0~105°C
  • Gradient Range : 30°C-105°C
  • Temperature Differential Range : 0.1°C-42°C
  • Heat Lid Temperature Range : 30°C~112°C
  • Excitation Source : Long life LED lamps
  • Detection Method : CCDs
  • Dynamic Range : 1-10^10
  • Sensitivity : ≥1 copy
  • Calibrated Dyes : F1: FAM, SYBR Green; F2: VIC, HEX, TET, JOE, CY3, NED; F3: ROX, TEXAS-RED, TAMARA; F4: CY5, Quasar670
  • Fluorescence Excitation Range : 300-800nm
  • Fluorescence Detection Range : 500-800nm
  • Control Methods : PC or self-contained touch screen
  • Language : English
  • Communications : USB2.0 or LAN
  • Display : 10-inch Color TFT LCD Touch Screen, adjustable view angle
  • Max Number of Programs : 15,000 onboard, unlimited with USB
  • Data Export Formats : Excel, TXT
  • AC Power Supply : 100-240V, 50-60Hz
  • Power Consumption : 600W
  • Net Weight : 13kg
  • Dimensions : 334*280*365mm
  • Computer Operating Systems : Windows 10, Windows 7, Windows XP

Most labs running qPCR end up stuck with either a single-channel machine that takes forever to multiplex or an overpriced system that locks you into their proprietary consumables — this one lets you run four dyes at once with standdard tubes or plates, no ridiculous markups on strip caps.

Peltier block hits 6°C per second heating and 5°C cooling, so a 40-cycle run finishes in about 45 minutes give or take, and we've had clients push it through 800,000 cycles without drift — the Marlow unit is a million cycles, but honestly most buyers never hit that limit in normal use.

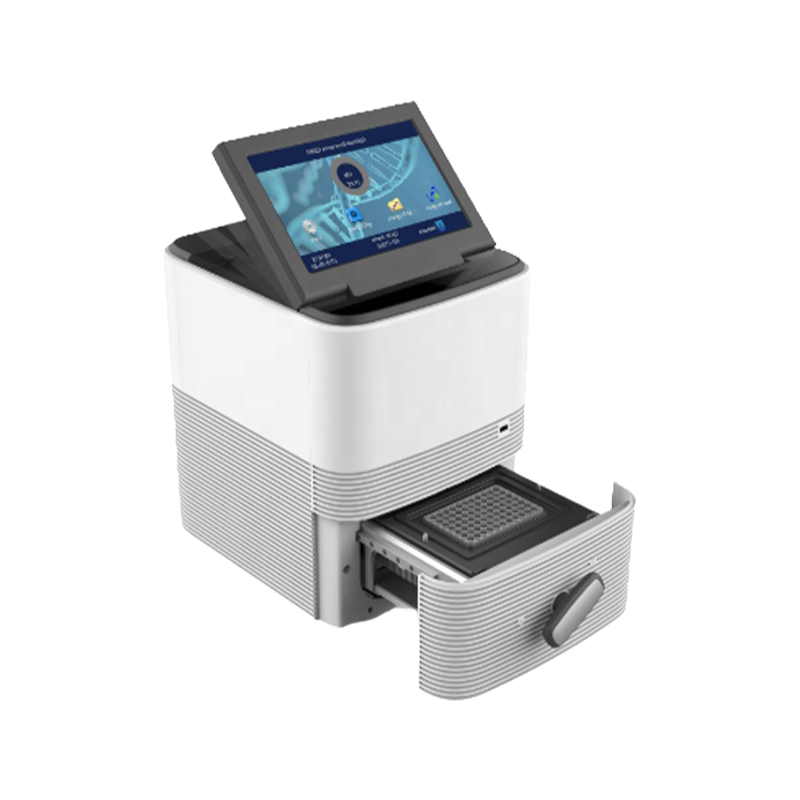

MCL0737 PCR System Front View

Temperature holds at ≤±0.2°C across all 96 wells at 90°C, which is better than a lot of the Chinese clones that claim 0.3°C but start wobbling after a few hundred cycles, and the gradient range goes form 30°C to 105°C with a differential up to 42°C for optimization work.

We ship these with CE certs and a COA on the optics calibration, but teh range is 1 to 10^10 copies with sensitivity down to a single copy — basically it'll pick up what a 7900HT sees, just without the service contract headache.

MCL0737 PCR System Side View

Lead time is usually 20 days or so from order, but we keep about 50 units in stock for rush orders, and the self-contained touch screen runs Windows 10 so you can export data as Excel or TXT straight off the machine — no need for a separate laptop unless you want LAN control.

One thing to watch: the heat lid goes up to 112°C, but if you're running high-volume 50µl reactions, the 600W power draw means you'll want a dedicated circuit in your lab — it's not suited for cramped bench setups with a bunch of other equipment on the same breaker.

Frequently Asked Questions

What's the minimum order quantity for the MCL0737 Real-Time PCR System?

We typically require a minimum order of 1 unit for the MCL0737, but if you need a larger volume, just let us know and we can discuss pricing and lead times.

How long is the lead time for shipping the MCL0737?

Standard lead time is around 7-15 working days after order confirmation, depending on stock availability. We'll confirm the exact timeline when you place the order.

Is CE certification included with this PCR machine?

Yes, the MCL0737 is CE certified, and we can provide the certificate upon request. It meets the required standards for laboratory use in Europe and other regions.

Can I use this system with white PCR tubes or only clear ones?

You can use both white and clear PCR tubes, strips, or 96-well plates with optical flat caps. White tubes often give better signal sensitivity, but clear ones work fine too.

What's the recommended storage condition for the MCL0737 when not in use?

Store it in a clean, dry environment at room temperature (15-30°C) with low humidity. Keep it away from direct sunlight and dust to maintain the Peltier and optical components.
