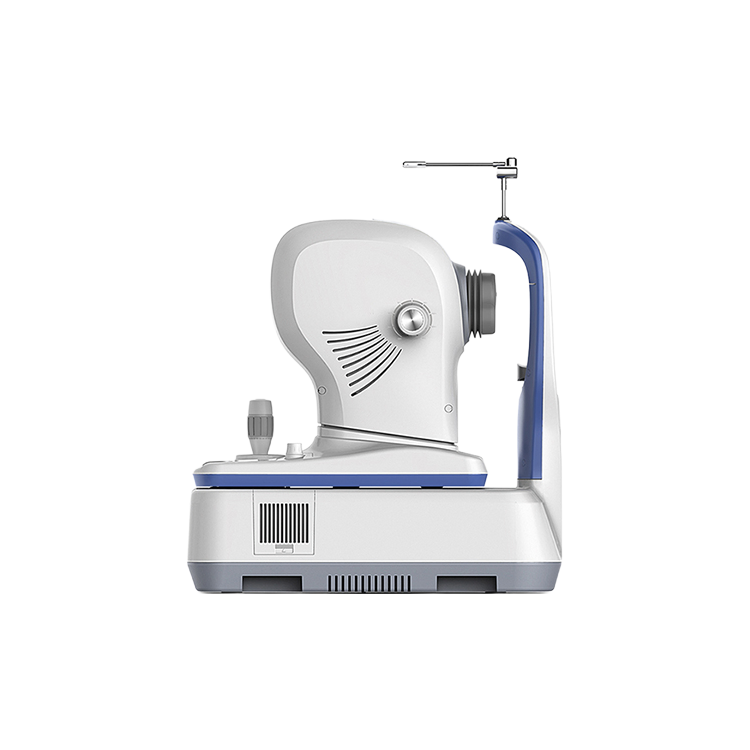

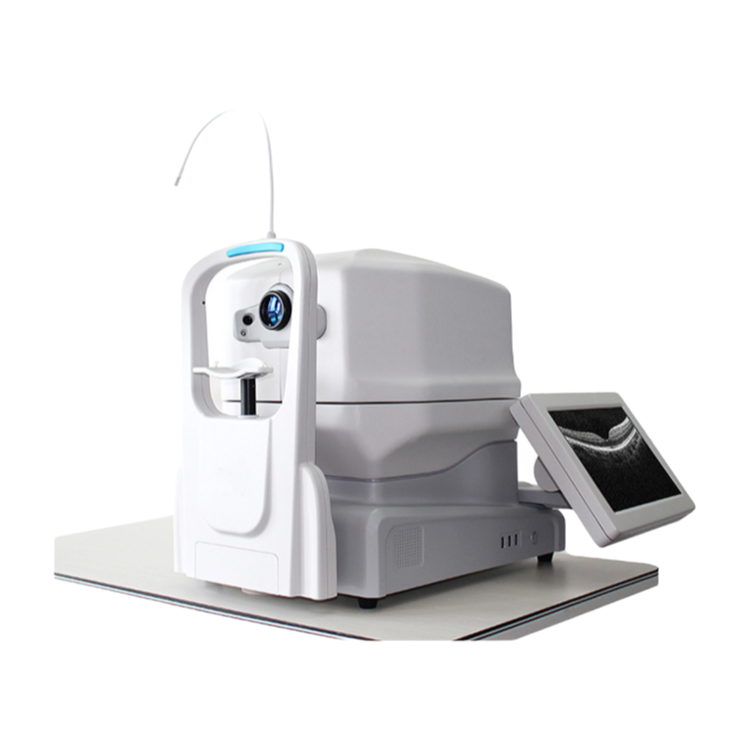

Medical Grade OSE-4000A Optical Coherence Tomography Device with 5μm Optical Resolution

The OSE-4000A Optical Coherence Tomography system represents cutting-edge technology in ophthalmic diagnostic imaging. This spectral domain OCT device delivers exceptional imaging performance with its 80,000 A-scans per second speed and 5 micron optical resolution, enabling detailed visualization of retinal structures.

Featuring a super luminescent diode (SLD) light source at 840nm wavelength, the system provides excellent tissue penetration while maintaining high resolution. The axial resolution reaches 5 microns optically (3.6 microns digitally), with transverse resolution of 15 microns optically (3 microns digitally), allowing for precise imaging of retinal layers.

The integrated VASCAN™ OCTA module offers advanced angiography capabilities with multiple scanning options including 3mm×3mm, 6mm×6mm, 8mm×8mm, and 12mm×8mm scan areas. The system utilizes C-OMAG algorithm for superior image processing and includes comprehensive segmentation options for detailed retinal analysis.

The fundus imaging module employs line scanning laser ophthalmoscopy (LSLO) technology with a 45-degree field of view, requiring only 3.0mm minimum pupil diameter for operation. The system accommodates a wide diopter range from -20 to +20, making it suitable for various patient conditions.

Multiple scan patterns are available including macular HD line scans (6/12mm), 3D scans (6mm×6mm), 6-line radial scans, and multi-pattern scans. The anterior segment imaging capability includes HD line scans (6/16mm) and 6-line radial scans for comprehensive anterior chamber evaluation.

The compact system measures 532mm(L)×360mm(W)×540mm(H) and weighs 30.5kg, making it suitable for various clinical settings. It operates on standard AC 100-240V, 50Hz-60Hz power supply with 90VA power input.
