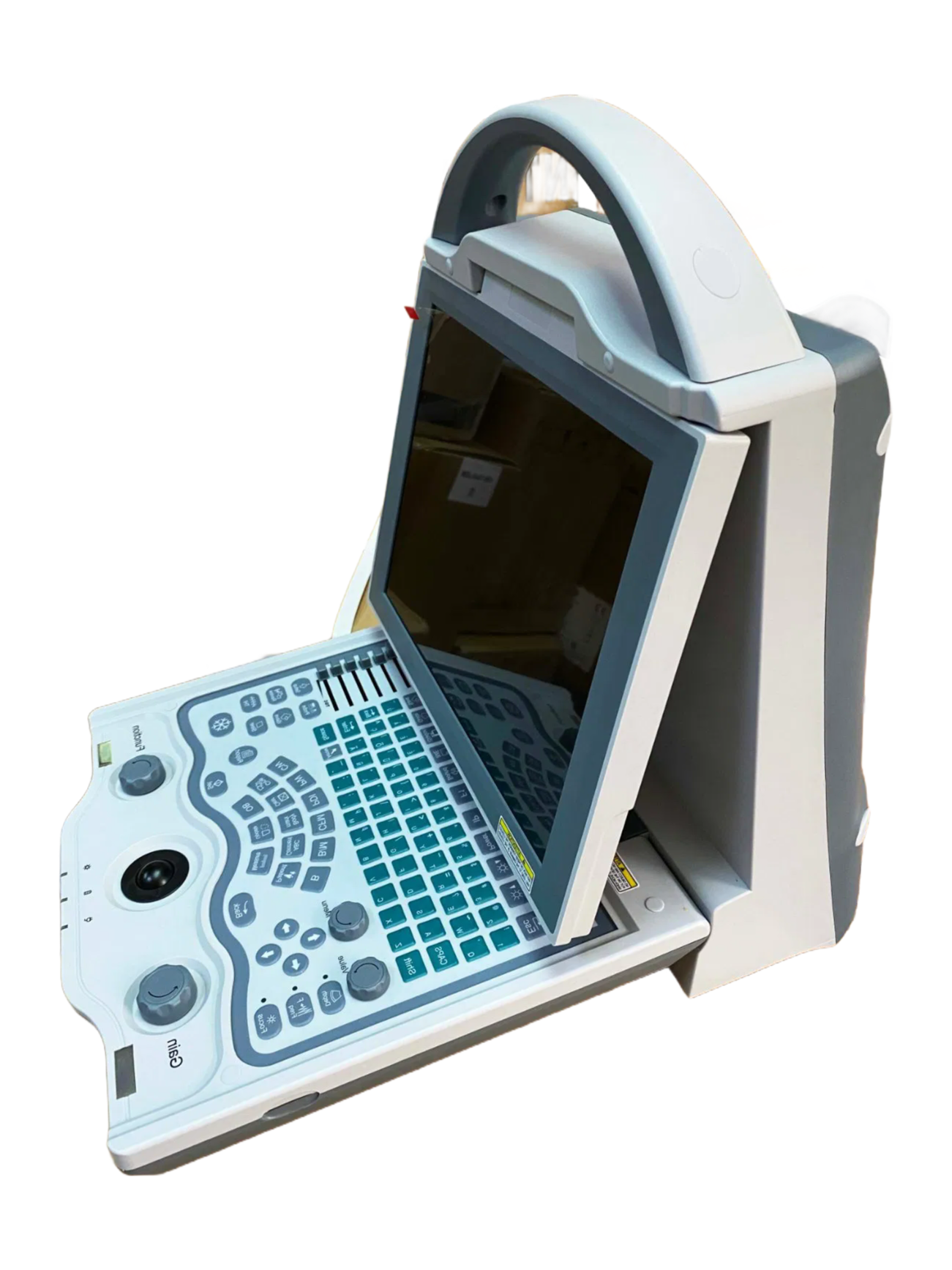

We've got a lab running vascular access training and small-animal imaging needing a portable unit that doesn't tie up teh main radiology suite, and the 256-level grayscale and color scale are sufficient for their flow studies—they're not scanning deep abdominal organs, so the 10.4-inch display is actually fine for quick bedside assessments.

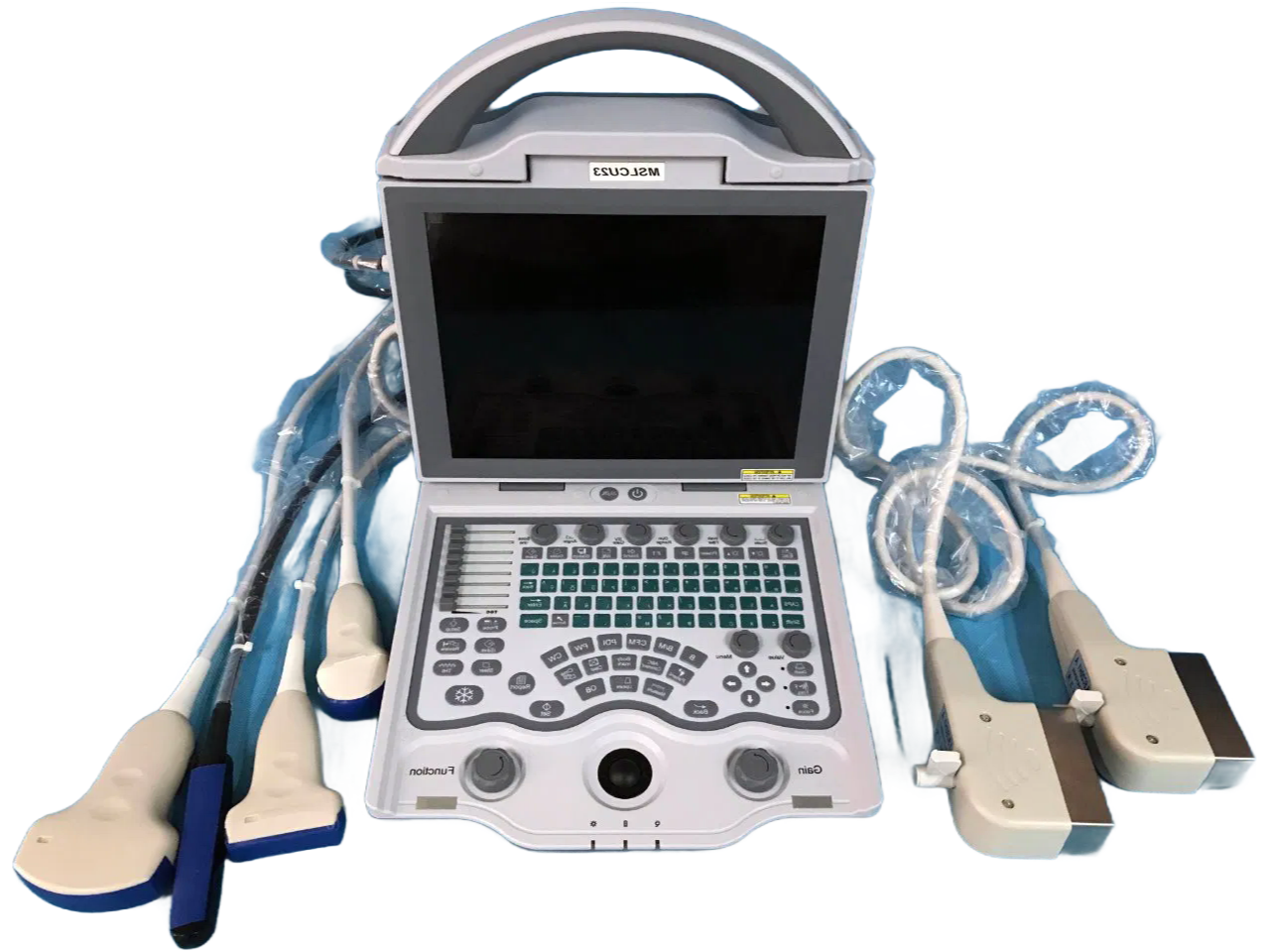

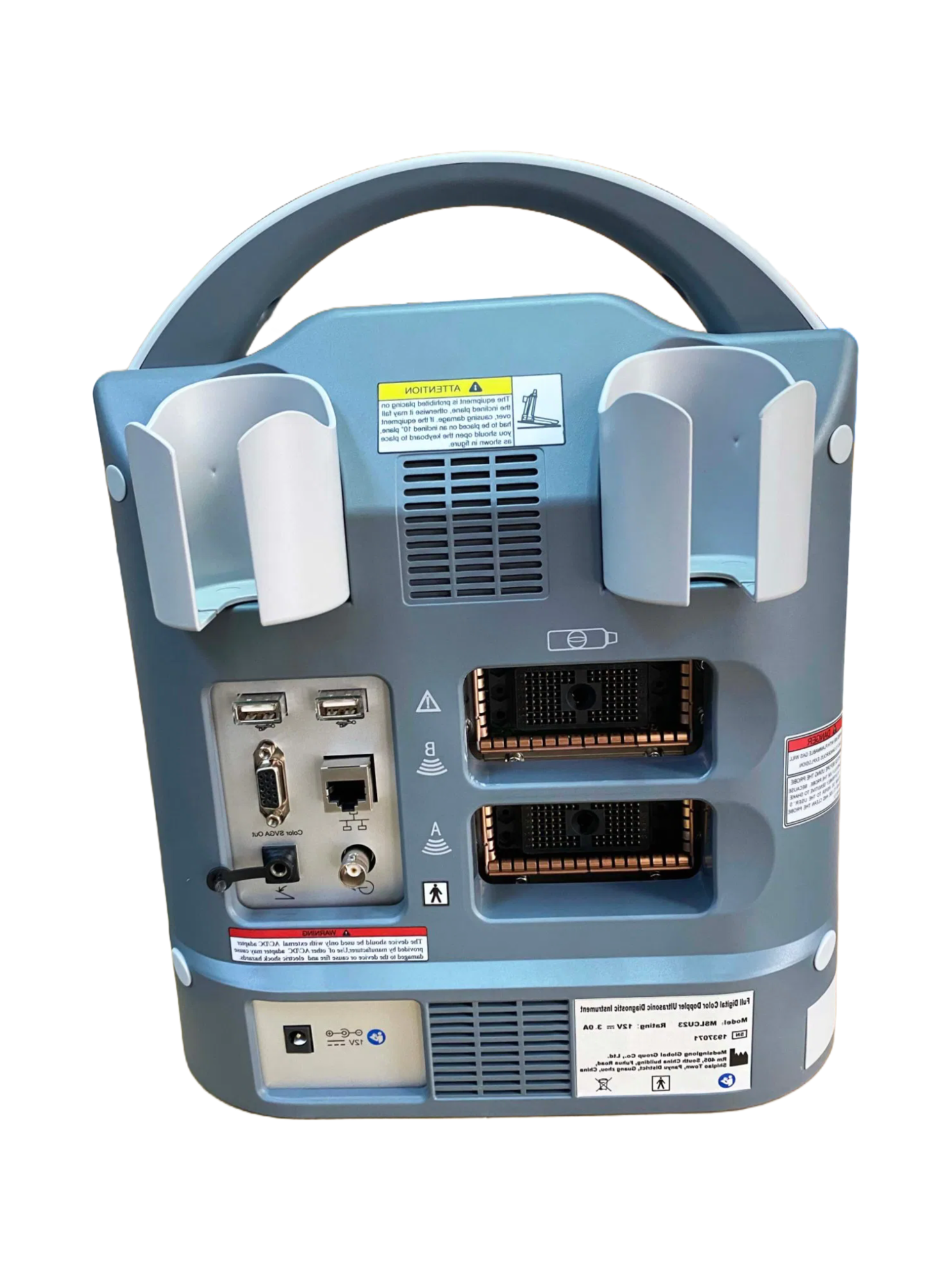

It runs on a Linux-based A8 embedded system with 16GB internal storage and handles B, B/B, 4B, M, CFM, PDI, PW, and THI modes, plus it stores about 10,000 BWP frames or 100,000 PNG images, which is plenty for a month's worth of teaching files, and the two probe ports auto-identify whatever you plug in—usually we grab a linear and a convex set.
The power consumption is under 100VA with a DC12.8V 3.0A adapter, so it works on a standerd cart or even a battery pack if you're in a pinch, though it's not suited for high-throughput OB/GYN scanning because the cine storage is only 380 frames in B mode—fine for documenting a single sweep, not a full fetal survey. Also, the measurement functions cover abdominal, obstetric, cardiac, urology, and superficial applicaion, but you'll want to confirm software version if you need specific cardiac calculations.
Net weight is 4.5kg without probes, dimensoins are 256×150×326mm, and it's CE certified—we usually have stock, but confirm lead time as it can be 2-3 weeks when demand spikes.
Yes, it's CE certified. We can provide the CE certificate and a test report upon request.
The standard unit supports English and Chinese. For custom language packs or modified measurement packages, let us know your needs and volume, and we'll quote accordingly.
Our MOQ is 1 unit for sample orders. For bulk orders, we typically require 10 units per shipment, but we can negotiate based on stock availability.
Lead time is 7-15 working days for in-stock units. For larger orders or custom configurations, it may take 20-30 days. We'll confirm at order placement.
The two ports auto-detect any of our standard probes—linear, convex, phased array, or endocavitary. We can include a probe set that matches your intended use, like abdominal or cardiac.
