The XF1100 ultrasound machine is designed for high-quality medical imaging with advanced features to support diagnostic procedures. It includes a trolley design for easy mobility and a 15-inch LED display that provides clear and detailed images. The backlight key ensures usability in various lighting conditions, making it suitable for clinical environments.
This ultrasound system offers multiple display modes including B, B/B, 4B, B+M, and M, allowing for versatile imaging options. With 256 levels of gray scale, it delivers precise image contrast and clarity. The dynamic range is adjustable from 0 to 120dB, enabling fine-tuning for optimal results. Additionally, the external LED display supports 16 pseudo colors to enhance visualization.
For data management, the device provides permanent storage for up to 128 images and a real-time cine loop capacity that memorizes 256 consecutive images. Gain control is facilitated through 8 segments of TGC and overall gain adjustments, ensuring accurate image acquisition. Frequency conversion includes five periods: 2.5MHz, 3.0MHz, 3.5MHz, 4.0MHz, and 5.0MHz, with a frequency range that supports high-frequency probes up to 7.5MHz.
Image magnification is handled through multiple factors, such as ×0.8, ×1.0, ×1.2, ×1.5, ×1.8, and ×2.0, with specific modes for display penetration depth. The E-zoom feature allows for 2x magnification of real-time images, and dynamic electron focusing ensures sharp focus positions. Output interfaces include USB video output, SVGA video output for color monitors, and PAL video output for compatibility with various devices like recording instruments and image workshops. The USB port enables connection to common printers for report printing.

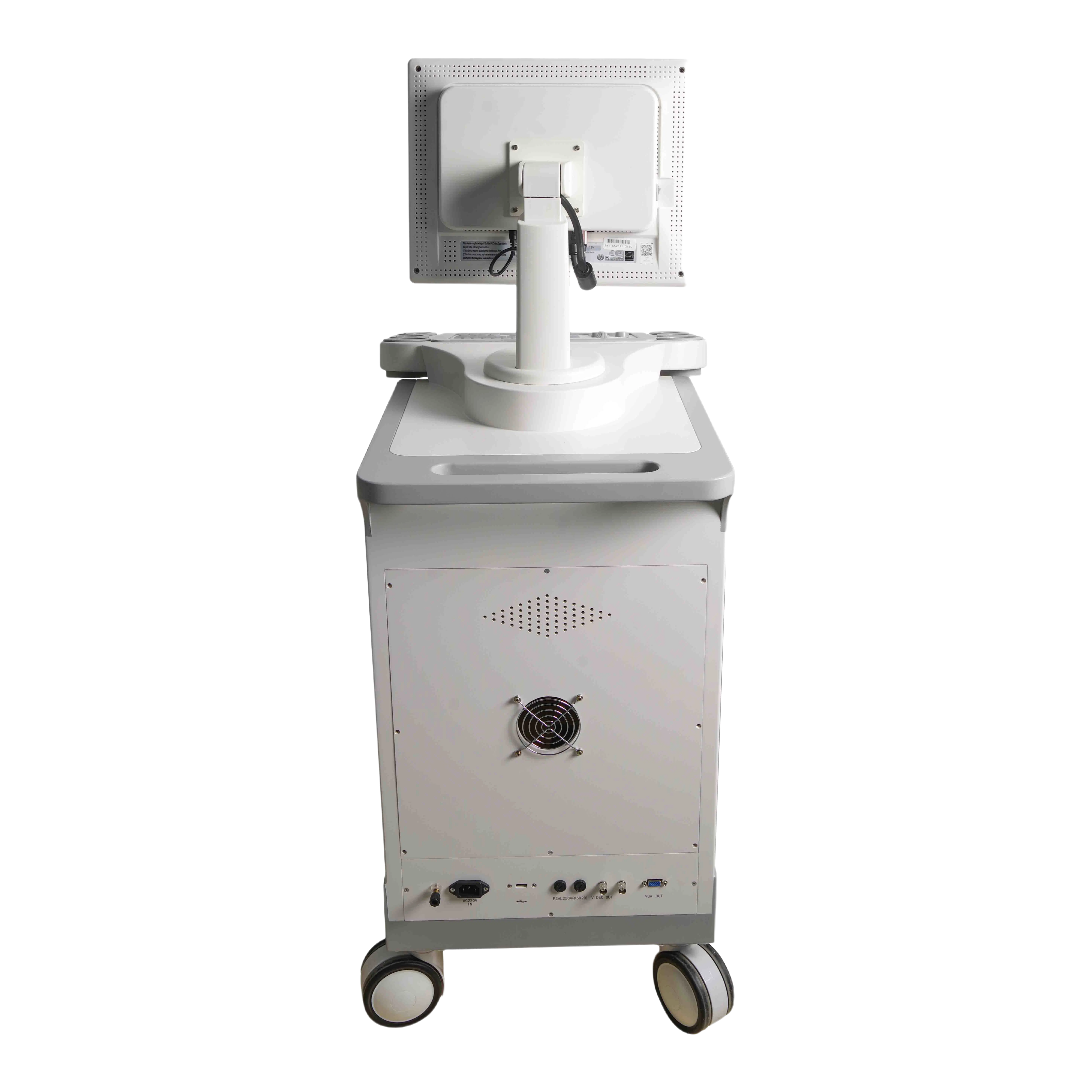

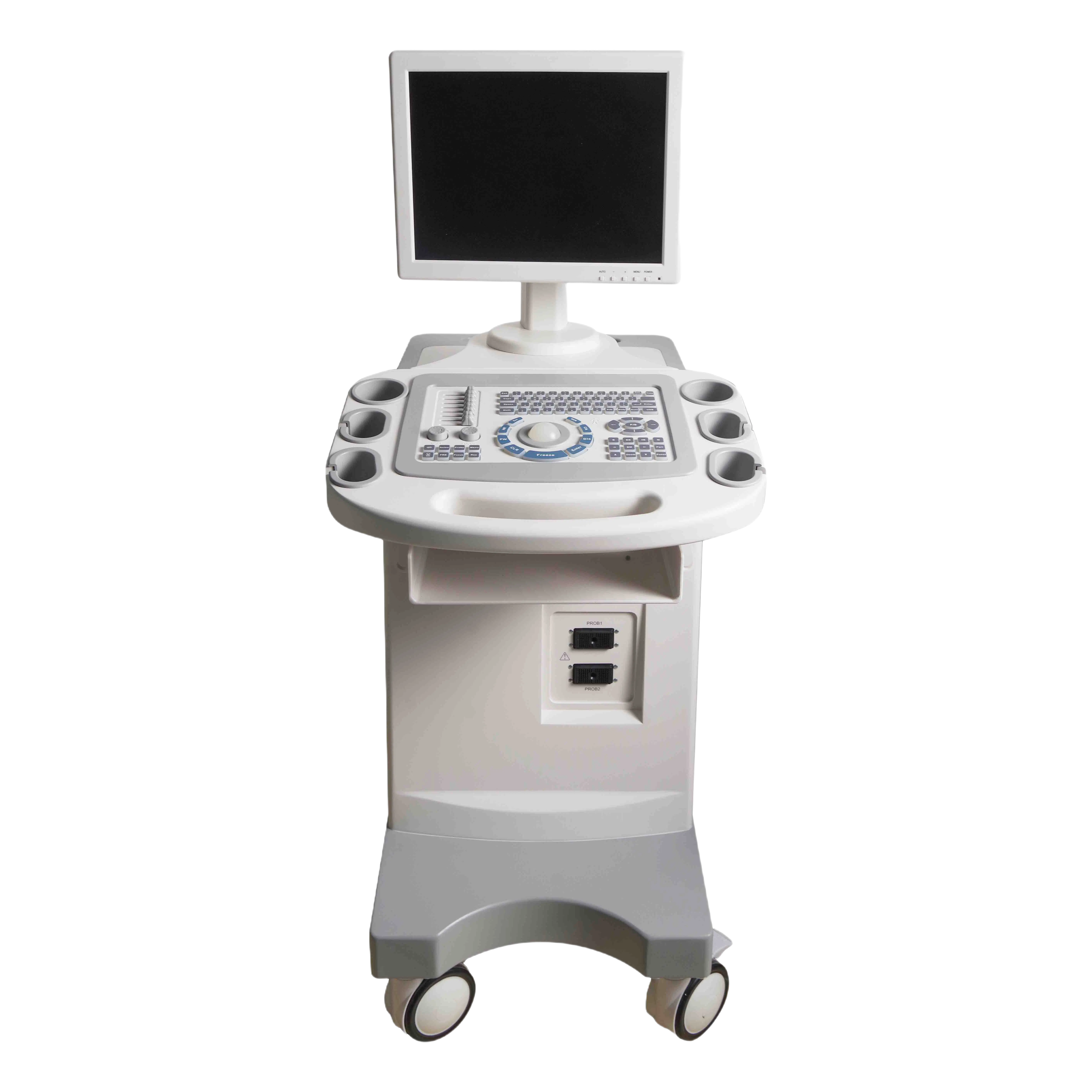

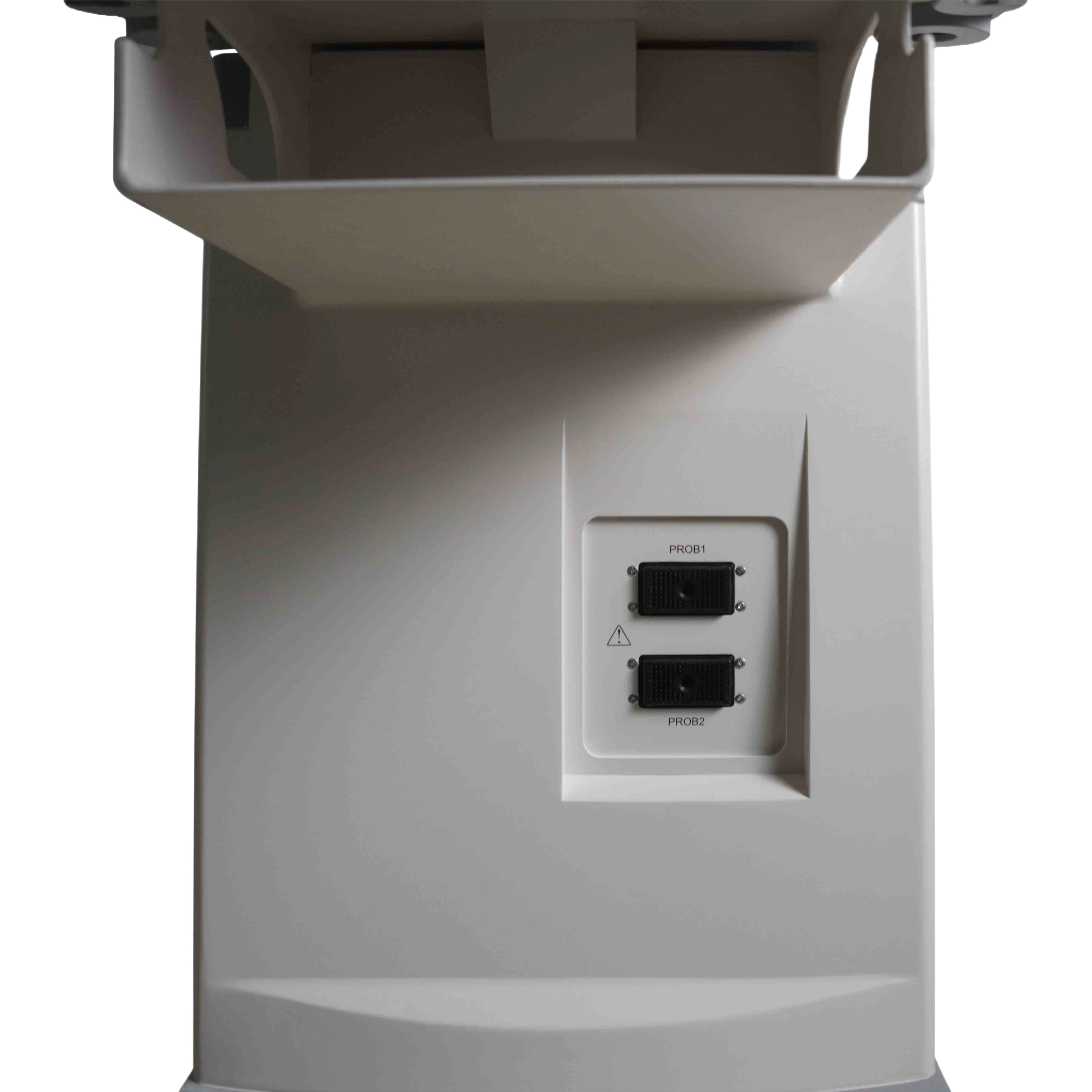

This product is intended for research use only and not for personal application. It complies with medical device standards and is widely used in exhibitions and professional settings. Below are images illustrating the product features:
