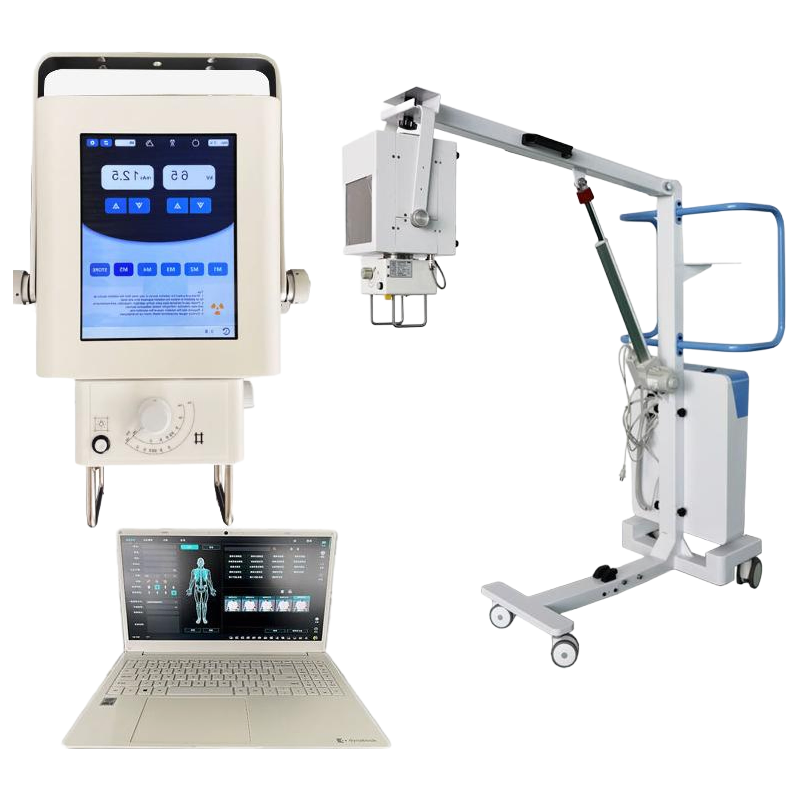

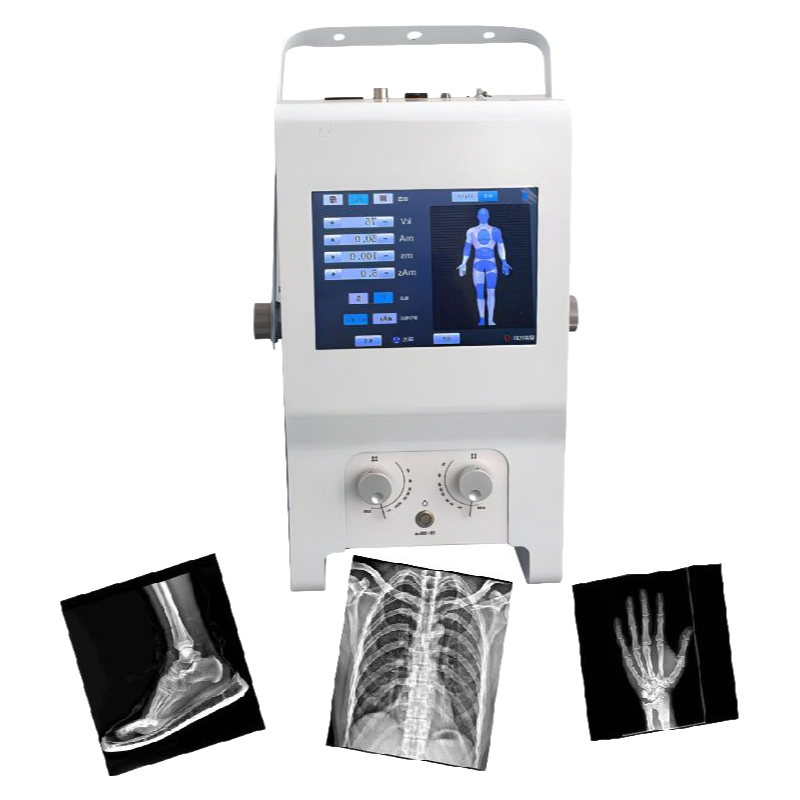

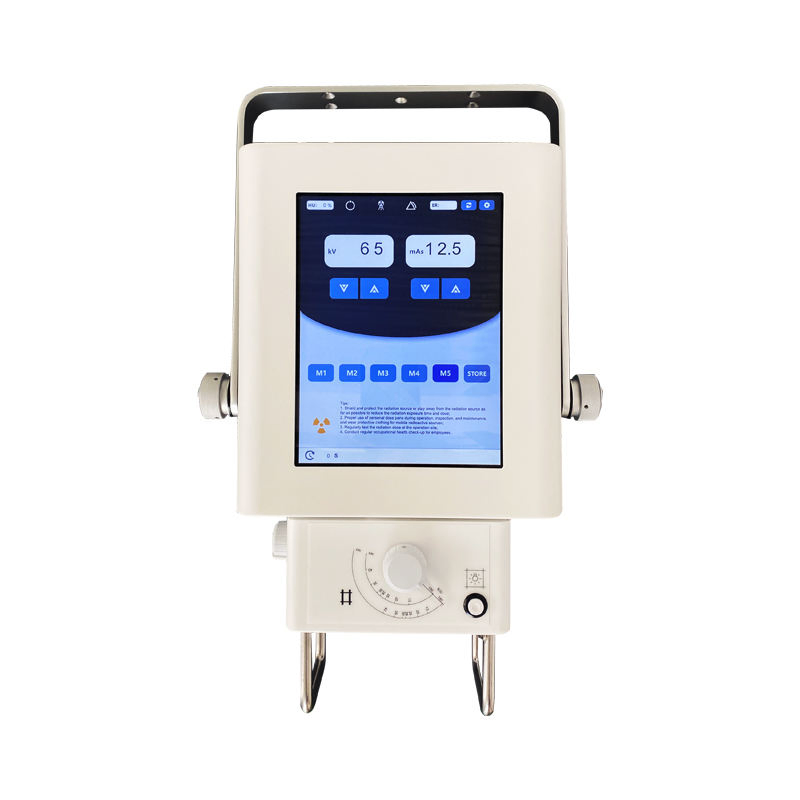

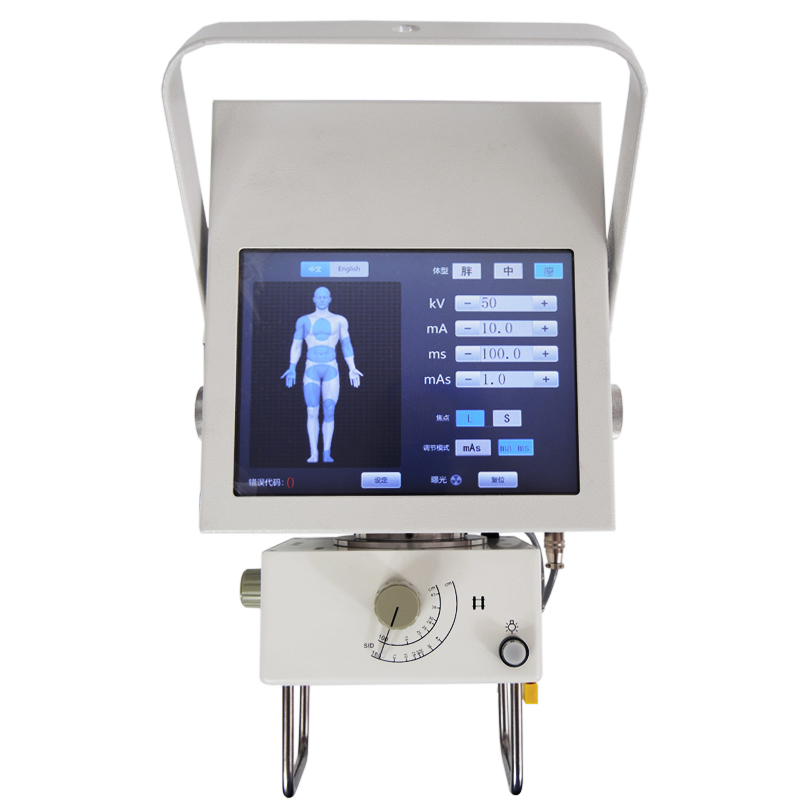

When a trauma patient comes through the ER door and you need a chest X-ray stat, you can wheel this right to the bedside, no need to move anyone — we've seen it cut scan-to-read time by about 20 minutes. What it does is give you 10-inch digital images instantly on screen, so the radiologist can confirm a pneumothorax before you even finish positioning the next patient. Basically, it's a 5kW system with a 40-110kV range and 10-100mA, all packed into something one person can roll down a hallway.
We usually have stock on the UM-1542, but confirm lead time if you need more than 50 units or so — factory runs batch orders every 2-3 weeks. CE and FDA cleared, ISO13485 certified, and we'll send COA with each shipment obviously. The exposure timer goes form 0.01 to 6.3 seconds, which matters when you're shooting uncooperative patients or peds.
Actually, most buyers go with the higher mA range for bedside imaging because the 100mA peak handles thicker body habitus better than the lower end. You'll want to keep an eye on the 10-inch display in bright rooms — it's fine for most ER bays but can wash out under direct OR lighting. One thing: it's not suited for stationary fluoroscopy or high-throughput radiology suites where you're doing 200 exams a day; that's not what this chassis was built for.
The three-phase 40kHz inverter is pretty much bulletproof in our experience, and the advanced safety features include automatic exposure hold and lead-shielded collimator housing. OEM service is available if you need custom branding, but teh base unit ships with a standerd 220-240VAC plug (check your regional adapter). Origin is China, HS code 9022191010.
And one detail buyers don't think to ask: the wheel locks on this model are foot-operated, not hand-lever, so you can secure it without bending down in a sterile field. That and the 0.1-200mAs range gives you enough flexibility for extremity work or portable spine films. Anyway, between the 40kHz frequency and the digital panel, it's a step up from the older 20kHz portable units.
We typically require an MOQ of 1 unit for initial orders, but we can discuss larger quantities if you're looking to stock multiple units for a hospital chain or clinic group.
Standard lead time is around 15-20 working days after order confirmation, depending on your location and any custom packaging requests.
Yes, we include copies of all three certifications—CE, FDA, and ISO13485—with every shipment, so you can verify compliance easily.
Absolutely, we offer OEM service for the UM-1542. You can adjust the voltage range (40-110kV) or mA range (10-100mA) to match your hospital's imaging protocols, just let us know your specs.
Keep it in a dry, temperature-controlled room between 10-30°C, and make sure the battery is charged at least 50% if storing for more than a week. The unit’s compact design makes it easy to store in a closet or on a cart.
