Compact Fetal Monitoring Equipment with 90° Folding Screen and Li-ion Battery Operation

The C11 portable fetal monitor represents advanced medical monitoring technology designed for obstetric applications. This compact device combines precise fetal heart rate monitoring with convenient portability, making it ideal for hospital and clinical environments.

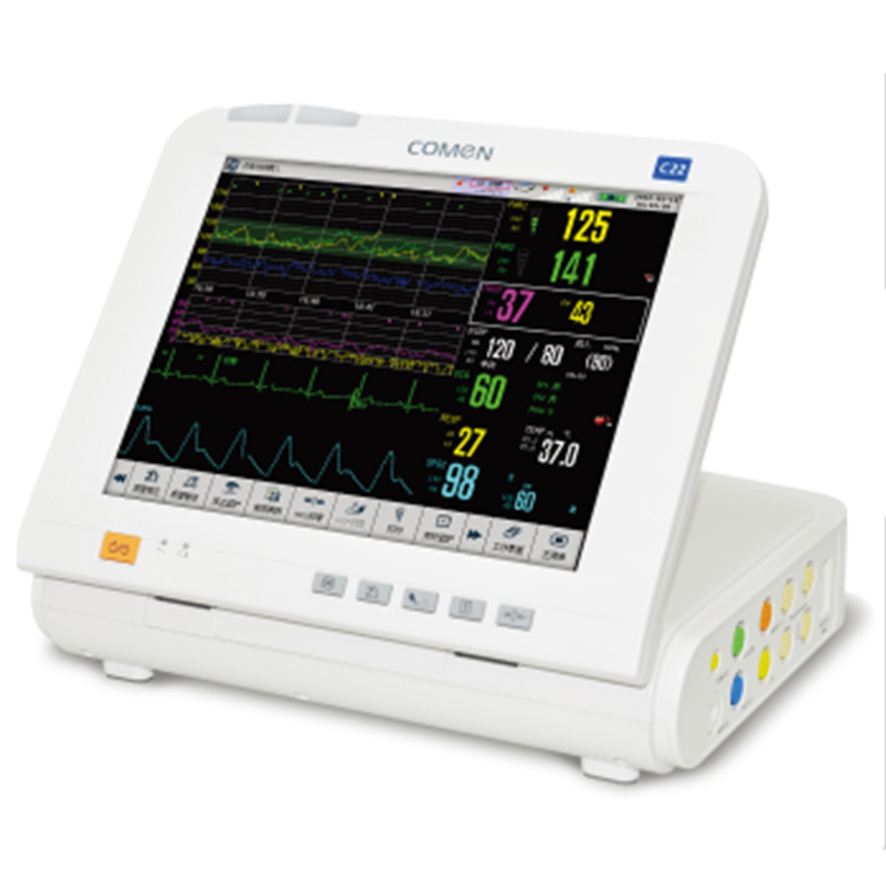

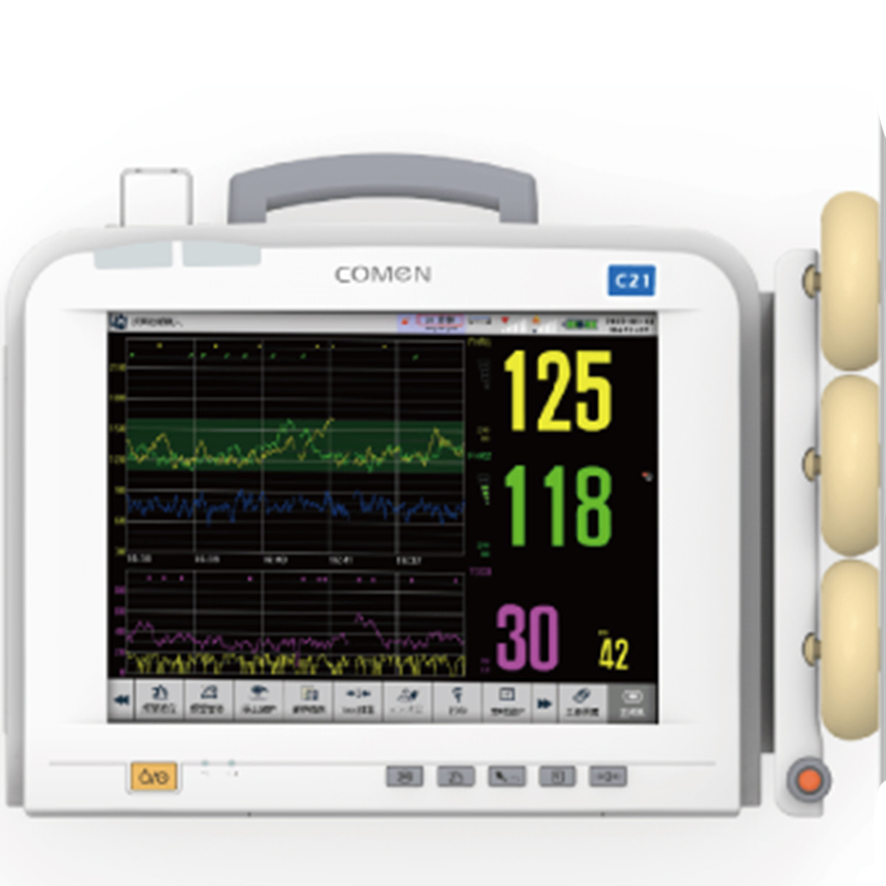

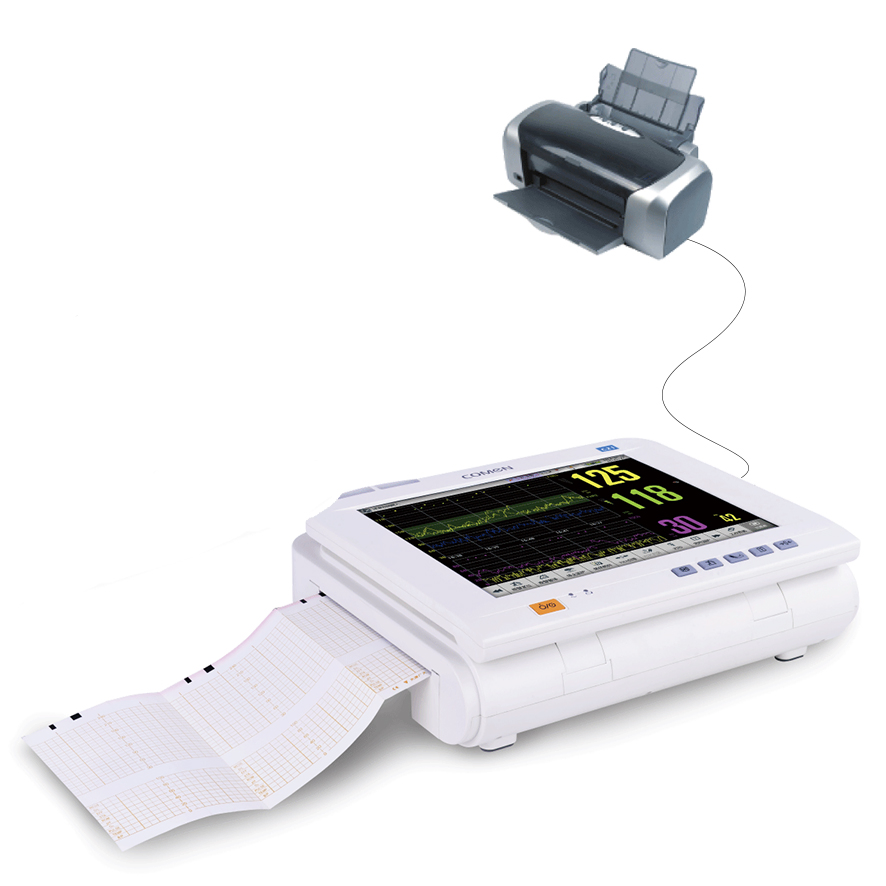

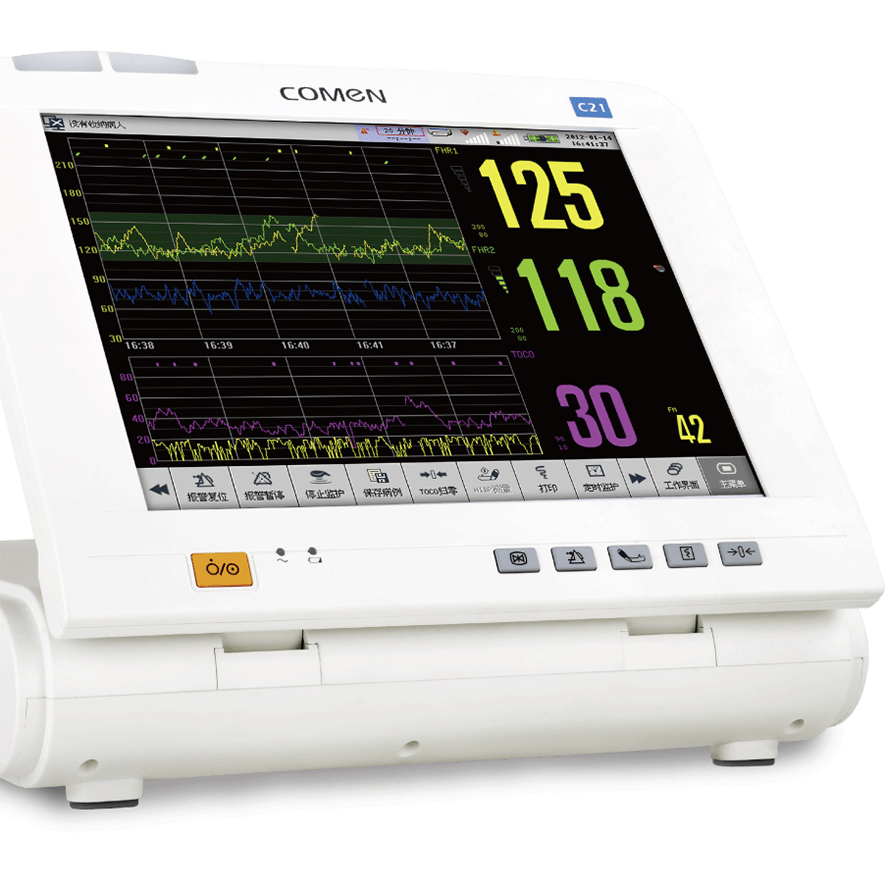

Featuring a 7" color TFT screen that folds at 90 degrees, the monitor provides excellent visibility from various angles. The built-in high dot matrix thermal printer ensures reliable printouts of fetal monitoring data, with the capacity to store over 12 hours of monitoring information for recall and reprint.

The device utilizes multi-crystal, wide beam forming ultrasound transducer technology with high sensitivity and low ultrasound power (<5mW/cm²). The special DSP system and mode recognition provide accurate fetal heart rate measurements within the range of 50~210 bpm, with configurable high and low alarm settings.

Clinical functionality includes a standard patient event marker and separate clinical event marking button, along with automatic fetal movement detection capability. The monitor operates on either AC power (220V±20%, 50Hz) or rechargeable 8.4V Li-ion battery, offering flexibility in various clinical settings.

Designed with medical professionals in mind, the C11 fetal monitor meets international safety standards including IEC 1157 requirements for acoustic output. The compact dimensions (295×240×73mm) and lightweight design (1.75kg) make it exceptionally portable for bedside monitoring and transport between locations.

The device maintains stable operation within environmental conditions of 10~40°C temperature and 10~80% relative humidity. Optional functions include twins monitoring and fetal acoustic simulator (FAS) capability for comprehensive obstetric care.
