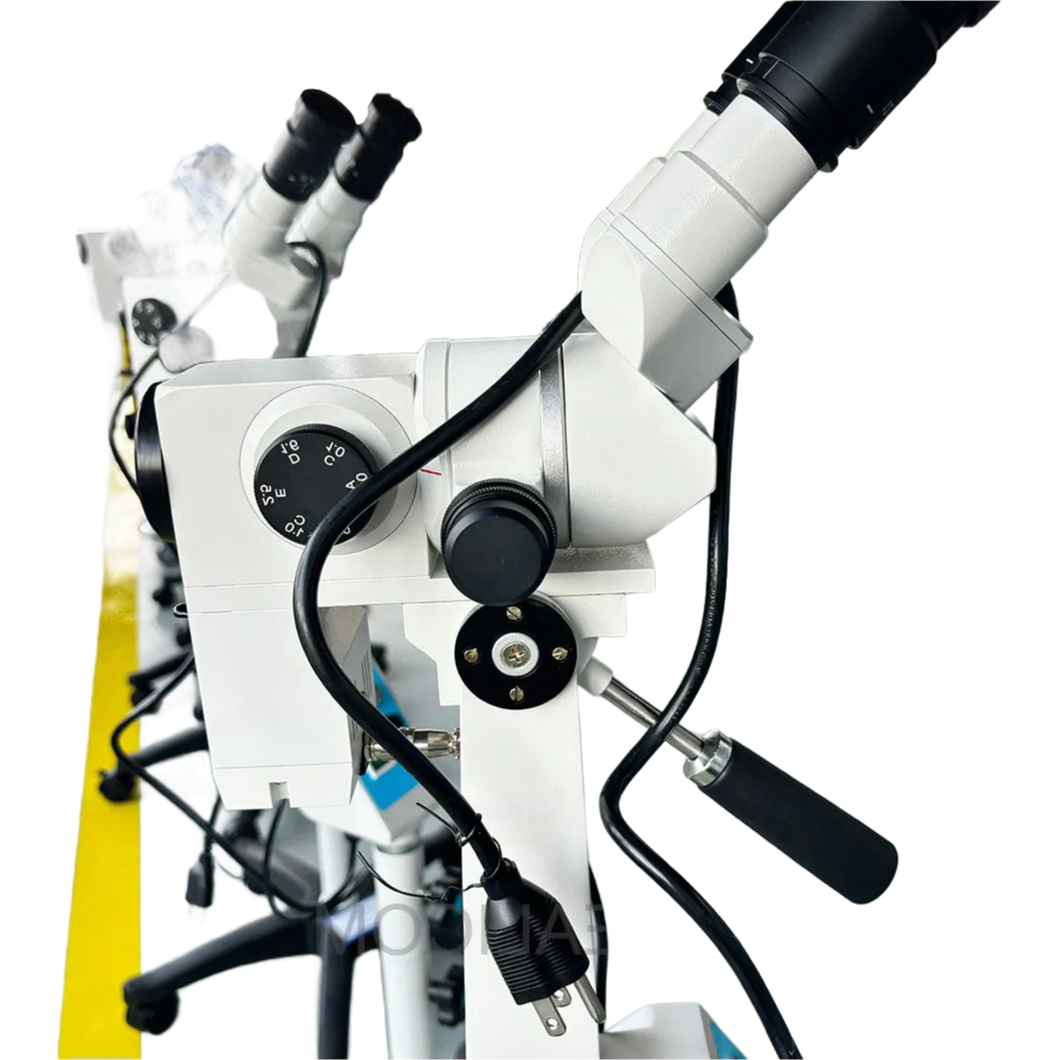

The YDJ-L100 Operating Microscope is a precision medical instrument specifically designed for gynecological examinations. This advanced colposcope combines superior optical performance with modern LED illumination technology to provide clear, detailed visualization of cervical and vaginal tissues.
With its 45° inclined binocular system and 300mm working distance, the YDJ-L100 offers comfortable operation for medical professionals while maintaining optimal positioning for patient examinations. The microscope features a 5-step magnification changer (0.4x to 2.5x) providing total magnifications from 2.8X to 17X, allowing for both wide-field overview and high-detail observation.
The integrated LED cold light source (3V 10W) provides bright, shadow-free illumination with continuous intensity adjustment. A green filter is included for enhanced vascular visualization. The optical system delivers a visual field ranging from 70mm to 11mm across the magnification range.
Built with portability in mind, the YDJ-L100 features a compact yet stable stand with 360° rotation capability and 140mm height adjustment range. The system weighs just 12.5kg, making it suitable for various clinical environments. Optional accessories including different objective lenses (F=250, F=350, F=400) and optical splitters for camera attachment are available for customized configurations.
This medical device carries CE certification and is manufactured in compliance with ISO 13485 standards, ensuring reliability and safety for clinical applications. The YDJ-L100 represents an excellent balance of optical performance, ergonomic design and clinical functionality for gynecological practices and medical institutions.
