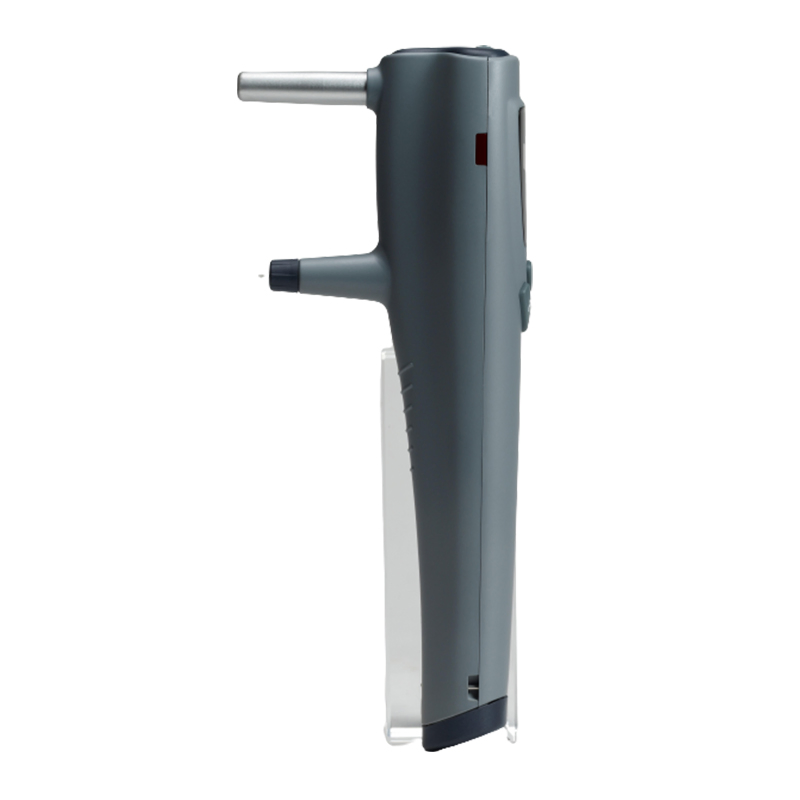

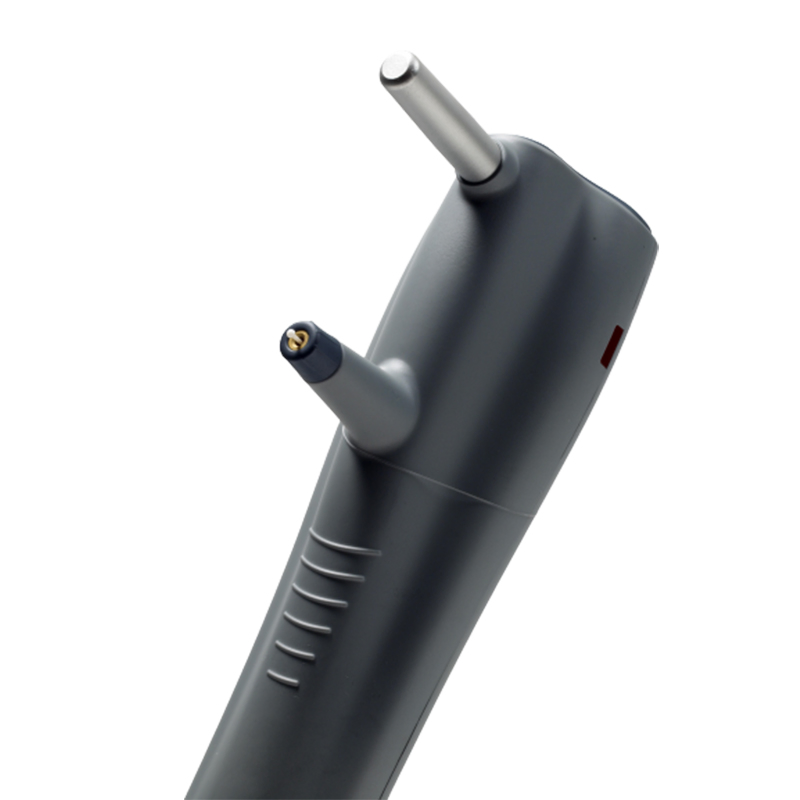

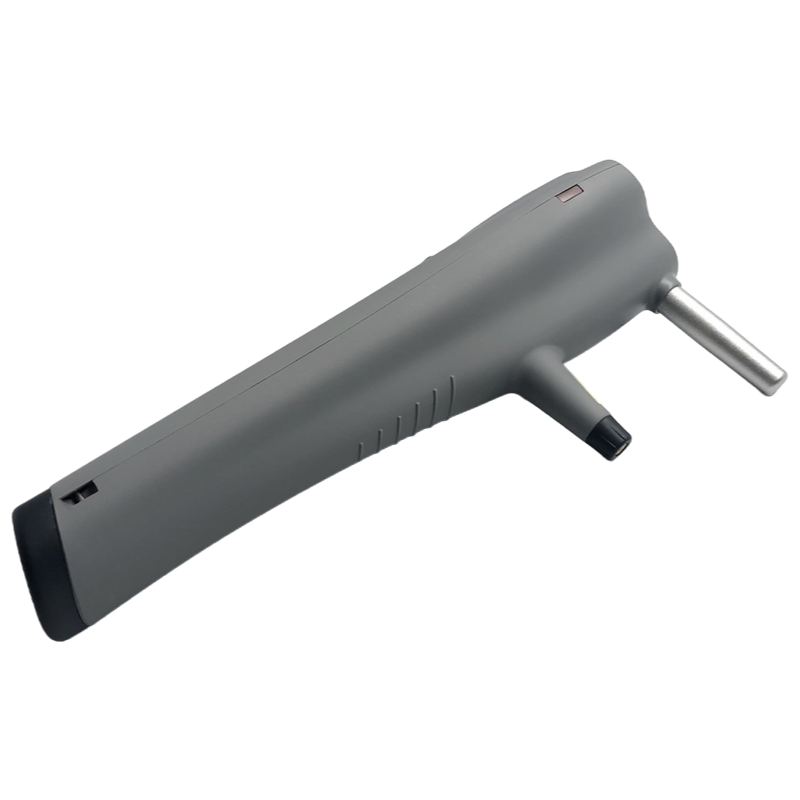

High Precision Rebound Tonometer with Vertical/Horizontal Modes - EG-RTM500 Model

The EG-RTM500 portable tonometer is a professional medical device designed for accurate intraocular pressure measurement. Utilizing rebound technology, this instrument measures eye pressure by analyzing the probe's rebound characteristics when contacting the corneal surface.

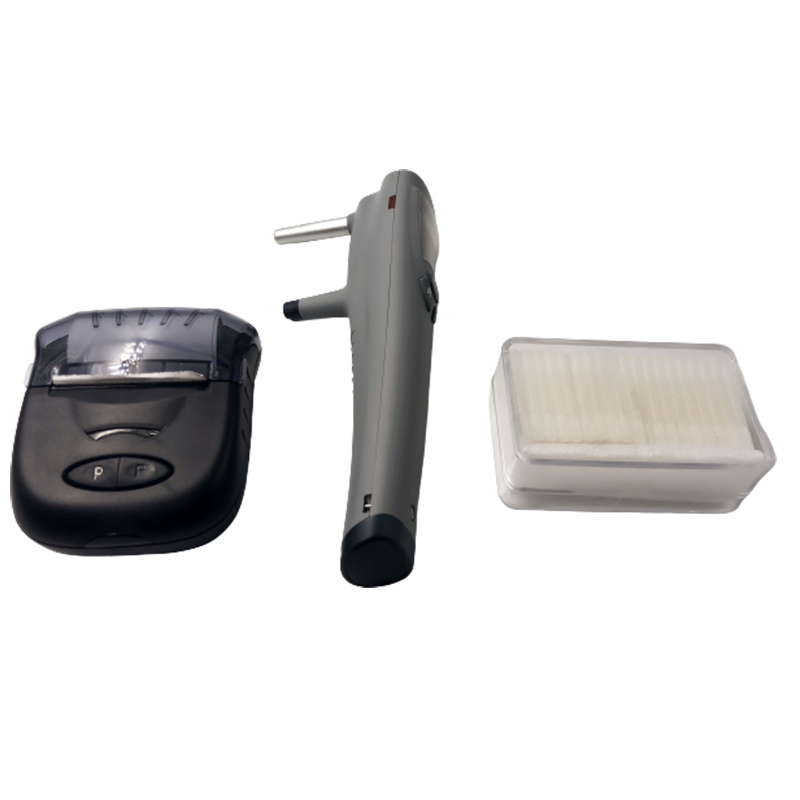

This tonometer features both vertical and horizontal working modes, providing flexibility in clinical settings. The wireless data output capability allows for convenient printing of measurement results, enhancing workflow efficiency in ophthalmology practices.

Key advantages include high measurement accuracy (±1.5mmHg in the 3-25mmHg range and ±2.5mmHg in the 25-70mmHg range), portability, and the elimination of anesthesia requirements. The non-contact design significantly reduces the risk of cross-infection between patients.

The device operates on DC 3V power (2 AA batteries) with a rated input power of 1VA, making it suitable for use in various clinical environments. Its compact design (335*320*200mm) and lightweight construction (6kg) ensure easy transportation and storage.

This medical equipment is ideal for middle-aged patients and clinical settings requiring reliable intraocular pressure monitoring. The measurement principle is based on analyzing the rebound characteristics of a probe when contacting surfaces of different hardness at controlled speeds.
