CE Certified Veterinary X-Ray Equipment with 14x17 Inch Flat Panel Detector

US$ 1 ~ 10
Min.Order: 1
Product origin: Guangzhou, Guangdong, China
Category: Medical Equipment
Product Name: Medical Equipment
Availability:In Stock
Product Review : 65 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : SY-D019CV
  • Equipment Type : Portable Digital Veterinary X-Ray System
  • Power Supply : 8KW, 220V
  • X-Ray Tube Voltage : 40-125kV (1kV steps)
  • X-Ray Tube Current : 3-160mA
  • Exposure Time : 3.2ms-10s
  • mAs Range : 0.1-250mAs
  • Focal Spot Size : 0.6mm/2.8mm
  • Detector Size : 14×17 inches
  • Detector Resolution : 2496×3040 pixels (7.58MP)
  • Dynamic Range : 16-bit
  • Image Acquisition Time : 3 seconds
  • Image Processing Time : 5 seconds
  • Cooling System : Natural cooling
  • Display : 8-inch LCD
  • Head Dimensions : 310×266×465mm
  • Head Weight : 18kg
  • Certifications : CE, ISO13485

The SY-D019CV portable veterinary digital x-ray equipment is designed for professional animal diagnosis in veterinary clinics and hospitals. This advanced system combines high-performance imaging technology with portability for convenient use in various veterinary settings.

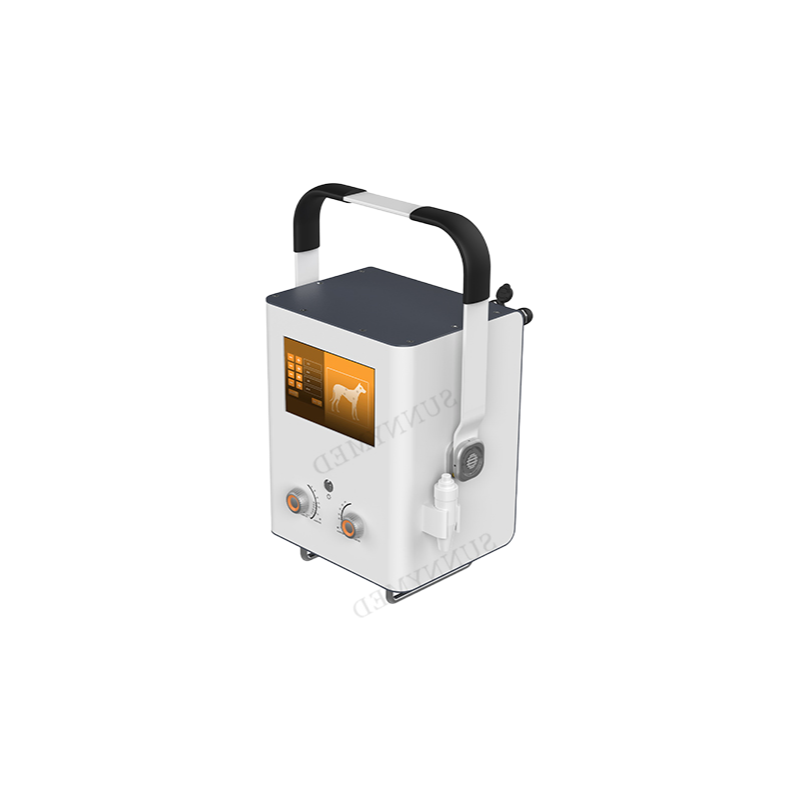

Portable Veterinary X-Ray Equipment

The system includes a powerful 8KW portable X-ray unit with adjustable tube voltage (40-125kV) and current (3-160mA), providing flexibility for different animal sizes and examination requirements. The 14×17 inch flat panel detector delivers high-quality digital images with 16-bit dynamic range and 3.4Lp/mm spatial resolution.

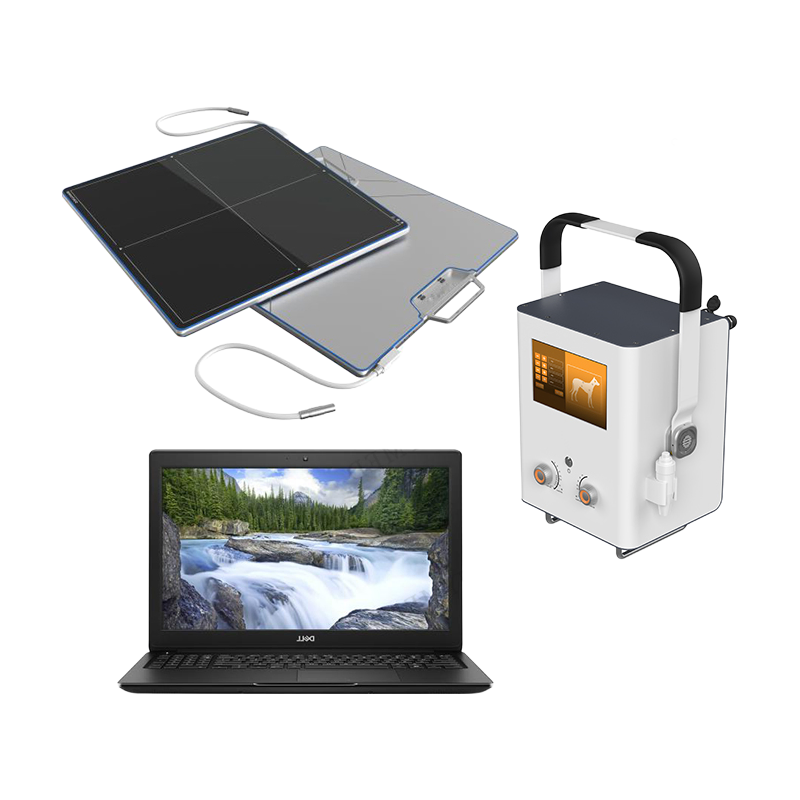

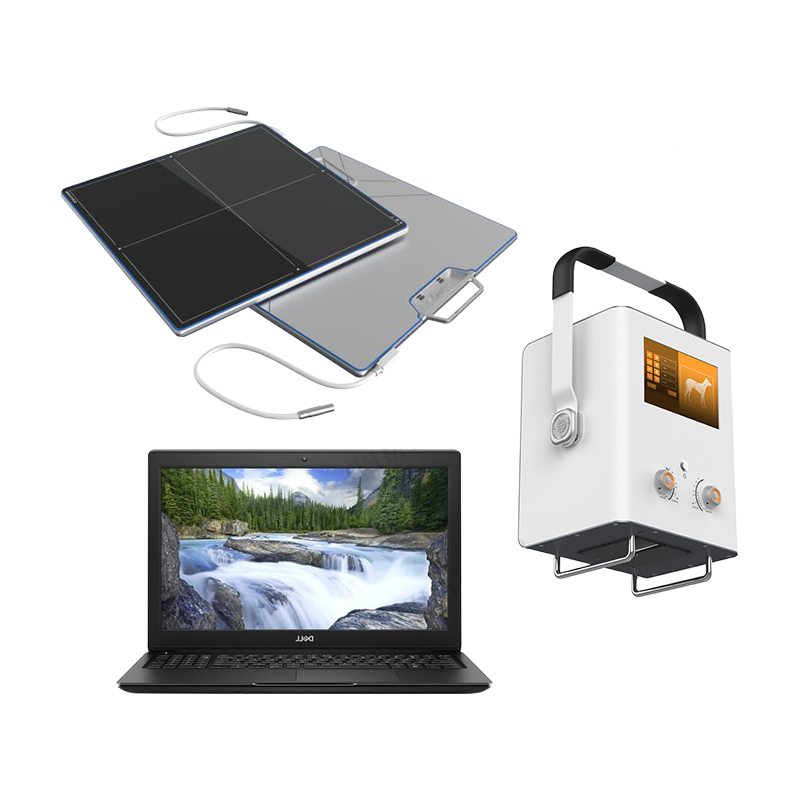

Veterinary X-Ray System Components

Key features include rapid image acquisition (3s) and processing (5s), natural cooling system for the detector, and a comprehensive imaging workstation with VDES software. The portable stand and compact design (310×266×465mm) make it suitable for both fixed and mobile veterinary applications.

Veterinary X-Ray Imaging Workstation

The standard package includes CSI 1417 flat panel detector, portable X-ray unit, stand, imaging workstation, Dell laptop, and VDES software. With CE and ISO13485 certifications, this system meets international quality standards for veterinary medical equipment.

Veterinary X-Ray System in Use
