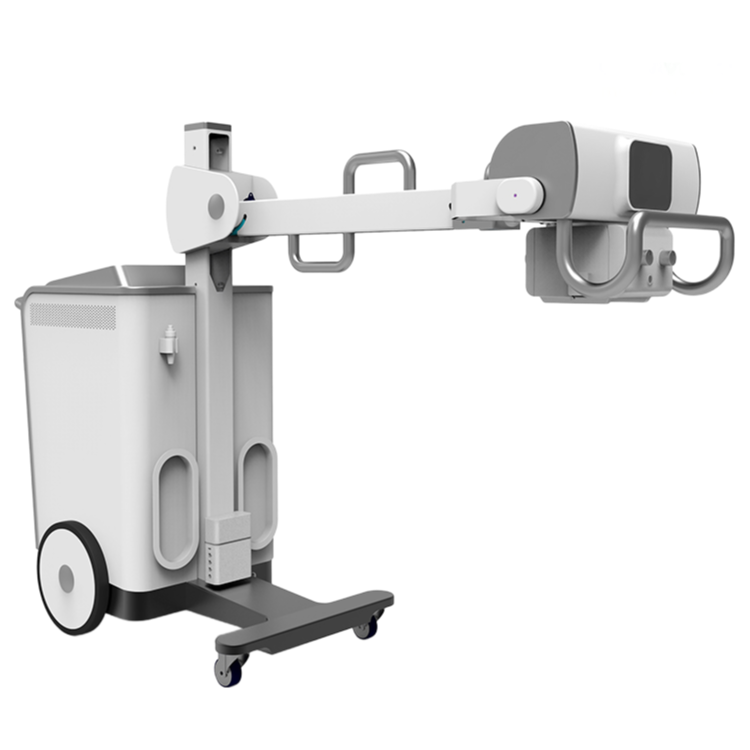

The YSX200GM High Frequency Mobile X-ray Unit is a professional-grade medical imaging solution designed for versatile hospital applications. With its 200mA output capacity and 20kw power rating, this portable system delivers high-quality radiographic images while maintaining low radiation exposure.
This mobile x-ray machine incorporates advanced High Frequency Inverter Technology, ensuring consistent performance across various clinical scenarios. The unit features 60 programmable storage modes, including 10 frontal and 10 lateral presets tailored to different body types, significantly improving workflow efficiency in busy medical environments.
The system's mechanical flexibility includes ±90° tube rotation around the arm and -20° to +150° rotation around the axis, allowing for comprehensive patient positioning. The collimator offers ±45° rotation for precise field adjustment, while the 650-2000mm SID range accommodates diverse imaging requirements.
Designed for mobility, the YSX200GM maintains a compact footprint of 1340*700*1640mm (L*W*H), making it suitable for small wards and confined spaces. The large capacity energy storage system reduces net power requirements, while online capacitance energy supplies ensure reliable high-power exposure capabilities.
Safety features include automatic x-ray tube protection and voltage safeguards for the capacitance energy system. The remote control operation allows technicians to work from adjacent rooms, enhancing both comfort and radiation safety protocols.
