Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification
Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification
Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification
Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification
Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification
Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification

Customizable Double Head CNC Cutting Machine for Aluminum Alloy Profiles with CE Certification

US$ 7500.00 ~ 13500.00
Min.Order: 1
Product origin: Jinan, Shandong, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 11 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : LJZ2-CNS-500*4300
  • Power Supply : 380V 50Hz
  • Saw Head Motor : 2×3KW/2840r/min
  • Max Cutting Length : 4300mm
  • Min Cutting Length : 420mm
  • Max Cutting Width : 140mm
  • Cutting Angles : 90°, 45°
  • Saw Blade Specification : Ø500ר30×4.4×Z120
  • Repeat Positioning Accuracy : ≤0.05mm
  • Cutting Angle Tolerance : ±3'
  • Surface Roughness : Ra12.5μm
  • Machine Dimensions : 5800×1800×1500mm
  • Net Weight : 1450kg
  • Working Pressure : 0.5-0.8MPa
  • Air Consumption : 60L/min
  • Feed Speed : 0-3m/min (stepless)
  • Certification : ISO9001, CE, SGS
  • Warranty : 12 Months
  • Control System : Delta CNC (Taiwan)
  • Main Spindle : High Precision (Anyang)
  • Guide Rail : Silver Brand (Taiwan)

The CNC heavy-duty double head precision cutting saw is designed for industrial aluminum profiles, aluminum doors/windows, curtain wall materials, as well as PVC and wood profiles processing. This equipment combines advanced technology with robust construction to deliver exceptional cutting performance.

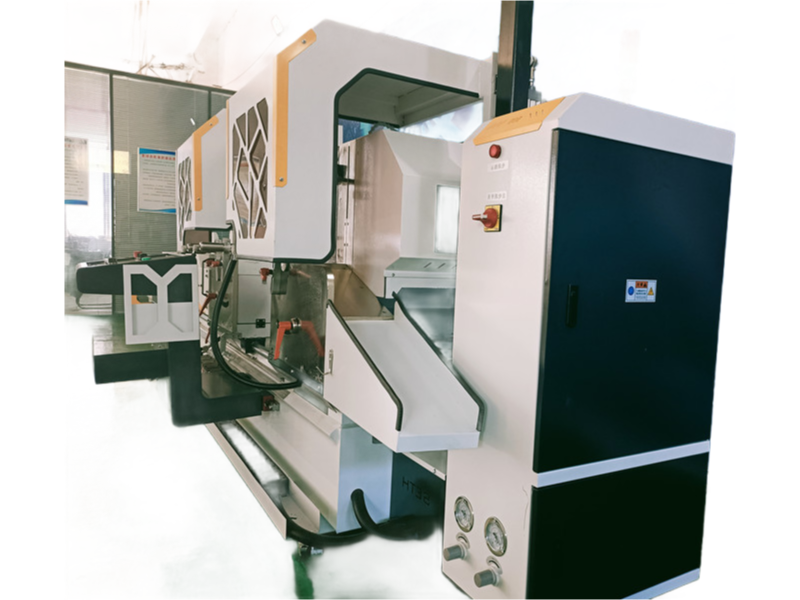

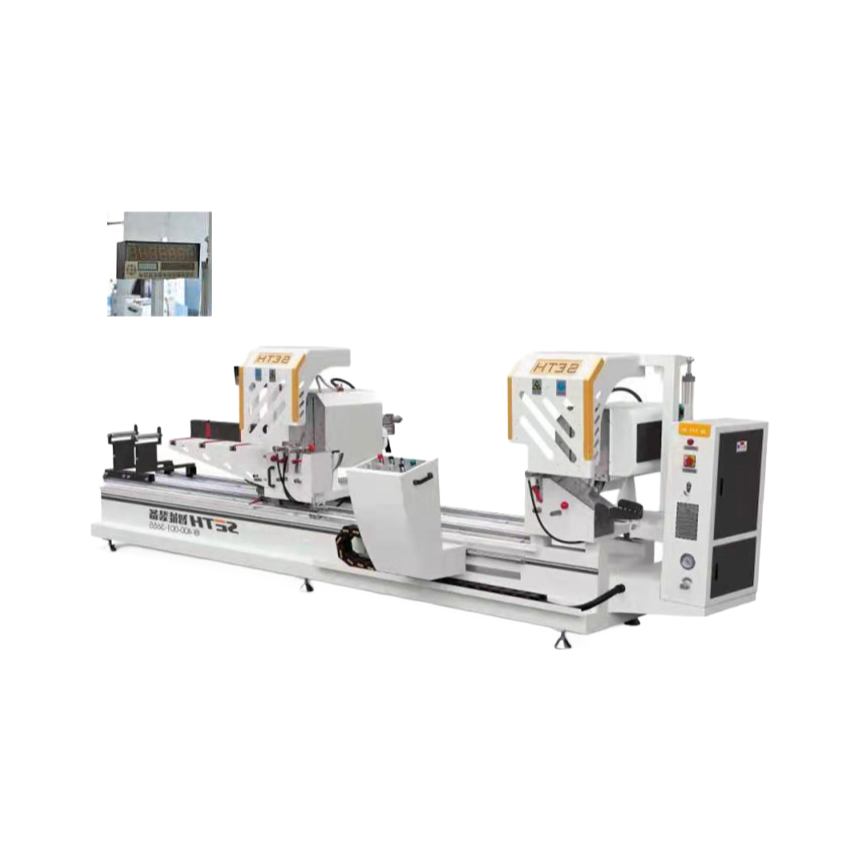

CNC Double Head Cutting Saw

Key features include an imported digital magnetic grid system for automatic cutting length display, high-precision spindle for stable rotation, and gas-liquid damping cylinder for uniform feed speed. The machine offers 45° and 90° automatic angle cutting with safety-enhanced automatic protective cover operation.

Aluminum Profile Cutting Process

The equipment utilizes high-quality carbide saw blades (Ø500ר30×4.4×Z120) specifically designed for aluminum materials, ensuring high linear speed and excellent machining accuracy. The micro spray cooling system effectively extends tool life during continuous operation.

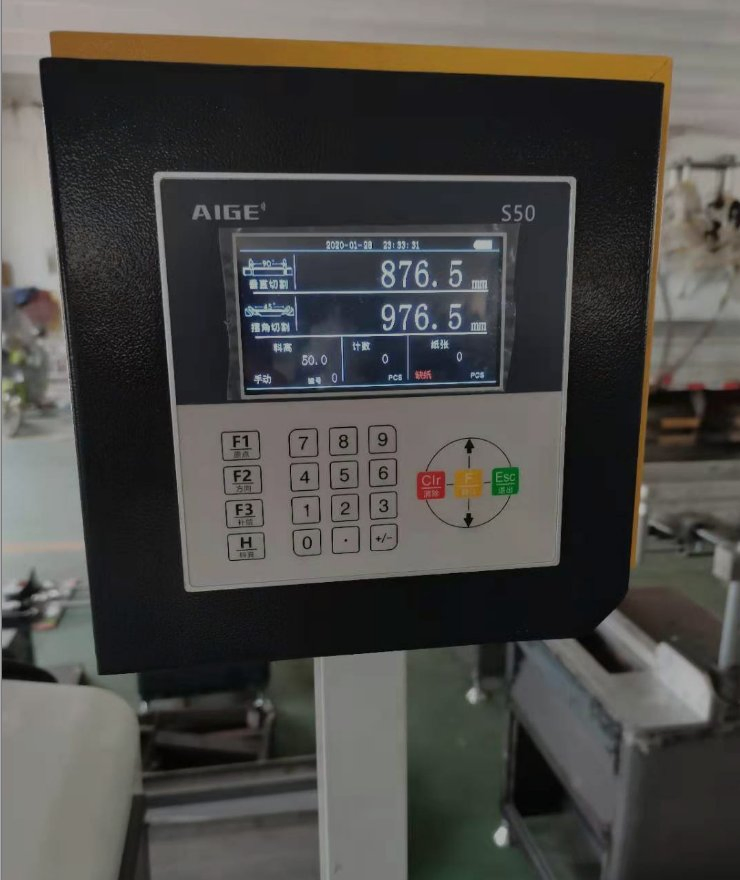

With its semi-automatic operation and CNC control system, this cutting saw provides precise length control (repeat accuracy ≤0.05mm) and maintains cutting surface flatness within 0.1mm. The machine supports independent operation of each saw head, increasing production flexibility.

Double Head Saw Machine Working

Designed for industrial applications, this cutting machine handles profiles up to 4300mm in length and 140mm in width, making it suitable for various aluminum and PVC processing requirements in window, door and curtain wall production.
