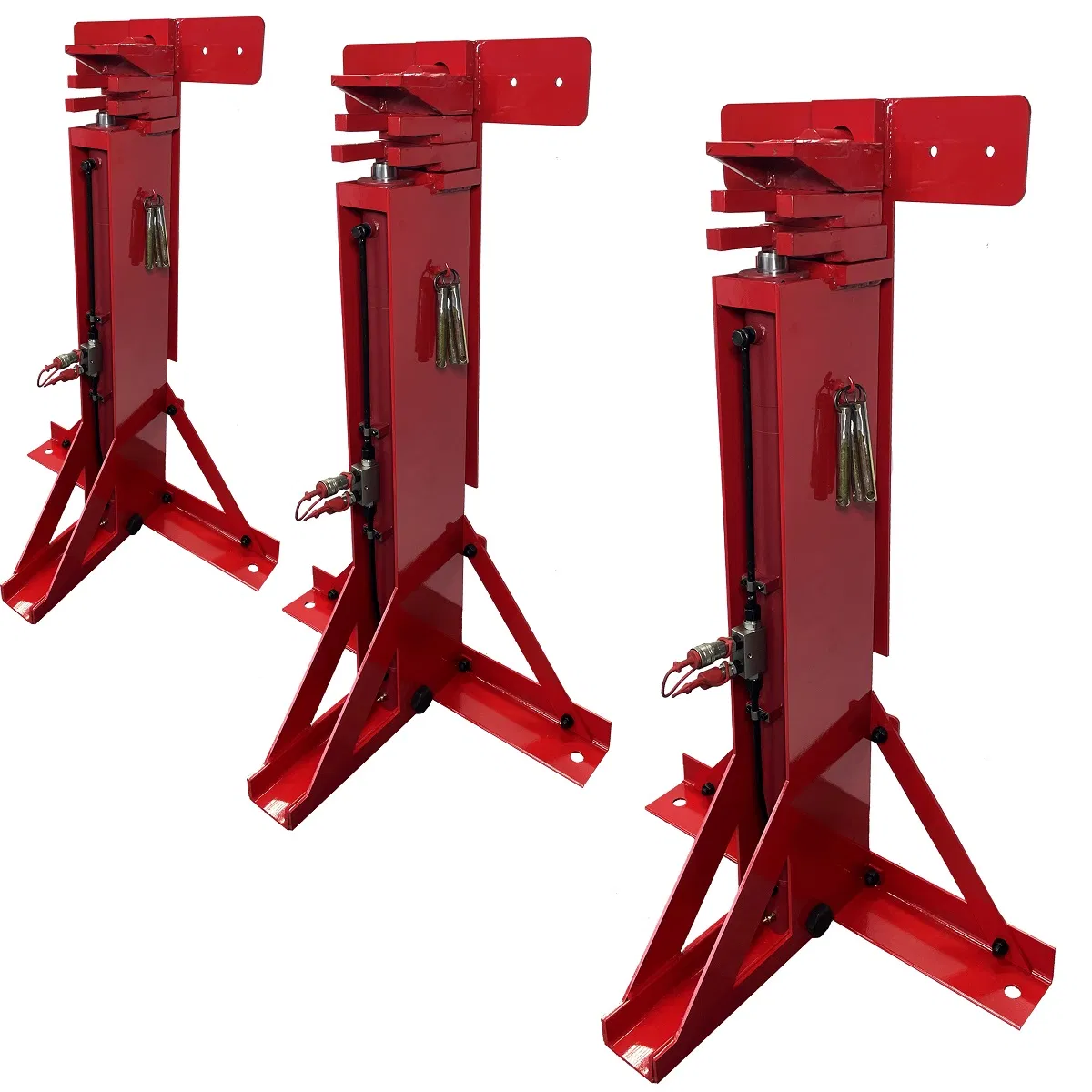

800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation 800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation
800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation 800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation
800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation 800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation
800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation 800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation
800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation 800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation

800mm Stroke Hydraulic Cylinder Jacks for Efficient Grain Silo Inverted Installation

US$ 680.00 ~ 480.00
Min.Order: 1
Product origin: Nanjing, Jiangsu, China
Category: Tools
Product Name: Tools
Availability:In Stock
Product Review : 53 Reviews
Infringement complaint:
* Please contact the supplier via whatsapp first before placing an order
  • Model Number : TCT-50-2300
  • Rated Lifting Capacity : 50KN
  • System Pressure : 16MPa
  • Hydraulic Stroke : 800mm
  • Maximum Lifting Height : 2300mm
  • Base Length : 1180mm
  • Operating Voltage : 380V
  • Control Voltage : DC 220V
  • System Flow : 38L/min
  • Working Temperature : 20-60°C
  • Locking Mechanism : Hydraulic & Pin Lock
  • Fixture Type : Triangular Bracket Base
  • Certifications : CE, ISO 9001
  • Warranty : 1 Year

Our three stage grain bin hydraulic jacks are engineered for precision lifting in industrial storage tank installations. The system combines advanced hydraulic technology with robust construction for reliable performance in demanding environments.

Hydraulic Jacks for Grain Bins

The equipment features a PLC-controlled jacking system that ensures high synchronization precision during operation. With dual control modes (manual and centralized), operators can perform single cylinder adjustments or coordinated group movements as needed for precise tank wall alignment.

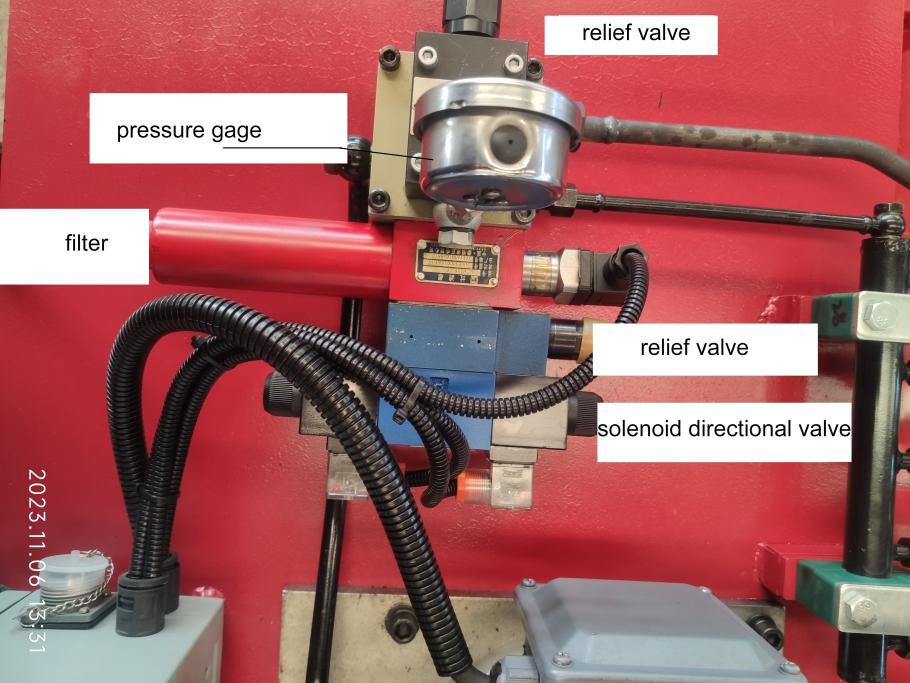

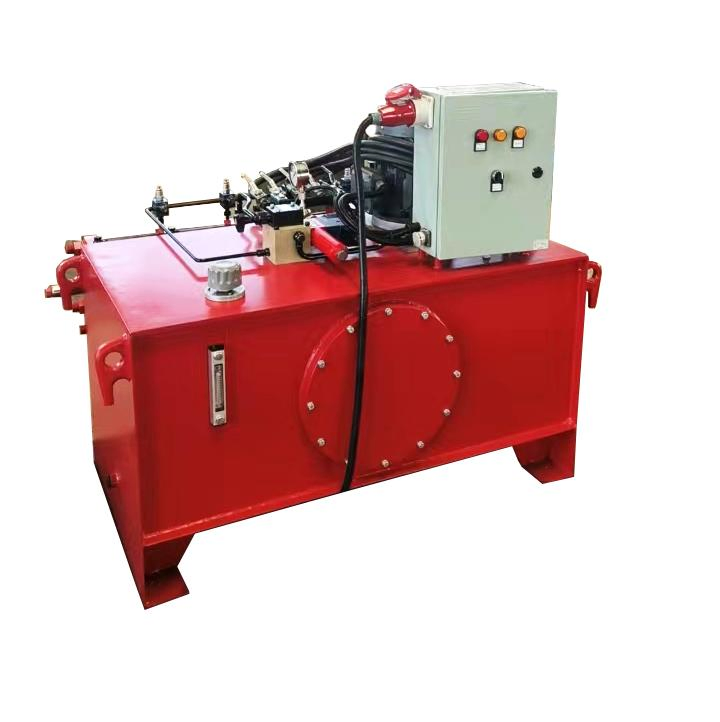

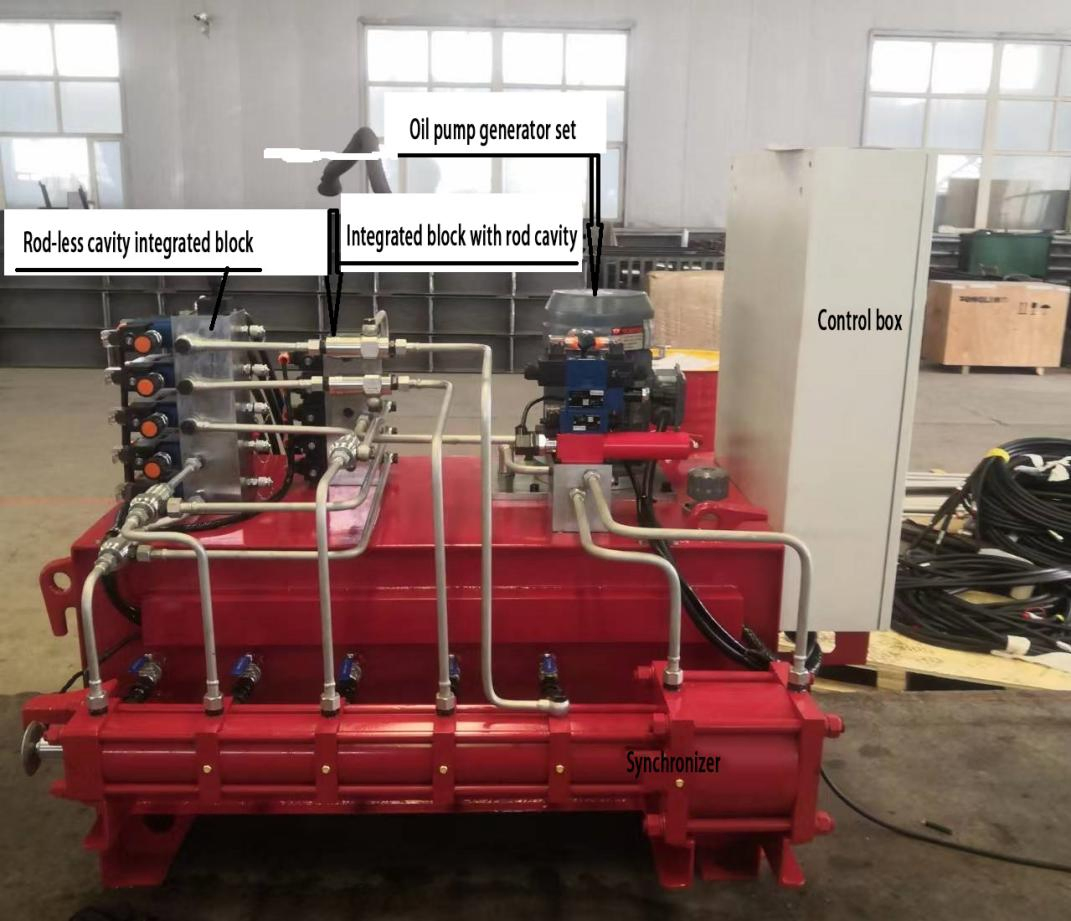

Hydraulic Jacking System Components

Safety is paramount in our design - each hydraulic cylinder includes a safety valve self-locking mechanism that prevents accidental lowering due to power failure or component failure. The plunger-type system eliminates side forces during operation, protecting tank walls from damage.

The 800mm stroke hydraulic cylinders enable efficient lifting of wall panels up to 2300mm wide, significantly reducing installation time and labor costs. The compact 1180mm base design accommodates inverted construction methods for various tank types.

Hydraulic Jacks in Operation

Key advantages include the sleeve process design for reduced size and weight, making transportation and installation easier while maintaining high application rates. The system's rectangular steel frame provides stable support throughout the lifting process.

Our hydraulic jacks are ideal for professional installation teams working with steel storage tanks, flat bottom corrugated board granaries, and enamel tanks. The equipment delivers consistent performance through intelligent control and durable construction.

Hydraulic Jacks Technical Details
