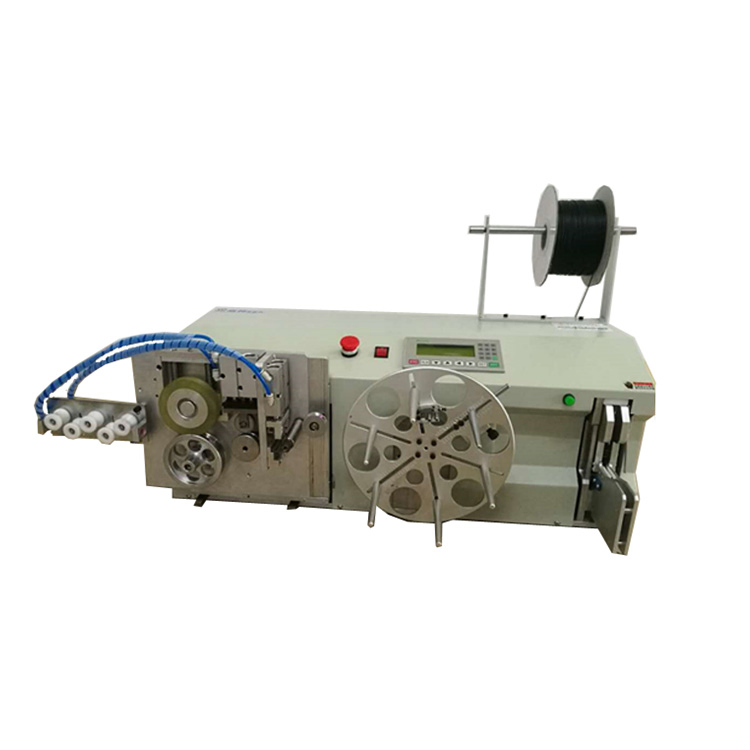

It actually handles the whole, winding, and binding sequence in one pass—saves a solid hour a shift compared to doing each step by hand.
Winding speed hits 1 to 13 circles per second, and that tying cycle is a quick 0.6 seconds; you're looking at about 50 coils a minute give or take.
The meter counter lets you set any length form 1 to 30 meters, and winding diameter is adjustable—most buyers go with the 3-coil setting for standdard power cords or data cables (check your wire diameter, it handles up to 10mm).
It's semi-automatic, meaning you load the cable and start teh cycle, but the rest is hands-off once the PLC and touch screen are programmed.
Omron sensors and a rotary encoder keep the length consistent within a tight tolerance—better than guessing with manual cutoff.
We usually have stock, but confirm lead time if you need it shipped with the full accessory kit; it's about 80kg on the crate, so factor in freight dimensoins near 830×300×550mm.
It handles up to 10mm diameter cables, so your 8mm harness is within spec. Just make sure the cable is flexible enough to feed smoothly through the machine.
Yes, you can set any length from 1 to 30 meters on the touch screen. The rotary pulling encoder gives precise meter counting, so you'll get consistent lengths every time.
We provide a CE declaration of conformity and a factory test report for each unit. If you need additional certificates like ISO or specific inspection docs, just let us know and we can arrange them.
MOQ is 1 unit, and we usually ship within 7-15 working days after order confirmation. For larger quantities, lead time may extend a bit depending on stock.
The binding wire length is adjustable between 120-190mm via the PLC interface. It works with standard PVC-coated iron wire or nylon cable ties, but we recommend sticking with the wire thickness the machine is calibrated for to avoid jams.
