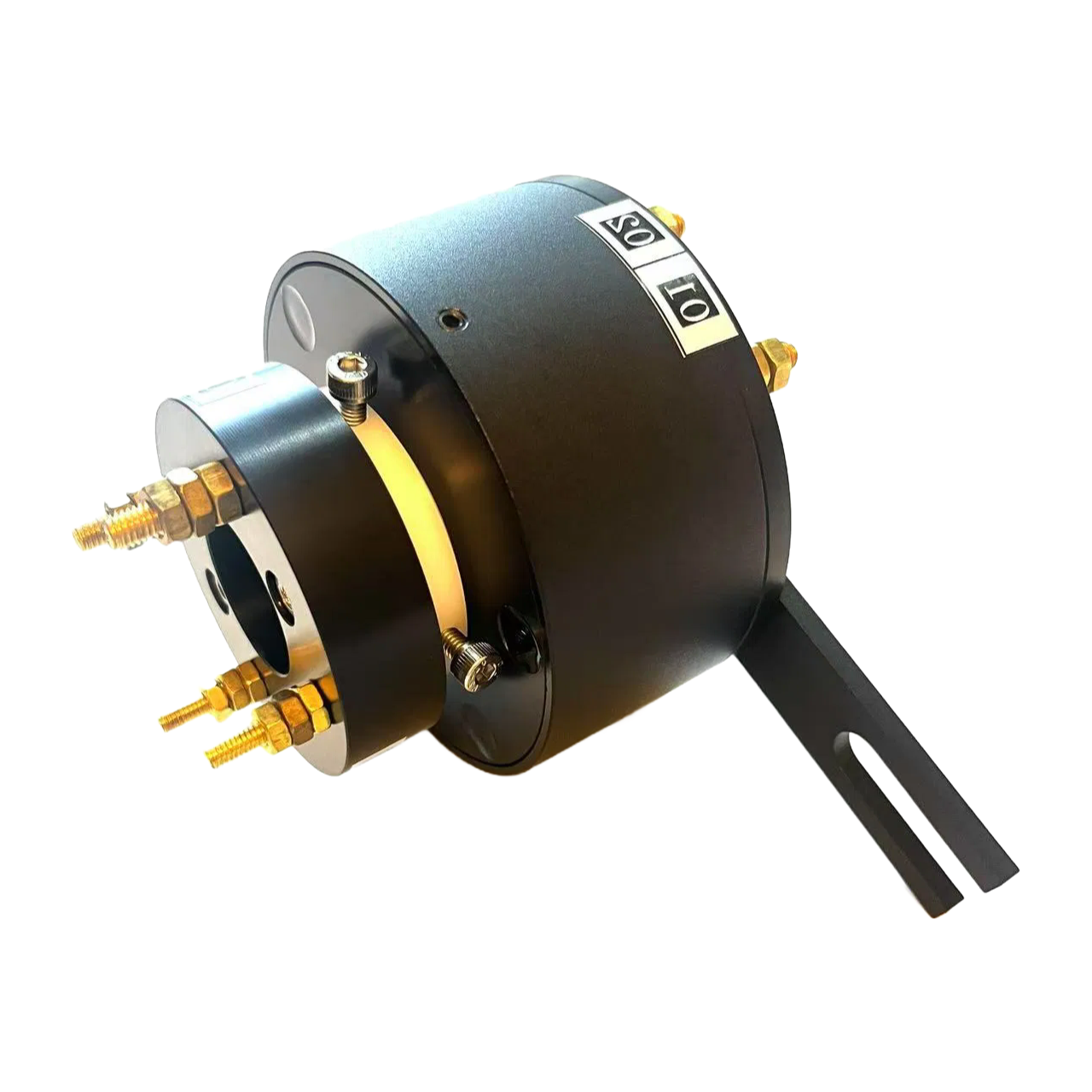

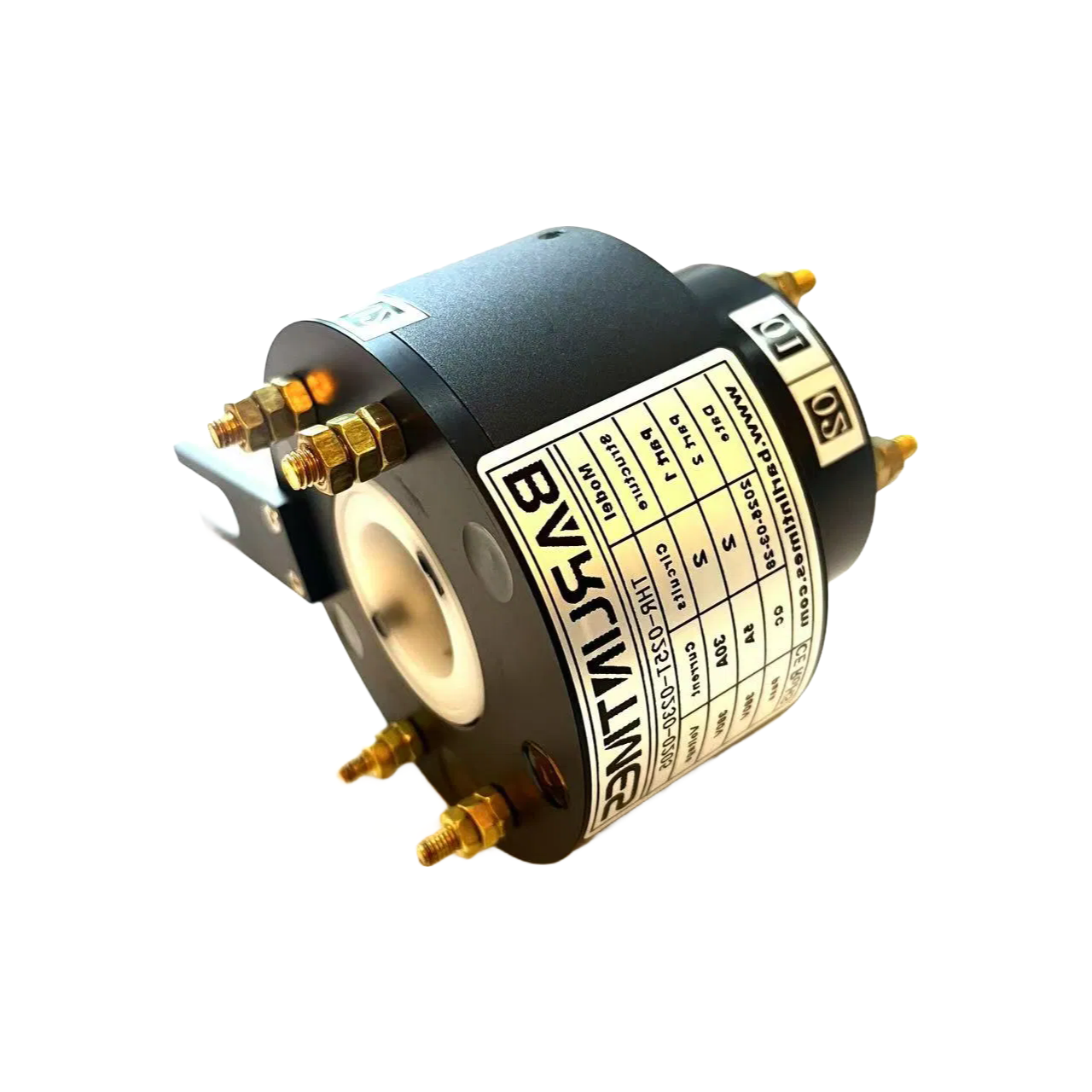

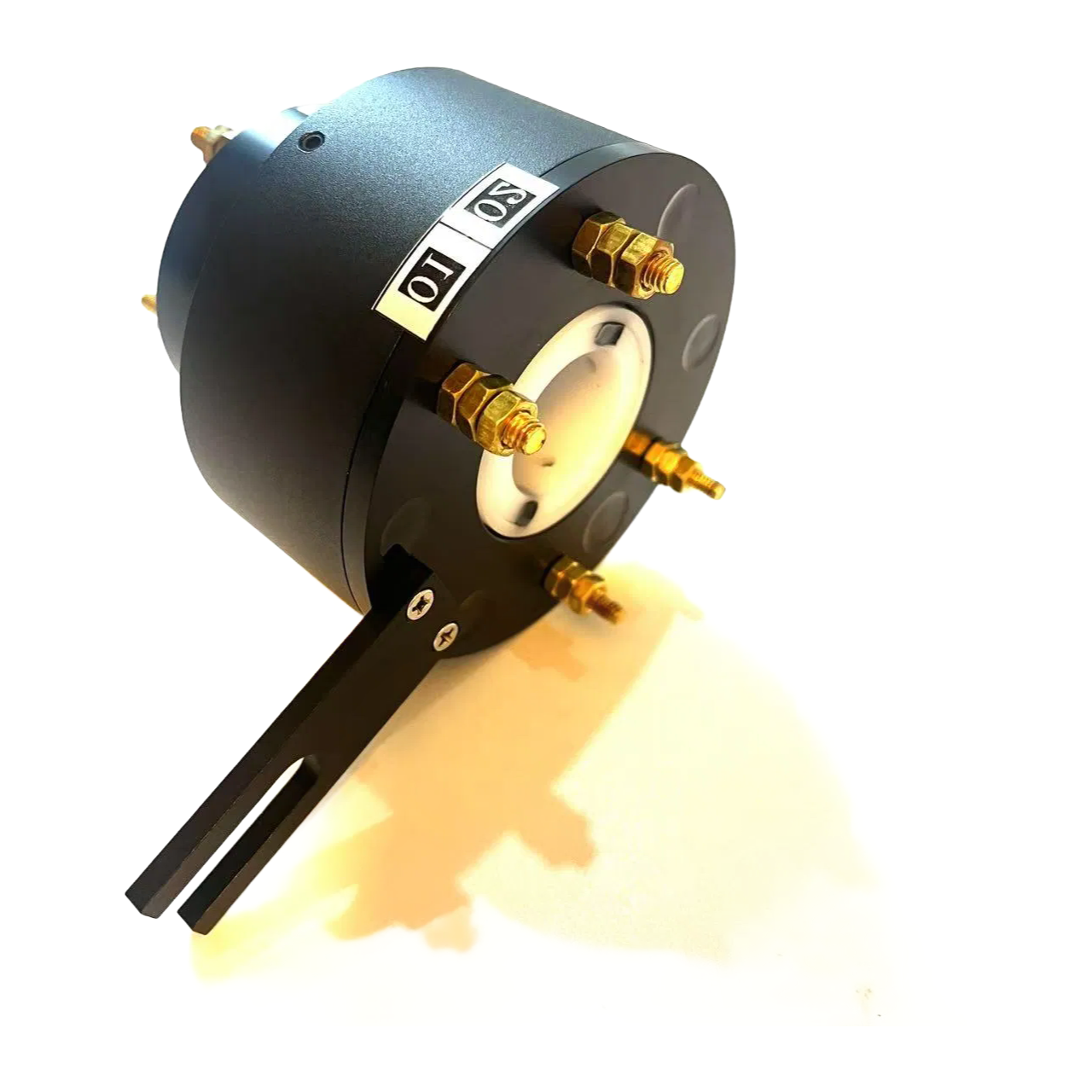

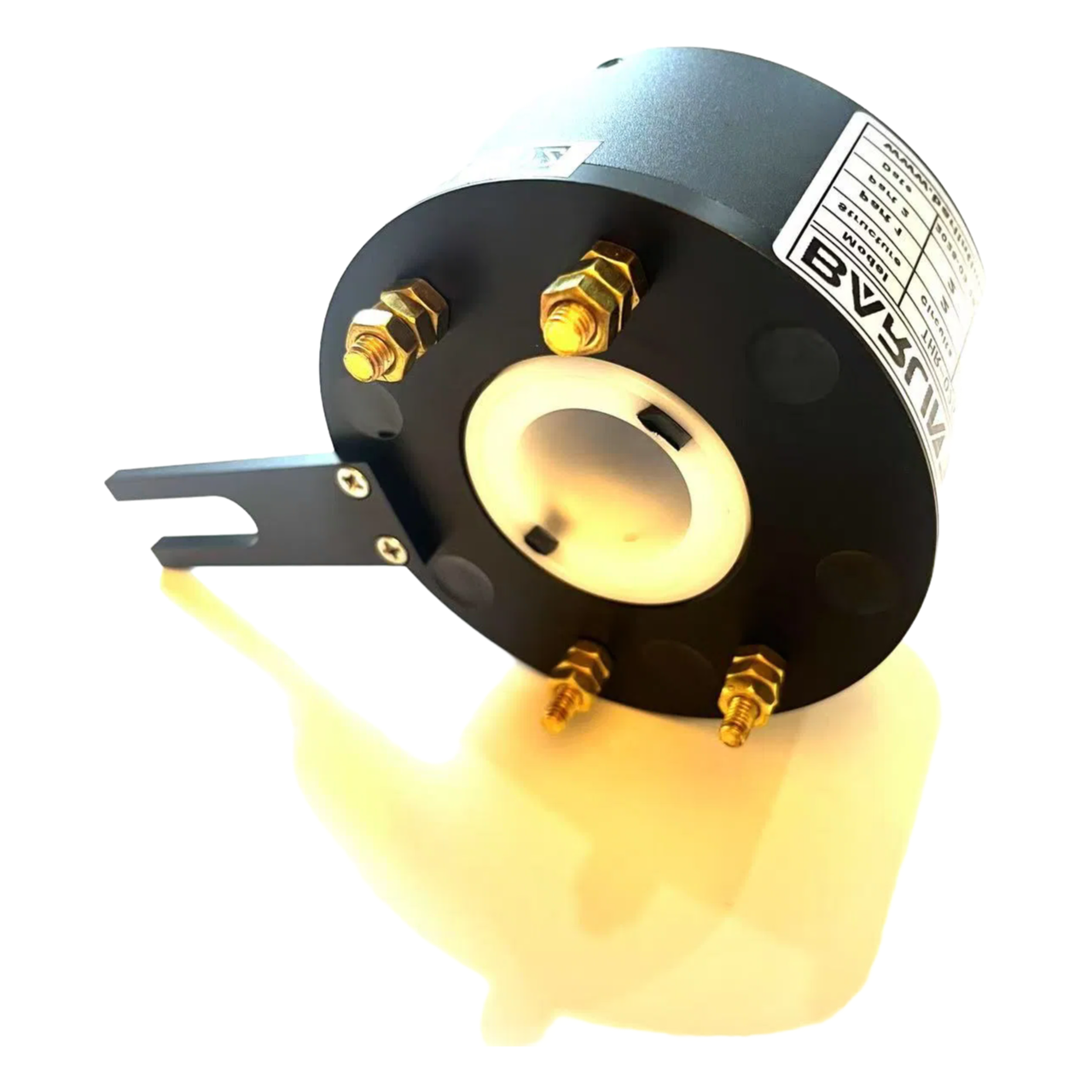

Factory Direct Through Bore Slip Rings with 4 Circuits and 200RPM Speed

We see a lot of folks come to us frustrated with signal noise at higher rotation speeds, especially when they're running both power and data through the same assembly in a tight space.

What you're getting here is a 4-circuit design with 30 amps on two channels and 5 amps on other two, all running through precious metal contacts with a silver-to-silver transmission medium — that's better than the standerd gold flash for high-cycle application, by the way, since silver oxide is still conductive and doesn't build up the way some other materials do.

The dielectric strength is tested at ≥1000V AC at 50Hz, which is tighter than most off-the-shelf units we've handled, and the insulation resistnce holds at 1000MΩ at 500V DC — but honestly, the real selling point for your engineers is probably the 200RPM continuous rating with that IP54 housing, because of that it means you can mount it in a dusty shop floor environment and not worry about weekly cleaning. 25mm inner diameter, 86mm outer, 43mm long. Three dimnesions that cover most rotary sensors and antenna pedestals we see.

Basically, it's optimized for mechanisms where you need a clean signal path through a spinning hollow shaft — not for high-torque robotics joints, though, since the aluminum alloy housing won't take the same side load as a steel unit would. One thing most buyers don't ask but should: the silver-to-silver contacts need a dry environment during storage (usually 20-30°C, low humidity) or you'll see oxidation before installation, so we recommend vacuum-sealing any spares.

We've got these in stock for most configurations, but if you need a different bore size or circuit count, the customization lead time is about 25 days or so for new tooling — the standard 4-circuit version ships within a week if the order is over 50 units (our MOQ for that price bracket).
