Basically came out of a need for matching the pin layouts and keying of major brands like AMP and TYCO, so you can swap them into an existing harness without reworking everything.
Most buyers use these for engine bay or underbody connections where moisture is a constant issue—IP67 holds up fine in those spots. The PA66 housing with copper terminals is tough enough for most vibration and heat cycles.

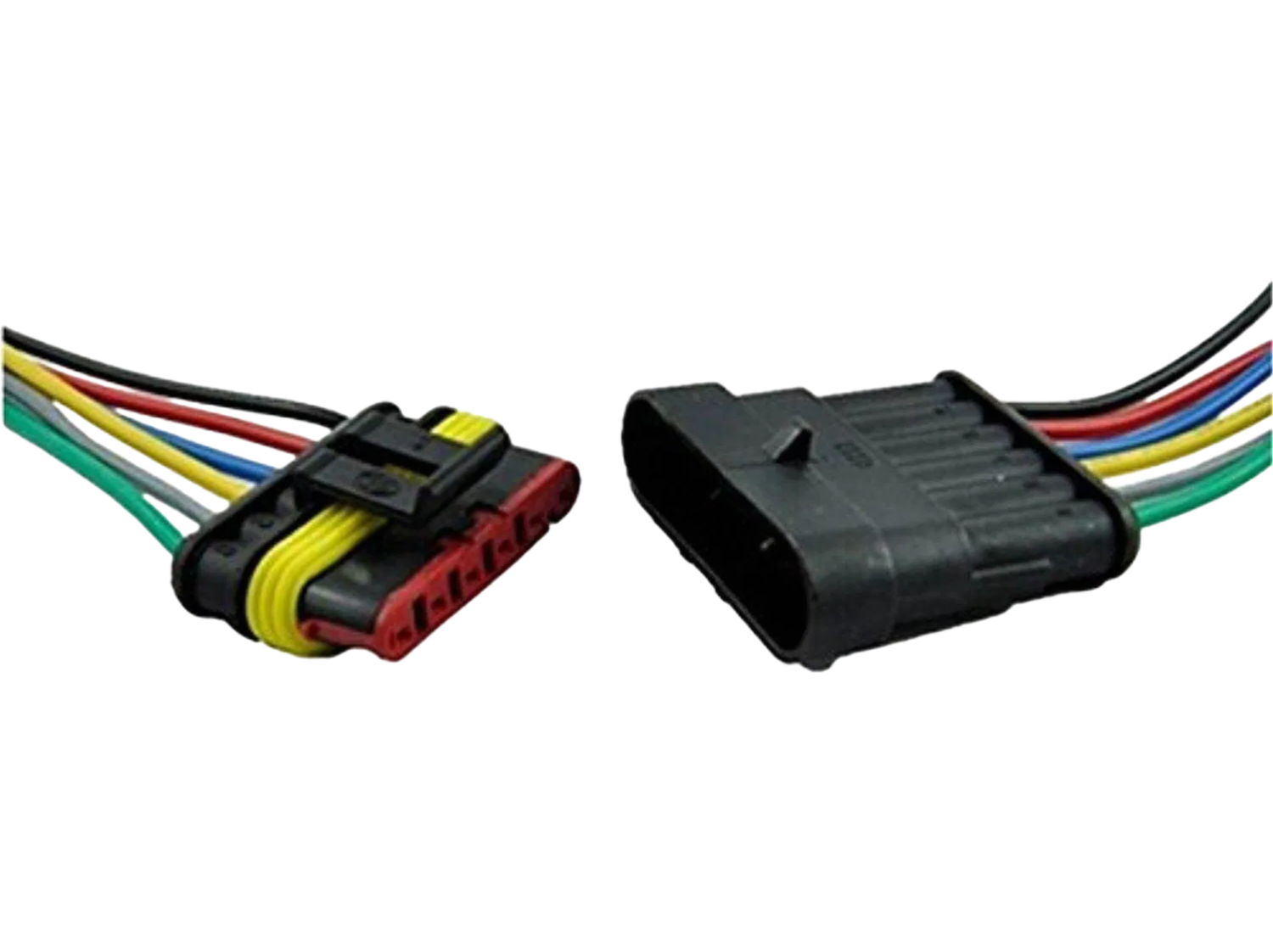

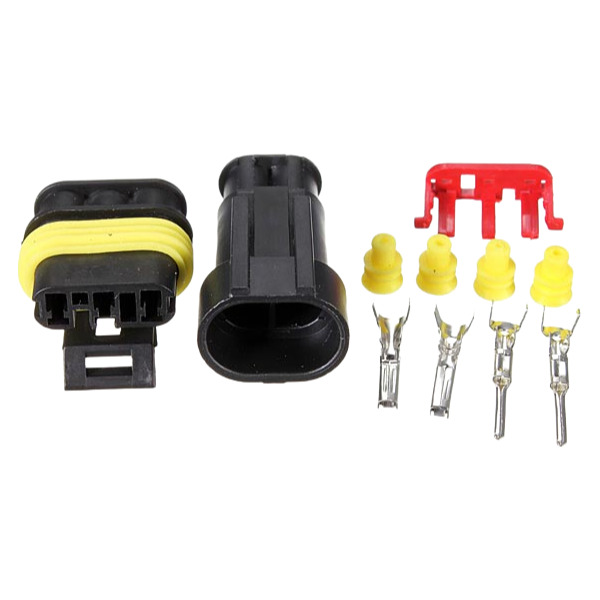

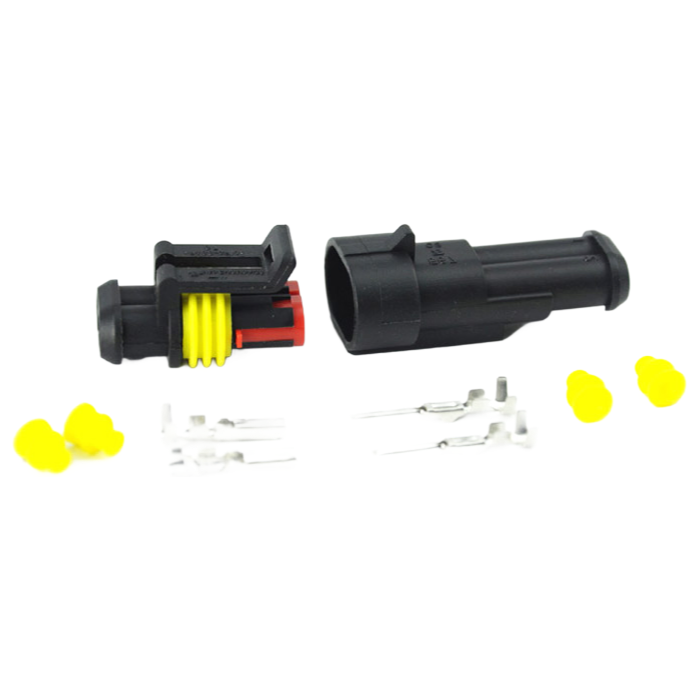

You can get 2-pin or 3-pin configurations, or the 5-pin if you need extra circuits. They handle up to 20A and 600V, but real-world current depends on wire gauge and pin count—0.5 to 6.0mm² wire fits in there, so it's pretty flexible for various loads. Mating cycles hit 500 or so, which is typically fine for non-frequent disconnect applications.
One thing we've noticed is the contact resistnce stays well under 5mΩ on fresh terminals—actually measured it at about 2-3mΩ on recent batches. Insulation resistance is above 1000MΩ which matters if you're running near teh 1500V dielectric strength limit.
Custom colors are a thing our company can do (usually about 2-4 weeks lead time after sample confirmation), but MOQ starts at 100 pieces per order for the standerd colors. Lead time runs 7-15 days from sample sign-off.
They're ISO 9001 and CE marked, and it's RoHS compliant so no issues with restrictive export markets. Anyway, these aren't ideal for high-frequency signal applictions due to the pin spacing, but for power and sensor circuits they're better than many generic options at this price point.
Our MOQ is 100 pieces for standard orders, but we can handle smaller custom color runs if you discuss the details with us. Just reach out with your color code or sample.
Lead time is 7 to 15 days after sample confirmation, depending on quantity and customization. We'll give you a firm timeline once the sample is locked in.
Yes, we include CE, ISO 9001, and RoHS compliance documents with every batch. Just request them in your order, and we'll attach the certs.
Absolutely, 4mm² wire fits within the 0.5-6.0mm² range and supports up to 20A depending on the pin configuration. Check the current derating for your specific setup to be safe.
The connector is designed to maintain IP67 waterproof performance for at least 500 mating cycles. After that, the seal may degrade, so we recommend periodic inspection for high-mating applications.
