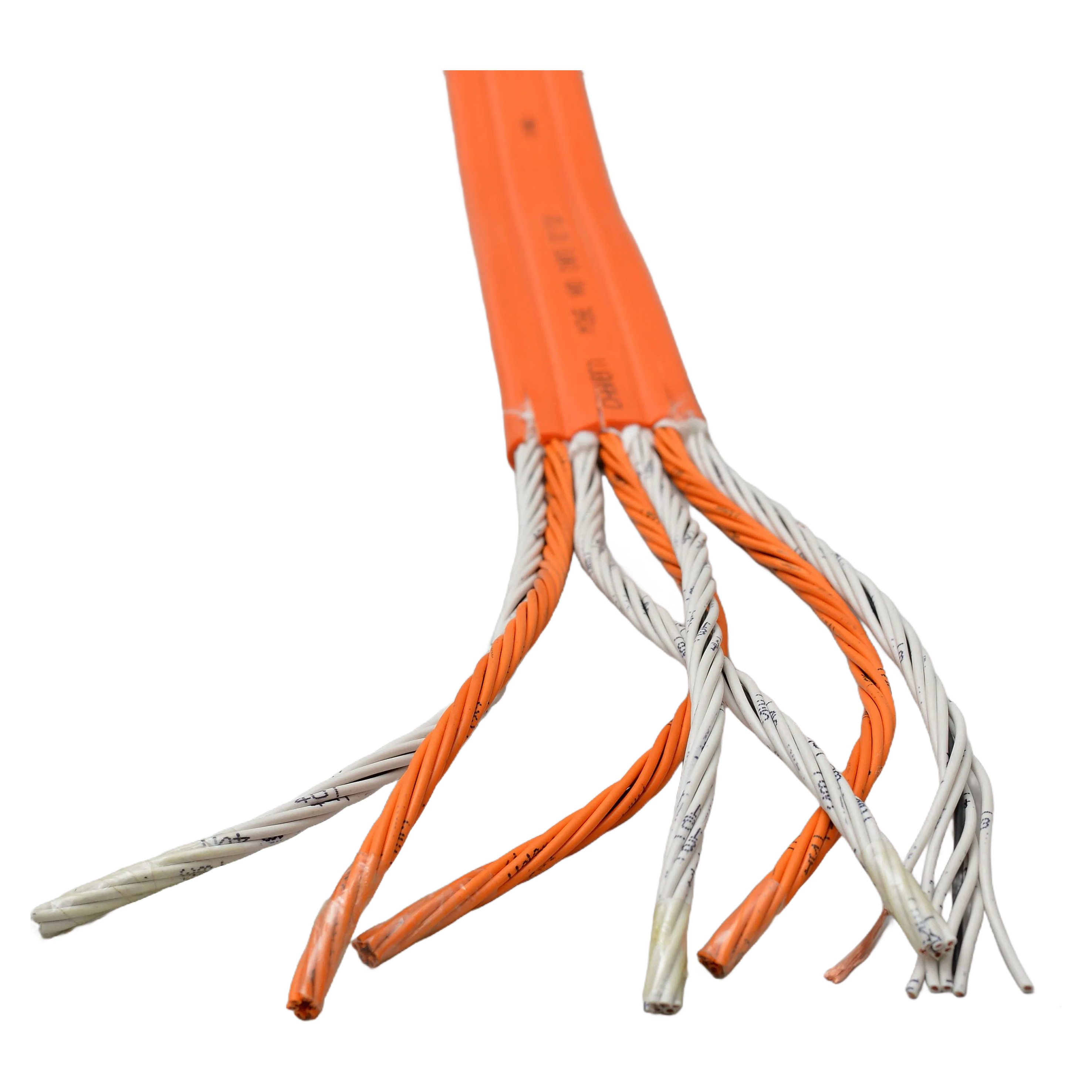

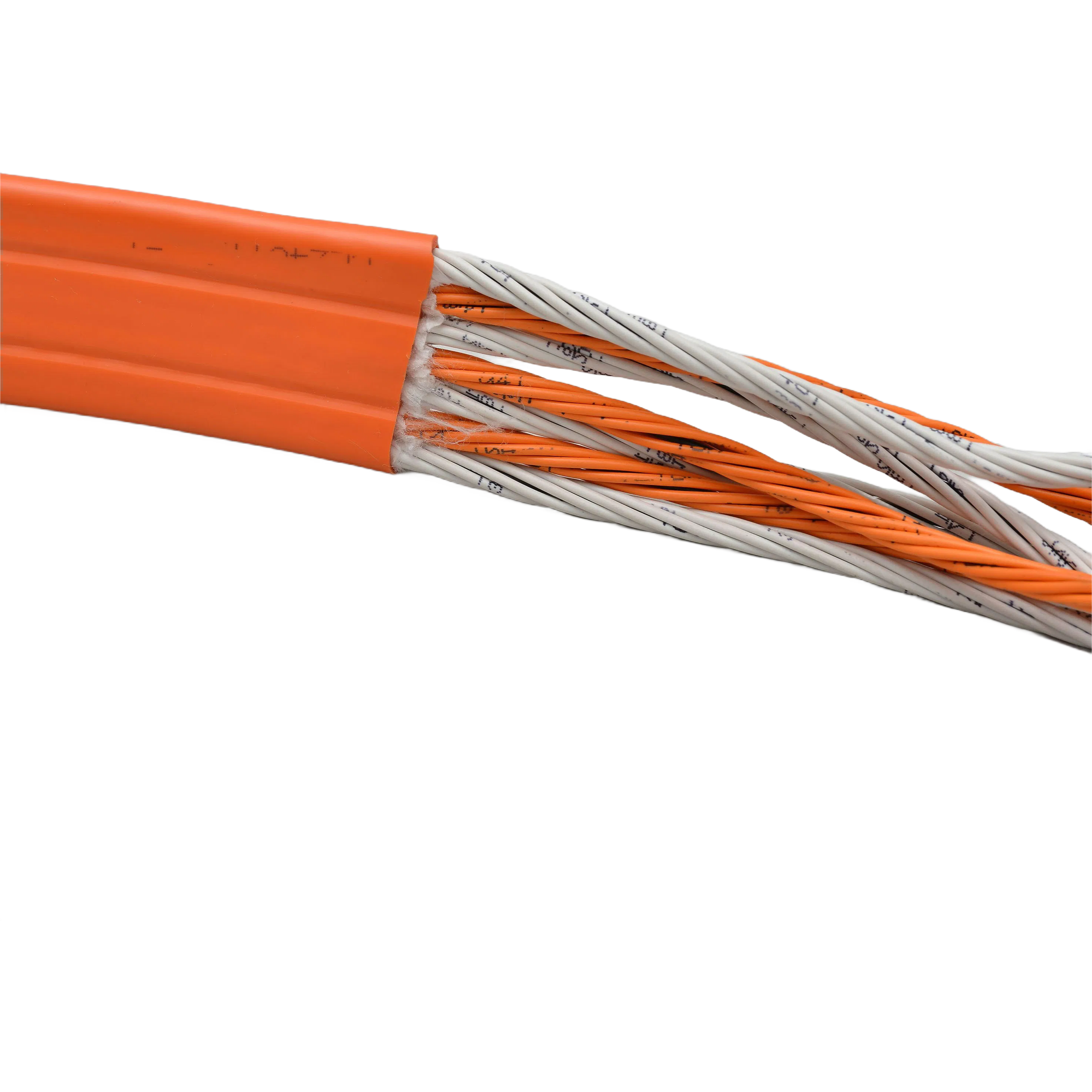

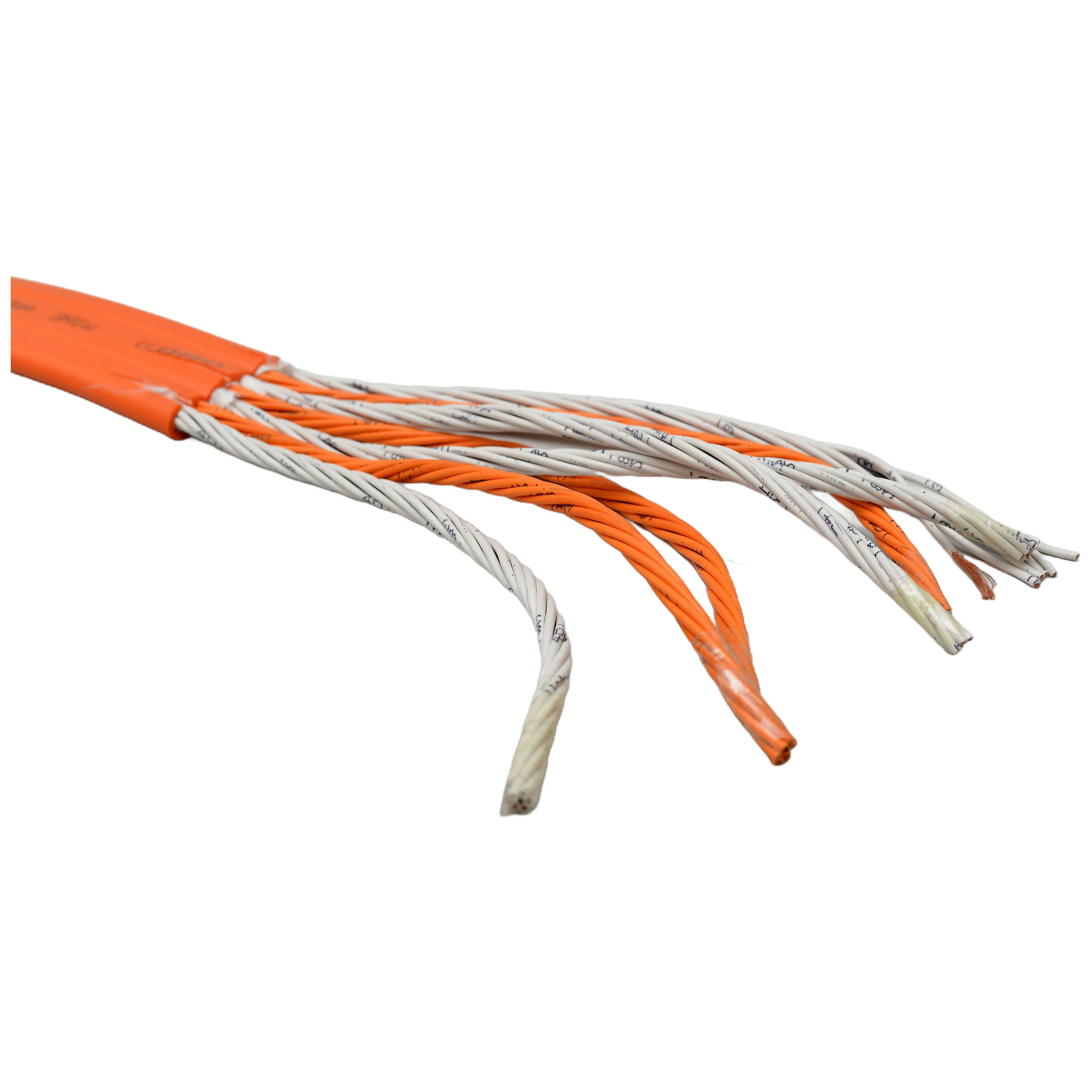

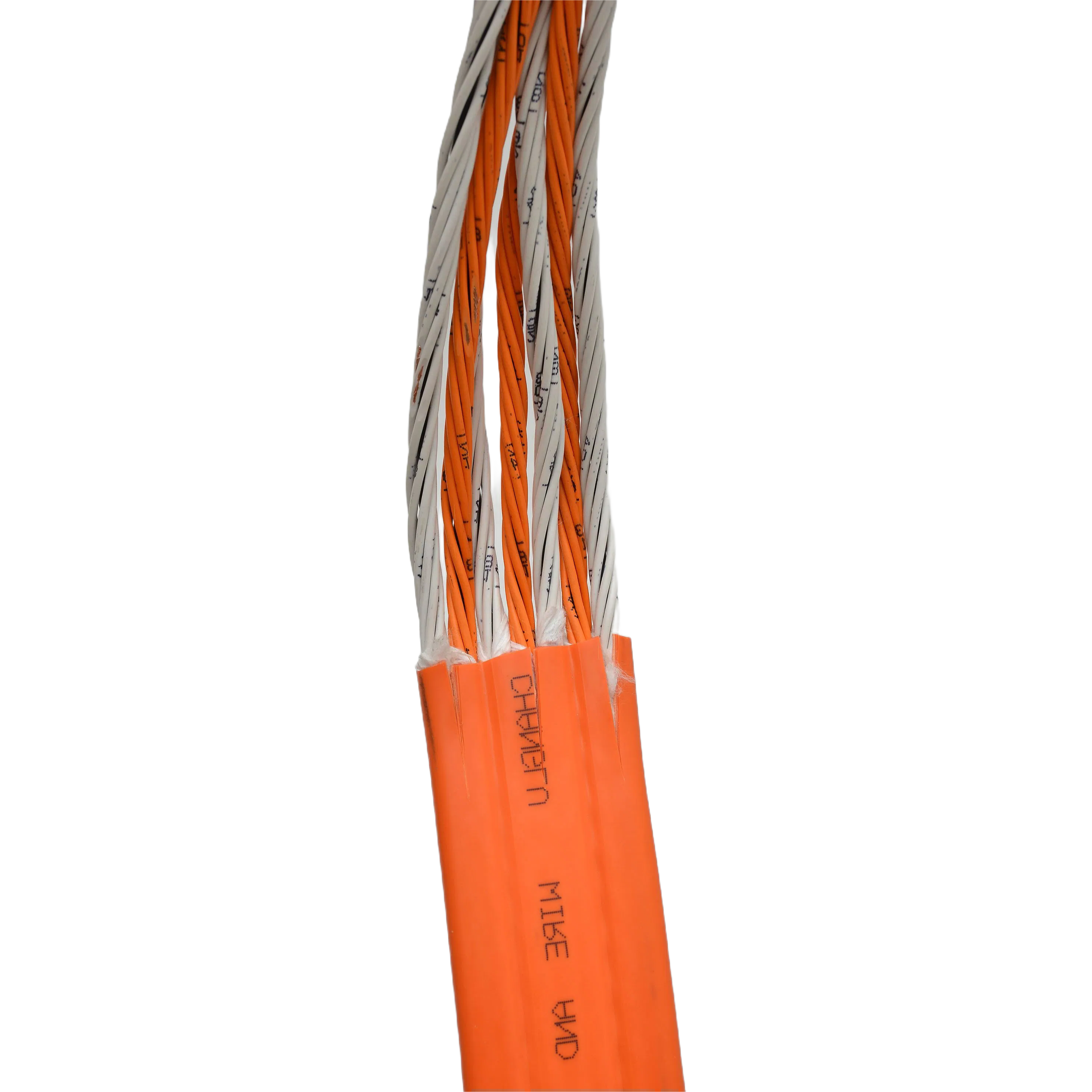

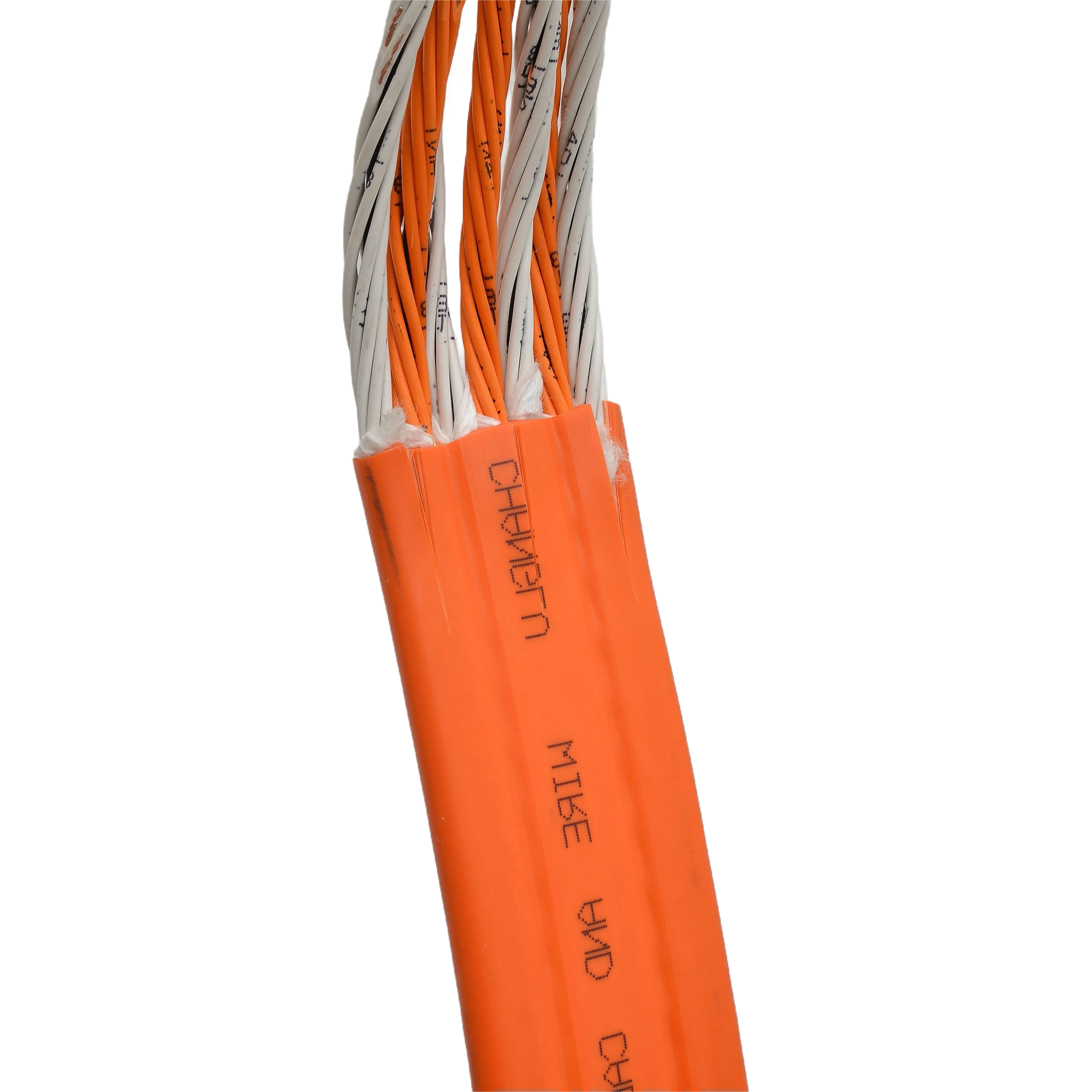

Basically, we've gone with the CL-7-27 because its flat wire form factor fits the tight raceway constraints we've been fighting, and the parallel or plum-shaped core arrangement gives us flexibility for the next batch—the tensile strength at ≥12.5 MPa and elongation ≥180% tell me it won't crack during the pull-through, which has been an issue with cheaper PVC-sheathed stuff we tried last quarter.
It's 300/500V or 450/750V depending on the build, and we're specifying the 0.75mm² to 2.5mm² cross-sections for the sensor harnesses; the volume resistivity at ≥1.0×10⁸ Ω·m is better than reagent grade for this, and the dielectric strength at ≥18 MV/m means our company can push the insulation harder without breakdown in the high-humidity zones we've been seeing.
Also, oxygen index at ≥26% and thermal stability at ≥50 minutes at 200°C (usually we test at 180°C for 30 minutes, but this gives margin) mean it's suited for LSOH environments, though I wouldn't spec it for direct flame exposure—that's not what this is for, and the CE and CCC marks back up the compliance for the European and Chinese installations we're juggling right now.
One thing that caught me: the working temperture range of -40°C to 150°C is wider than the typical -20°C to 105°C we see on most PVC cables, so it should hold up in teh outdoor junction boxes during the winter freeze, and the sheath materail is PVC, which is what it is—it's not the most flexible at low temps, but the stranded copper conductor helps a bit with that, and we've got the COA from the suplier confirming the elongation at break ≥180% on this lot.
We usually have stock on the 1.5mm² variant, but confirm lead time for the 2.5mm² with the plum-shaped cores—it's about 20 days or so form order, and the MOQ is 500 meters per spec, which is fine given our projected usage for the next three months; I've already checked the TDS and it lists the oxygen index at 28% for this batch, so that's a nice bump over the minimum.
Our MOQ for the CL-7-27 is typically 1000 meters per specification, but we can negotiate for smaller trial orders if you're just starting out.
Yes, we include copies of ISO9001, CE, and CCC certifications with every order, and we can send you the full documentation upfront if you need it for your compliance team.
Absolutely, we can do plum shape or parallel arrangement as per your specs. Switching to plum shape might add about 3-5 days to the lead time since it requires a different extrusion setup.
The CL-7-27 is rated for -40°C to 150°C, but continuous use at 150°C is fine as long as the current load stays within the cable's rated voltage (300/500V or 450/750V). Just keep the ambient conditions in mind.
Yes, these are designed for LSOH (low smoke zero halogen) applications. The oxygen index of 26% means they're self-extinguishing and won't support combustion in normal air, which is key for safety in confined spaces.
