JUSLKG 16N DIN Rail Ground Terminal Block 4-16mm² Screw Clamp Electrical Connector

JUSLKG 16N DIN Rail Ground Terminal Block 4-16mm² Screw Clamp Electrical Connector

US$ 0.01 ~ 1.016

Min.Order: 100

Product origin: Wenzhou, Zhejiang, China

Category: Electrical Equipment & Supplies

Product Name: Electrical Equipment & Supplies

Availability:In Stock

Product Review : 0 Reviews

Infringement complaint:

* Please contact the supplier via whatsapp first before placing an order

SNK-2-95 245A 2P High Current DIN Rail Terminal Block - CE Certified Nylon Aluminum Power Connector

US$ 5.00 ~ 3.00

High-Quality DIN Rail Mount Fuse Terminal Block with Spring-Cage Connection - JST 4-HESI Model

US$ 0.01 ~ 0.53

JUT11-500 High-Current Brass Power Distribution Terminal Block - UL/VDE/CE Certified One-in-Multiple-Out Junction Box Connector

US$ 8.10 ~ 6.10

High Current 50PE UL94 V0 Screw Type Grounding Terminal Blocks for Power Distribution

US$ 0.10 ~ 0.63

H Type 12-Pin 5A Plastic Terminal Block - High Quality Electrical Connector for Power Applications

US$ 0.50 ~ 0.30

Model Number : JUSLKG 16N
Type : Ground Terminal Block
Material : Flame-resistant Nylon PA66 with brass conductor
Color : Yellow/Green (customizable)
Rated Voltage/Current : 800V/101A
Conductor Cross Section : 4-16mm² (12-4 AWG)
Connection Method : Screw clamp
Mounting Type : DIN Rail NS 35
Dimensions : 42.5×53×12.2mm (L×H×W)
Standards : IEC 60947-7-1

Accessories Compatibility : End covers, partition plates, marker strips, bridges
Packing : 36.25g/pc, 50pcs/box, 600pcs/carton

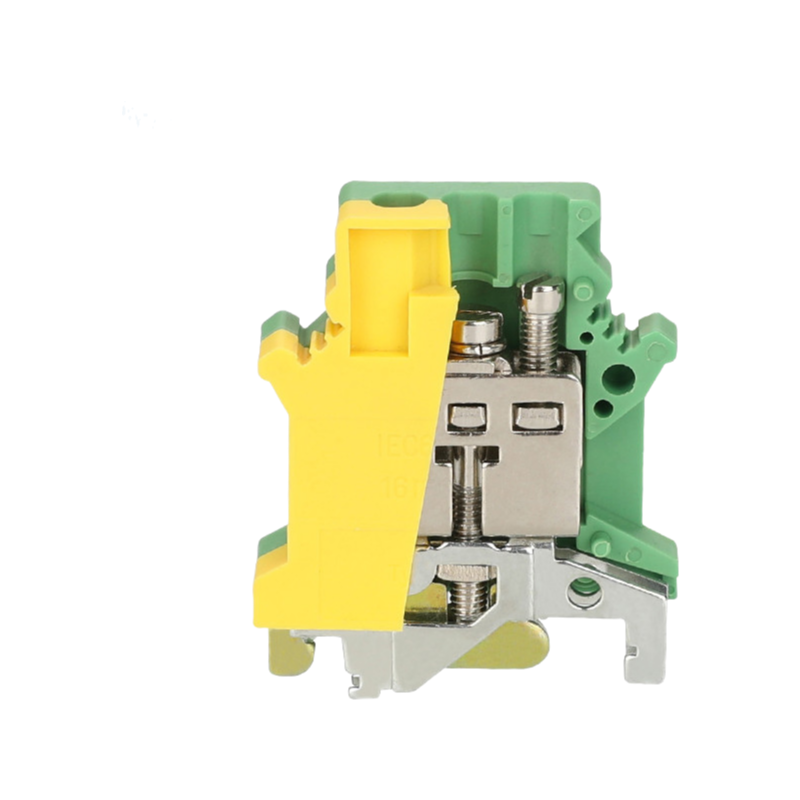

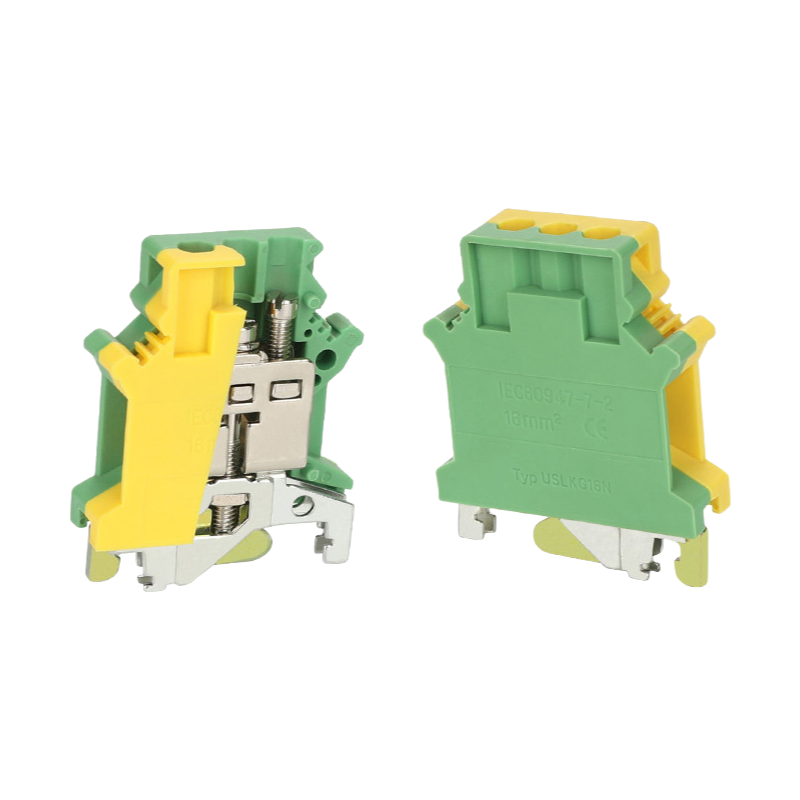

The JUSLKG 16N DIN Rail Ground Terminal Block is a premium electrical connector designed for secure and reliable grounding applications. This yellow/green terminal block features a robust screw clamp connection system that accommodates conductor sizes from 4-16mm² (12-4 AWG), making it ideal for various electrical installations.

Constructed from flame-resistant nylon PA66 with nickel-plated brass conductors, this terminal block ensures excellent conductivity and durability. The universal DIN rail mounting (NS 35) allows for quick and easy installation in electrical panels and control cabinets.

Key features include potential distribution capability through fixed or insertion bridges, compatibility with various accessories (end covers, partition plates, marker strips), and compliance with IEC 60947-7-1 standards. The terminal block operates at 800V/101A rating, suitable for demanding electrical environments.

The compact design (42.5×53×12.2mm) makes it space-efficient while maintaining high performance. Customization options include different colors and branding to meet specific project requirements.
