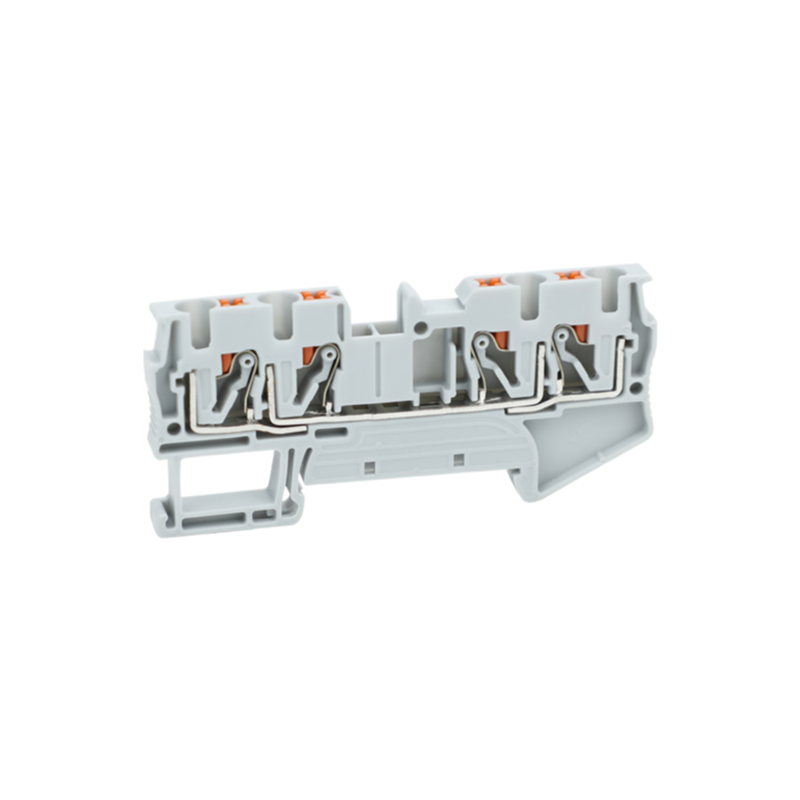

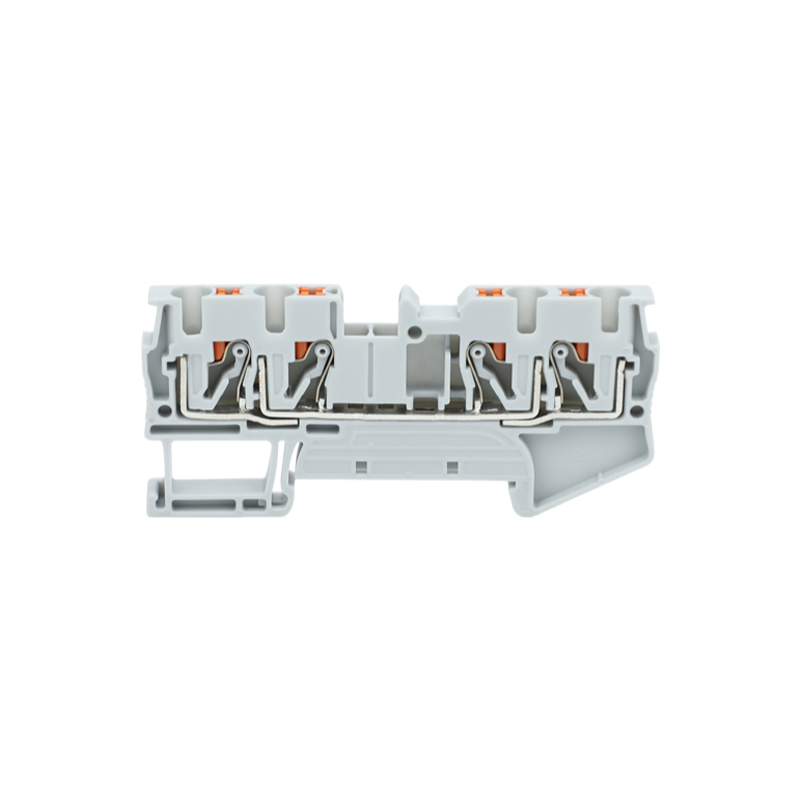

We're looking at 50 pieces per box for the JPT 4 QUATTRO, each weighing just over 12 grams—so a box comes to about 600 grams plus packaging, and the dimensions are 77 by 36.5 by 6.2 millimeters, which is compact enough for tight panels but you'll still want to check clearances if you're stacking rows side by side.
Basically, what it does is let you push in multiple solid or stranded wires at a single point using the spring-cage mechanism, so you don't need to fumble with screwdrivers or torque specs, and the rated voltge is 800V AC with a current of 32A, which handles most control cabinet loads without breaking a sweat.

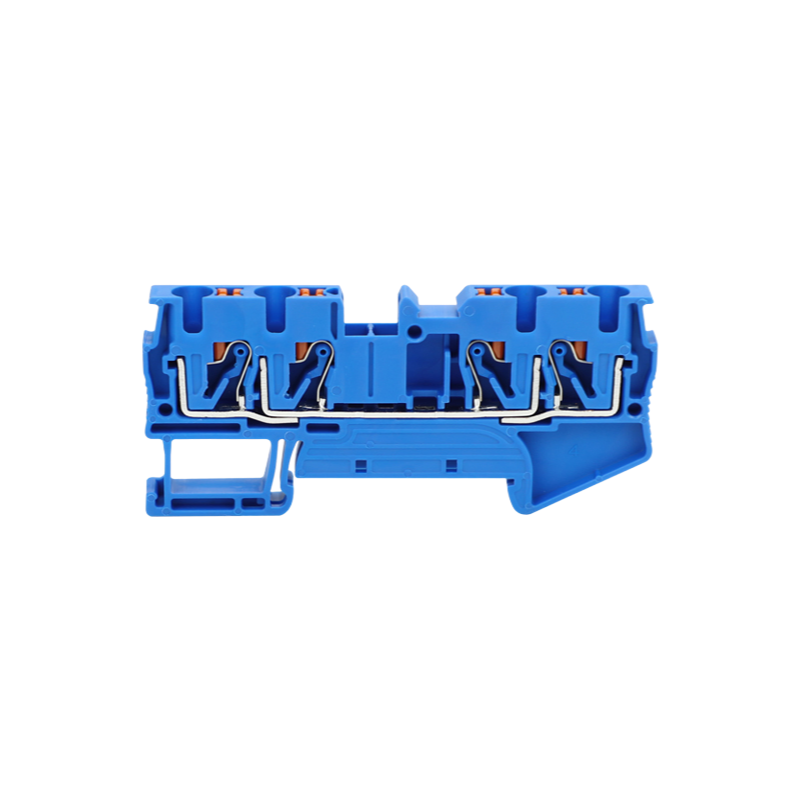

The nylon PA66 body is flame retardant, and brass conductors are plated for corrosion resistance, though honestly, if you're working in high-humidity environments consistently, you might want to specify the blue version—it's the same specs but some buyers prefer the color coding for phase identification, especially in panels with lots of terminal blocks.
It's not really suited for extreme high-frequency switching appliction where contact resistance stability over millions of cycles matters more than installation speed; for that you'd want a screw-type block with a higher clamping force, but for standard industrial control wiring, the push-in is actually faster and just as reliable for most everyday use.

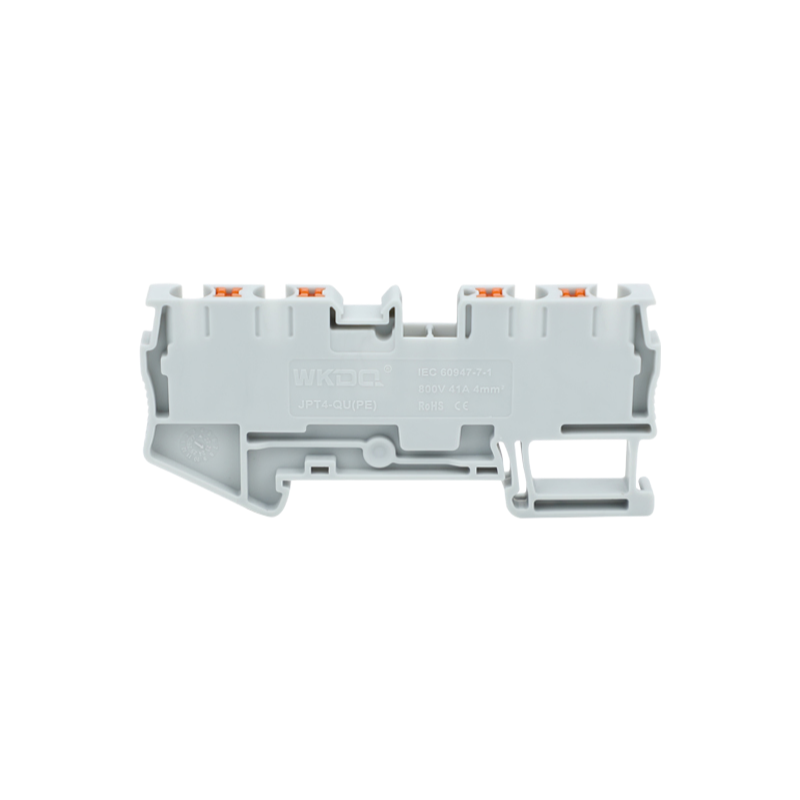

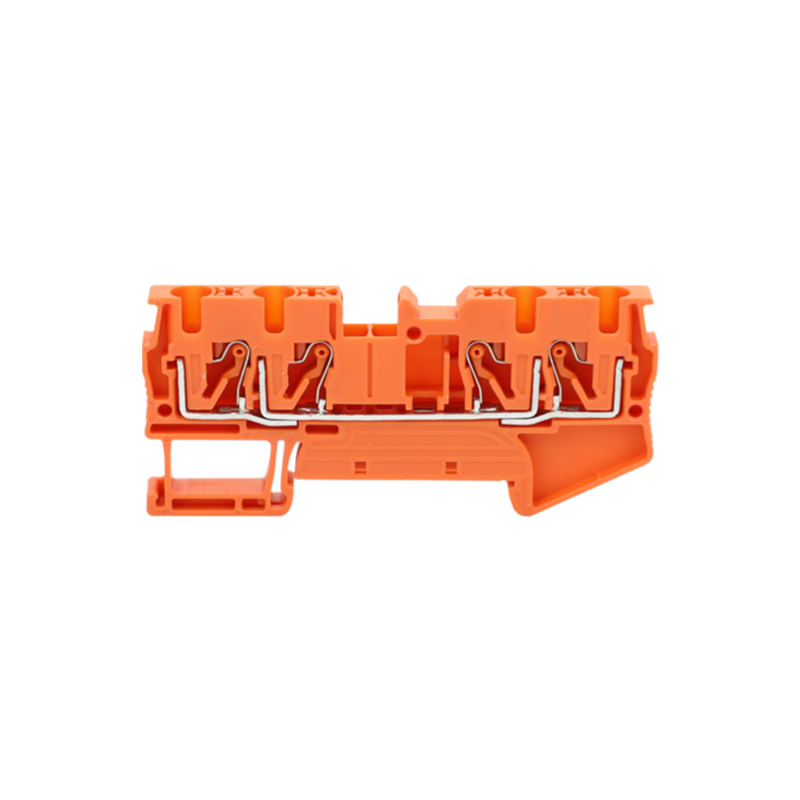

We typically have stock in both grey and blue, roughly 500-box batches or so, and custom colors take about 20 days—though custom orders usually have a MOQ of 200 boxes, so just give us a heads-up if you need something different from the standard grey.
Also, the operating range form -40°C to +120°C means it'll handle outdoor cabinets in cold climates fine, but I'd still avoid direct sunlight exposure if the panel isn't sealed—adhesive label degradation on the block itself has been an issue for a couple of clients who skipped UV-resistant enclosures, so just something to keep in mind.
We don't have a strict MOQ for stock colors like grey and blue. You can order single boxes of 50 pieces, but custom colors may require a higher volume.
Stock items usually ship within 3-5 working days. If you need custom colors or larger volumes, lead time is around 10-15 days.
Yes, it's CE, RoHS, CQC, and ISO 9001 certified, and meets IEC 60947-7-1 safety standards. We can provide certificates with your order on request.
Absolutely, it handles solid wire from 24 AWG up to 10 AWG, so 24 AWG is well within spec. Just make sure the wire is stripped properly for a good push-in connection.
Keep them in their original boxes in a dry place at room temperature. Since they're nylon PA66, avoid prolonged exposure to direct sunlight or high humidity to prevent degradation.
