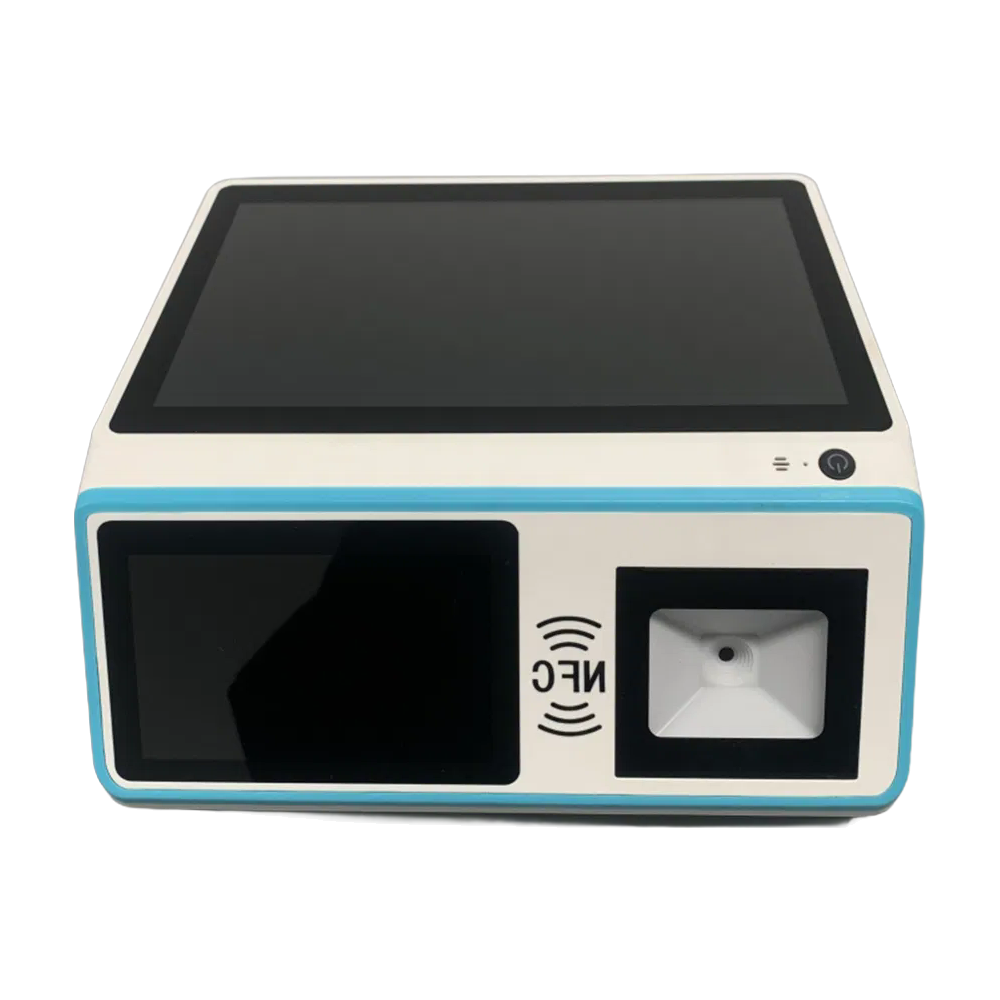

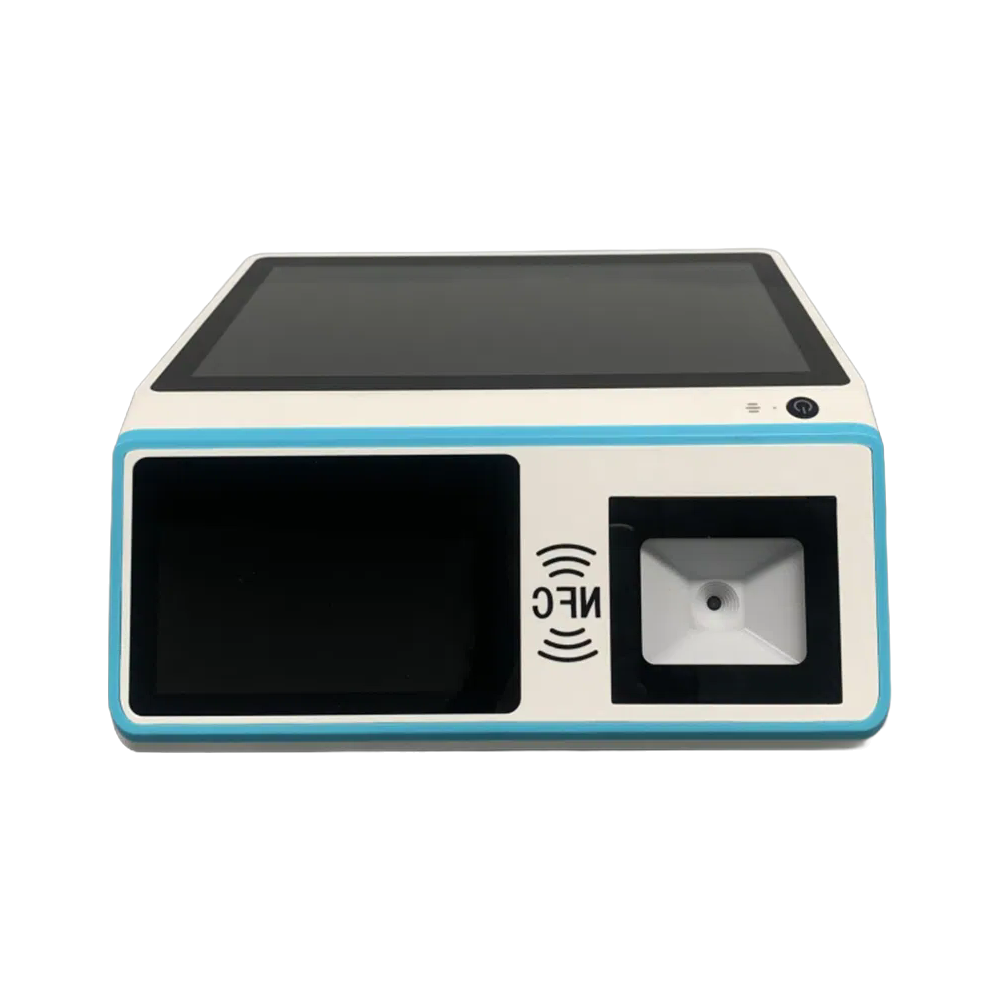

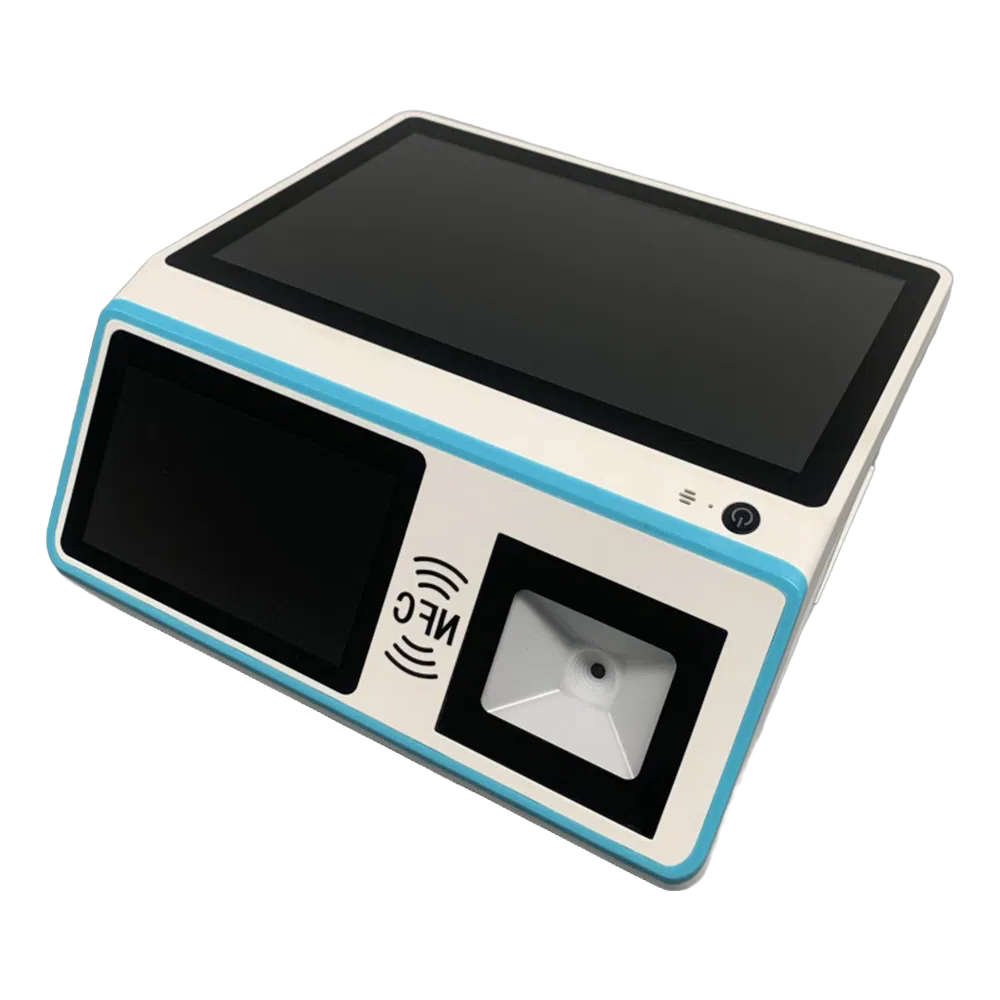

The FH100-A3-D model is a robust 10-inch desktop Android POS terminal designed for efficient retail and restaurant operations. It incorporates a quad-core RK3288 CPU running at up to 1.8GHz, ensuring smooth performance for transaction processing and multitasking. The device runs on Android 7.1 or 11 with a Linux kernel 4.4, providing a stable and user-friendly interface for both employees and customers.
Equipped with a 10-inch IPS LCD display offering 1280x800 resolution and multi-touch capability, this terminal supports full perspective viewing with G+G technology. It includes a secondary 5-inch IPS TFT LCD customer screen with 800x480 resolution, ideal for displaying transaction details or promotional content. The built-in thermal printer supports widths of 58mm and speeds of 70mm/s, accommodating up to 46 languages and graphics printing.

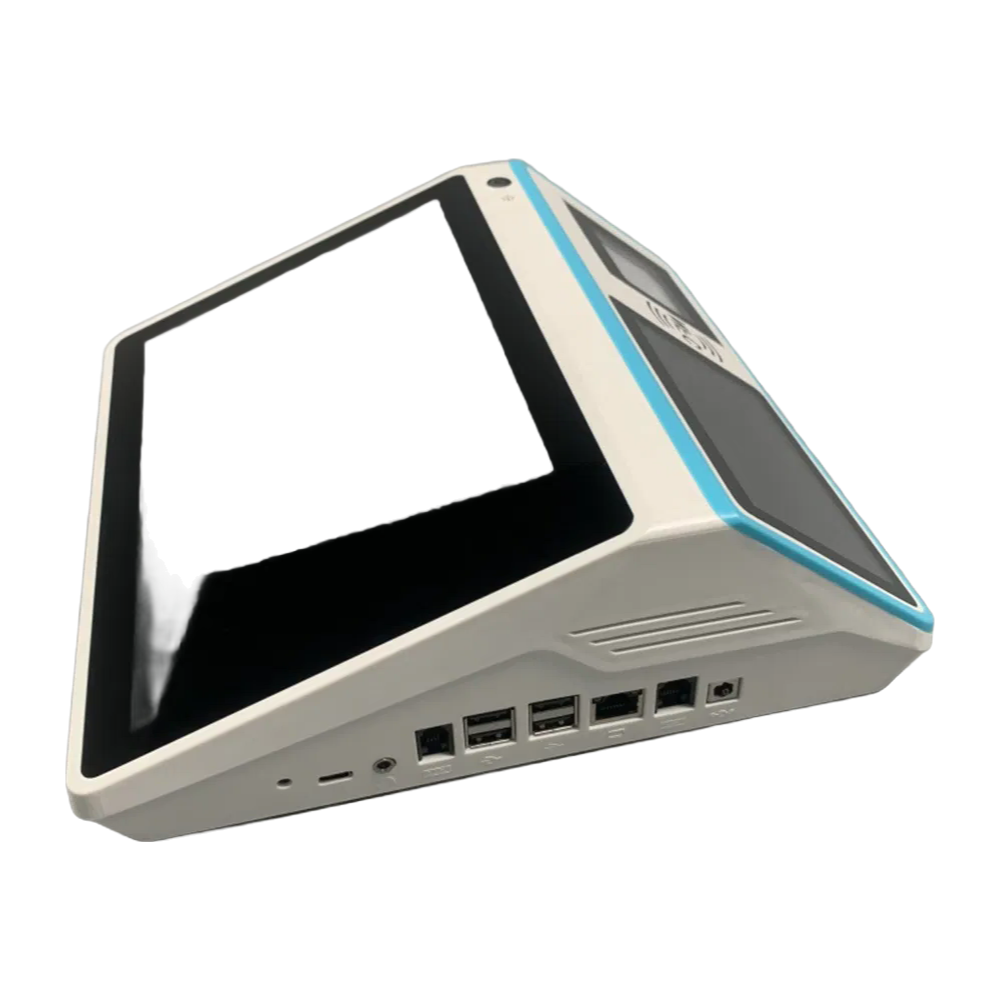

For connectivity, the POS terminal features multiple ports including four USB host ports, one Type-C USB, RJ11, RJ12, and Ethernet 10M/100M. It supports IEEE 802.11b/g/n/d/e/h/i WiFi with enterprise-level security (WPA/WPA2 certification) and Bluetooth 2.1/3.0/4.0 dual mode. Optional NFC functionality is available for ISO/IEC 14443A&B&C, 15693, MIFARE, and Sony FeliCa card reading. An embedded barcode scanner module supports 1D and 2D code scanning, enhancing inventory and sales management.
Storage options include 8GB EMMC5.0 and 2GB DDR3 RAM, expandable via a Micro SD slot supporting up to 32GB. The device supports video hardware decoding for HD1080p and various compression formats like MPEG-2/4, H.263/4, Divx, VC1, and RV10. Audio features include a built-in 1.5W speaker for clear playback. Power is supplied through an 8.4V 4800mAh battery, with an adapter input of 100V~240VAC and output of 12VDC, 3A.
Operating in temperatures from 0°C to 40°C and storage conditions from -20°C to 70°C, this terminal is built for reliability in diverse environments. It measures 250mm x 257mm x 87mm and weighs 1.7kg, making it compact yet durable for countertop use. Applications span casual and fine dining restaurants, grocery stores, supermarkets, apparel stores, parking, and gas stations, offering versatility for various business needs.
This product is available for OEM and ODM customization, allowing adjustments to features like the printer, scanner, or secondary screen based on specific project requirements. It holds CE and FCC certifications, ensuring compliance with international standards. The device is ideal for businesses seeking a scalable and efficient POS solution with advanced functionality.
