This is for the production supervisor who's been fighting with brass fittings that seize up or leak after a few cycles, we see that all time and what these do is replace the headache with a quick push-and-click action for compressed air lines, just make sure you're using it with polyurethane, PE, or Nylon tubing because of that it won't hold on softer stuff like silicone.
Working temp is 0 to 60°C so don't try to push steam or hot fluids through it, and the presure range sits at 0-150 PSI or 8 bar which covers most pneumatic manifold systems, but the negative pressure capability down to -29.5 in Hg is actually the detail some people overlook when they're building vacuum pick-and-place setups.

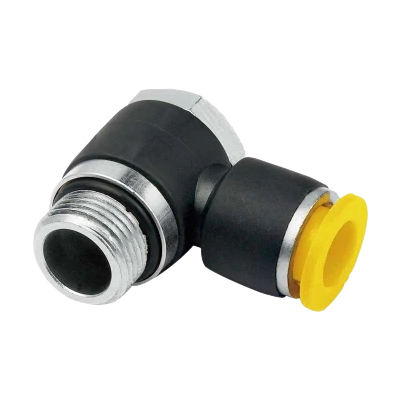

Threads come pre-coated with either an O-ring or Teflon sealant (check the specific model you're ordering) so you don't need to mess with PTFE tape or thread lock compounds, and the body has a rotating structure on the PL and PT types—that little swivel feature makes a big difference when you're routing lines in tight control cabinet spaces.
We've got over 60 size options covering metric, imperial, and some hybrid dimensions, but the most commonly ordered ones are the 4mm, 6mm, and 8mm tube diameters, and the nickel-plated brass insert is fine for food-grade applications as long as you confirm no lubricant residue gets into the product stream—this is strictly an air fitting, not for liquid transfer.
You'll get standdard indutrial packaging, basically a bulk box with individually sealed poly bags for each fitting, and typically we ship with a COA and a brief spec card though that varies by region so confirm what paperwork you need before ordering, lead time is usually about 20 days or so from order date.
MOQ varies by model and size, but for standard plastic types, it's typically 500 pieces. For nickel-plated brass variants, we can go as low as 200 if they're in stock.
Yes, we can provide both CE and ISO certificates with your shipment. Just let us know in advance so we include the paperwork.
They're designed for polyurethane, PE, and nylon tubing only. Rubber tubing won't seal properly in the one-touch mechanism, so we don't recommend it.
For a mixed batch covering metric, imperial, and hybrid sizes, lead time is usually 15-20 working days after order confirmation. Stock items ship within 3-5 days.
They come in standard industrial packaging — bulk poly bags or small boxes depending on the model. We can also do custom labeling or barcode tags if needed, just specify.
