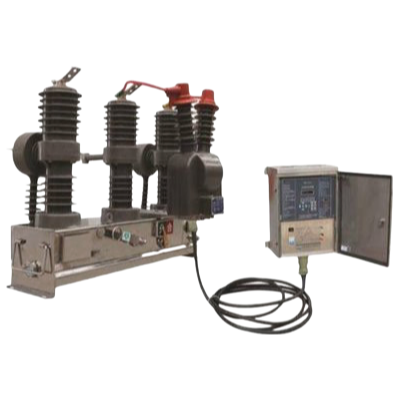

You're looking at a 12kV outdoor switching solution that handles 630A continuous current and can interrupt up to 20kA fault current — that's enough for most distribution feeder protection in medium-voltage networks. We've seen these installed in rural substations, industrial parks, and wind farm collector circuits where the ambient temperature swings from -30°C to +40°C without issues.
The vacuum interrupter is the core of it, giving you that clean arc extinction at contact separation with no oil or SF6 to manage, and the spring mechanism is what actually stores the energy for closing and tripping. Mechanical life is rated at 10,000 operations, electrcial life at 5,000 under full load — but in practice, most buyers find the vacuum bottles last well beyond that if you're not switching fault currents every week. Insulation holds at 42kV power frequency and 75kV lightning impulse, though the 'F' variant pushes that to 48kV and 85kV respectively for higher altitude installations.
One thing we usually note is that while the 20kA breaking capacty handles standard faults, this breaker isn't suited for generator circuits or applications where you'd expect symmetrical currents above that threshold — you'd step up to the 25kA or 31.5kA frame for those. The operating tempearture range means it works fine in most climates, but if you're above 2000m elevation, derating applies, and our company can't guarantee performence past that without a site review.
Each unit ships with a COA from our ISO9001 line, and we've had CE and CB certification for the whole series, so you're covered for European and most Asian grid compliance. Weight comes in at about 90kg, which is manageable for a two-person lift with the right spreader bar — the compact profile (roughly 700mm wide) makes it fit into standard RMU cubicles or outdoor enclosures without rework.
Lead time is typically 20 days or so from order confirmation, but if you need the 'G' variant (which adds a galvanized steel enclosure for coastal environments), add another week. The 20kA variant is what most utilities specify, but we also stock the 16kA option for lighter duty — just check your system's short-circuit capacity before ordering. We'll include the spring mechanism manual and typical wiring diagrams, and the operating handle comes standard in the box.
The base model is ZW43-12/630. The 'F' version typically includes a built-in isolating switch for added safety, and the 'G' version is designed for higher altitude applications or more demanding environments. All share the same 12kV, 630A ratings and breaking capacity options.
Yes, the ZW43-12F/630 is rated for 20kA breaking capacity. When set to 20kA breaking, the making capacity is 50kA. For the 16kA breaking option, making capacity is 40kA.
It comes with ISO9001, CE, CB, and CCC certifications. We can provide the corresponding test reports and certificates upon request with your order.
MOQ is generally 1 piece for stock models. Lead time is around 15-25 working days, depending on the quantity and if you need the F or G variant.
Yes, it's rated for -30°C to +40°C operating temperature. The spring mechanism and vacuum interrupter perform reliably in those conditions. Just ensure proper insulation and heater options if condensation is a concern.
