Professional Hydraulic Ferrule Manufacturer - SAE100R1AT & EN853 Compatible Hose Fittings

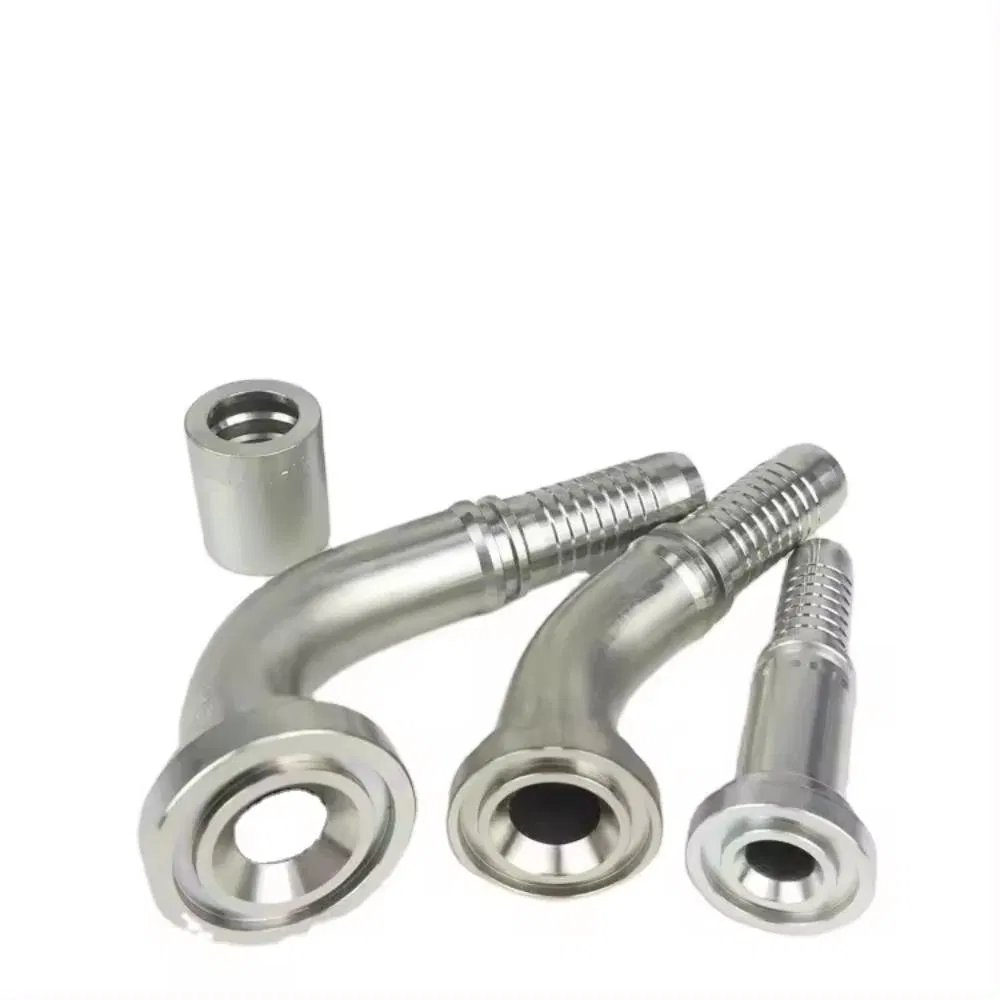

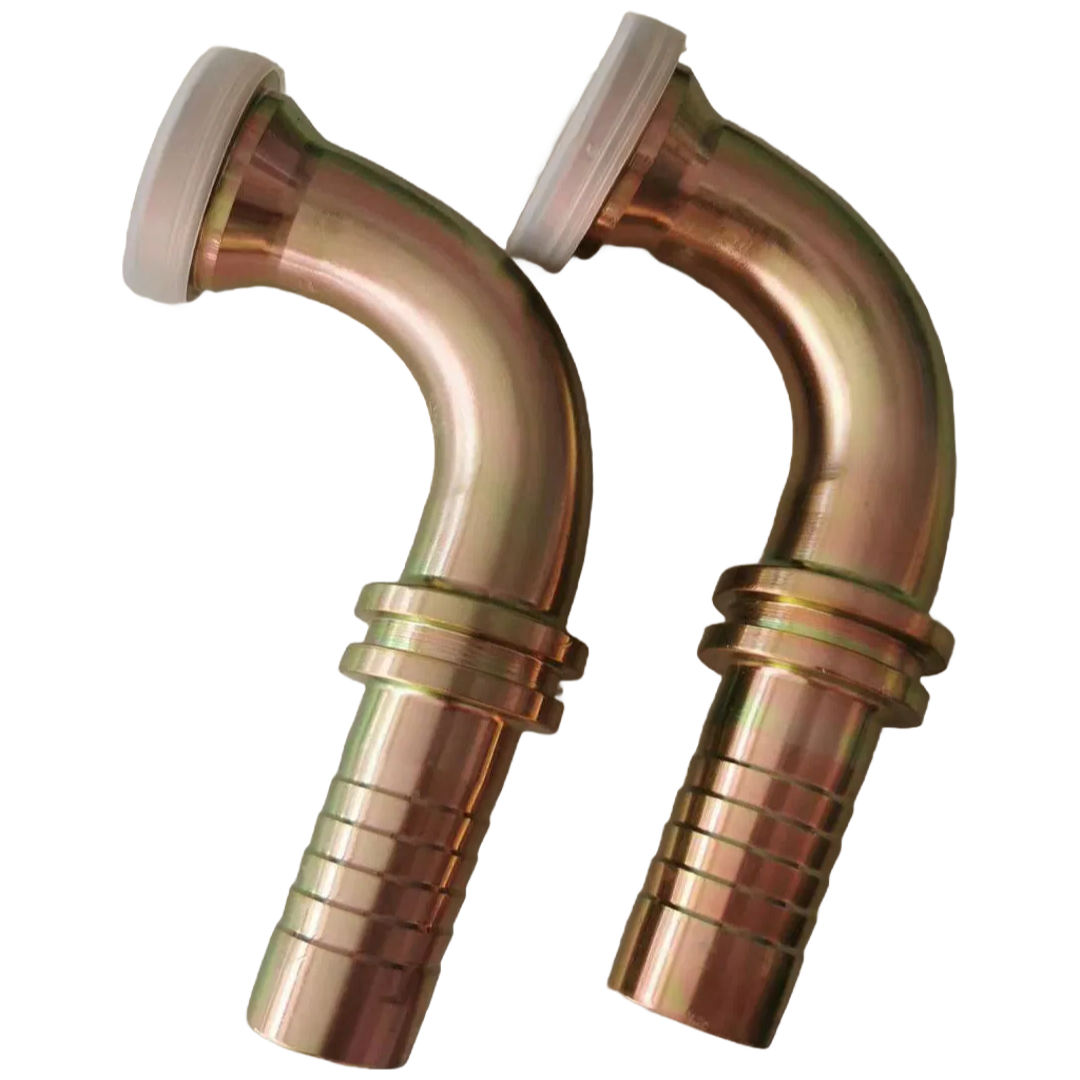

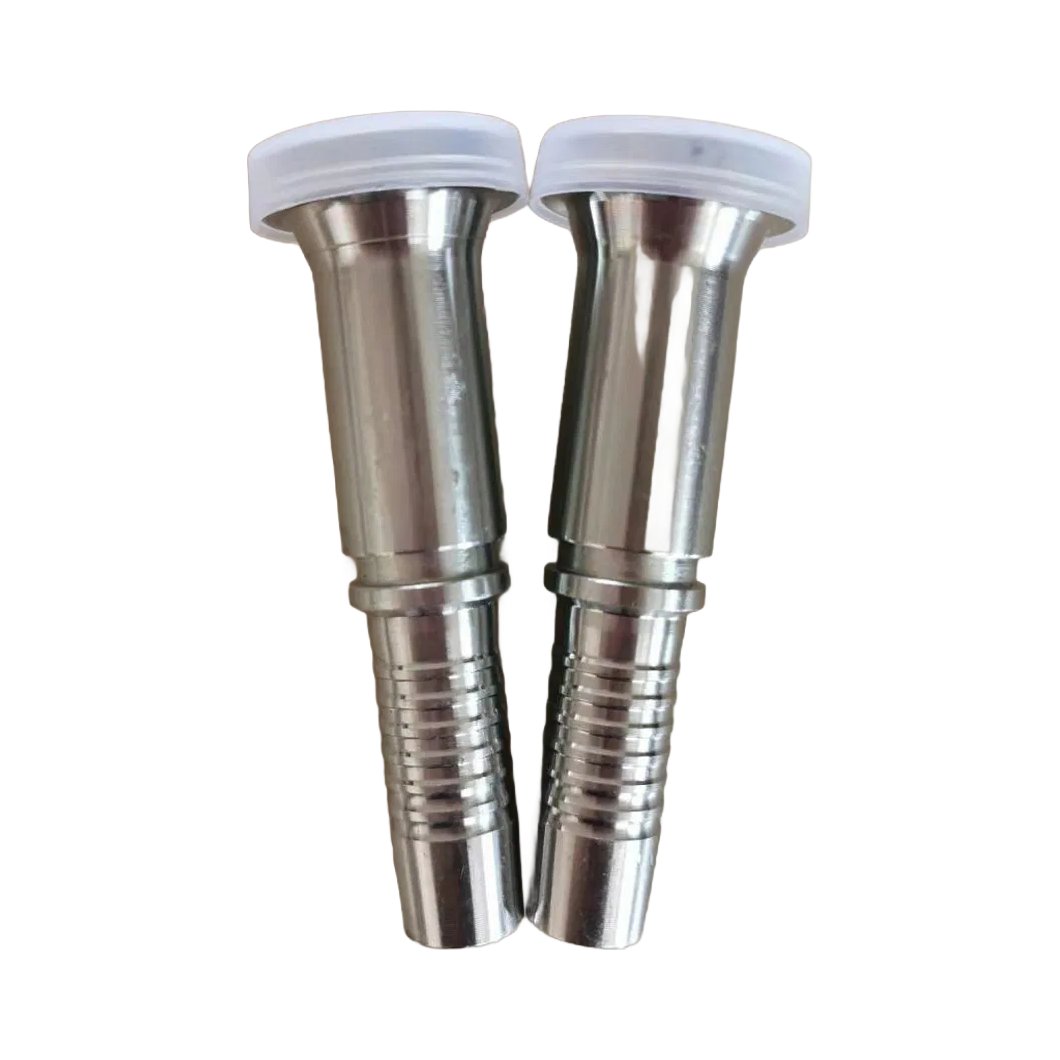

We're talking about the connection points where hydraulic hoses meet the rest of the system, and these are machined from medium carbon steel for a reason—it handles the cyclic loads without cracking. They come as male or female, straight or elbow, and the head style is either hexagon or round depending on your tooling clearance. The surface treatment is galvanized or zinc plated, which gives you that silver or yellow finish, and that's your primary defense against corrosion in a wet or dirty environment.

You'll find these in industrial machinery, automotive assembly lines, and aerospace ground support equipment, typically where you're running SAE100R1AT or EN853 1SN hose. The crimping method is the standard for permanent assemblies, but threaded connections are there for when you need to break the line for maintenance. 1/4" to 2" covers most mobile equipment and plant hydraulics, though we usually stock the mid-range sizes better than the extremes.

Pressure rating tops out at 6000 PSI, but that's for the 1/4" size—the larger diameters drop off significantly, and you'll want to check the derating curve for your specific applicaion. Tempearture range is -20°C to +120°C, so it's not suited for high-heat systems like steam or near molten metal. Thread standard cover metric, BSP, NPT, and SAE, so pretty much any port you encounter in the field has a match. Teh seal type—O-ring, flat seal, or cone seal—depends on which thread standdard you're using; mixing them usually leads to leaks.

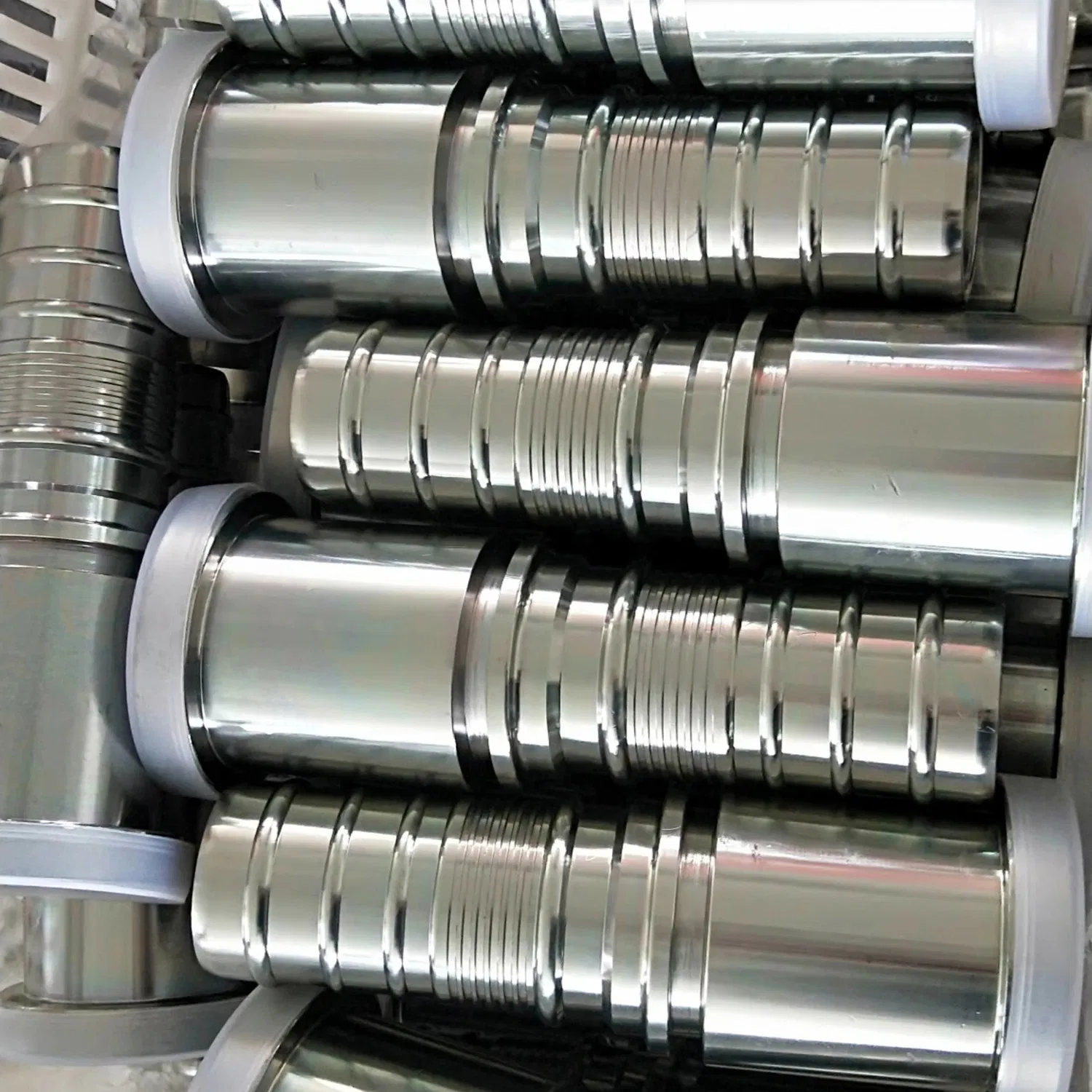

For ferrule side, we've got the dimnesions dialed in to match the hose wire braid exactly, which is something import fittings often get wrong—too loose and you get blow-offs, too tight and you crush the tube. The carbon steel has a consistent hardness that crimps without work-hardening, and we keep the hex height within ±0.5mm of spec. Honestly, most buyers go with the zinc-plated option for the price, but the galv is better if you're in a salt-spray environment.

One concrete thing: the crimp die number for the 1/2" ferrule is usually a size 16 die on most common machines, but confirm that because some European spec hoses have a slightly different OD. We're ISO 9001 certified, so every batch gets an actual COA—not just a generic one—but lead time varies; we do about 3000 units per day on the popular sizes, so stock is usually fine unless you need a non-standard thread. And if you're doing aerospace, the JIC 74° cone is what you want for the flare seal, not the O-ring.
