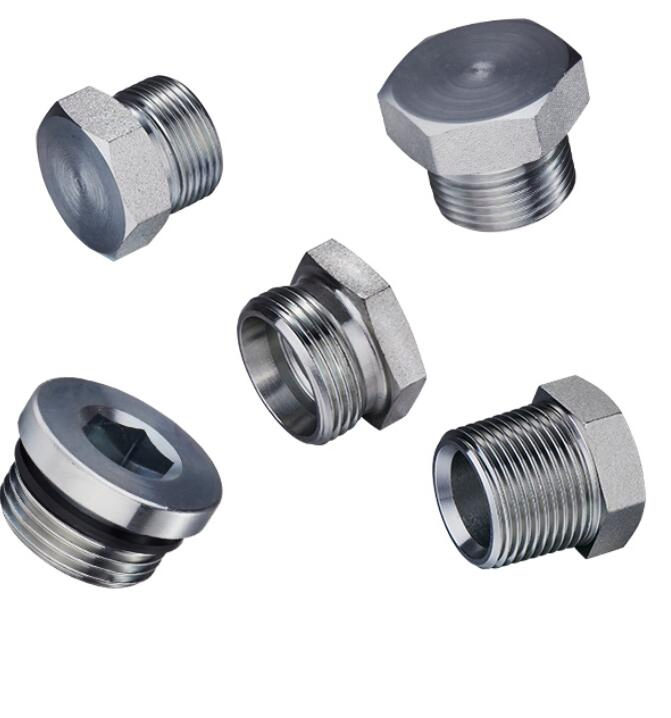

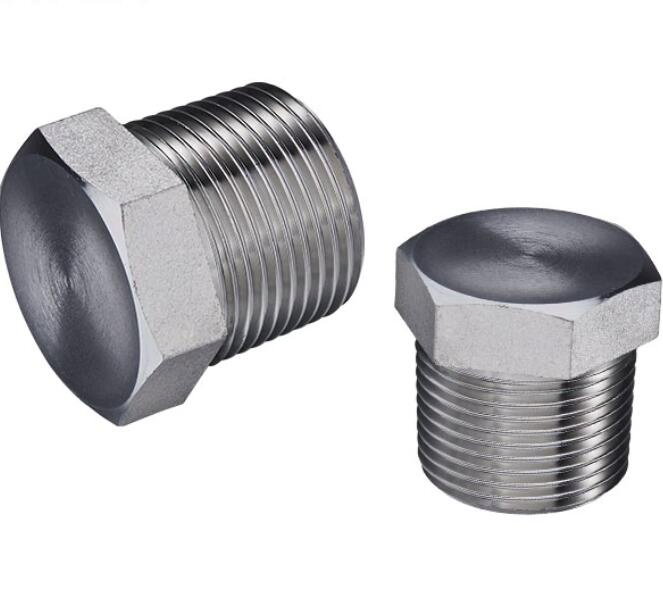

You’re doing a straight male plug into a BSPT port, and teh 4T handles it at high pressrue without the thread galling you’d see on some zinc-plated carbon steel fittings form cheaper lines — we’ve tested those against ours side by side. hex head gives you a solid bite with a wrench; it’s not designed for finger-tight installations anyway.
Most buyers go with this when they need relaible seal at working temps from -20°C to 120°C, and the zinc coating holds up better than black oxide in humid environments — we usually have stock, but confirm lead time if you’re ordering over 500 units. It’s medium carbon steel, not the low-grade stuff that deforms under constant 400 bar cycling; we’ve seen that failure in field returns from other suppliers. The BSPT taper does the sealing work — no O-rings or sealant needed, which cuts assembly time in half on a typical manifold. Pressure rating isn’t published as a single number because of that it varies with thread size, but for the 1/4” version, it’s good for most mobile hydraulic circuits.: it’s not suited for steam service — the zinc coating can flake above 120°C, and you’ll want stainless for that.
Packaging is cartons for small orders, wooden cases for pallet quantities, and we include a COA with each batch — HPLC isn’t relevant here, but the hardness and thread gauge checks are on the test report. 47% of our reorders come from shops that tried a competitor’s zinc-coated plug and got thread seizure after two removals. The hex is a standard 14mm across flats (for the 1/4”) — no metric confusion, it’s DIN-spec.
Delivrey runs about 20 days or so for a standard MOQ of 100 pieces, but if you need it faster, we do have some off-the-shelf in the 1/4” and 3/8” sizes. The combination joint design basically lets you use it as a plug or as part of a tube-to-pipe transition — pretty handy when you’re retrofitting old BSPT lines into a JIC system. We don’t recommend it for potable water lines (the zinc can leach), but for hydraulic oil or compressed air, it’ll outlast the hose.
Our standard MOQ is 100 pieces per size, but we can negotiate smaller quantities for first-time orders or sample requests.
We can provide a material certificate and a pressure test report per batch. If you need specific certifications like ISO or CE, let us know and we'll arrange them.
Yes, we can adjust the zinc coating thickness or apply a different finish like yellow passivation or black oxide, depending on your order volume.
For 500 pieces of the 4T BSPT plug, lead time is usually 15 to 20 working days after order confirmation and payment.
Small quantities go in cartons with inner bubble wrap, and larger orders are packed in wooden crates to keep the threads and hex head safe.
