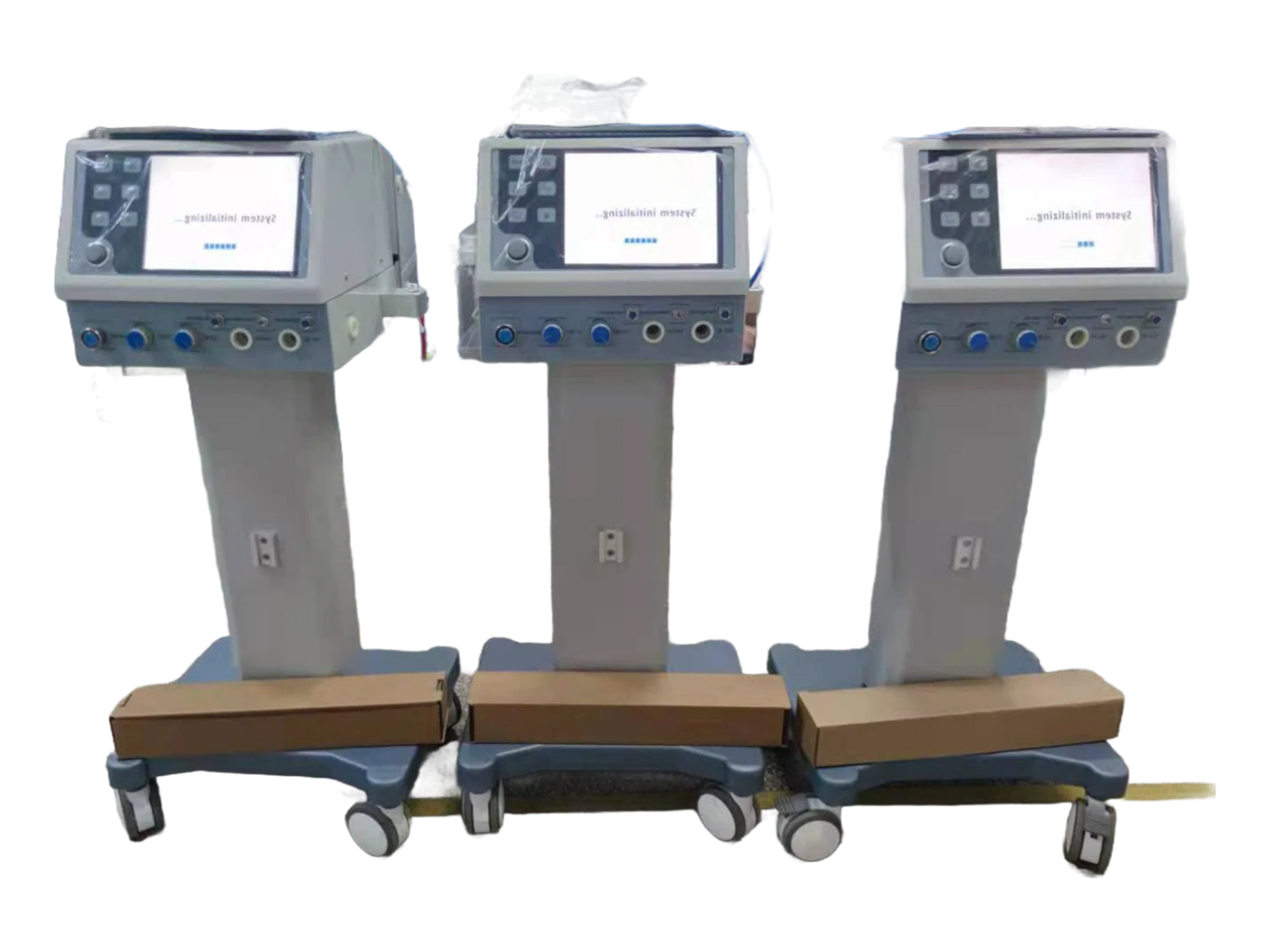

The PA-700B ICU Medical Ventilator is a pneumatically driven, electronically controlled breathing apparatus designed for critical care applications. This ventilator features precise construction with an environmentally friendly frame and elegant design, making it suitable for hospital ICU and emergency department use.
This medical ventilator offers multiple operating modes including pneumatically driven & electronically controlled closed, semi-closed and semi-open systems. It is equipped with a built-in 10.4 inch high visibility color TFT display that simultaneously shows Pressure-Time and Frequency-Time waveforms in real time for comprehensive patient monitoring.
The PA-700B ventilator includes advanced features such as sigh function (1-8 sigh breaths per 100 breaths), infrared turbine flow sensor for precise gas measurement, and 9-level adjustable humidifier. It automatically converts to standby mode during AC power outages with backup power support for at least 4 hours.
Safety features include comprehensive alarms for ventilation volume, tidal volume, oxygen concentration, asphyxia, airway pressure, intubation disconnection, low oxygen, and power failure. The system also maintains an alarm history log for review.
This medical ventilator is suitable for adult, child and infant patients with adjustable tidal volume from 50-1500ml and respiratory rate from 1-99bpm. The I:E ratio can be adjusted from 4:1 to 1:4 to meet various clinical requirements.
The PA-700B ventilator maintains maximum safe operating pressure below 6.0kPa and features adjustable PEEP from 0-10cmH2O. Oxygen concentration can be precisely controlled from 45-100% to meet different therapeutic needs.
This equipment is designed for professional medical use in hospital ICUs, emergency departments and critical care units. The ventilator meets strict medical standards for performance and safety in respiratory support applications.
